| Technical Specifications | |
|---|---|
| Light Source & Photometric Data | |
| Light Source | 600W LED engine (20,000 hours rated life) |
| Color Temperature Output | 6,200K |
| Total Lumen Output | Super Power Mode: 22,000 lm Auto Mode: 18,100 lm Quiet Mode: 14,000 lm |
| Color Rendering | Ra ≥ 90 |
| Optical System, Pan & Tilt | |
| Zoom Range | 11° – 42° |
| Front Lens Diameter | 150 mm |
| Pan & Tilt Movement | Pan: 540° | Tilt: 270° 16-bit resolution, power cycle position holding function, free moving mode for motion stabilization |
| Colors, Framing & Effects | |
| Color Correction & Wheel | Linear CTO (2,700K – 6,200K) + 1 Color Wheel (6 colors + open) |
| Framing System | 4 shutter blades (independent movement & full blackout), ±60° complete framing system rotation |
| Frost, Strobe & Dimmer | 1 frost filter, variable speed strobe, smooth 0–100% dimming (4 selectable curves) |
| Control & Electrical | |
| Control Protocols & Channels | DMX512, RDM (1 mode: 25 Channels) |
| Display & Firmware | 4-touch button control panel with LCD display; firmware upgrade via DMX link or USB stick |
| Input Voltage & Power | 100–240 Vac, 50/60 Hz | Max Power Consumption: 865 W |
| Connectors | Power: Power connector in/out Data: 3-pin or 5-pin XLR, RJ45 connector |
| Physical, Packaging & Environment | |
| Fixture Dimensions & Weight | 376 x 236 x 592 mm (14.8″ x 9.3″ x 23.3″) | Weight: 22.0 kg (48.5 lbs) |
| Packaging Dimensions | Flight Case: 940 x 580 x 775 mm (37.0″ x 22.8″ x 30.5″) Carton: 510 x 485 x 675 mm (20.1″ x 19.1″ x 26.6″) | G.W.: 28.0 kg (61.7 lbs) (One-pack) |
| Acoustic Noise Level | Super Power Mode: 50 dB(A) @ 1 m Auto Mode: 41 dB(A) @ 1 m Quiet Mode: 35 dB(A) @ 1 m |
| Operating Environment | Ambient Temp: -10°C to 45°C | Max Surface Temp: 70°C Protection Rating: IP20 |
| Approvals | CE compliant, UKCA compliant |

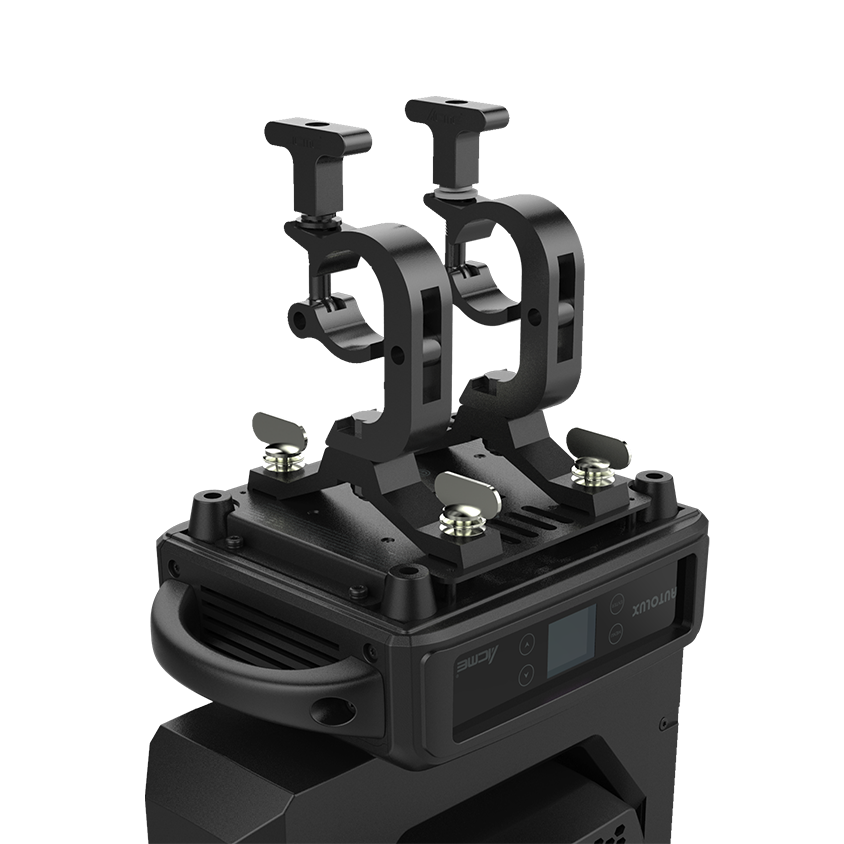

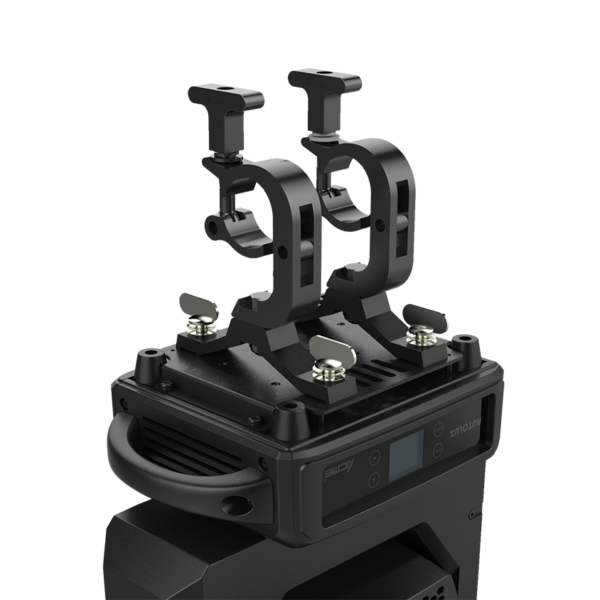

| Installation & Mounts | Universal working position (2x omega brackets [3002000288-B] & safety cable attachment point included) |
