| Technical Specifications | |
|---|---|
| Light Source & Photometric Data | |
| Light Source | 7 x 15W RGBW LED (20,000 hours rated life) |
| Total Lumen Output | 2,128 lm |
| Optical System | |
| Beam & Field Angles | Beam Angle: 6° Field Angle: 11° |
| Colors & Performance Features | |
| Color Mixing & Strobe | Excellent RGBW color mixing, variable speed strobe effect |

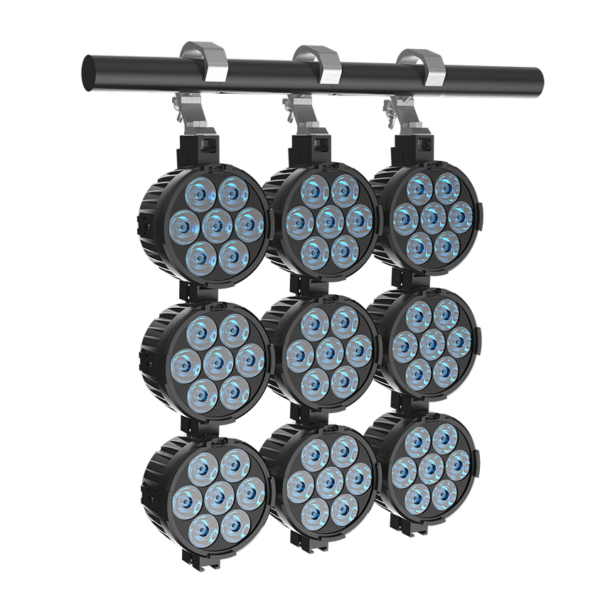

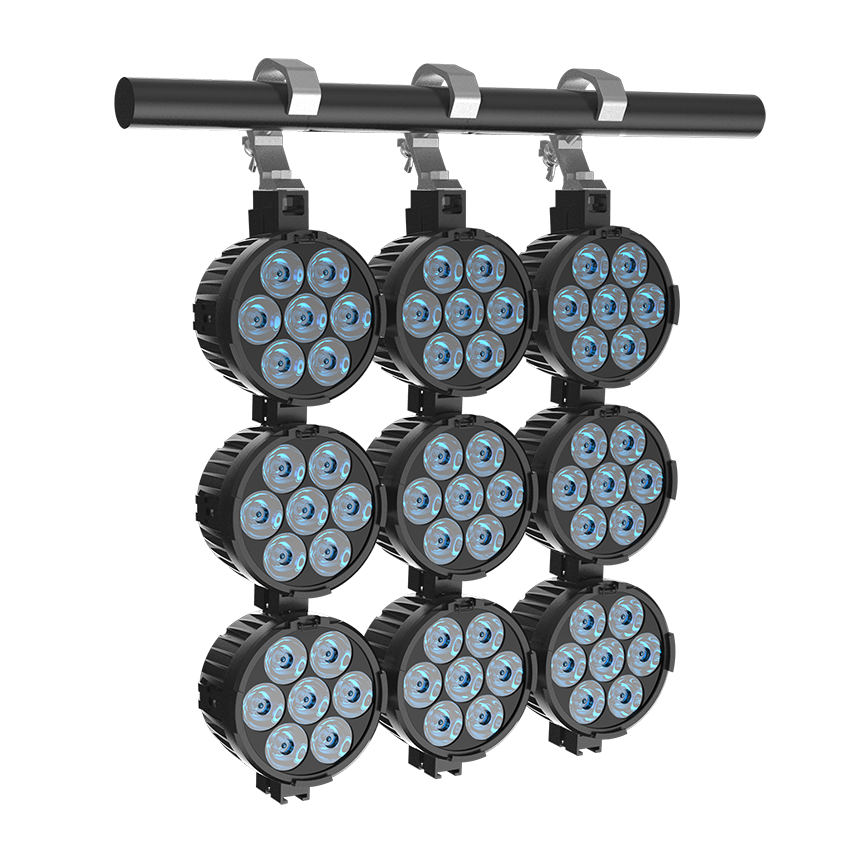

| Dimming & Design | Smooth 0–100% dimming (4 user-selectable dimming curves) Compact and robust body with tool-free junction buckle design for multi-unit split-jointing |
| Optional Accessories | Optional color filter frame |
| Control & Electrical | |
| Control Protocols & Channels | DMX512, RDM (4 DMX modes: 4 / 5 / 8 / 10 Channels) |
| Display & Firmware | 4-touch button control panel with OLED display; firmware upgrade via DMX link |
| Input Voltage & Power | 100–240 Vac, 50/60 Hz | Power Consumption: 55 W |

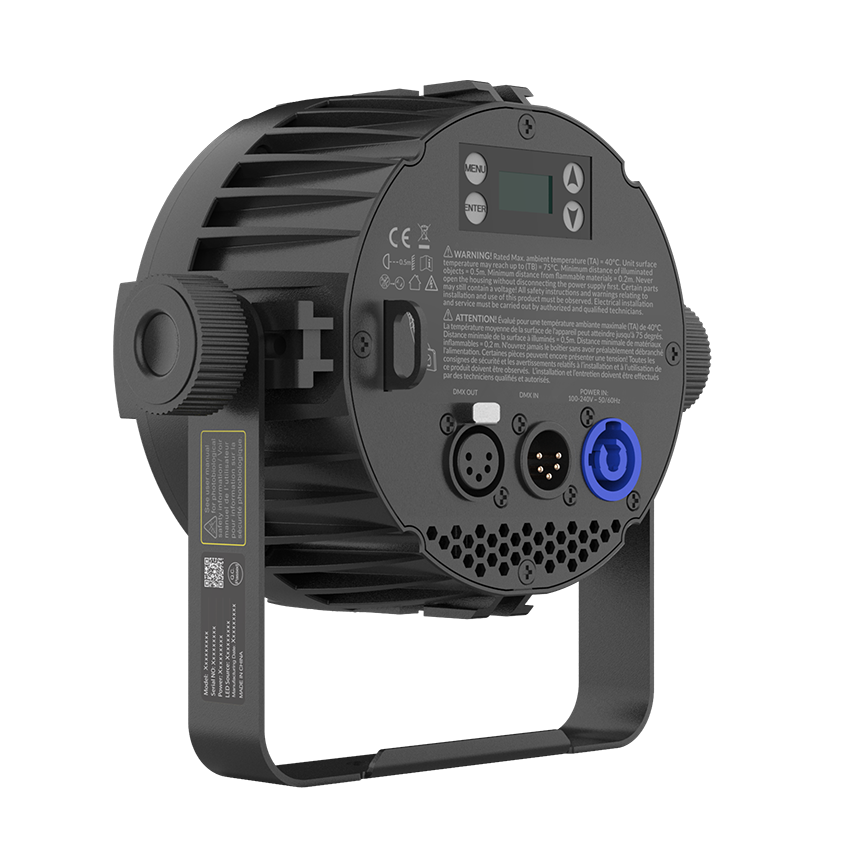

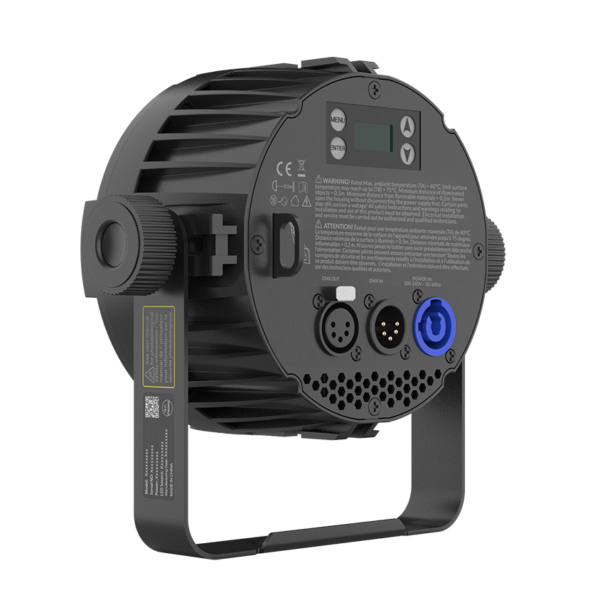

| Connectors | Power: Power connector in Data: 3-pin or 5-pin XLR |
| Physical, Packaging & Environment | |
| Fixture Dimensions & Weight | 197 x 206 x 104 mm (7.8″ x 8.1″ x 4.1″) | Weight: 1.6 kg (3.6 lbs) |
| Packaging Options | Carton (Eight-pack): 540 x 540 x 350 mm (21.3″ x 21.3″ x 13.8″) | G.W.: 18.7 kg (41.2 lbs) |
| Operating Environment | Ambient Temp: 0°C to 40°C | Max Surface Temp: 75°C Protection Rating: IP20 |
| Approvals | CE compliant |
| Installation & Included Items | Horizontal or vertical mounting, universal working position (feet support with locking points, safety cable attachment point, power cable, digital manual) |
