ACME TRUSSHUB U RDM/DMX splitter

The TRUSSHUB U (AN04T) from ACME is an RDM/DMX splitter/booster dedicated to RDM/DMX signal amplification. The unit has 1x RJ45 input, 1x RJ45 output and 4x DMX outputs, and is protected by shock-absorbing rubber edging on both sides. Available for 40mm, 50mm or 60mm diameter truss, it is suitable for applications in which the DMX-512 signal is weakened over long-distance transmission. The TRUSSHUB U, with its IP66 waterproof protection, works perfectly indoors or out, efficiently buffering and magnifying the DMX signal, ensuring the DMX data transmission is accurate and reliable.

分類: Acme Lighting, Acme Lighting

描述

Technical Specifications
Overview
Model Name / Code	TRUSSHUB U (Code: AN04T)
Control & Distribution

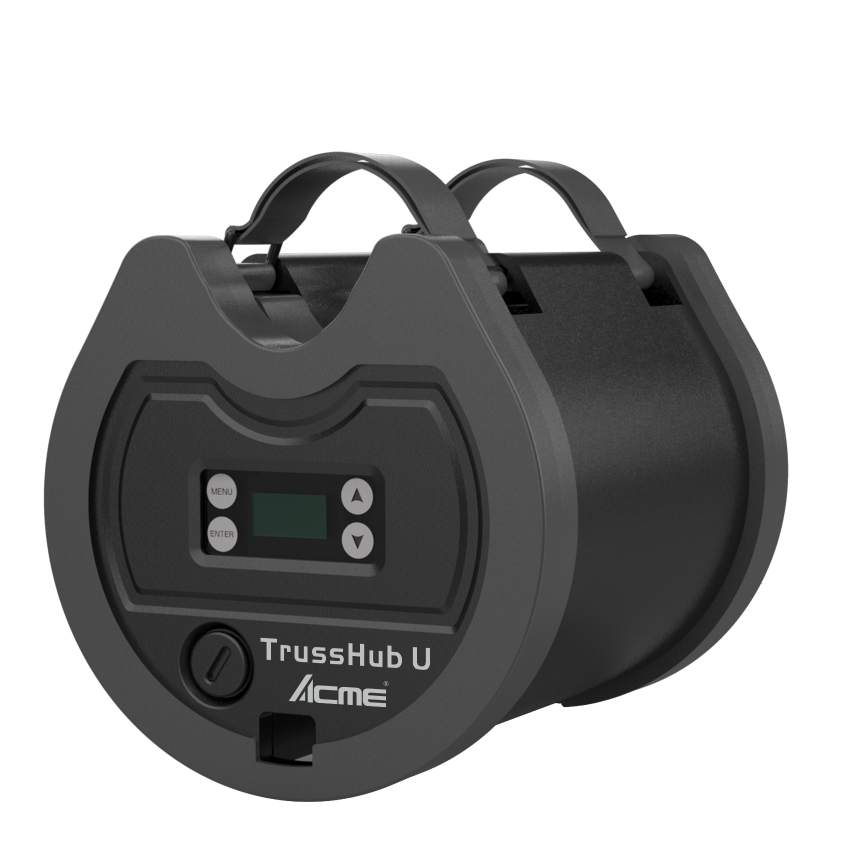

Display & Panel	4-touch button control panel, OLED display
Protocols & Firmware	DMX512, RDM, Art-Net, sACN Firmware upgrade via DMX link
Signal Splitter	Art-Net to DMX-512 (RDM) signal splitter
Electrical & Connectors
Input Voltage & Power	100–240 Vac, 50/60 Hz (electronic auto-ranging supply) Power Consumption: 5 W

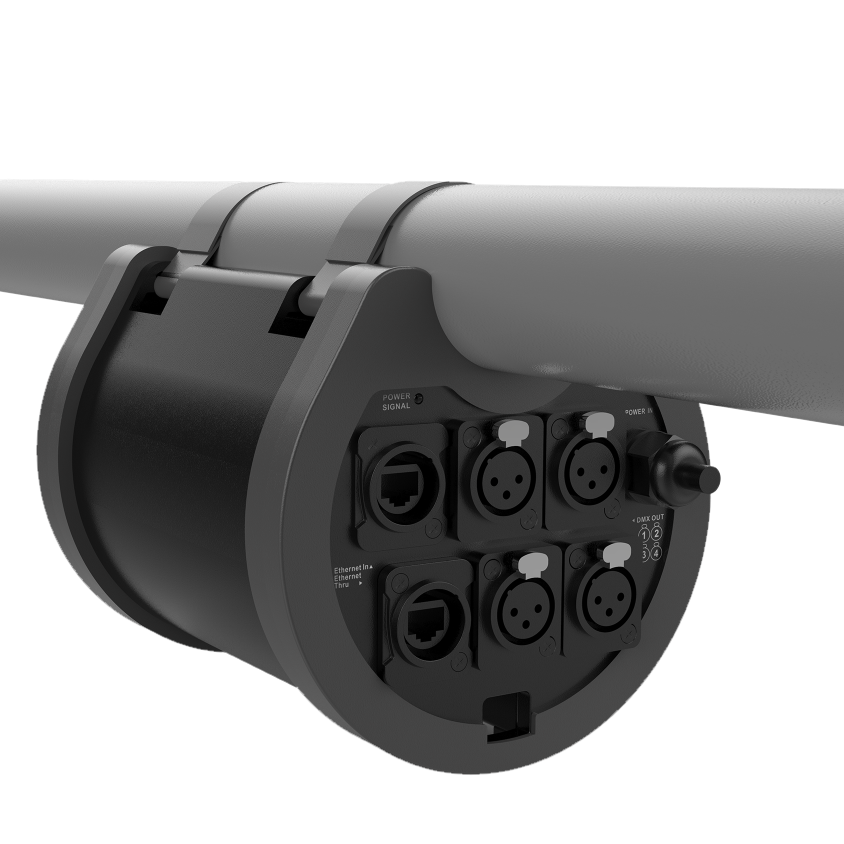

Connectors	Power: Power Cord out Data: 3-pin or 5-pin XLR, RJ45 connector
Physical, Packaging & Environment
Fixture Dimensions & Weight	145 x 173 x 142 mm (5.7″ x 6.8″ x 5.6″) Weight: 2.0 kg (4.3 lbs)
Packaging Options	Carton (Four-pack): 295 x 420 x 475 mm (11.6″ x 16.5″ x 18.7″) \| G.W.: 10.2 kg (22.5 lbs)
Operating Environment	Ambient Temp: -10°C to 40°C \| Max Surface Temp: 65°C Protection Rating: IP66
Approvals	CE compliant

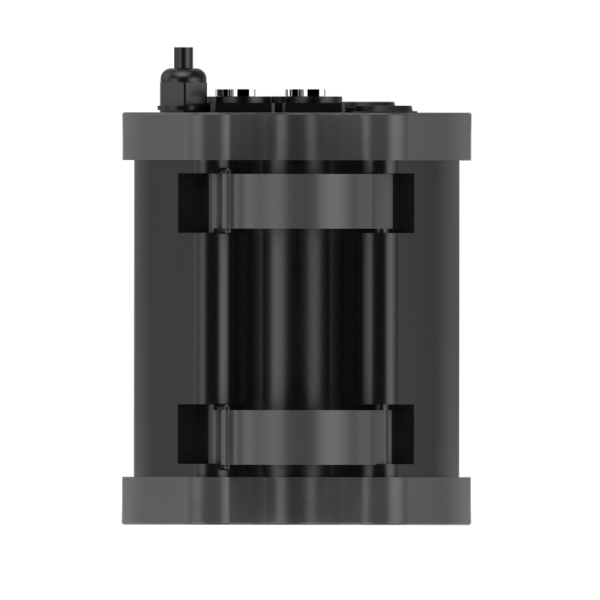

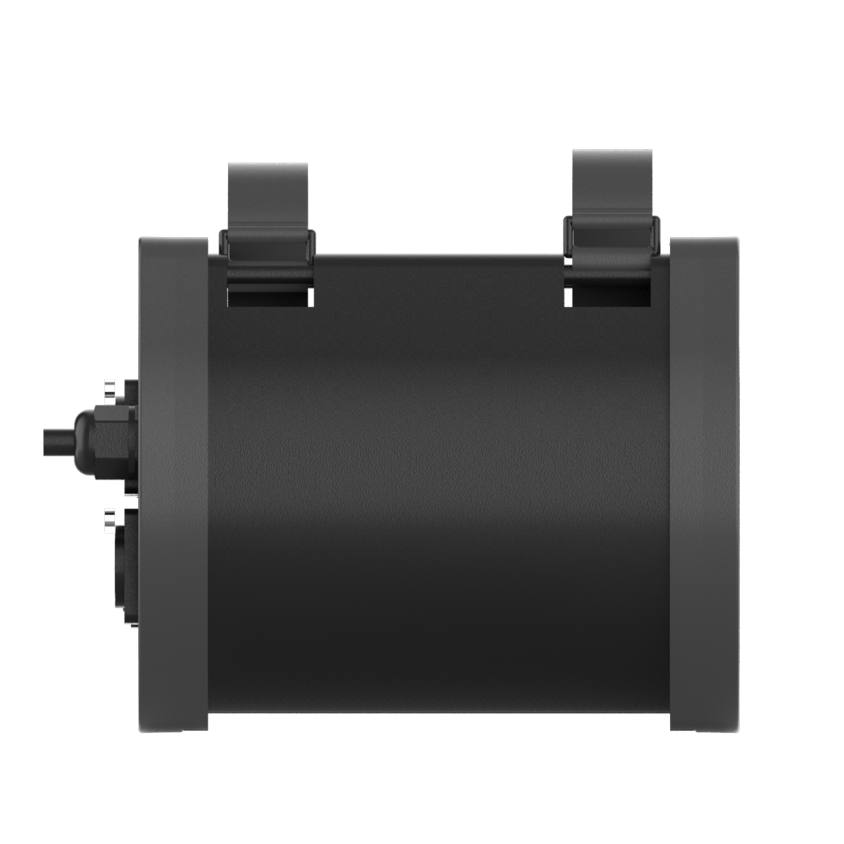

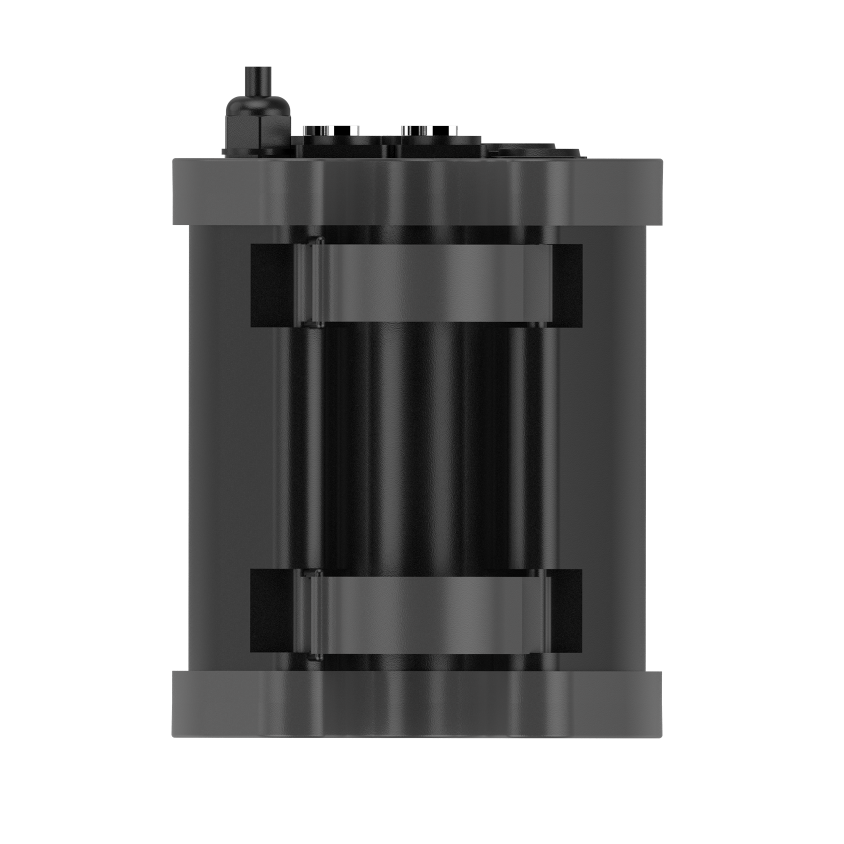

Installation & Rigging	Shock-absorbing design with rubber edging on both sides Includes two straps for secure truss attachment; available for 40 / 50 / 60 mm diameter truss Safety cable attachment point
Included Items	Digital user manual, power cable
