| Technical Specifications | |
|---|---|
| Light Source & Photometric Data | |
| Light Source | 240 x Warm White (WW) LED (20,000 hours rated life) |
| Color Temperature | 3,200K ± 150K |
| Color Rendering Performance | CRI ≥ 95 | CQS ≥ 94 | TLCI ≥ 95 |
| Optical System | |
| Beam & Field Angles | Beam Angle: 113° Field Angle: 156° |
| Performance Features | |
| Flicker Management | Flicker-free management for broadcast and video applications |
| Control & Electrical | |
| Control Protocols & Channels | DMX512, RDM, Art-Net (4 DMX modes: 1 / 2A / 2B / 3 Channels) |

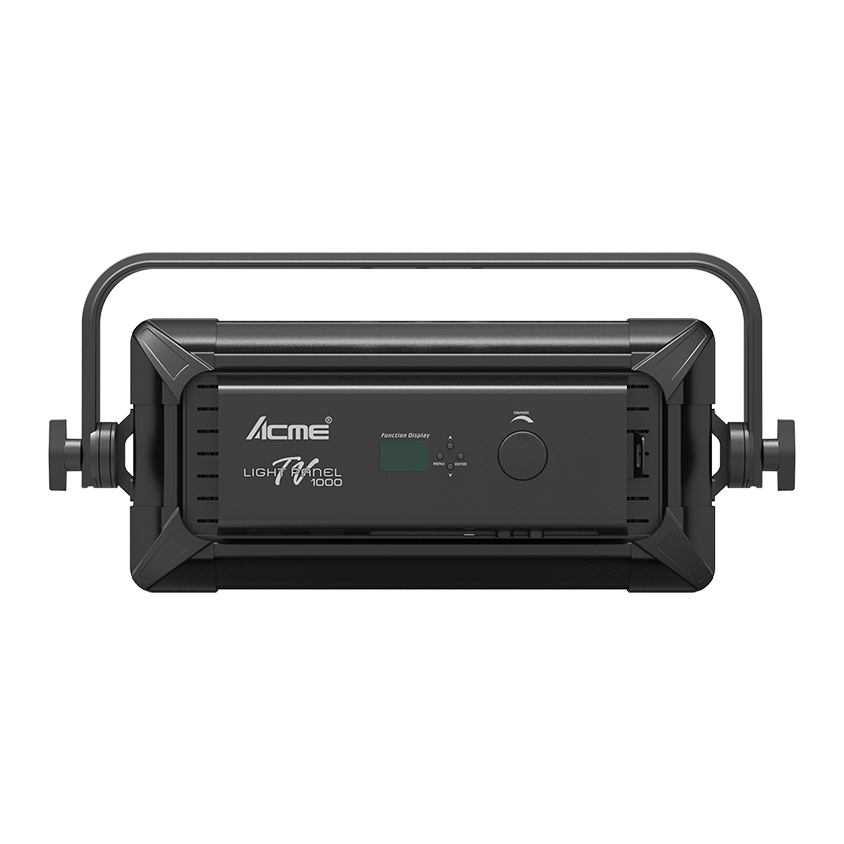

| Display, Knob & Firmware | 4-touch button control panel with LCD display, 1-knob control; firmware upgrade via DMX link |
| Input Voltage & Power | 100–240 Vac, 50/60 Hz (electronic auto-ranging) | Power Consumption: 100 W |
| Connectors | Power: Power connector in, 48V input from external battery Data: 3-pin or 5-pin XLR, RJ45 connector |
| Physical, Packaging & Environment | |
| Fixture Dimensions & Weight | 151 x 661 x 301 mm (5.9″ x 26.0″ x 11.8″) | Weight: 8.0 kg (17.6 lbs) |
| Operating Environment | Ambient Temp: 0°C to 40°C | Max Surface Temp: 65°C Protection Rating: IP20 |
| Approvals | CE compliant |

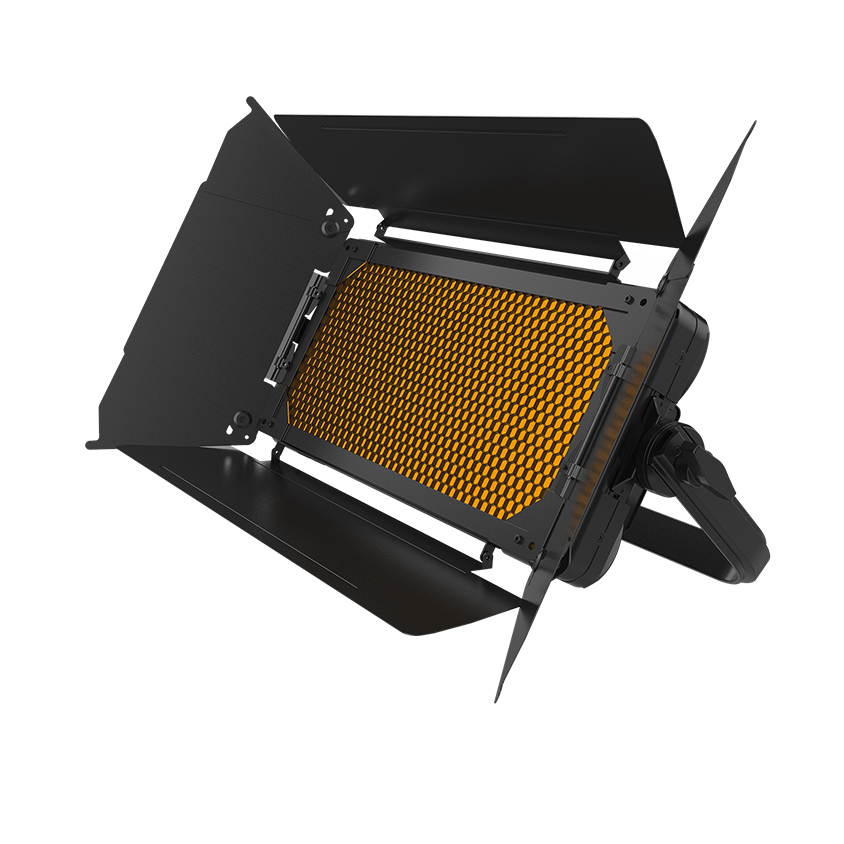

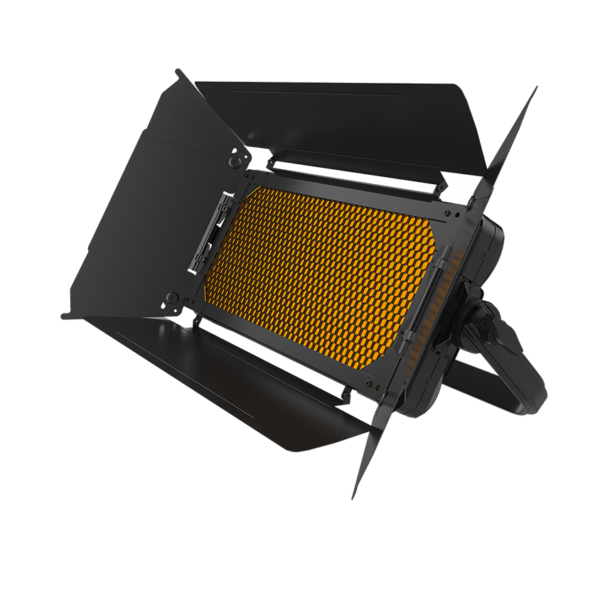

| Installation & Included Items | Horizontal or vertical mounting, universal working position (feet support with 3 locking points, safety cable point, barndoor, power cable, digital manual) |
