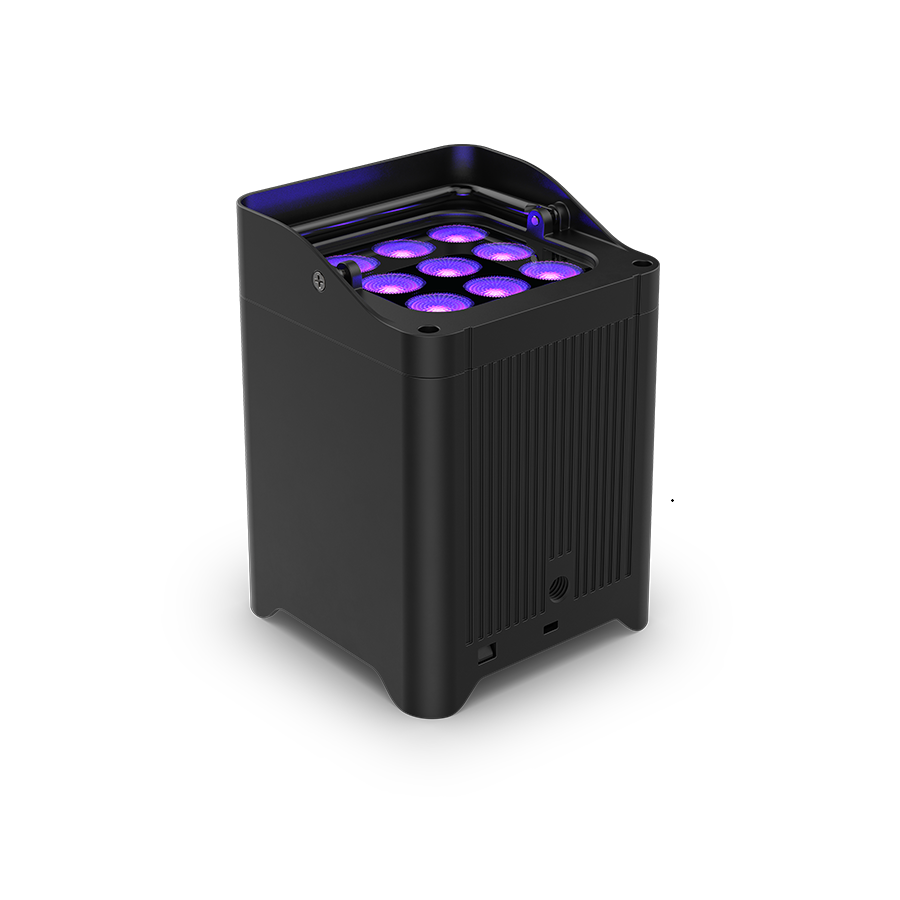

CHAUVET Freedom Flex H9 IP X6

100% TRUE wireless, battery-operated, uplight package with built-in D-Fi transceivers
Swappable battery packs ensure the fixture is always ready to go

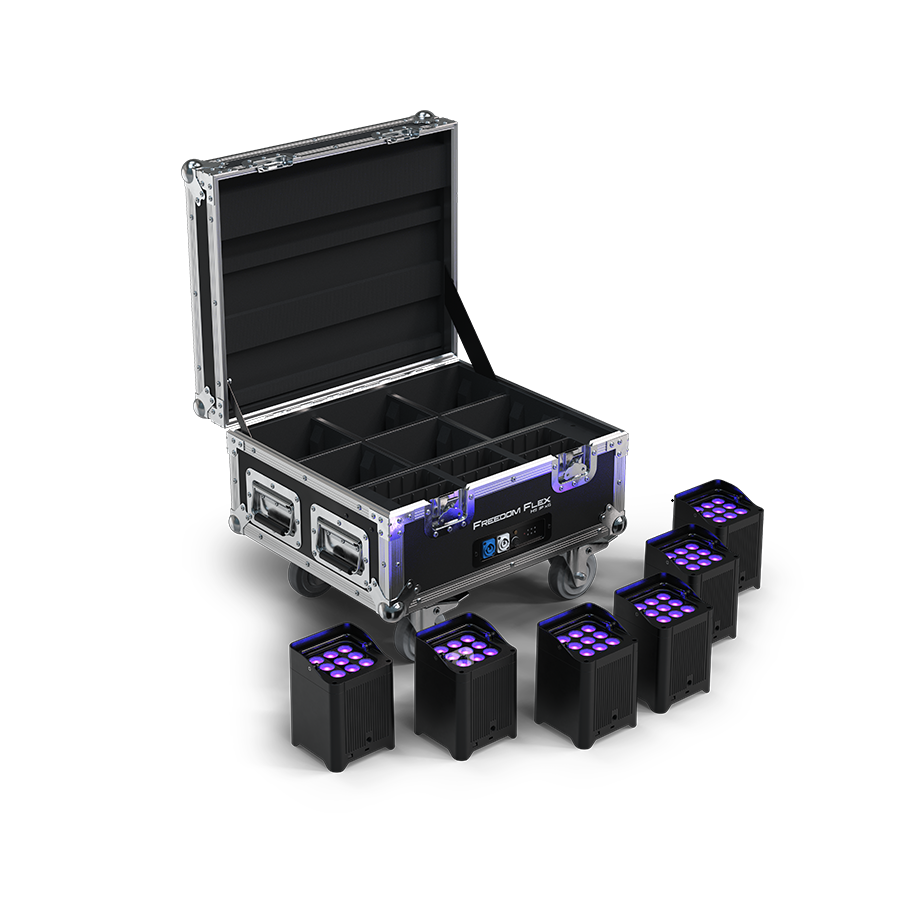

Charging road case simultaneously charges up to 6 batteries
Robust housing repels mother nature for temporary outdoor situations
New secondary optics provide perfect color blending with nearly no artifacts

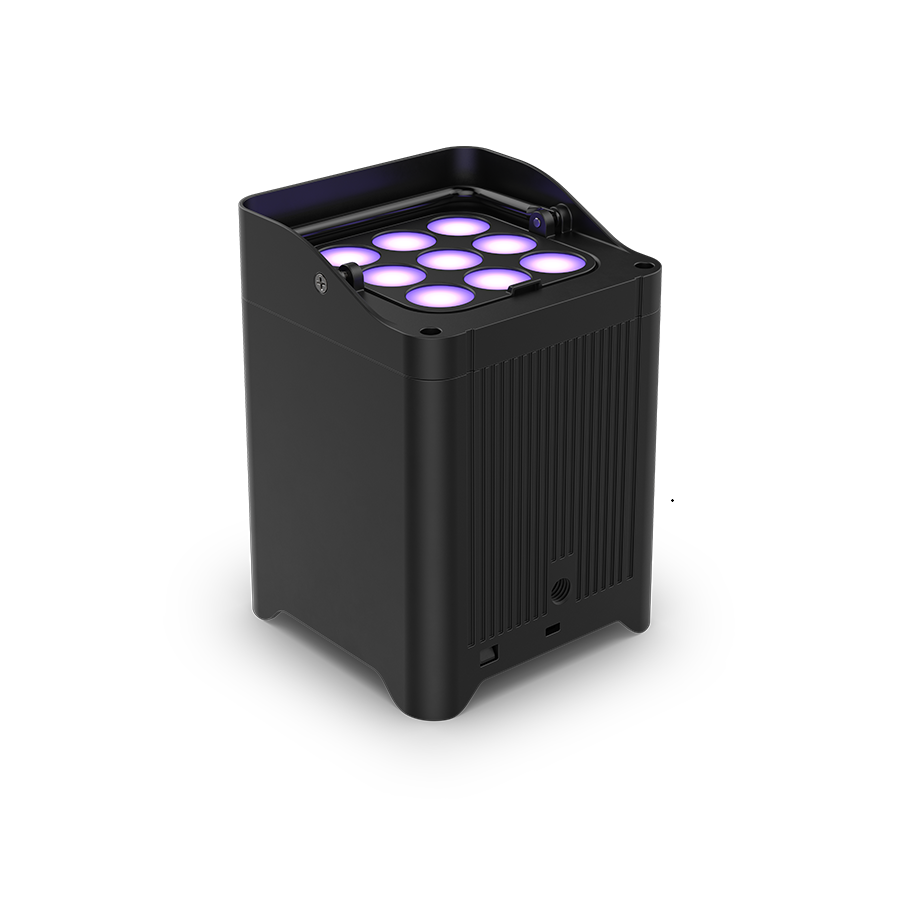

Magnetic diffuser pops on or off with ease and widens the coverage area
Adjustable run times ensure the fixture will last the length of the event
OLED display allows for full-text and to easily change fixture’s settings
Built-in RF receiver for wireless control using the included RFC or optional RFC-XL remotes
Adjust the projection angle using the spring-loaded kickstand
Built-in glare shield protects light spillage and eye fatigue
Extend the fixture’s lifespan with the onboard charge and discharge protection circuitry
Achieve smooth LED fading with built-in dimming curves

分類: Chauvet, Chauvet

Technical Specifications
Overview
Fixture Type	Professional Battery-Operated Wireless LED Moving / Wash Fixture
Light Source & Performance
Light Source	9 LEDs (hex-color RGBAW+UV), 10 W, (5.7 A), 50,000 hours life expectancy
Optics & Coverage	Beam Angle: 28° (with diffuser: 45°) Field Angle: 60° (with diffuser: 85°) Lumens: 2,028
Illuminance	@ 2 m: 1,403 lux (standard) / 602 lux (with diffuser)
Strobe Rate	1 to 25 Hz
Control & Connectivity
DMX Channels & Optional Controllers	Channels: 6, 8, or 16 Optional Controllers: RFC-XL, FlareCON
Wireless & Range	Operating Frequency: 2.412 to 2.484 GHz Max Unobstructed Distance: 600 ft (183 m)
Electrical & Power
Power and Current	@ 120 V, 60 Hz: 377 W, 3.2 A @ 230 V, 50 Hz: 365 W, 1.8 A
Battery & Runtime	Recharge Time: 3 hours Run Time (adjustable): 3, 5, 8, or 12 hrs
Physical & Certifications
Dimensions & Weight	Size: 19.6 x 21.7 x 16.6 in (498 x 552 x 423 mm) Weight: 67.4 lbs (30.6 kg)
Hardware, Mounting & Environment	IP Rating: IP54 Bracket Mounting Hole: M12 Wheel Size: 3 in (76.2 mm) Startup Temperature: -4 °F to 113 °F (-20 °C to 45 °C) Operating Temperature: -22 °F to 113 °F (-30 °C to 45 °C)
Approvals	CE, RoHS, UKCA, FCC
