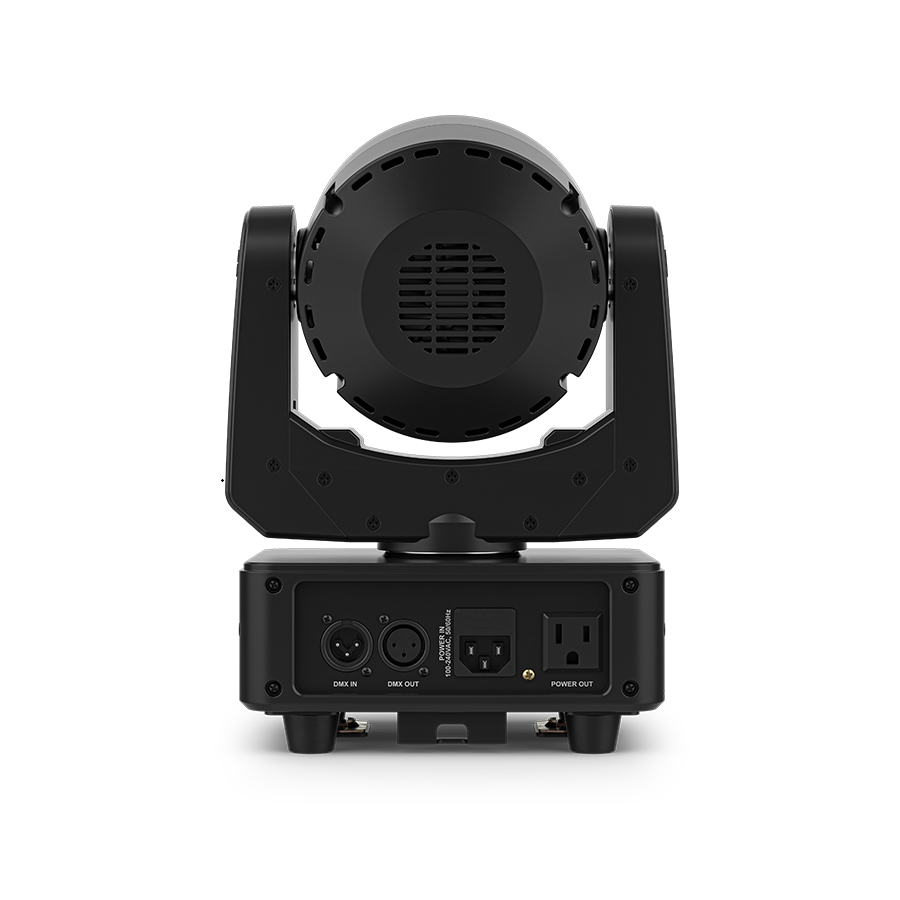

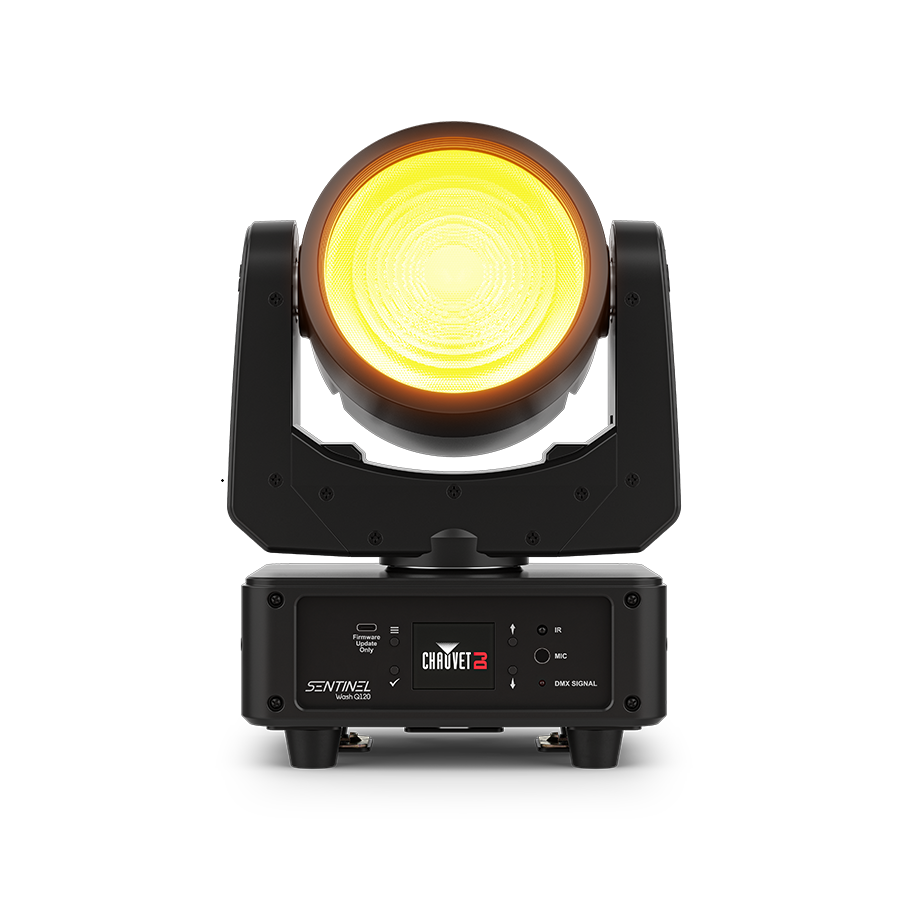

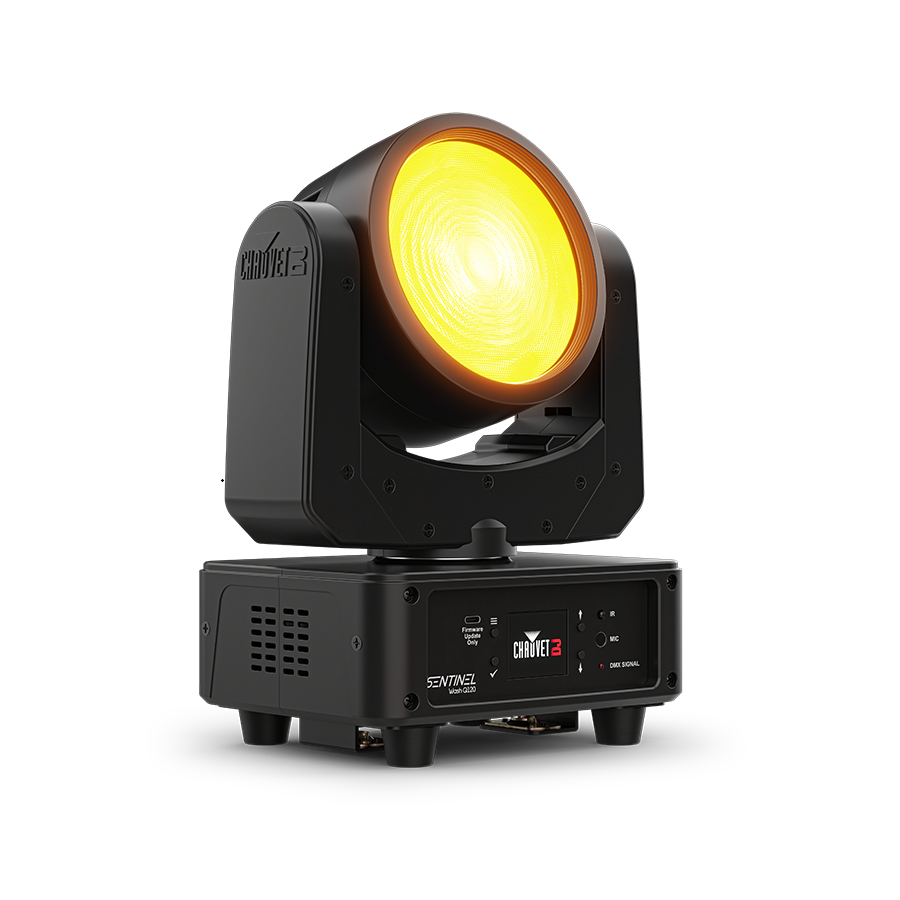

CHAUVET Sentinel Q120

Cutting-edge moving head wash fitted with an intense RGBW color mixing LED
Fresnel lens for a polished, dramatic effect
Wireless, non-DMX operation is available with the optional IRC-6 remote
Onboard USB-C port allows for quick software updates
Simple navigation and a full text readout with the full-color LCD screen
Generate a synchronized show in Master/Slave mode with easy-to-access, built-in automated programs
Save time running extension cords by power linking multiple units

Technical Specifications
Overview
Fixture Type	Professional LED Moving Head Fixture
Light Source & Performance
Light Source	1 LED (quad-color RGBW) 120 W, 3.6 A, 50,000 hours life expectancy
Optics & Coverage	Coverage Angle: 16° Lumens: 4,189
Illuminance	@ 2 m: 8,710 lux
Strobe Rate	0 to 20 Hz
Movement
Pan & Tilt Ranges	Pan: 540° (Ranges: 180°, 360°, 540°) Tilt: 260° (Ranges: 90°, 180°, 260°)
Control & Connectivity
DMX Channels & Connectors	Channels: 10 or 14 Connectors: 3-pin XLR Optional Controllers: IRC-6
Electrical & Power
Input Voltage & Power	Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging) Power and Current: 152 W, 2.2 A @ 120 V, 60 Hz; 148 W, 1.4 A @ 230 V, 50 Hz
Power Linking	3 units @ 120 V; 5 units @ 230 V
Physical & Certifications
Dimensions & Weight	Size: 8.62 x 5.6 x 11.7 in (219 x 143 x 296 mm) Weight: 7.8 lb (3.5 kg)
Hardware & Mounting	Cable Length: 5 ft (1.5 m) Bracket Mounting Hole: 13 mm
Approvals	CE, RoHS
