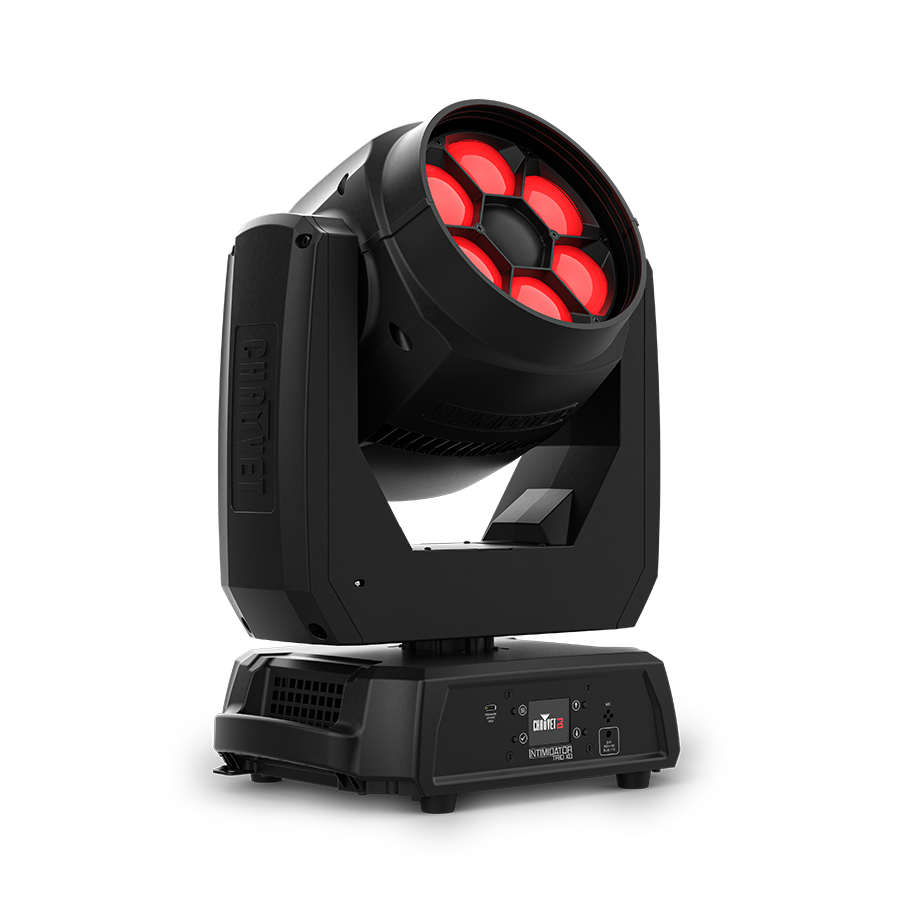

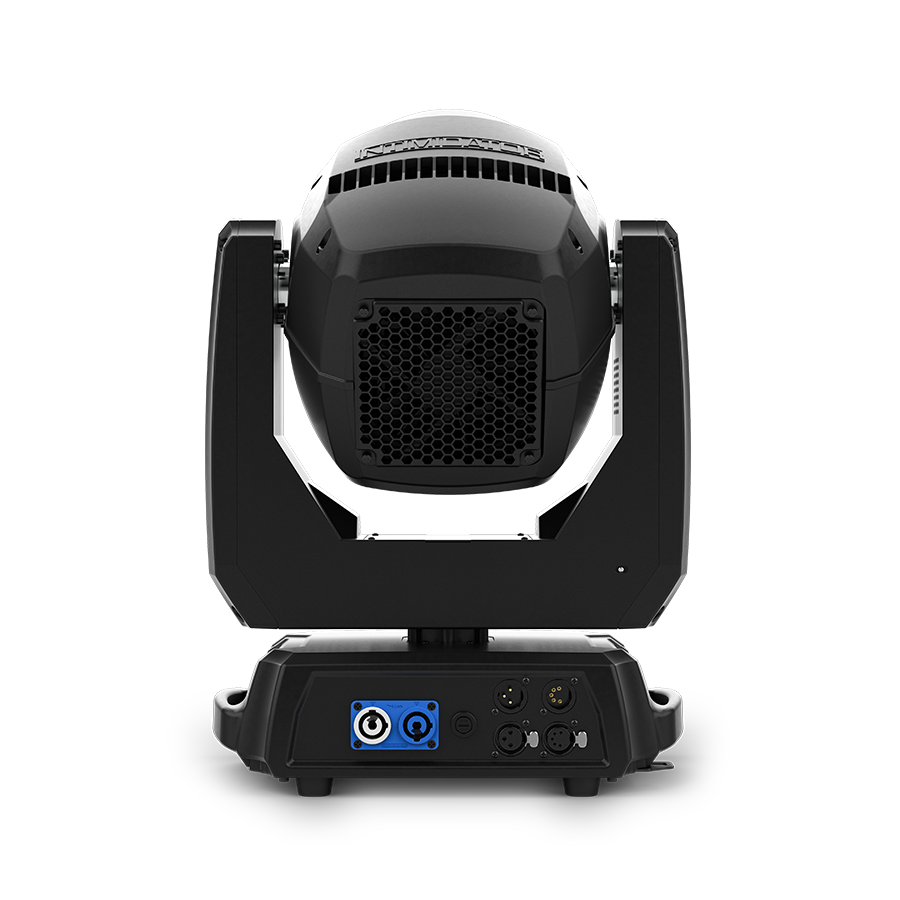

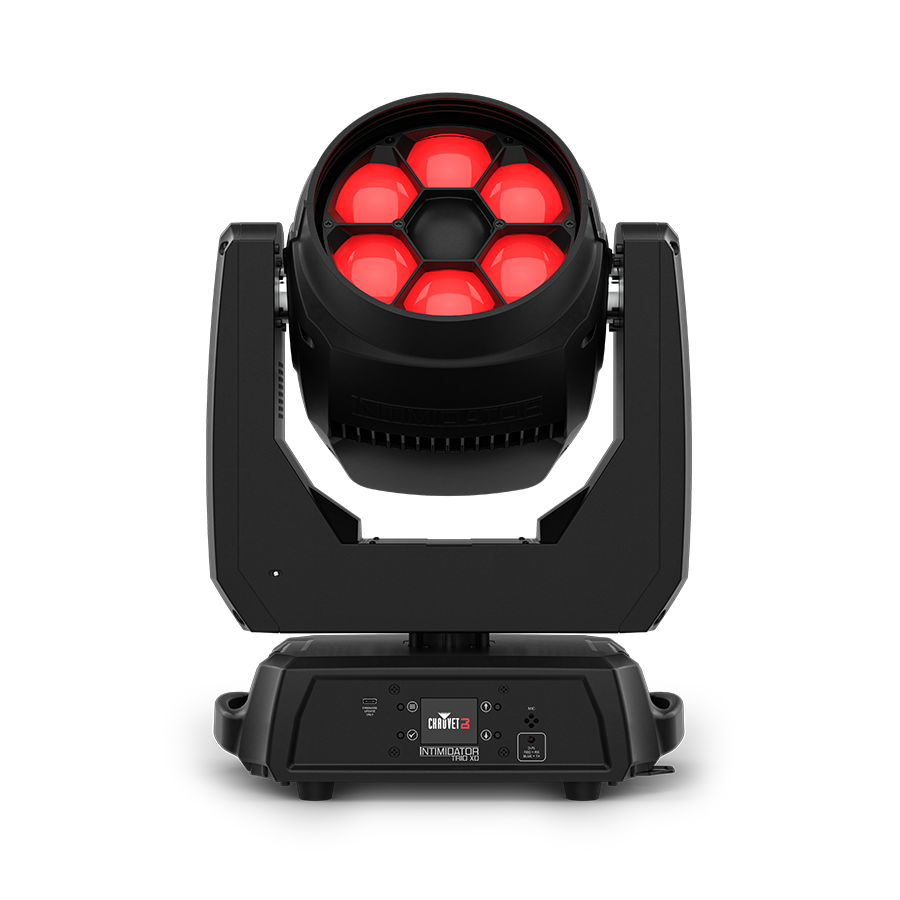

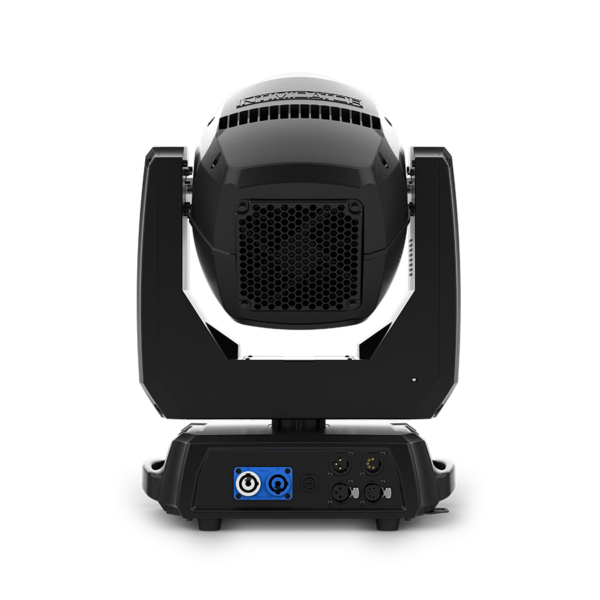

CHAUVET Intimidator Trio XD

Innovative, LED-powered moving head with beam, wash, and effect features
Built-in D-Fi transceiver for wireless DMX or master/slave communications
Carbon fiber composite housing material is exceptionally strong, resists corrosion, and reduces weight
Built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes
Onboard USB-C port allows for quick software updates
Seamlessly change from a narrow beam to a wide wash with the motorized zoom
Continuously rotating honeycomb delivers the excitement of an effect light
Generate complex looks easily with built-in, eye-catching auto programs with zone control
Built-in Totem mode allows beams to remain focused on the dance floor
Set, save, and recall 1 scene directly from the full-color LCD display

分類: Chauvet, Chauvet

Technical Specifications
Overview
Fixture Type	Professional LED Moving Head Fixture
Light Source & Performance
Light Source	6 LEDs (quad-color RGBW) 270 W total, (9.5 A), 50,000 hours life expectancy
Optics & Zoom	Zoom Angle: 3° to 22°
Illuminance	Narrow (3°): 124,299 lux @ 2 m Wide (22°): 7,505 lux @ 2 m / 1,081 lux @ 5 m
Strobe Rate	0 to 20 Hz
Movement
Pan & Tilt Ranges	Pan: 540° (Ranges: 180°, 360°, 540°) Tilt: 270° (Ranges: 90°, 180°, 270°)
Control & Connectivity
DMX Channels & Connectors	Channels: 16, 23, or 52 Connectors: 3- and 5-pin XLR Optional Controllers: RFC, RFC-XL
Electrical & Power
Input Voltage & Power	Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging) Power and Current: 348 W, 2.9 A @ 120 V, 60 Hz; 343 W, 1.5 A @ 230 V, 50 Hz Max. Output Current: 12 A (4 units @ 120 V) (8 units @ 230 V) Fuse: F5A, 250 V
Power Linking	4 units @ 120 V; 8 units @ 230 V
Physical & Certifications
Dimensions & Weight	Size: 12.6 x 8.7 x 17 in (320 x 220 x 431 mm) Weight: 20.4 lb (9.3 kg)
Hardware & Mounting	Cable Length: 5 ft (1.5 m)
Approvals	CE, FCC, MET
