| Technical Specifications | |
|---|---|
| Overview | |

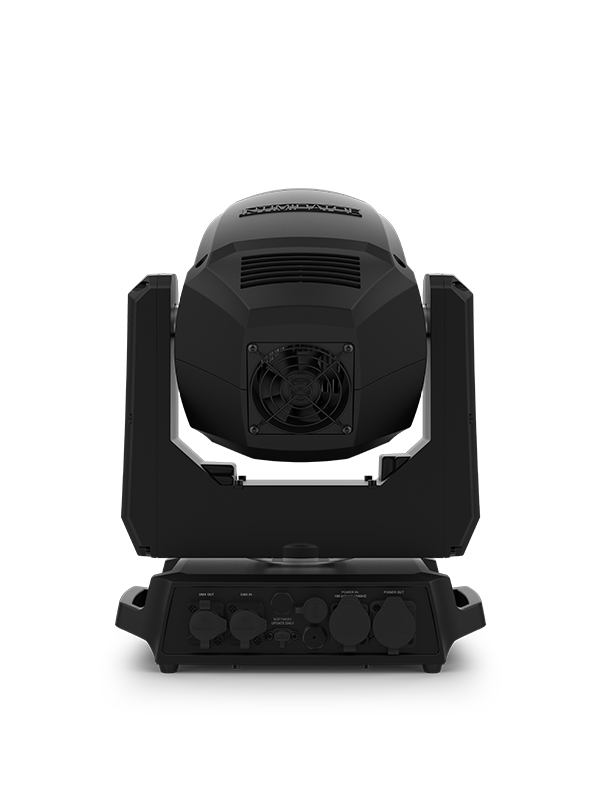

| Fixture Type | Professional IP65 LED Moving Head Spot Fixture |
| Light Source & Performance | |
| Light Source | 1 LED (cool white) 100 W, (4.3 A), 50,000 hours life expectancy |
| Optics & Beam | Beam Angle: 15° Color Temperature: 15,000 K | Lumens: 4,268 |
| Illuminance | @ 2 m: 23,978 lux @ 5 m: 3,836 lux |
| Strobe Rate | 0 to 20 Hz |
| Colors, Gobos & Effects | |
| Colors | 8 + white, split colors, continuous scroll at variable speeds |
| Gobos | Gobo Wheel: 7 + open (6 aluminum + 1 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds Gobo Size: 24 mm outside, 20 mm image, 1.1 mm max thickness |
| Prisms | 5-facet linear, bi-directional at variable speeds; 3-facet round, bi-directional at variable speeds |
| Movement | |
| Pan & Tilt Ranges | Pan: 540° (Ranges: 540°, 360°, 180°) Tilt: 270° (Ranges: 270°, 180°, 90°) |
| Control & Connectivity | |
| DMX Channels & Connectors | Channels: 8 or 14 Connectors: 3-pin XLR Optional Controllers: RFC, RFC-XL |
| Electrical & Power | |
| Input Voltage & Power | Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging) Power and Current: 190 W, 2.4 A @ 120 V, 60 Hz; 185 W, 1.4 A @ 230 V, 50 Hz Max. Output Current: 12 A (5 units @ 120 V) (9 units @ 230 V) |
| Power Linking | 5 units @ 120 V; 9 units @ 230 V |
| Physical, Environmental & Construction | |
| Dimensions & Weight | Size: 11.8 x 8.5 x 15.9 in (299 x 217 x 406 mm) Weight: 23 lb (10.4 kg) |
| Environmental Ratings & Temperature | IP Rating: IP65 Startup Temperature: -4 °F to 113 °F (-20 °C to 45 °C) Operating Temperature: -22 °F to 113 °F (-30 °C to 45 °C) |
| Hardware & Accessories | Cable Length: 5 ft (1.5 m) Bracket Mounting Hole: 13 mm |
| Approvals | CE, MET, UKCA, RoHS |
