| Technical Specifications | |
|---|---|
| Overview | |

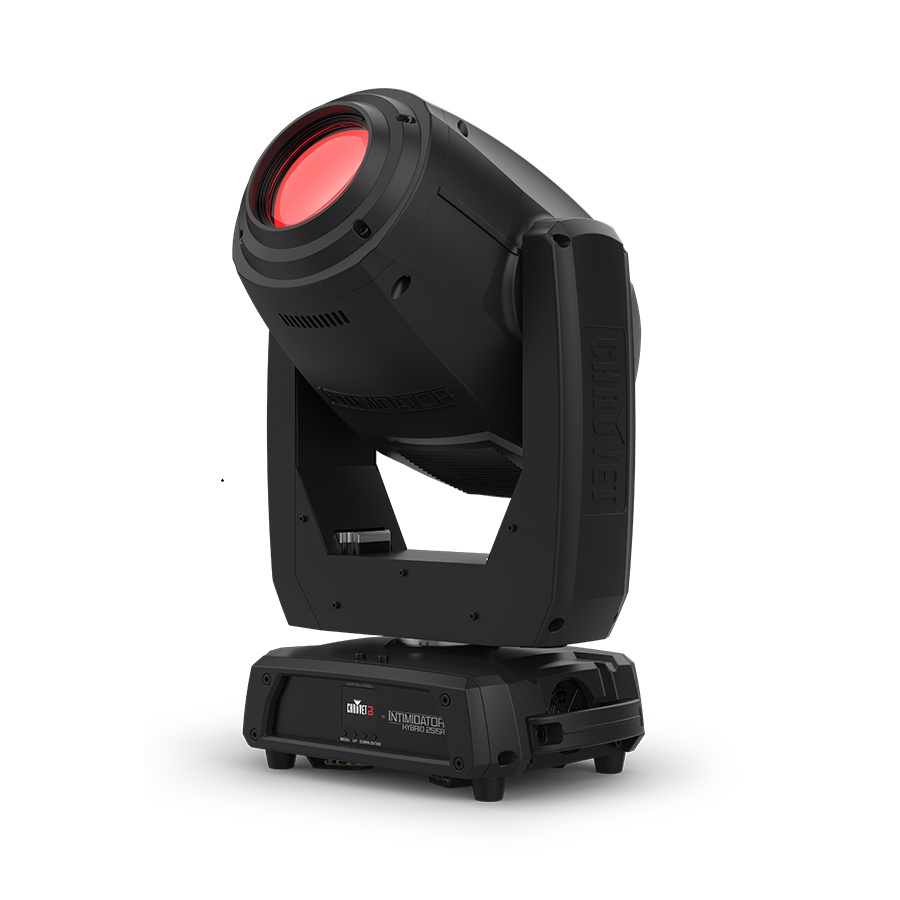

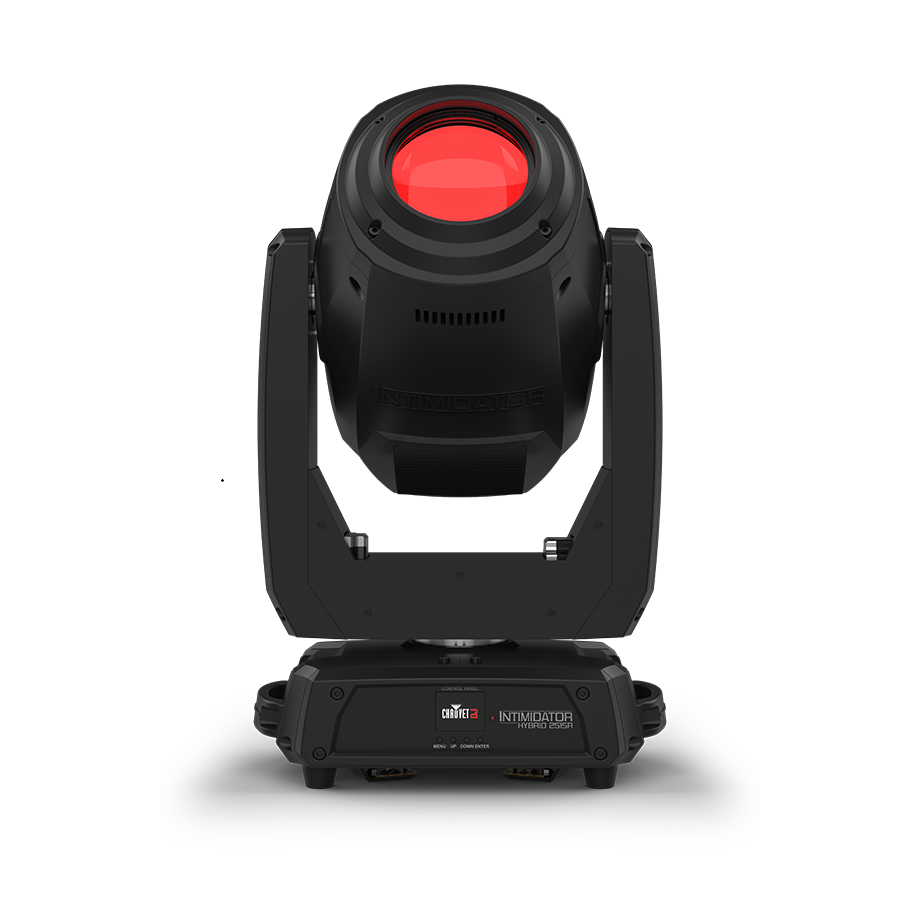

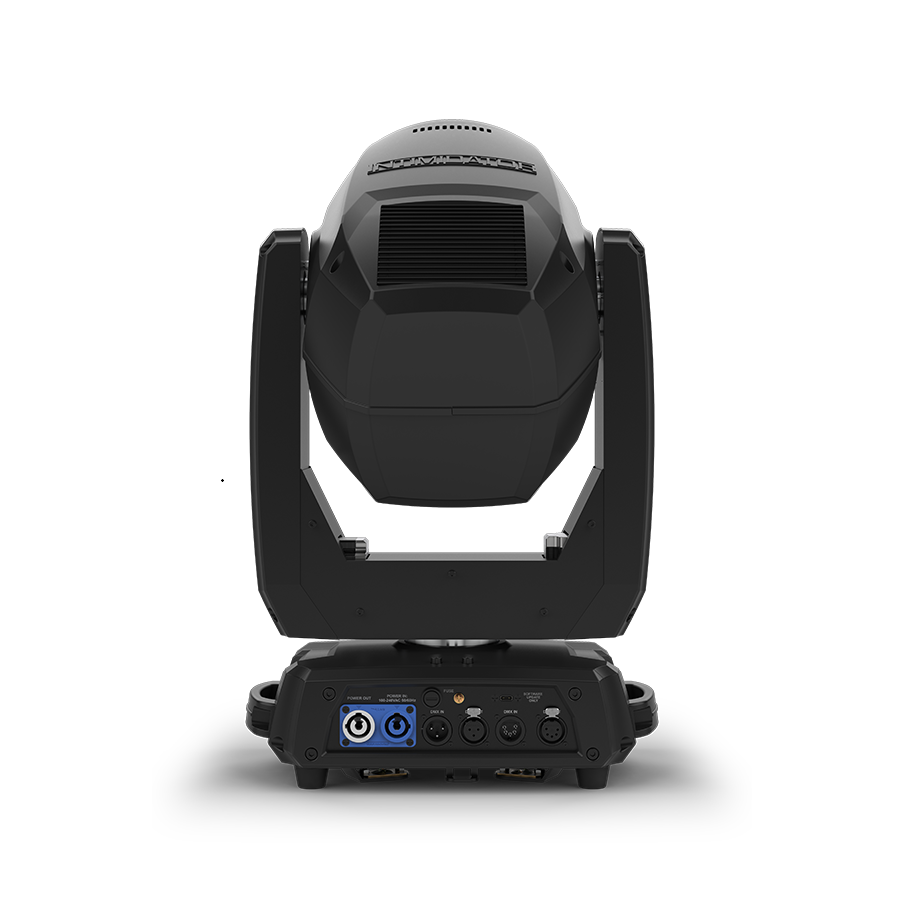

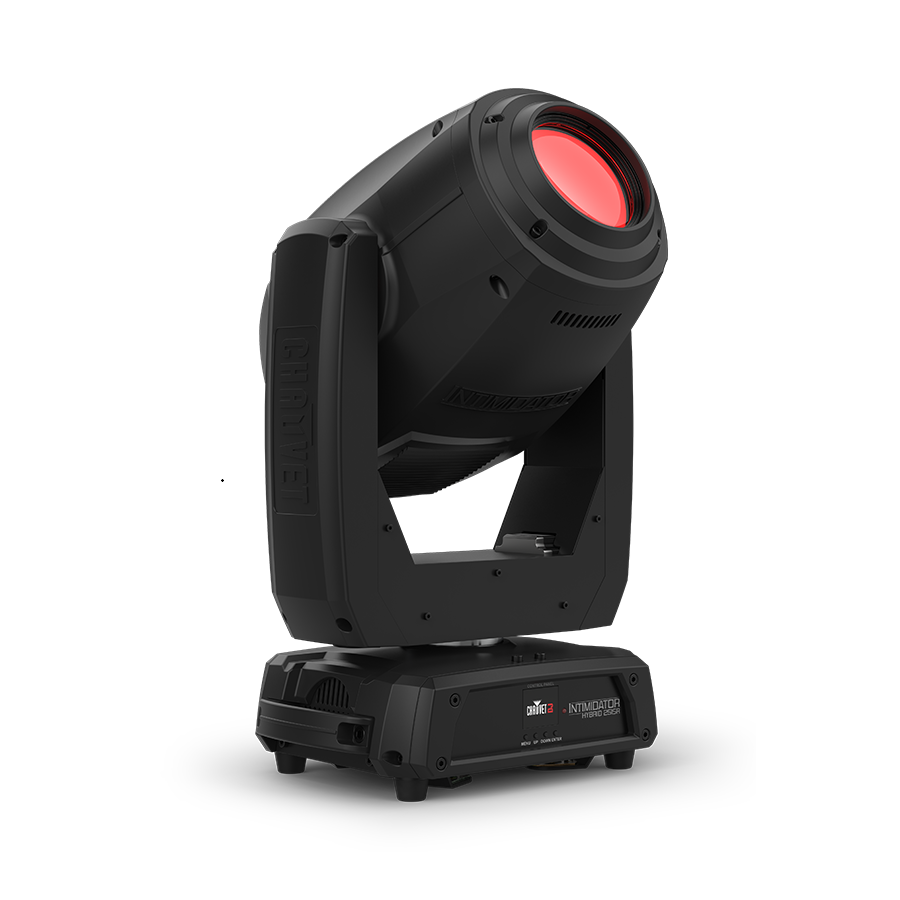

| Fixture Type | Professional Moving Head Light Fixture (Beam/Spot/Wash) |
| Light Source & Performance | |
| Light Source | Osram SIRIUS HRI® 251W discharge lamp (3,000 hrs life expectancy) |
| Zoom Angle & Optics | Beam Mode: 1° to 3° Spot Mode: 12° to 23° Wash Mode: 7° to 19° |
| Illuminance | 1° Beam: 500,411 lux @ 5 m 12° Spot: 376,927 lux @ 5 m 7° Wash: 8,038 lux @ 5 m |
| Strobe Rate | 0 to 20 Hz |
| Colors, Gobos & Effects | |
| Colors | 12 + open, split colors, continuous scroll at variable speeds |
| Gobos | Gobo Wheel 1: 9 + open, rotating, indexing, interchangeable, slot-n-lock, continuous scroll at variable speeds Gobo Wheel 2: 17 + open, continuous scroll at variable speeds Gobo Size: 13.7 mm outside, 10 mm image, 0.8 mm max thickness |
| Prisms | Prism 1: 5-facet round, bidirectional rotation at variable speeds Prism 2: 6-facet linear, bidirectional rotation at variable speeds |
| Movement | |
| Pan & Tilt Ranges | Pan: 540° (Ranges: 180°, 360°, 540°) Tilt: 270° (Ranges: 90°, 180°, 270°) |
| Control & Connectivity | |
| DMX Channels & Connectors | Channels: 13 or 19 Connectors: 3- and 5-pin XLR Optional Controllers: RFC-XL |
| Electrical & Power | |
| Input Voltage & Power | Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging) Power and Current: 358 W, 3.6 A @ 120 V, 60 Hz; 344 W, 2.3 A @ 230 V, 50 Hz |
| Power Linking | 3 units @ 120 V; 5 units @ 230 V |
| Physical & Certifications | |
| Dimensions & Weight | Size: 12.6 x 8.6 x 21.6 in (322 x 220 x 549 mm) Weight: 35.6 lb (16.1 kg) |
| Approvals | CE, MET, RoHS |
