| Technical Specifications | |
|---|---|
| Overview | |
| Fixture Type | Professional LED Strobe / Wash Fixture |
| Light Source & Performance | |
| Light Source | 480 LEDs (tri-color) 2 W, (1 A), 50,000 hours life expectancy 32 LEDs (cool white) 1.1 W, (0.4 A), 50,000 hours life expectancy |
| Optics & Coverage | Beam Angle: 119° Field Angle: 158° Lumens: 13,626 |
| Illuminance | @ 2 m: 1,131 lux |
| Strobe Rate | 0 to 20 Hz |
| Control & Connectivity | |

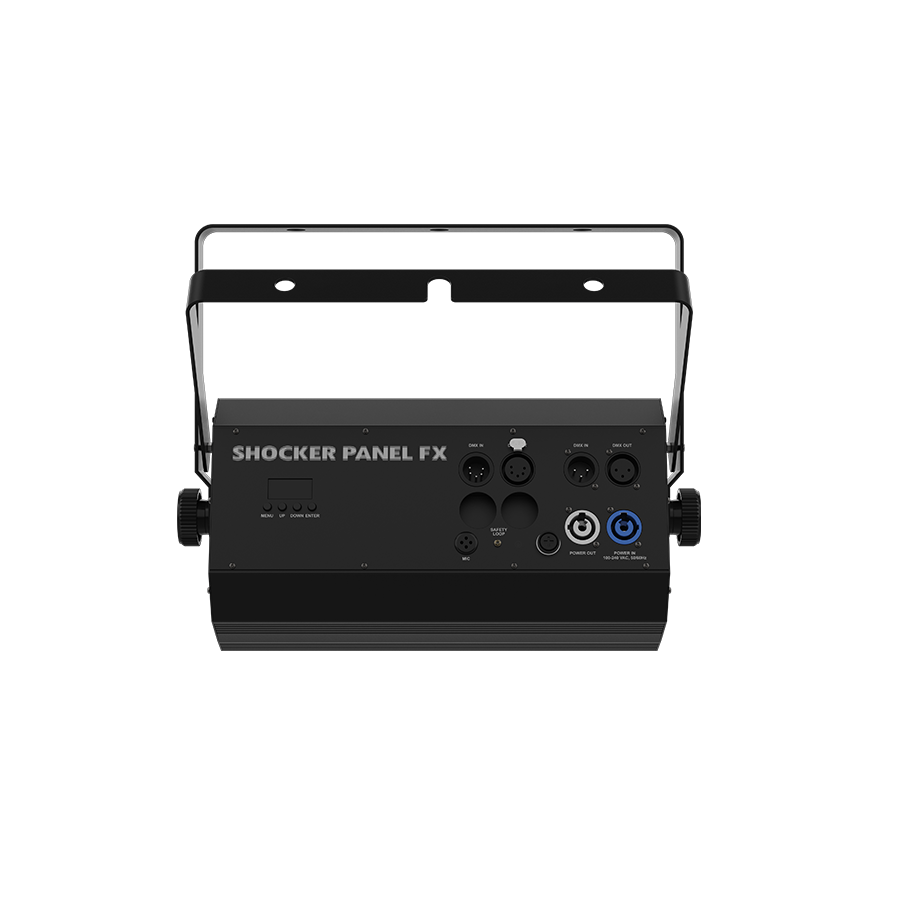

| DMX Channels & Connectors | Channels: 8, 18, 34, or 47 Connectors: 3- and 5-pin XLR |
| Electrical & Power | |
| Input Voltage & Power | Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging) Power and Current: 296 W, 2.5 A @ 120 V, 60 Hz; 281 W, 1.3 A @ 230 V, 50 Hz |
| Power Linking | 5 units @ 120 V; 10 units @ 230 V |
| Physical & Certifications | |
| Dimensions & Weight | Size: 12.63 x 4.3 x 6.7 in (310 x 110 x 170 mm) Weight: 8.6 lb (3.9 kg) |
| Approvals | CE, UKCA, RoHS |
