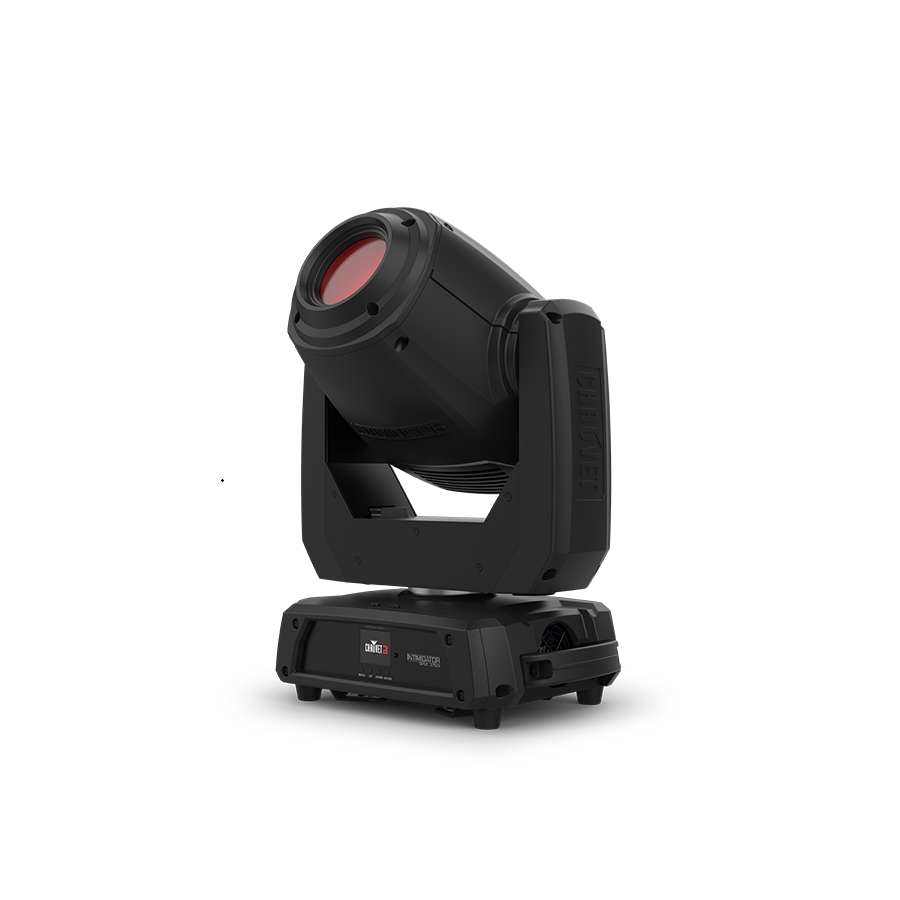

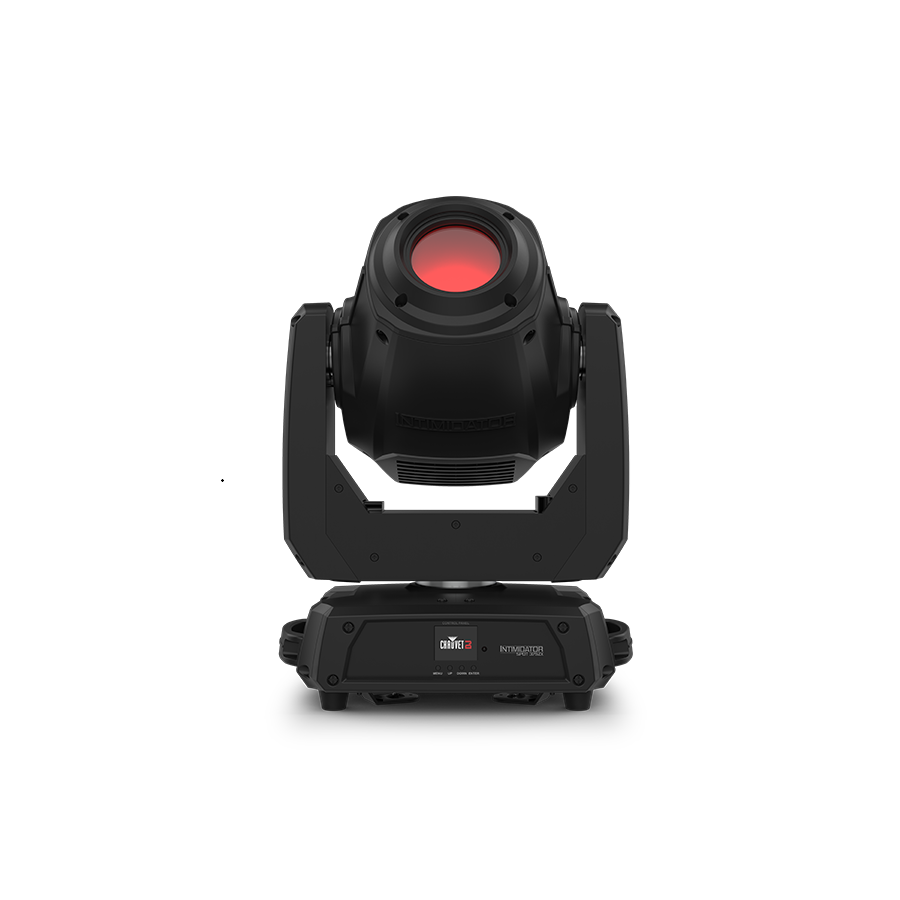

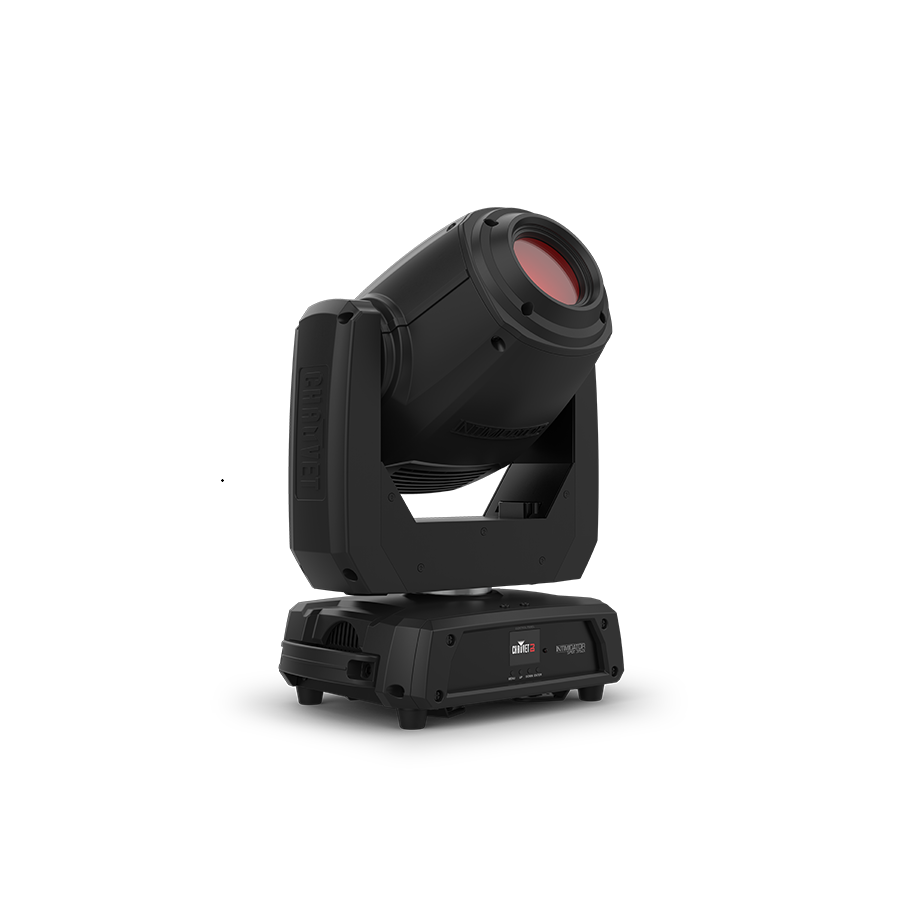

CHAUVET Intimidator Spot 375ZX

Compact moving head designed for large events
Built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes
New home position allows for smoother programming
Dual rotating prisms split the beam for great effects and cover a larger area
Motorized zoom for short or long throw applications
¼-turn hanging bracket allows for single or dual clamp mounting options
Project crisp gobos from nearly any distance with the motorized focus
Beams always remain on the dance floor using the built-in, innovative Totem mode
Set, save, and recall 1 scene manually, directly from the full-color LCD display

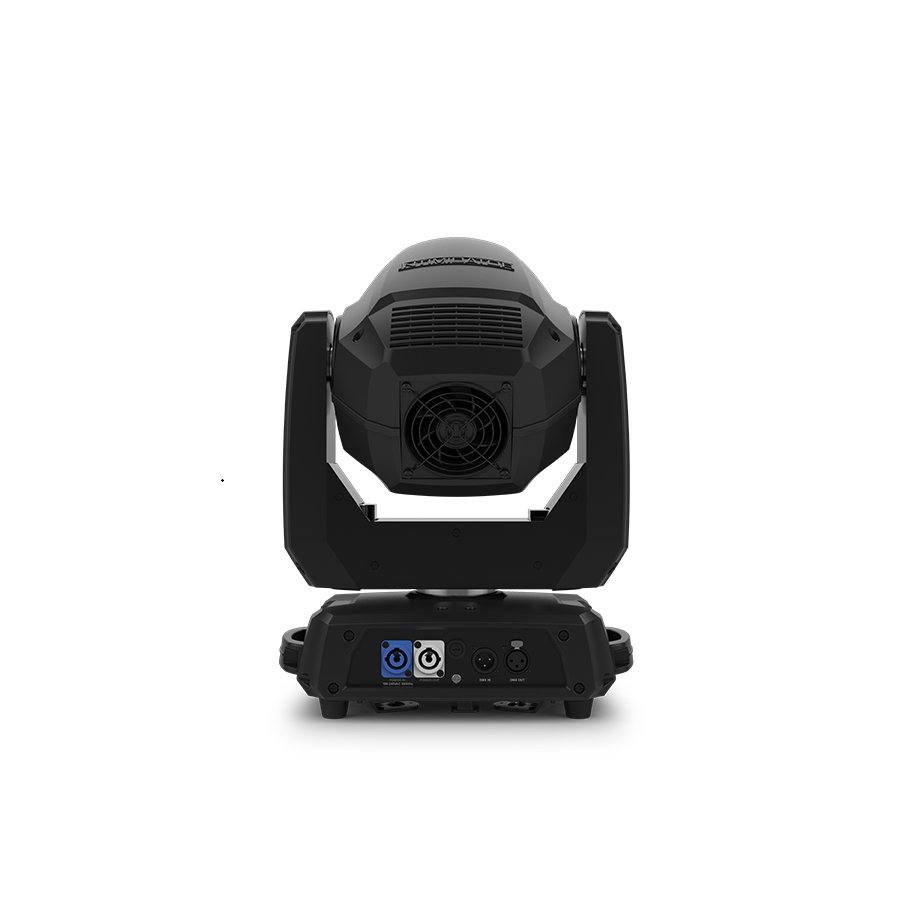

powerCON®-compatible power input/output connections saves setup time
Fits best in the Intimidator Road Case

分類: Chauvet, Chauvet

Technical Specifications
Overview
Fixture Type	Professional LED Moving Head Spot Fixture
Light Source & Performance
Light Source	1 LED (cool white) 200 W, (16 A), 50,000 hours life expectancy
Optics & Zoom	Zoom Angle (Motorized): 10° to 23° Color Temperature (CTO): 5,700 K \| Lumens: 7,161
Illuminance	@ 2 m: 36,801 lux (10°) / 21,115 lux (23°)
Strobe Rate	0 to 20 Hz
Colors, Gobos & Effects
Colors	7 + white, split colors, continuous scroll at variable speeds
Gobos	Gobo Wheel: 7 + open (6 aluminum + 1 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds Gobo Size: 24 mm outside, 20 mm image, 1.1 mm max thickness
Prisms	5-facet linear, bi-directional at variable speeds; 6-facet round, bi-directional at variable speeds
Movement
Pan & Tilt Ranges	Pan: 540° (Ranges: 540°, 360°, 180°) Tilt: 270° (Ranges: 270°, 180°, 90°)
Control & Connectivity
DMX Channels & Connectors	Channels: 9 or 15 Connectors: 3-pin XLR Optional Controllers: RFC, RFC-XL
Electrical & Power
Input Voltage & Power	Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging) Power and Current: 354 W, 3.1 A @ 120 V, 60 Hz; 337 W, 1.6 A @ 230 V, 50 Hz
Power Linking	4 units @ 120 V; 8 units @ 230 V
Physical & Certifications
Dimensions & Weight	Size: 12.7 x 8.7 x 18.3 in (322 x 220 x 466 mm) Weight: 27.2 lb (12.4 kg)
Approvals	CE, UKCA, RoHS, MET
