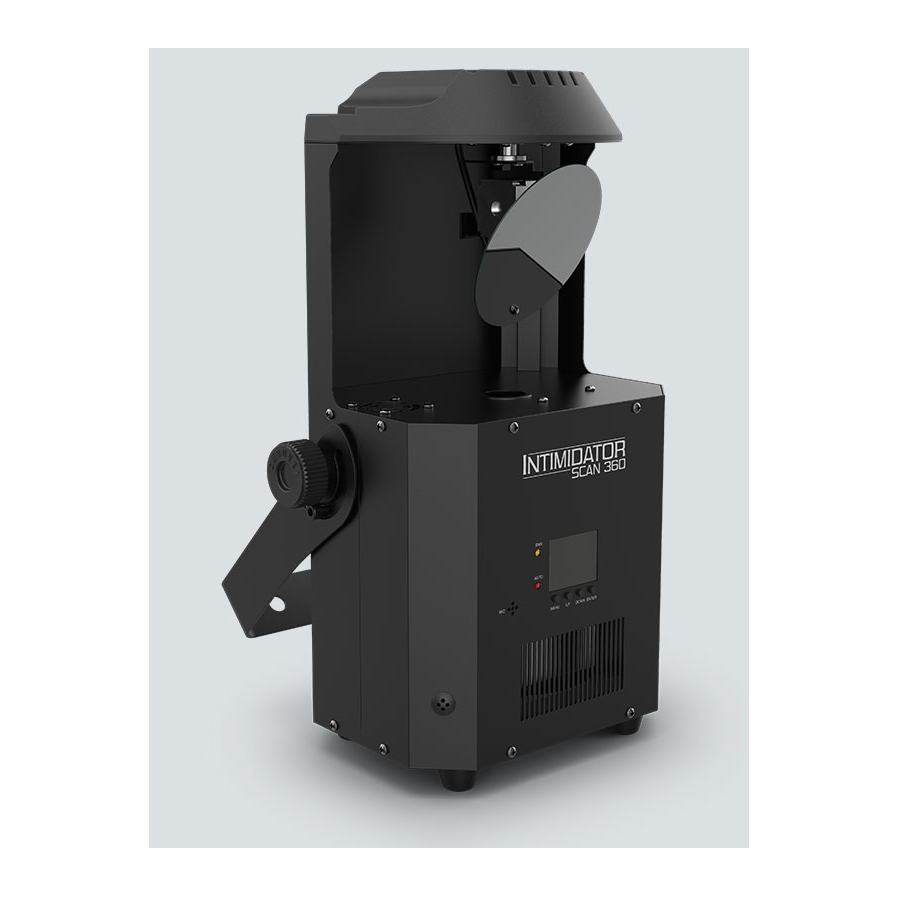

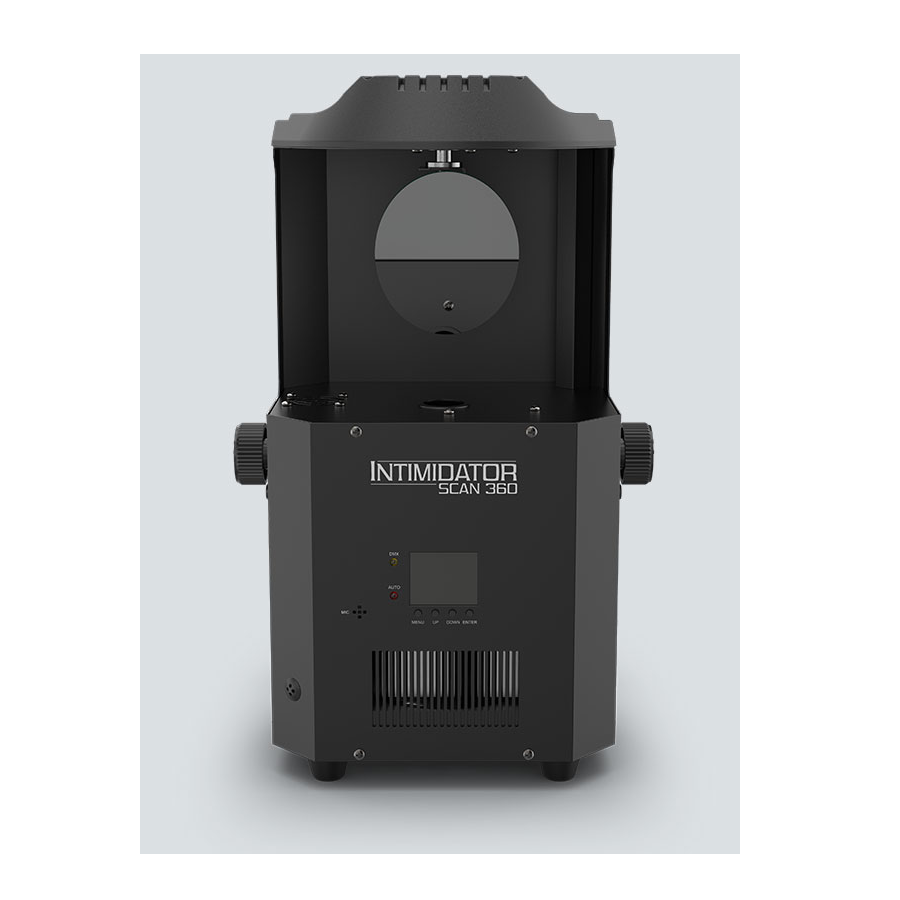

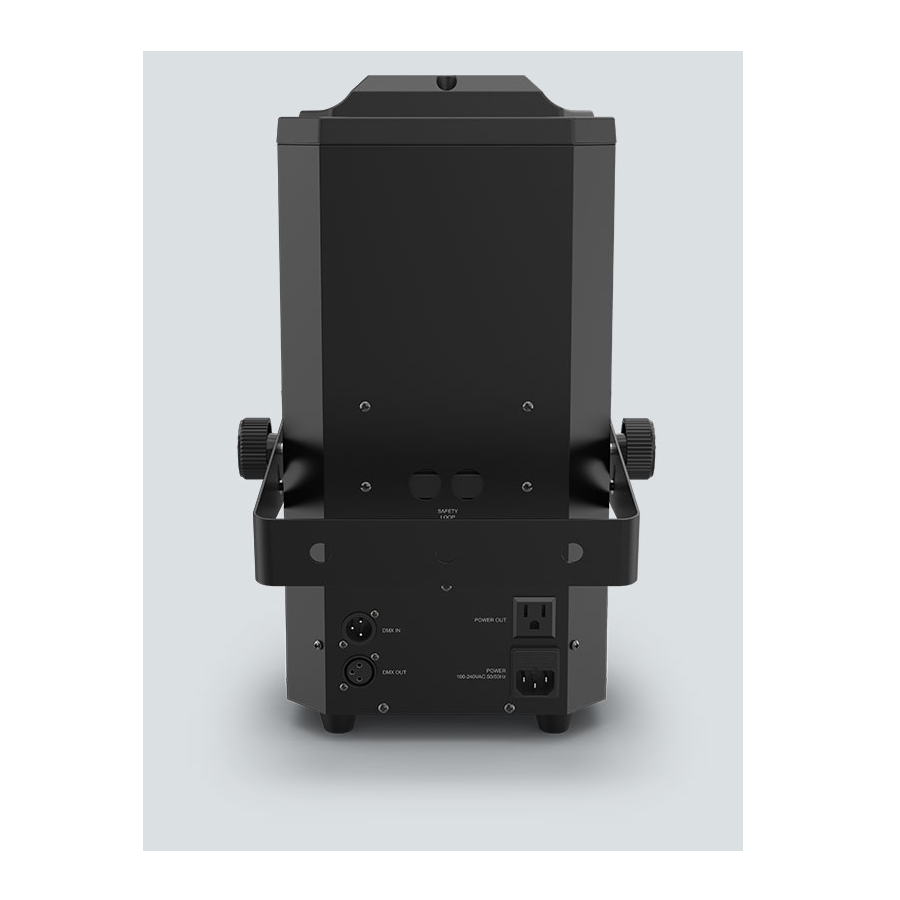

CHAUVET Intimidator Scan 360

Feature-packed scanner fitted with a 100 W LED designed for mobile performances
Project crisp gobos from nearly any distance with the motorized focus
Split the beam and cover larger areas with the crisp, 3-facet rotating prism
Convenient, wireless non-DMX control using the optional IRC-6 remote
Set, save, and recall 1 scene manually, directly from the full-color LCD display
Achieve flicker-free video operation with high-frequency LED dimming
Save time running cables and extension cords by power linking multiple units

分類: Chauvet, Chauvet

Technical Specifications
Overview
Fixture Type	Professional LED Moving Head Fixture
Light Source & Performance
Light Source	1 LED (white) 100 W, (4.2 A), 50,000 hours life expectancy
Optics & Beam	Beam Angle: 21°
Illuminance	@ 2 m: 4,050 lux
Strobe Rate	0 to 20 Hz
Colors, Gobos & Effects
Colors	8 + white, split colors, continuous scroll at variable speeds
Gobos	Gobo Wheel: 7 + open (6 metal, 1 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds Gobo Size (Metal): 19.75 mm outside, 14 mm image, 1 mm max thickness
Prism	3-facet round, rotation at variable speeds
Movement
Pan & Tilt Ranges	Pan: 172° Tilt: 39°
Control & Connectivity
DMX Channels & Connectors	Channels: 8 or 12 Connectors: 3-pin XLR Optional Controllers: IRC
Electrical & Power
Input Voltage & Power	Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging) Power and Current: 147 W, 1.9 A @ 120 V, 60 Hz; 143 W, 1.1 A @ 230 V, 50 Hz
Power Linking	4 units @ 120 V; 7 units @ 230 V
Physical & Certifications
Dimensions & Weight	Size: 10 x 6.1 x 16.3 in (255 x 155 x 415 mm) Weight: 12.6 lb (5.7 kg)
Approvals	CE
