| Technical Specifications | |
|---|---|
| Overview | |
| Fixture Type | Professional LED Wash Fixture |
| Light Source & Performance | |
| Light Source | 12 LEDs (hex-color RGBAW + UV) 10 W, (2.4 A), 50,000 hours life expectancy |
| Optics & Coverage | Beam Angle: 24° Field Angle: 41° |
| Illuminance | @ 2 m: 3,218 lux @ 5 m: 483 lux |
| Strobe & Frequency | Strobe Rate: 0 to 31 Hz PWM Frequency: 1.2 kHz |
| Control & Connectivity | |

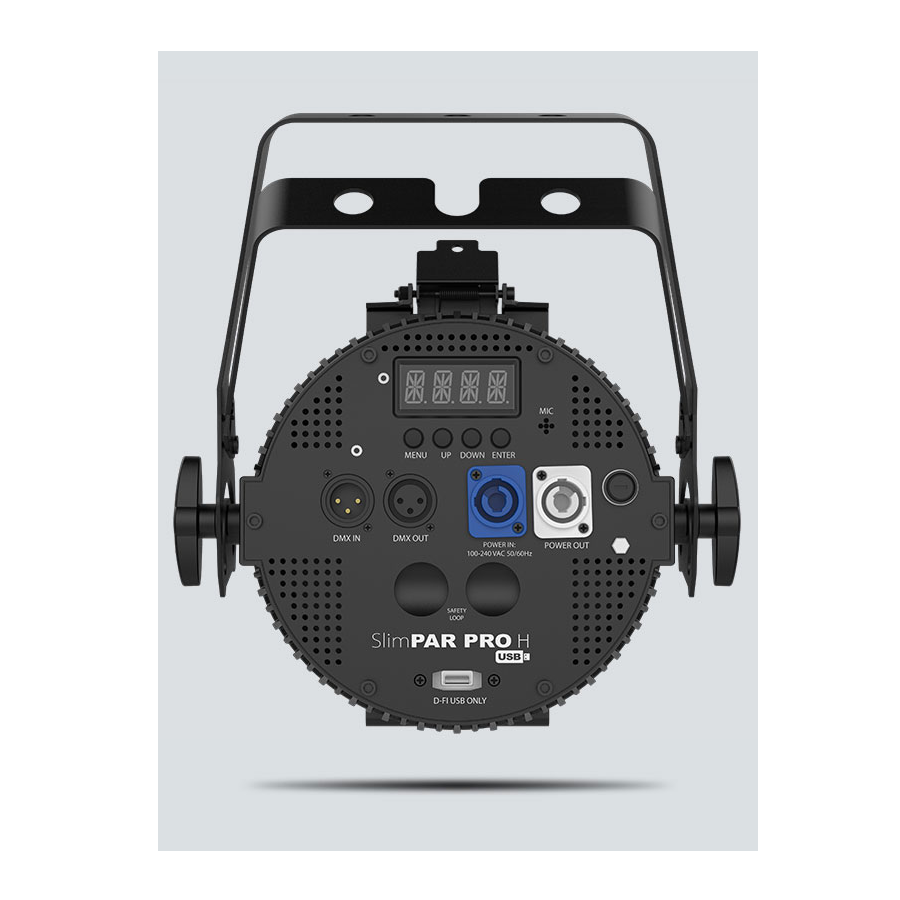

| DMX Channels & Connectors | Channels: 6, 7, or 12 Connectors: 3-pin XLR Optional Controllers: IRC-6, D-Fi USB |
| Electrical & Power | |
| Input Voltage & Power | Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging) Power and Current: 99 W, 1.4 A @ 120 V, 60 Hz; 96 W, 0.8 A @ 230 V, 50 Hz |
| Power Linking | 5 units @ 120 V; 10 units @ 230 V |
| Physical & Certifications | |
| Dimensions & Weight | Size: 10 x 3.9 x 11.4 in (253 x 98 x 290 mm) Weight: 7.2 lb (3.3 kg) |
| Approvals | CE, MET |
