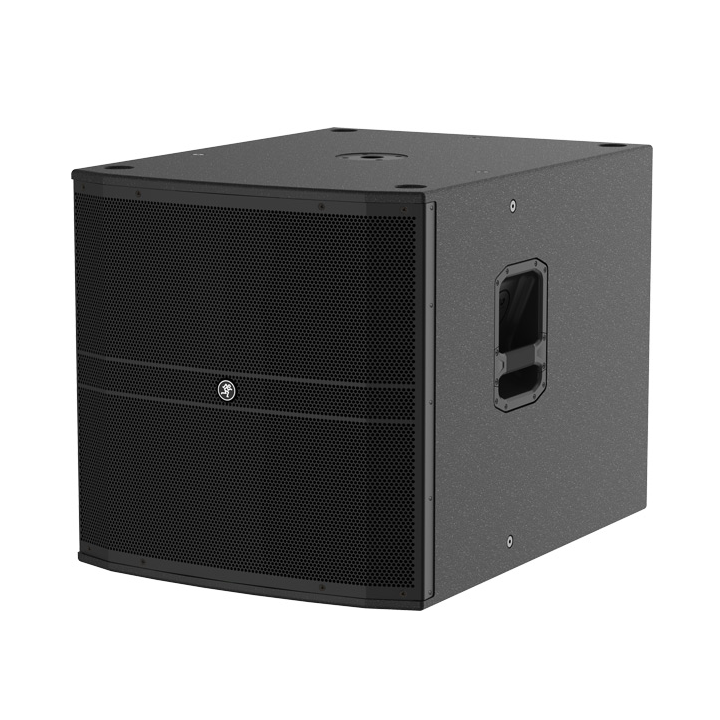

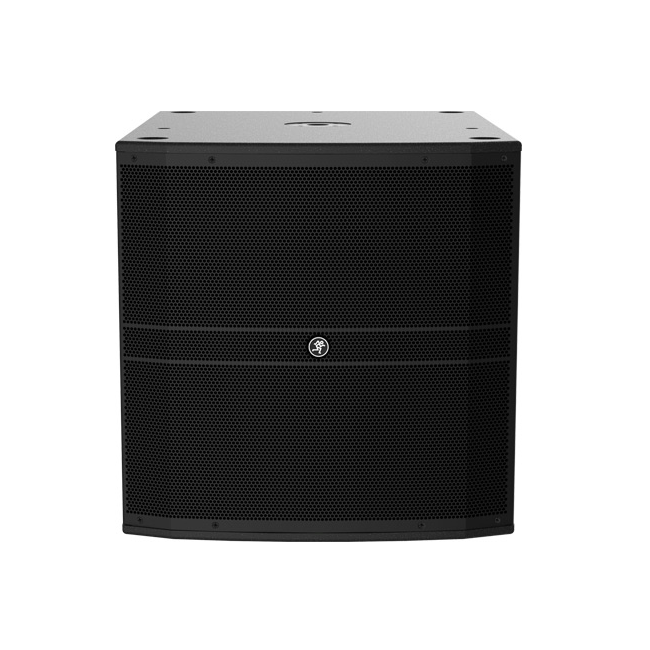

MACKIE DRM18S-P Professional Passive Subwoofer

High-excursion woofer offers increased bass response, low distortion, and professional reliability to withstand the most demanding applications

DRM18S is acoustically designed with ample internal volume and precision tuned port sizing to naturally deliver the bass you need with minimal distortion
Parallel SpeakON inputs
Road-worthy 18mm plywood construction and internal bracing offers optimal acoustic performance and reliability
Touring-grade textured cabinet coating
Powder-coated heavy gauge steel grille
M20 threaded pole attachment for use with DRM Series loudspeakers and other pole mountable speakers
Flyable via optional FB100 Fly Bar and FKDRM18S Flyware Kit
Optional SP260 Loudspeaker Processor provides custom EQ curves and crossovers for your DRM Passive System
Power handling (continuous/program/peak): 500W / 1000W / 2000W

分類: Mackie, Mackie

DRM18S-P SPECIFICATIONS

Loudspeaker Technical Specifications
Acoustic Performance
Type	18″ Professional Passive Subwoofer
Frequency Range (-10 dB)	33 Hz – 250 Hz
Frequency Range (-3 dB)	40 Hz – 250 Hz
Power Handling	1000 watts RMS 2000 watts peak 129 dB max SPL peak
Transducers
Low Frequency	18 in / 457 mm with ferrite
Physical Features

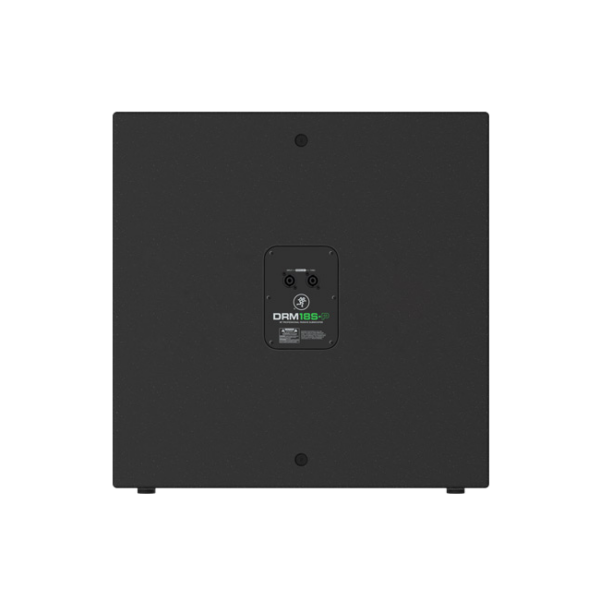

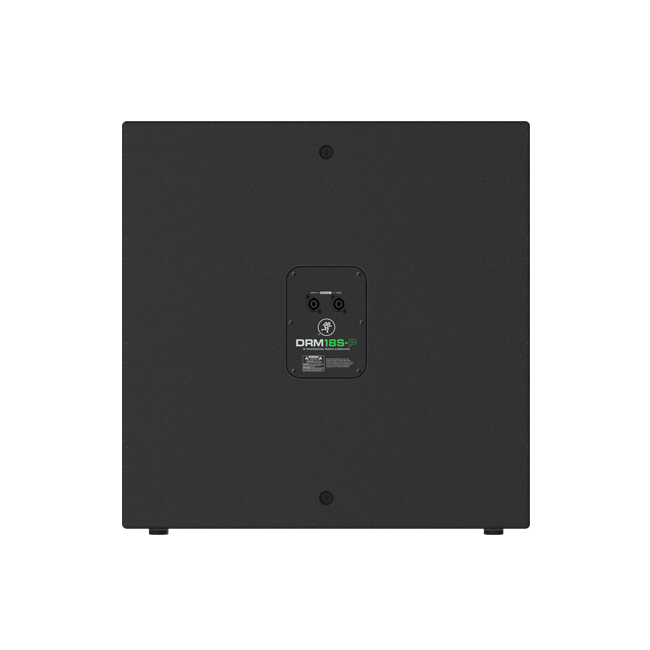

Input Type	1x Female speakON
Thru Type	1x Female speakON
Nominal Impedance	8 Ω
Basic Design	Rectangular
Enclosure Material	18 mm Plywood
Enclosure Finish	Black Polyurea
Grille Material	16-18 gauge perforated steel
Grille Finish	Powder-coated black
Handles	One on each side
Operating Temperature	0 – 40 °C // 32 – 104 °F
Physical Properties (product)
Height	23.3 in / 592 mm
Width	23.0 in / 584 mm
Depth	31.1 in / 790 mm
Weight	75.7 lb / 34.3 kg
Physical Properties (packaged product)
Height	25.9 in / 658 mm
Width	28.0 in / 711 mm
Depth	35.6 in / 904 mm
Weight	86.9 lb / 39.4 kg
Mounting Methods
Supported Methods	Floor mount or fly via the integrated M10 mounting points (using M10 x 1.5 x 20 mm forged shoulder eyebolts).
Options
DRM18S Cover	P/N 2036809-51
FKDRM18S Flyware Kit	P/N 2051056
FB100 Flybar Kit	P/N 2050041
CK100 Caster Kit	P/N 2035618-01
SPM400 Loudspeaker Pole Mount	P/N 2051055
PA-A2 Forged Shoulder Eyebolt Kit (3 x M10 x 1.5 x 20 mm)	P/N 2051054
