DRM315-P SPECIFICATIONS
| Loudspeaker Technical Specifications | |
|---|---|
| Acoustic Performance | |
| Type | 15″ 3-way Professional Passive Loudspeaker |
| Frequency Range (-10 dB) | 45 Hz – 20 kHz |
| Frequency Range (-3 dB) | 65 Hz – 18 kHz |
| Horizontal Coverage Angle | 90° [rotatable] |
| Vertical Coverage Angle | 60° [rotatable] |
| Power Handling | 1000 watts RMS 2000 watts peak 136 dB max SPL peak |
| Crossover Frequency | 900 Hz [LF / MF] 2.5 kHz [MF / HF] |
| Transducers | |
| Low Frequency | 15 in / 381 mm with ferrite |
| Mid Frequency | 6.5 in / 165 mm |
| High Frequency | 1.4 in / 36 mm titanium dome compression driver |
| Physical Features | |

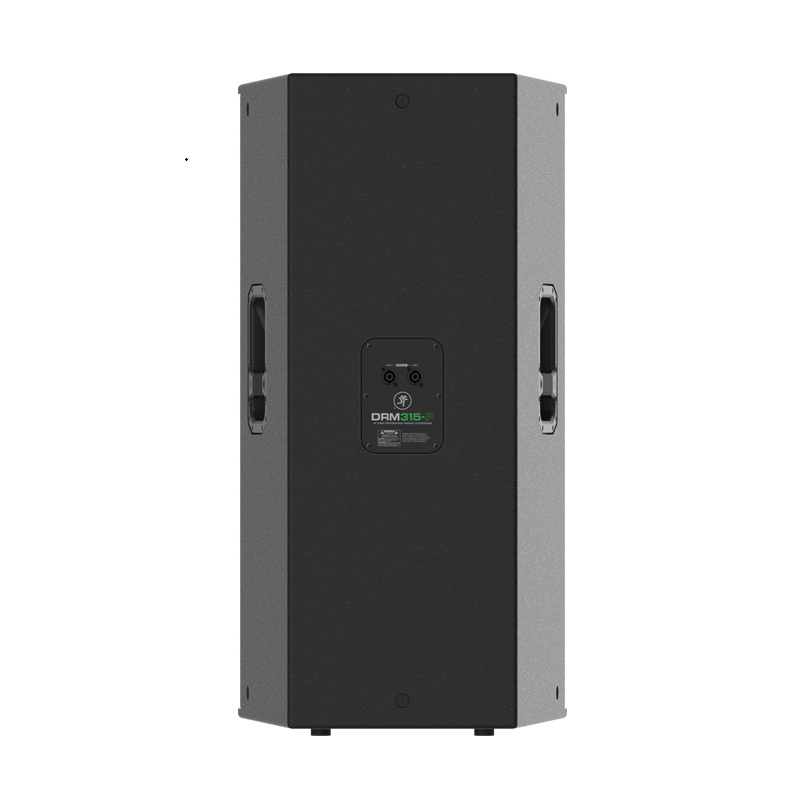

| Input Type | 1x Female speakON |
| Thru Type | 1x Female speakON |
| Nominal Impedance | 4 Ω |
| Basic Design | Vertical Trapezoidal |
| Enclosure Material | 15 mm Plywood |
| Enclosure Finish | Black Polyurea |
| Grille Material | 16-18 gauge perforated steel |
| Grille Finish | Powder-coated black |
| Handles | One on each side |
| Operating Temperature | 0 – 40 °C // 32 – 104 °F |
| Physical Properties (product) | |
| Height | 36.5 in / 927 mm |
| Width | 18.8 in / 478 mm |
| Depth | 19.0 in / 485 mm |
| Weight | 67.5 lb / 30.6 kg |
| Physical Properties (packaged product) | |
| Height | 39.2 in / 996 mm |
| Width | 22.2 in / 564 mm |
| Depth | 22.3 in / 566 mm |
| Weight | 80.5 lb / 36.5 kg |
| Mounting Methods | |

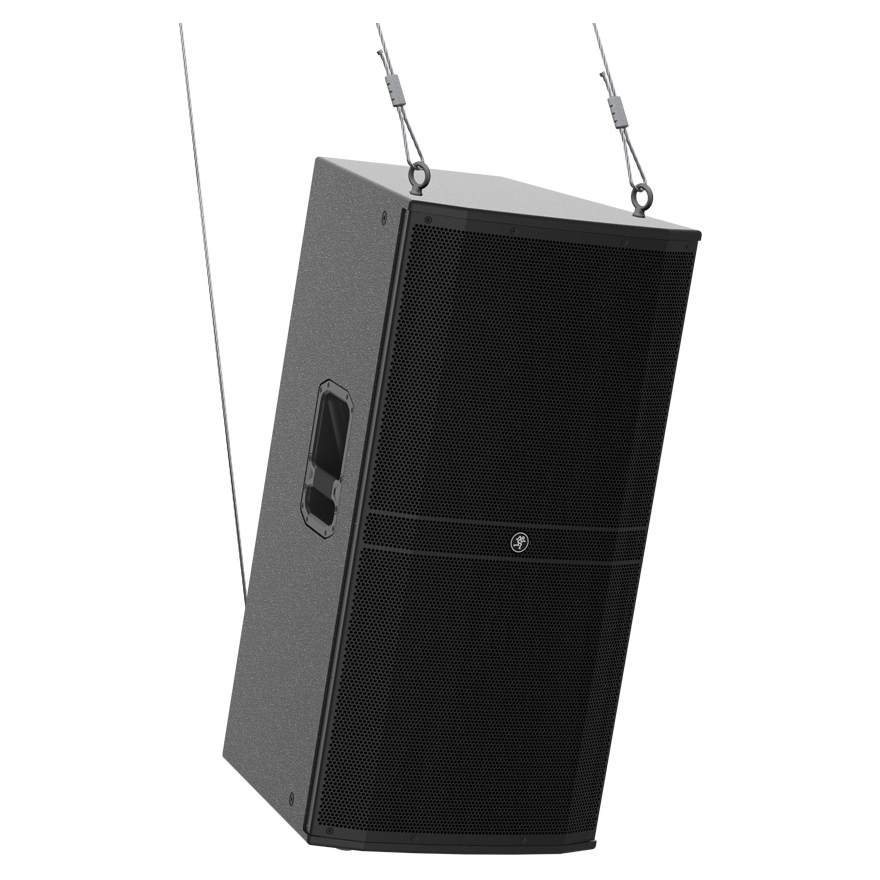

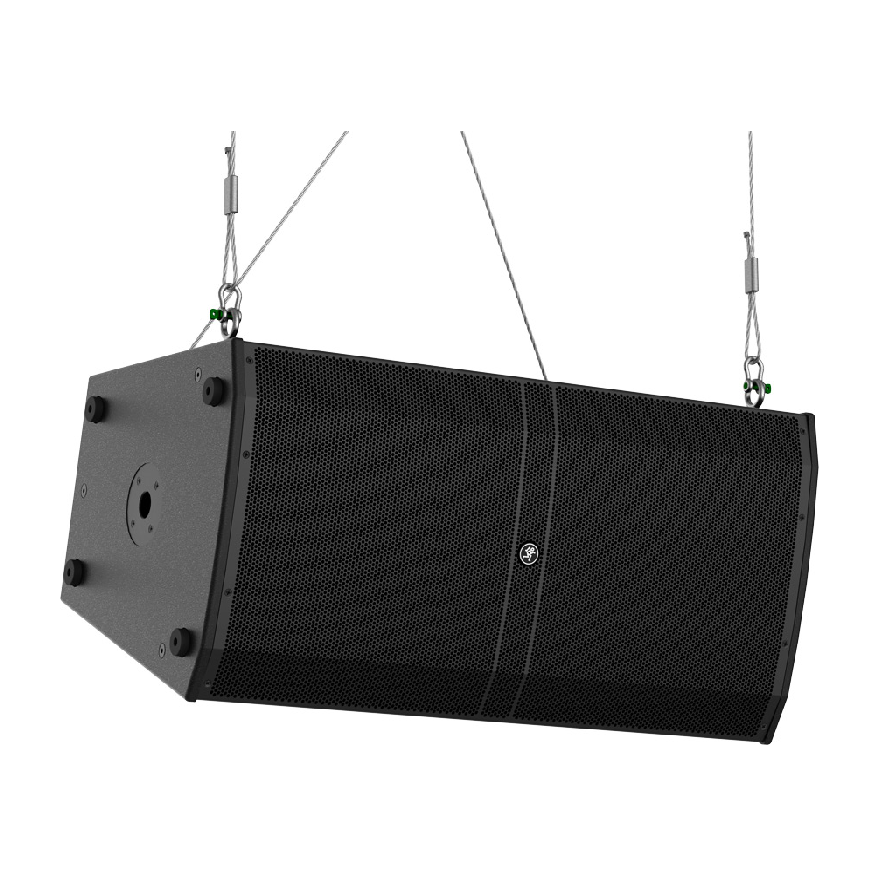

| Supported Methods | Floor mount, pole mount via the built-in socket on the bottom of the cabinet [Be sure the pole is capable of supporting the weight of the DRM315-P] or fly via the integrated M10 mounting points (using M10 x 1.5 x 20 mm forged shoulder eyebolts). |
| Options | |
| DRM315-P Cover | P/N 2036809-50 |
| SPM400 Loudspeaker Pole Mount | P/N 2051055 |
| PA-A2 Forged Shoulder Eyebolt Kit (3 x M10 x 1.5 x 20 mm) | P/N 2051054 |
| Ordering Information | |
| DRM315-P 15″ 3-way Professional Passive Ldspkr | P/N 2050820-00 |
