SPECIFICATIONS
| Loudspeaker Technical Specifications | |
|---|---|
| Acoustic Performance | |
| Frequency Response (-10 dB) | 36 Hz – 180 Hz [Thump115S] 30 Hz – 150 Hz [Thump118S] |
| Frequency Response (-3 dB) | 46 Hz – 150 Hz [Thump115S] 40 Hz – 120 Hz [Thump118S] |
| Maximum SPL Peak | 131 dB [Thump115S] 132 dB [Thump118S] |
| Transducers | |
| Low Frequency | 15 in / 381 mm [Thump115S] 18 in / 457 mm [Thump118S] with ferrite |
| Power Amplifiers | |
| System Power Amplification – Rated Power | 1400 watts peak |
| Low Frequency Power Amplifier | Rated Power: 1400 watts peak Rated THD: <1% Cooling: Convection Design: Class D |
| System Processing | |
| Phase | Normal / Invert |
| FR Output | Stereo / Mono |
| High Pass Mode | Flat, Deep, Punch, Variable |

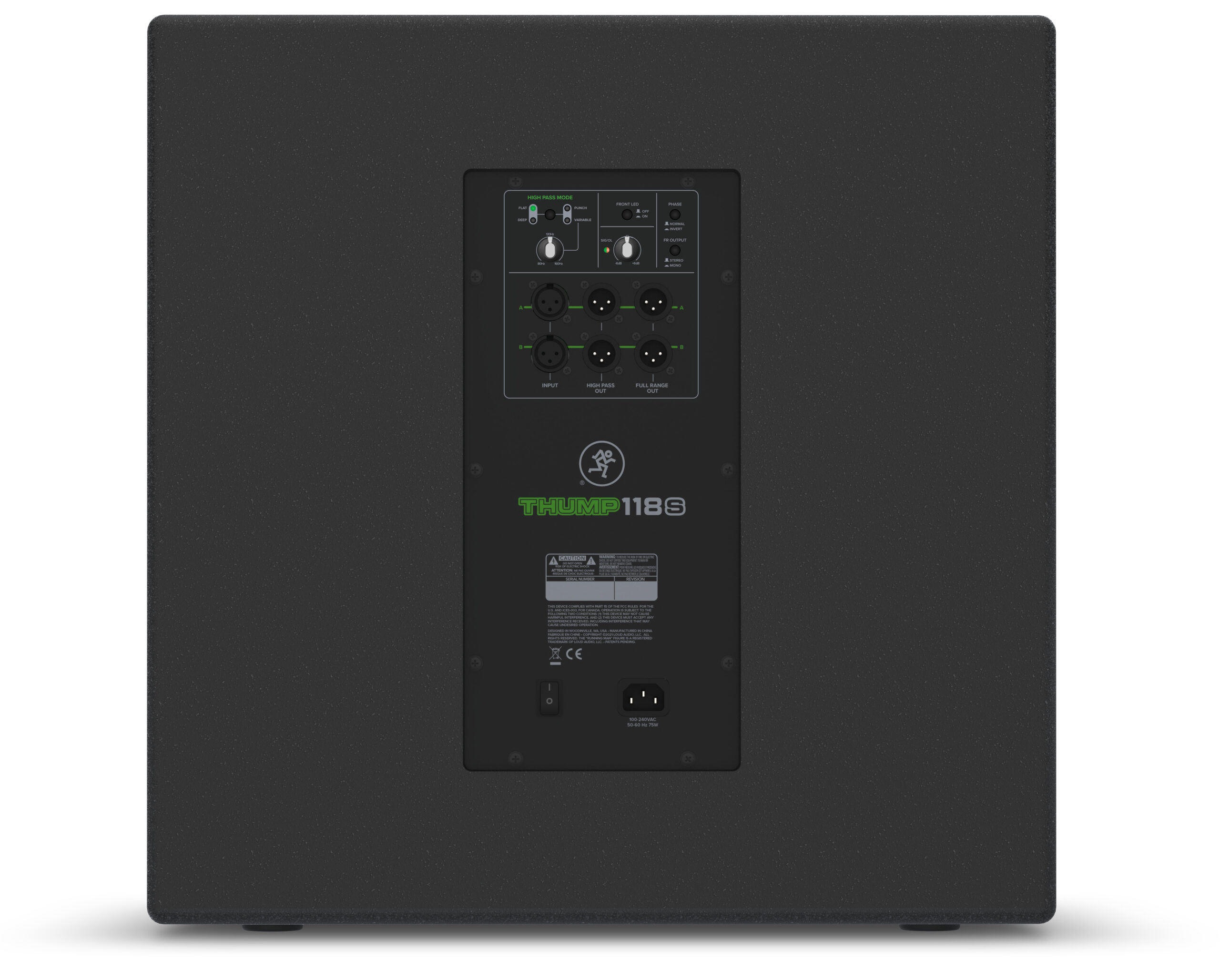

| Input / Output | |
| Input Type | 2x Female XLR Balanced Differential (Stereo Left / Right) |
| Input Impedance | 10 kΩ Balanced |
| Full Range Outputs | 2x Male XLR Balanced (Parallel with Inputs – Mono) |
| Full Range Impedance | 300 Ω Balanced |
| High Pass Outputs | 2x Male XLR Balanced |
| Main Level Control | Rotating Knob |
| Line Input Power | |
| Detachable line cord | 100-120V~, 50-60Hz, 75W 220-240V~, 50-60Hz, 75W |
| AC Connector | 3-pin IEC 250 VAC, 10 A male |
| Safety Features | |
| Input Protection | Peak and RMS limiting, power supply and amplifier thermal protection |
| Display LED | Defeatable front power |
| Mounting Methods | |
| Supported Methods | Thump subwoofers are designed to sit on the floor or stage. They are NOT designed to be pole-mounted or suspended. The cabinet has no rigging points and is not suitable for rigging. Never attempt to suspend a Thump subwoofer by its handles. |
| Physical Properties (product) [THUMP115S] | |
| Height | 18.5 in / 470 mm |
| Width | 18.1 in / 460 mm |
| Depth | 23.0 in / 585 mm |
| Weight | 52.2 lb / 23.7 kg |
| Physical Properties (product) [THUMP118S] | |
| Height | 21.3 in / 540 mm |
| Width | 20.9 in / 530 mm |
| Depth | 23.8 in / 605 mm |
| Weight | 65.5 lb / 29.7 kg |
