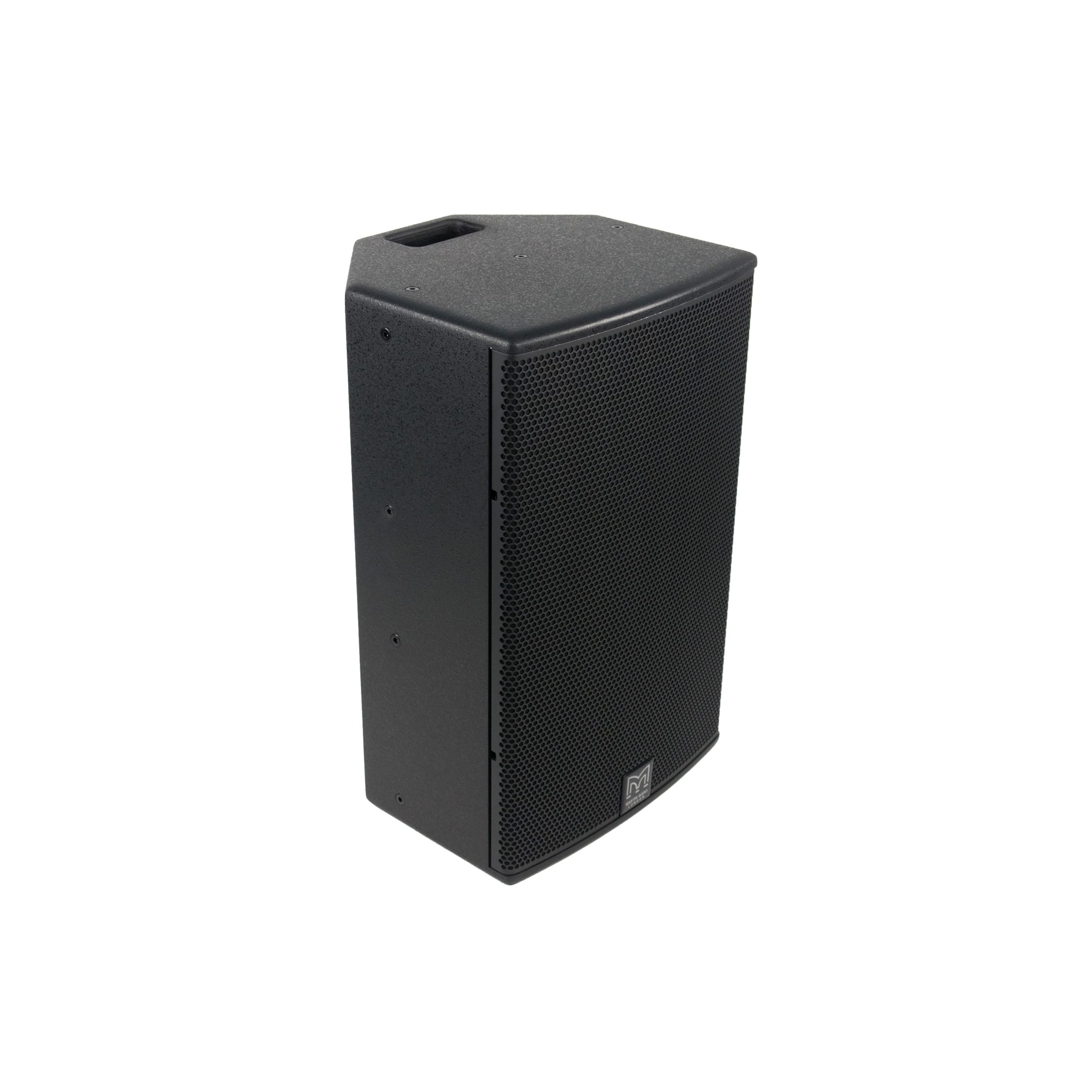

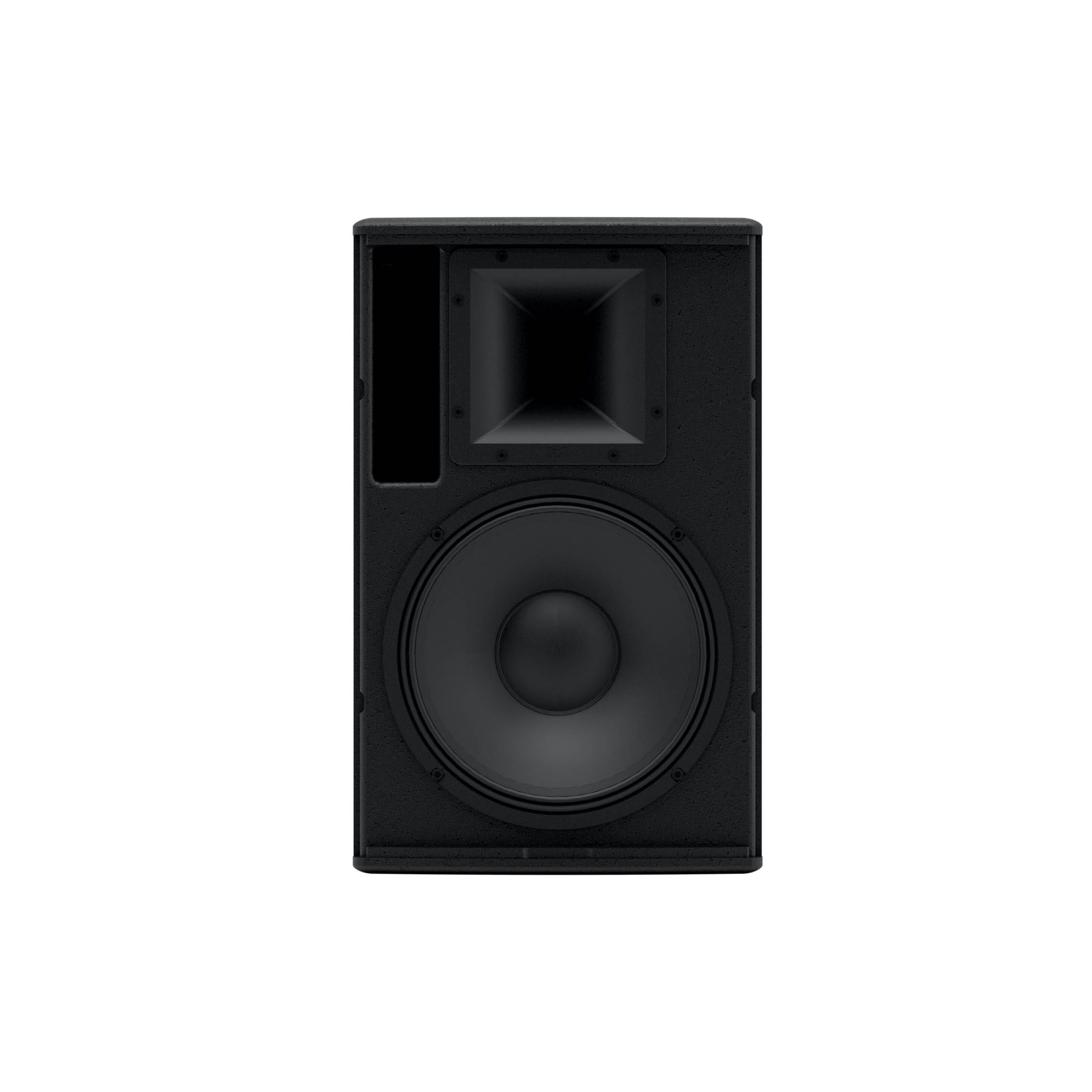

MARTIN AUDIO Blackline X12 Two-way Portable Loudspeaker

The Blackline X12 LF driver has a 2.5” (63mm) voice coil and a high BL motor, while the HF compression driver utilises a 1.75” (44mm) poly-imide diaphragm for extended high frequency response. Use with a BlacklineX Series subwoofer will enable the X12 to operate as a dancefloor or sound reinforcement system that is remarkably powerful for its size, as well as being extremely portable.

The X12 is constructed from plywood and fitted with a screw-free steel grille, M8 inserts for wall brackets and eyebolt suspension, plus a pole-mount socket with a removable bung that maintains clean lines in install applications. Finished in black textured paint.

A full-range passive two-way system, the X12 may be used without a controller. However, the EQ and limiter functions of a controller such as the Martin Audio DX0.4 or DX0.6 will maximise its capabilities and provide crossover functions when used with a subwoofer such as the X115, X118 or X218.

Features

  • Compact passive two-way system
  • Symmetrical multi-angle plywood enclosure
  • User-rotatable 80° x 50° horn
  • Vertical and horizontal orientation
  • Screw-free, cloth-backed perforated steel grille
  • Integral ergonomic handle
  • Pole-mount bung maintains clean lines
  • 8Ω nominal impedance
  • Twin NL4 connectors
  • Flexible mounting options via M8 inserts

Applications

  • Portable sound reinforcement
  • Live music clubs
  • Bars and restaurants
  • Nightclubs
  • Unobtrusive stage monitoring
  • Corporate AV events and conferences
  • Weddings and parties
  • Main PA infill
  • Secondary stages at festivals
  • HoW, leisure centres and retail outlets
分類: ,
Specification
TYPE Compact, passive two-way system
FREQUENCY RESPONSE (5) 62Hz-20kHz ± 3dB, -10dB @ 50Hz
DRIVER LF: 12” (300mm)/2.5” (63.5mm) voice coil, ferrite motor system
HF: 1” (25mm) exit/1.7” (44mm) voice coil, polyimide dome compression driver
RATED POWER (2) 300W AES, 1200W peak
SENSITIVITY (8) 97dB
MAXIMUM SPL (9) 122dB continuous, 128dB peak
NOMINAL IMPEDANCE 8Ω
DISPERSION (-6dB) 80° H x 50° V (user-rotatable)
CROSSOVER 2.3kHz passive
ENCLOSURE Multi-angle birch/poplar ply
FINISH Black textured paint
PROTECTIVE GRILLE Black perforated steel with scrim cloth backing
CONNECTORS 2 x NL4 type
PIN CONNECTIONS (INPUT) 1+/1-
PIN CONNECTIONS (LINK) 1+/- to 1+/-
FITTINGS 20 x M8 inserts, pole-mount socket, 1 x bar handle
DIMENSIONS (W) 358mm x (H) 574mm x (D) 337mm
(W) 14.1ins x (H) 22.6ins x (D) 13.7ins
WEIGHT 17kg (37.5lbs)
ACCESSORIES Wall bracket, eyebolts
