Specifications
| ACOUSTICAL | |

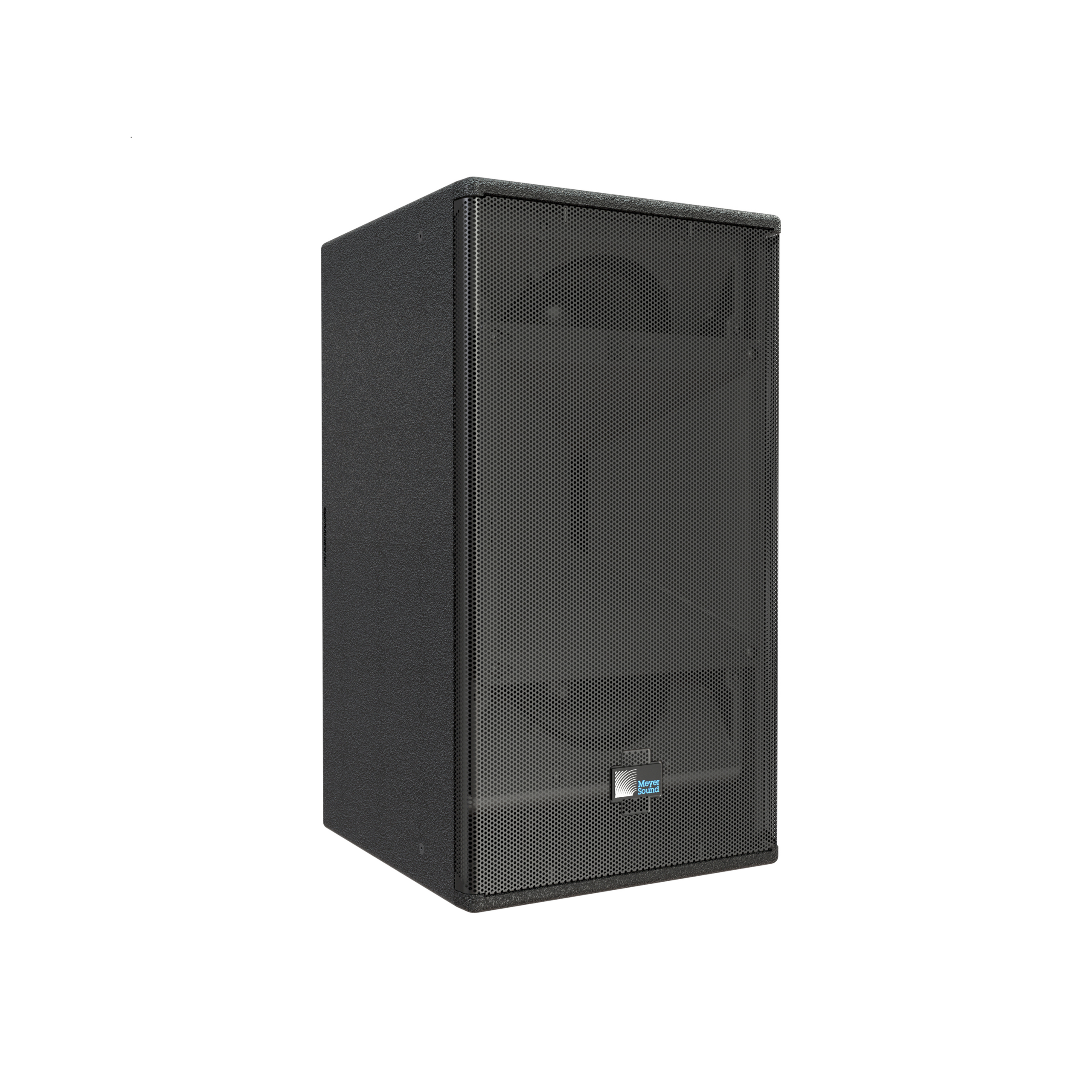

| Compatible Models | ULTRA-X80 / ULTRA-X82 |
| Operating Frequency Range | 55 Hz – 18 kHz, ±6 dB |
| AES75 Max Linear Sound Levels2 | [ULTRA-X80]: 122 dBZ, 140 dBZpk, 119.6 dBA (RMS input level of +3.0 dBV, 50º C) [ULTRA-X82]: 123 dBZ, 141 dBZpk, 121 dBA (RMS input level of +3.0 dBV, 50º C) |
| COVERAGE | |
| Horizontal Coverage | [ULTRA-X80]: 95° [ULTRA-X82]: 50° |
| Vertical Coverage | 40° (Both models) |
| TRANSDUCERS | |
| Low Frequency | Two 12-inch long-excursion cone drivers |
| High Frequency | One 4-inch diaphragm compression driver connected to a rotatable horn |
| AUDIO INPUTS | |
| Analog Audio Input3 | • Connector: Neutrik XLR 3-pin TOP (True Outdoor Protection) female input with male loop output • Max Input Level: Source must be capable of producing +24 dBU into 600 Ω |
| Digital Audio Input3 | • Connector: Neutrik etherCON TOP (True Outdoor Protection) • Digital Format: AVB, Milan Certified |
| AC POWER & CONSUMPTION | |
| Power Connector & Voltage | • Connector: Neutrik powerCON TRUE1 TOP (True Outdoor Protection) • Operating Voltage Range: 200 – 240 V AC, 50 or 60 Hz |
| Power Consumption | • Max Long-Term Continuous (>10 sec): 900 W • Burst Power (<1 sec): 2400 W • Idle Power: 55 W |
| MONITORING | |
| Telemetry | Loudspeaker telemetry transmitted via the Ethernet port, displayed in software |
| PHYSICAL | |
| Weight | 62.6 kg (138 lb) |
| Enclosure & Grille | Premium multi-ply birch, slightly textured black finish. Powder-coated, stamped steel grille. * Outdoor Temporary (OT) version includes additional cabinet wood treatment and stainless steel mesh behind the grille. |
| IP Rating | The OT version is IP55 rated (when connected to cables terminated with Neutrik TOP connectors) |
| Rigging | M8 x 1.25 mm accessory attachment points (6 on top, 6 on bottom) |
