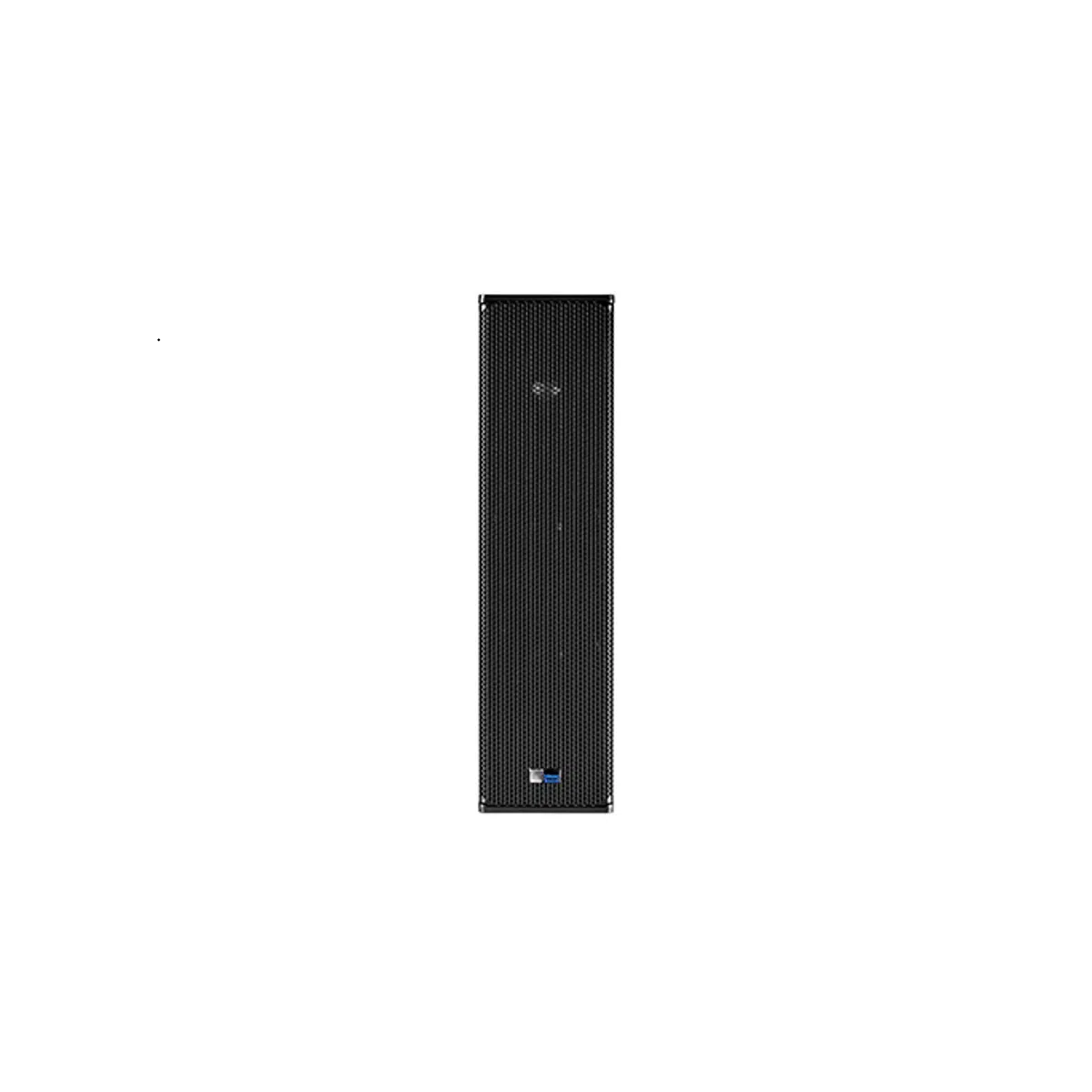

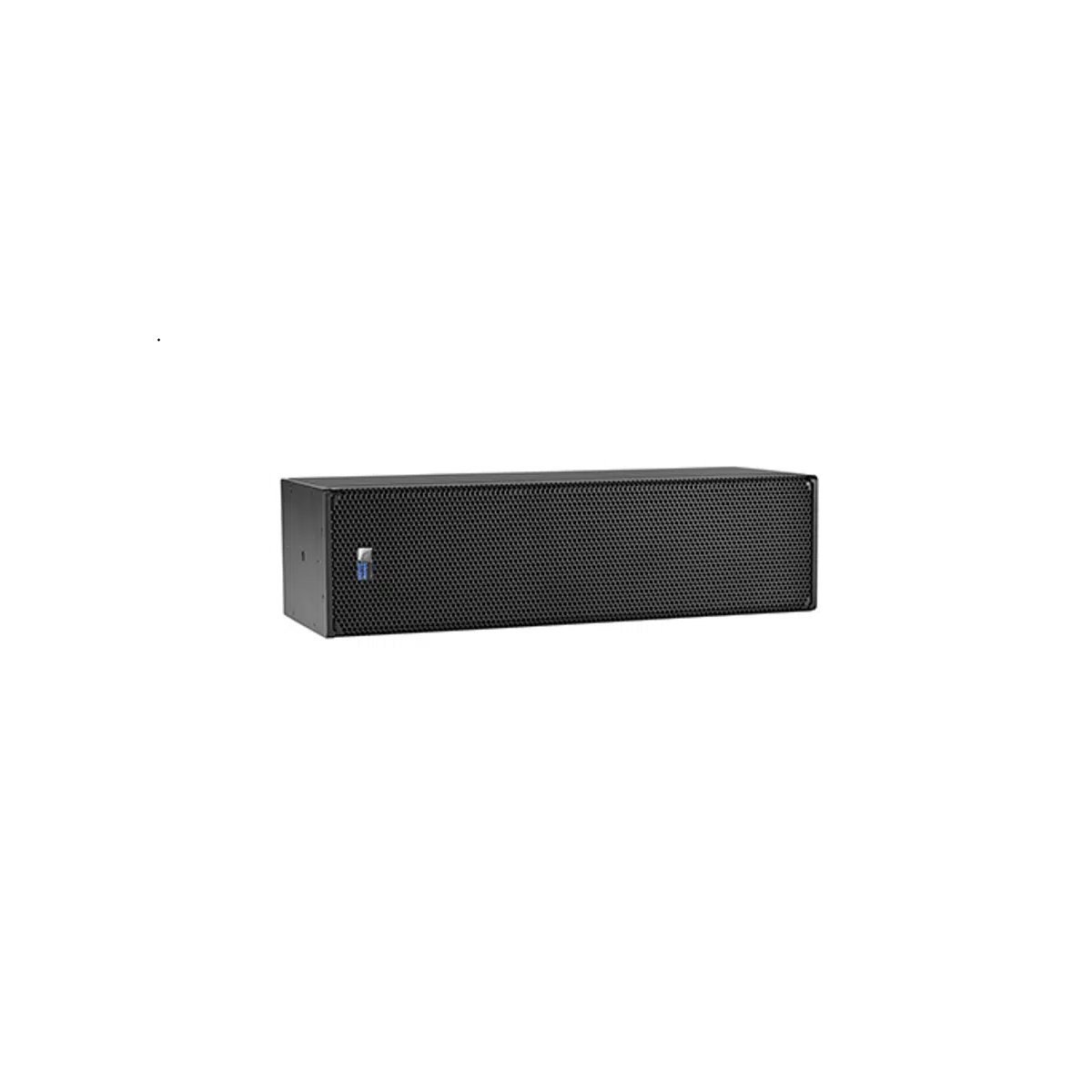

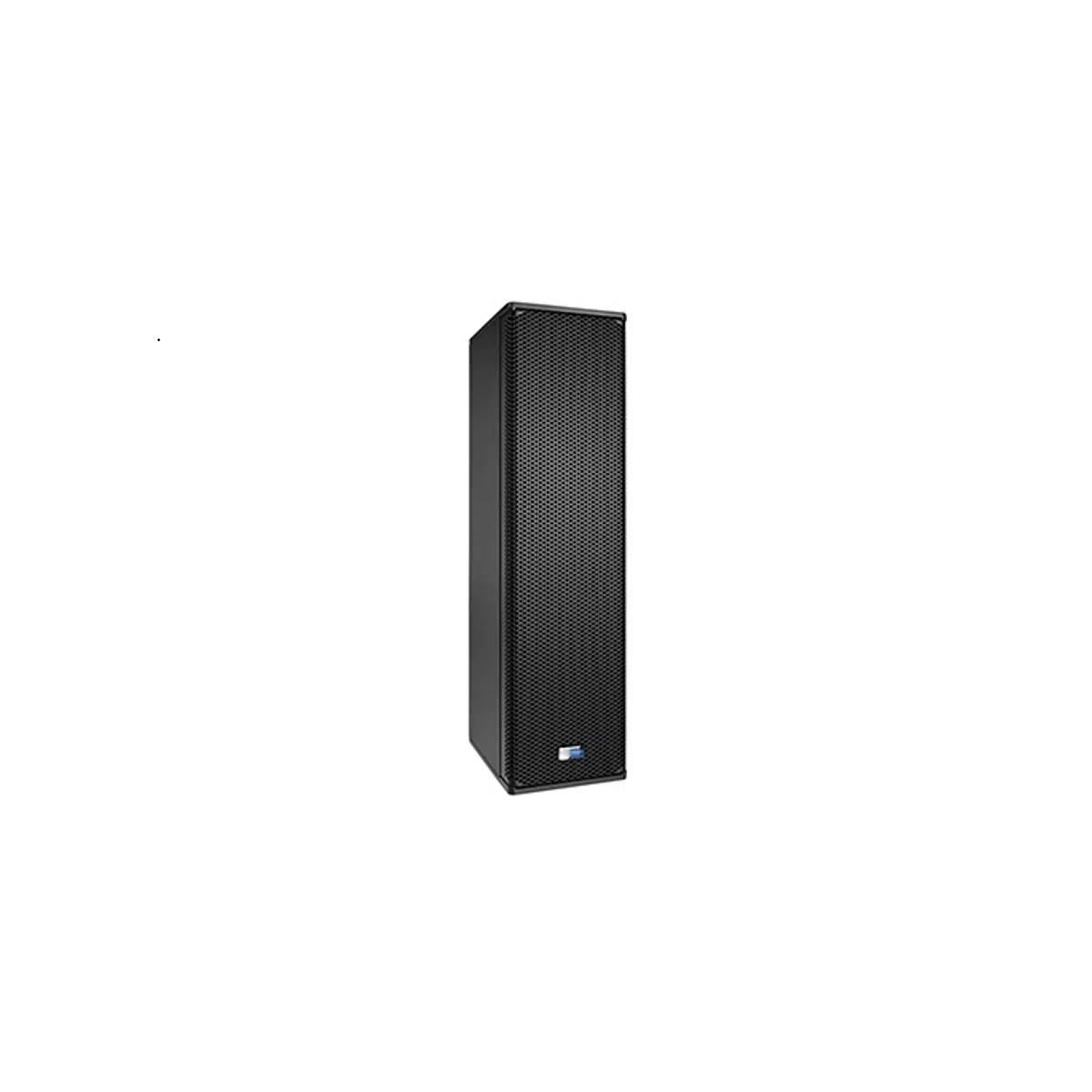

MEYER SOUND UP-4SLIM installation loudspeaker

The UP-4slim ultra-compact installation loudspeaker is ideally suited for applications requiring a small, slim, aesthetically pleasing cabinet that delivers high sound pressure levels with low distortion and uniform coverage. The UP-4slim offers this exceptional audio performance in a compact self-powered package with a remote power supply. As a standalone loudspeaker, the UP-4slim is appropriate for vocal reinforcement, front-fill, and under balcony fill applications. The UP-4slim can be optionally paired with a Meyer Sound subwoofer to create a full-range system. One MM-10ACX can also power one UP-4slim.

The UP-4slim is engineered to the same award-winning standards as all Meyer Sound IntelligentDC loudspeakers. Its onboard amplification and sophisticated signal processing provide the flat frequency and phase responses for which Meyer Sound loudspeakers are known. Its drivers are designed and manufactured at the Meyer Sound factory in Berkeley, California.

The UP-4slim’s high-frequency section includes a 1-inch metal dome tweeter on a constant-directivity, high-frequency horn. The low to mid-frequency section includes two 4-inch cone transducers that work in parallel at low frequencies to deliver a combined acoustic output. One of the drivers rolls off at higher frequencies to maintain constant directivity in the crossover region.

The UP-4slim has very low distortion, boasts a wide operating frequency range (65 Hz – 18 kHz), and linear peak SPL of 116.5 dB with crest factor >16.5 dB using M-noise4. With a smooth and consistent 100° coverage, fewer loudspeakers can cover a larger area, reducing system cost while maintaining the highest sound quality.

Features and Benefits
  • Extraordinary fidelity and power in a compact aluminum package
  • Low distortion drivers and a metal dome tweeter deliver a smooth high-frequency response
  • Wide, symmetrical coverage pattern creates a broad listening area
  • Unique crossover design eliminates comb filtering and yields a consistent midrange response
  • Exceptional SPL-to-size ratio
  • Design supports long cable runs with light-gauge cables
Applications
  • Front-fill and under-balcony fill coverage
  • Theatrical sound reinforcement and special effects
  • Installed Audio/Visual systems
  • Compact voice reinforcement systems
  • Constellation Acoustic Systems
分類: ,

Specifications

ACOUSTICAL1
Operating Frequency Range2 65 Hz – 18 kHz
Frequency Response3 70 Hz – 18 kHz ±4 dB
Phase Response 102 Hz – 18 kHz ±45°
Linear Peak SPL4 116.5 dB with crest factor >16.5 dB (M-noise), 109.5 dB (Pink noise), 112.5 dB (B-noise)
COVERAGE
Horizontal Coverage 100°
Vertical Coverage 100°
TRANSDUCERS
Low Frequency Two 4-inch cone drivers; 4 Ω nominal impedance
High Frequency One 1-inch metal dome tweeter; 8 Ω nominal impedance
AUDIO INPUT
Type Differential, electronically balanced
Maximum Common Mode Range ±5 V DC

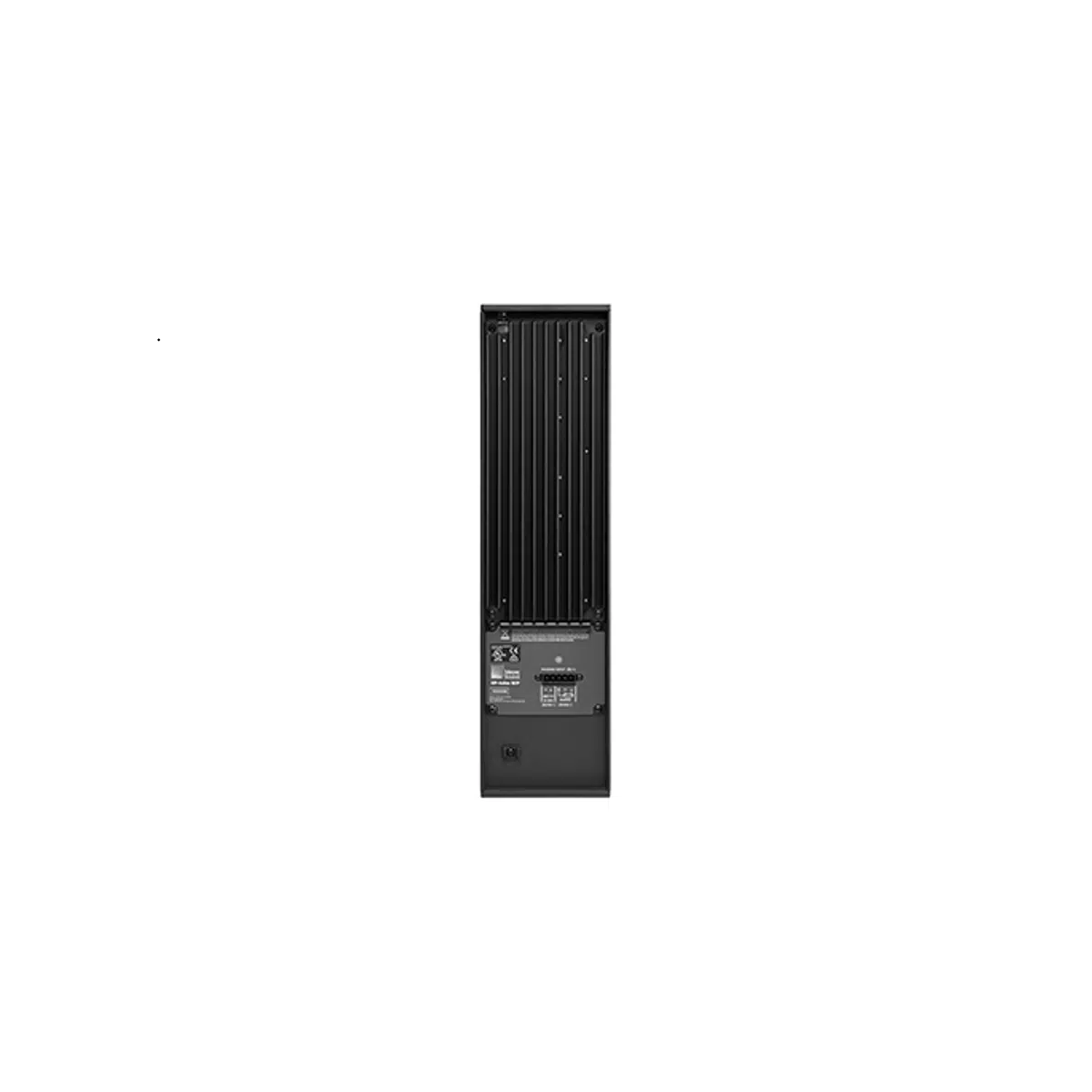

Connectors Phoenix 5-pin male
Input Impedance 10 kΩ differential between Audio (+) and Audio (–)
Wiring Pin 1: DC Power (–)
Pin 2: DC Power (+)
Pin 3: Audio Shield, Chassis/earth
Pin 4: Audio (–)
Pin 5: Audio (+)
Nominal Input Sensitivity -2.0 dBV (0.8 V rms) continuous is typically the onset of limiting for noise and music
Input Level Audio source must be capable of producing of +16 dBV (6.31 V rms) into 600 Ω to produce the maximum peak SPL over the operating bandwidth of the loudspeaker.
AMPLIFIER
Type 3-channel, Class-D with integral advanced digital signal processing
Total Output Power5 500 W peak
THD, IM, TIM < 0.02%
Cooling Convection
DC POWER
Connector Phoenix 5-pin male provides power and audio connection (see Wiring above)
Safety Agency Rated Voltage Range6 48 V DC (Meyer Sound IntelligentDC External Power Supply Required)
DC CURRENT DRAW7
Idle Current 0.23 A average
Maximum Long-Term Continuous Current (>10 sec) 1.00 A average
Maximum Instantaneous Peak Current 4.5 A peak
PHYSICAL
Dimensions W: 4.29 in (109 mm) x H: 15.90 in (404 mm) x D: 5.69 in (144 mm)
Weight 14 lb (6.35 kg)
Enclosure Aluminum with slightly textured black finish
IP Rating Weather-protected version rated IPx5 with properly installed rain hood. See the UP-4slim Operating Instructions available at meyersound.com/documents.
Protective Grille Powder-coated, stamped steel with black mesh
Rigging Top and bottom aluminum plates with M8 threads
COMPLIANCE
Safety Agency Certification Standard for audio, video and similar electronic apparatus:
UL 60065, CSA C22.2 NO. 60065-03 (AMD 2), IEC 60065, IEC 62368-1

Fire Rated to UL Standard 2043, Product and Accessories Installed in Air-Handling Spaces
EMC Certification CE and FCC Part 15 Emission Class B emission limits applied.
