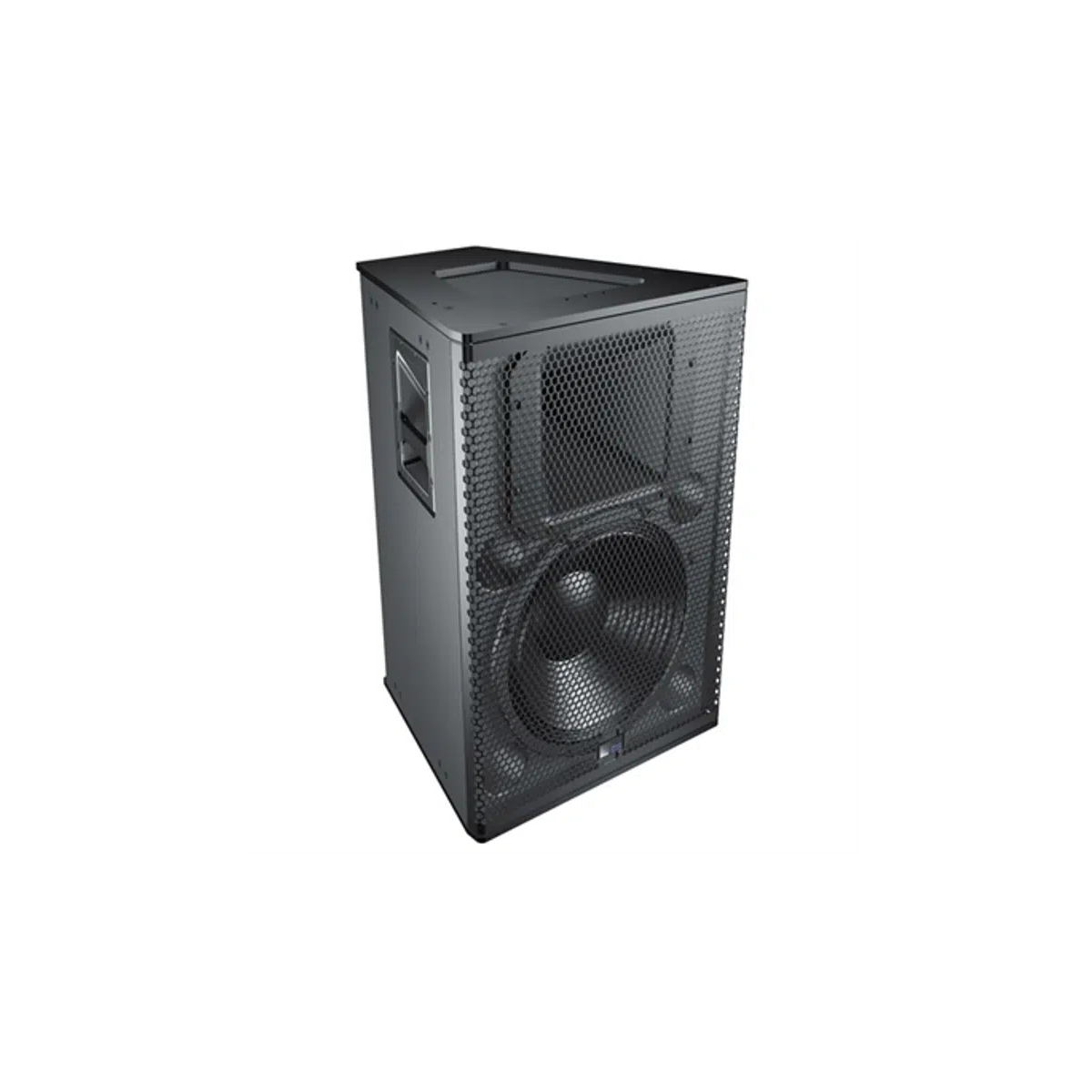

MEYER SOUND UPQ-D2 narrow coverage loudspeaker

• A narrow coverage, Constant‑Q horn with ‑6 dB points at 50° x 50° (‑10 dB points at 60° x 60°)
• An innovative, newly designed, highly efficient Class D amplifier with reduced current draw that reproduces any sound with linearity over a wide dynamic range
• Optimized frequency and phase response characteristics
• Lightened cabinet weight
• Redesigned cabinet that retains the original size, grille frame, and rigging options of previous UPQ products
• The UPQ‑D2 offers a focused beamwidth, which yields precise coverage and minimal interaction with walls and neighboring loudspeakers in arrays. This feature makes it an ideal solution for small to mid‑sized venues, houses of worship, theaters, and nightclubs—as either a stand‑alone loudspeaker or as part of an array. The Constant‑Q horn’s smooth and accurate performance, the result of meticulous research in Meyer Sound’s anechoic chamber, exhibits a remarkably consistent beamwidth in both the horizontal and vertical planes across a wide frequency range of 1–18 kHz. The UPQ‑D2 horn also delivers uniform attenuation for all frequencies outside the specified beamwidth.In addition to the Constant‑Q horn, the loudspeaker features a low frequency 15‑inch neodymium magnet cone driver and 4‑inch diaphragm compression driver, both designed and manufactured at Meyer Sound’s Berkeley, California headquarters.

  The proprietary two‑channel, class D power amplifier yields a total power output of 2250 W. Audio input routes through electronic crossover and correction filters, as well as through driver‑protection circuitry. Phase‑corrected processing ensures a flat acoustical amplitude and phase response, resulting in an exceptional impulse response and precise imaging.

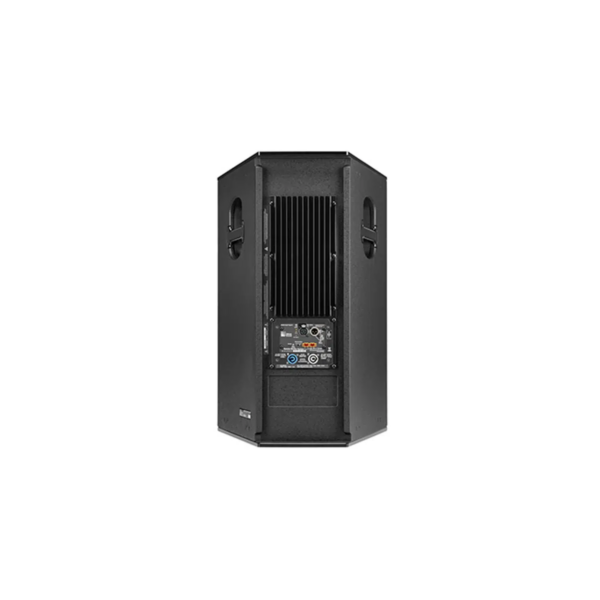

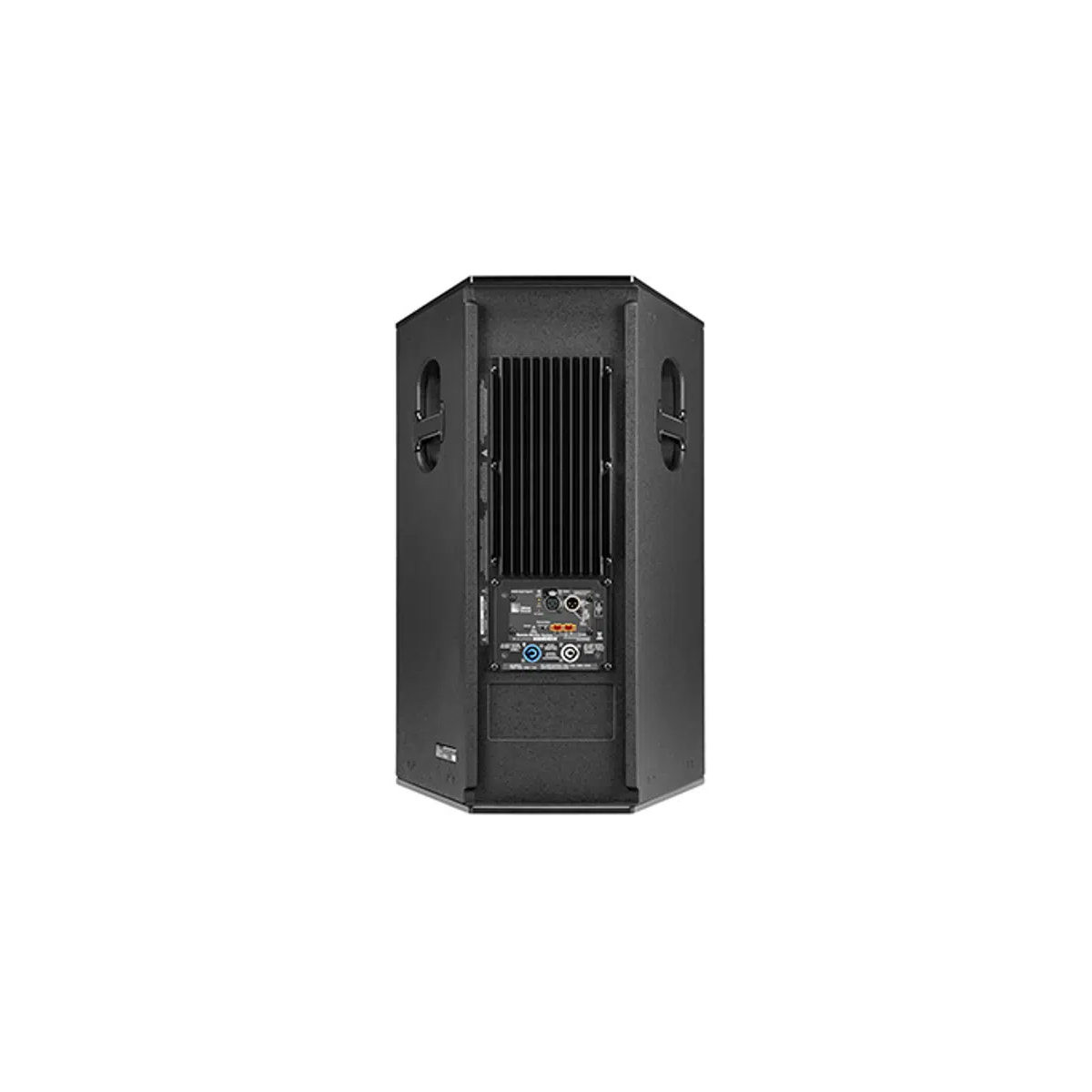

  Each amplifier channel has sophisticated limiters that are easily monitored with the limit LEDs on the unit’s rear panel. The UPQ‑D2’s modular amplifier and processing electronics incorporate Meyer Sound’s Intelligent AC™ power supply, which adapts to any power voltage worldwide and provides soft‑turn on and transient protection. The UPQ‑D2 uses a XLR 3‑pin female input with male loop output connector.

Features and Benefits

• Focused symmetrical pattern affords precise coverage and arrayability in horizontal or vertical clusters
• Highly energy efficient amplifier with sophisticated digital signal processing that provides extraordinarily flat amplitude and phase response for tonal accuracy and precise imaging
• Integral stand mount and QuickFly mounting options facilitate rigging
• Constant‑Q horn affords uniform response throughout coverage area
• Exceptional size to power ratio provides application flexibility
• Consistent and predictable performance ensures accurate system design

Applications

• Theatrical sound reinforcement
• SB-3F — Sound Field Synthesis Loudspeaker
• Portable and installed audio‑visual systems
• Centerfill and sidefill
• Nightclubs
