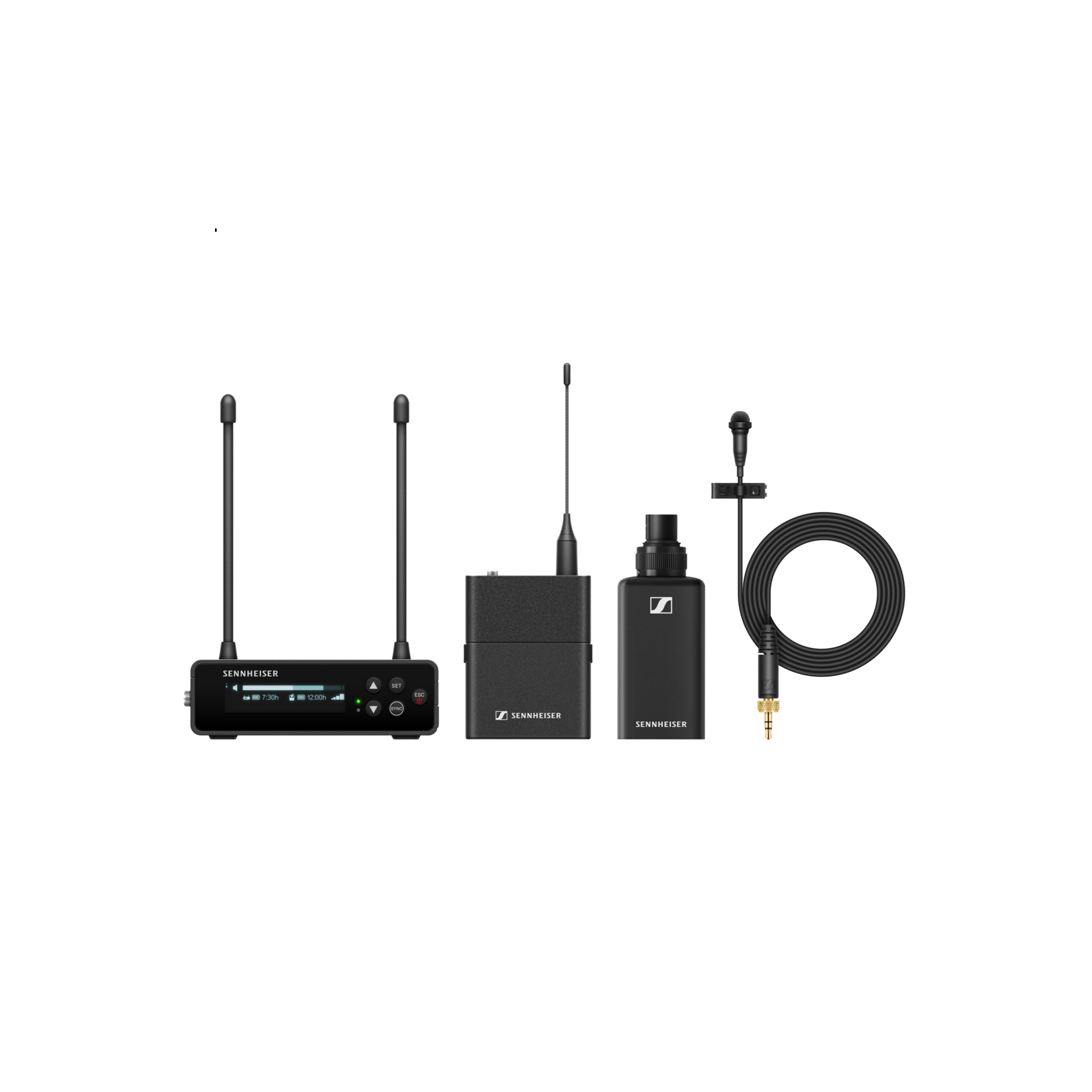

SENNHEISER EW-DP ENG SET Digital Wireless Lavalier Combo

<div class=”specs-container”>
<style>
.specs-container {
-webkit-user-select: none !important;
-moz-user-select: none !important;
-ms-user-select: none !important;
user-select: none !important;
}
</style>

<h2 class=”specs-title”>Specifications</h2>

<table class=”specs-table”>
<tbody>
<tr class=”category-row”>
<td colspan=”2″>GLOBAL SYSTEM SPECIFICATIONS</td>
</tr>
<tr class=”data-row”>
<td class=”param-name”>Audio Link Frequency Ranges</td>
<td class=”param-value”>
• Q1-6: 470.2 – 526 MHz<br>
• R1-6: 520 – 576 MHz<br>
• R4-9: 552 – 607.8 MHz<br>
• S1-7: 606.2 – 662 MHz<br>
• S4-7: 630 – 662 MHz<br>
• S7-10: 662 – 693.8 MHz<br>
• T1/7: 694.5 – 702.7 MHz &amp; 748.3 – 757.7 MHz<br>
• T12: 806.125 – 809.750 MHz<br>
• T13-14: 819.2 – 823.0 MHz<br>
• U1/5: 823.2 – 831.8 MHz &amp; 863.2 – 864.8 MHz<br>
• V3-4: 925.2 – 937.3 MHz<br>
• Y1-3: 1785.2 – 1799.8 MHz
</td>
</tr>
<tr class=”data-row”>
<td class=”param-name”>Bluetooth Frequency Range</td>
<td class=”param-value”>2402 – 2480 MHz (Bluetooth® Low Energy)</td>
</tr>
<tr class=”data-row”>
<td class=”param-name”>Audio Frequency Response</td>
<td class=”param-value”>20 Hz – 20 kHz (-3 dB) @ 3 dBfs</td>
</tr>
<tr class=”data-row”>
<td class=”param-name”>Audio THD</td>
<td class=”param-value”>≤ -60 dB for 1 kHz @ -3 dBfs input level</td>
</tr>
<tr class=”data-row”>
<td class=”param-name”>Dynamic Range &amp; Latency</td>
<td class=”param-value”>
• Dynamic Range: 134 dB<br>
• System Latency: 1.9 ms
</td>
</tr>
<tr class=”data-row”>
<td class=”param-name”>Environmental Conditions</td>
<td class=”param-value”>
• Operating Temperature: -10 °C – +55 °C (14 °F – 131 °F)<br>
• Relative Humidity: 5 – 95 % (non-condensing)
</td>
</tr>

<tr class=”category-row”>
<td colspan=”2″>RECEIVER SPECIFICATIONS</td>
</tr>
<tr class=”data-row”>
<td class=”param-name”>Input Voltage &amp; Current</td>
<td class=”param-value”>
• Input Voltage: ~ 1.8 – 4.35 V<br>
• Input Current (BA 70): Typ. &lt; 250 mA / Max. &lt; 400 mA<br>
• Input Current (2x AA): Typ. &lt; 400 mA / Max. &lt; 750 mA<br>
• Input Current (USB-C Standalone): &lt; 300 mA @ 5 V
</td>
</tr>
<tr class=”data-row”>
<td class=”param-name”>Power Supply Options</td>
<td class=”param-value”>
2x AA batteries 1.5 V or BA 70 rechargeable battery pack or USB-C PD power supply (max.):<br>
• 5 V / 1500 mA<br>
• 9 V / 900 mA<br>
• 12 V / 700 mA
</td>
</tr>
<tr class=”data-row”>
<td class=”param-name”>Wireless &amp; Audio Output Power</td>
<td class=”param-value”>
• Transmit Power (BLE): max. 10 mW EIRP<br>
• Audio Output Power: &lt; 2 dBV max. (high level) / &lt; 4 dBU max (high level)
</td>
</tr>
<tr class=”data-row”>
<td class=”param-name”>Headphone Output</td>
<td class=”param-value”>&lt; 50 mW into 16 Ohms</td>
</tr>
<tr class=”data-row”>
<td class=”param-name”>Dimensions &amp; Weight (Receiver)</td>
<td class=”param-value”>
• Dimensions: 86 x 67 x 28 mm (3.39″ x 2.64″ x 1.1″)<br>
• Weight (without antennas and power supply): approx. 140g (0.31 lbs)
</td>
</tr>

<tr class=”category-row”>
<td colspan=”2″>PLUG-ON TRANSMITTER SPECIFICATIONS</td>
</tr>
<tr class=”data-row”>
<td class=”param-name”>Input Voltage &amp; Current</td>
<td class=”param-value”>
• Input Voltage: ~ 2.0 – 4.35 V<br>
• Input Current: &lt; 300 mA (without record and P48)
</td>
</tr>
<tr class=”data-row”>
<td class=”param-name”>Power Supply &amp; Outputs</td>
<td class=”param-value”>
• Power Supply: 2x AA batteries 1.5 V or BA 70 rechargeable battery pack<br>
• XLR Output Power: max. 10 mA<br>
• Audio Output Power: &lt; 2 dBV max. (high level) / &lt; 4 dBU max (high level)
</td>
</tr>
<tr class=”data-row”>
<td class=”param-name”>Transmit Power</td>
<td class=”param-value”>
• Audio Link: 10 mW ERP<br>
• BLE: max. 10 mW EIRP
</td>
</tr>
<tr class=”data-row”>
<td class=”param-name”>Dimensions &amp; Weight (Plug-on)</td>
<td class=”param-value”>
• Dimensions: 108 x 42 mm<br>
• Weight (without batteries): ca. 163 g (0.36 lbs)
</td>
</tr>

<tr class=”category-row”>
<td colspan=”2″>BODYPACK TRANSMITTER SPECIFICATIONS</td>
</tr>
<tr class=”data-row”>
<td class=”param-name”>Input Voltage &amp; Current</td>
<td class=”param-value”>
• Input Voltage: 2.0 – 4.35 V<br>
• Input Current: &lt; 300 mA
</td>
</tr>
<tr class=”data-row”>
<td class=”param-name”>Power Supply &amp; Bandwidth</td>
<td class=”param-value”>
• Power Supply: 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack<br>
• Occupied Bandwidth: 200 kHz
</td>
</tr>
<tr class=”data-row”>
<td class=”param-name”>Transmit Power (Radiated)</td>
<td class=”param-value”>
• Audio Link: 10 mW ERP (Range Y1-3: 12 mW ERP)<br>
• BLE: max. 10 mW EIRP
</td>
</tr>
<tr class=”data-row”>
<td class=”param-name”>Dimensions &amp; Weight (Bodypack)</td>
<td class=”param-value”>
• Dimensions (without antenna): 63 x 80 x 20 mm (2.48″ x 3.15″ x 0.79″)<br>
• Weight (without batteries): approx. 120 g (0.26 lbs)
</td>
</tr>

<tr class=”category-row”>
<td colspan=”2″>LAVALIER MICROPHONE SPECIFICATIONS</td>
</tr>
<tr class=”data-row”>
<td class=”param-name”>Transducer Principle &amp; Pick-up Pattern</td>
<td class=”param-value”>
• Transducer Principle: Pre-polarized condenser microphone<br>
• Pick-up Pattern: Omni-directional
</td>
</tr>
<tr class=”data-row”>
<td class=”param-name”>Sensitivity &amp; Frequency Response</td>
<td class=”param-value”>
• Sensitivity (free field, no load at 1 kHz): 17 mV/Pa<br>
• Frequency Response: 50 to 18,000 Hz
</td>
</tr>
<tr class=”data-row”>
<td class=”param-name”>Max. SPL &amp; Noise Level</td>
<td class=”param-value”>
• Max. SPL at 1 kHz: 130 dB<br>
• Equivalent Noise Level (A-weighted): 32 dB
</td>
</tr>
<tr class=”data-row”>
<td class=”param-name”>Connector &amp; Physical Properties</td>
<td class=”param-value”>
• Connector: 3.5 mm jack<br>
• Cable Length: approx. 1.60 m (62.99″)<br>
• Supply Voltage: 7.5 V
</td>
</tr>
</tbody>
</table>
