Specifications
| RF CHARACTERISTICS | |
| Frequency Range | 470 – 550 MHz, 520 – 608 MHz, 606 – 694 MHz, 694 – 758 MHz, 806 – 823 MHz, 823 – 865 MHz, 902 – 960 MHz or 1785 – 1805 MHz |
| Antenna Performance | • Gain: typ. +2 dBi • Impedance: 50 Ω • Return Loss: -10 dB |
| Radiation & Structure | • Radiation Pattern: Omnidirectional • Efficiency: > 60 % • Polarization: Vertical • Power Withstanding: 2 W |
| Connection | BNC male, no DC path |
| PHYSICAL SPECIFICATIONS | |

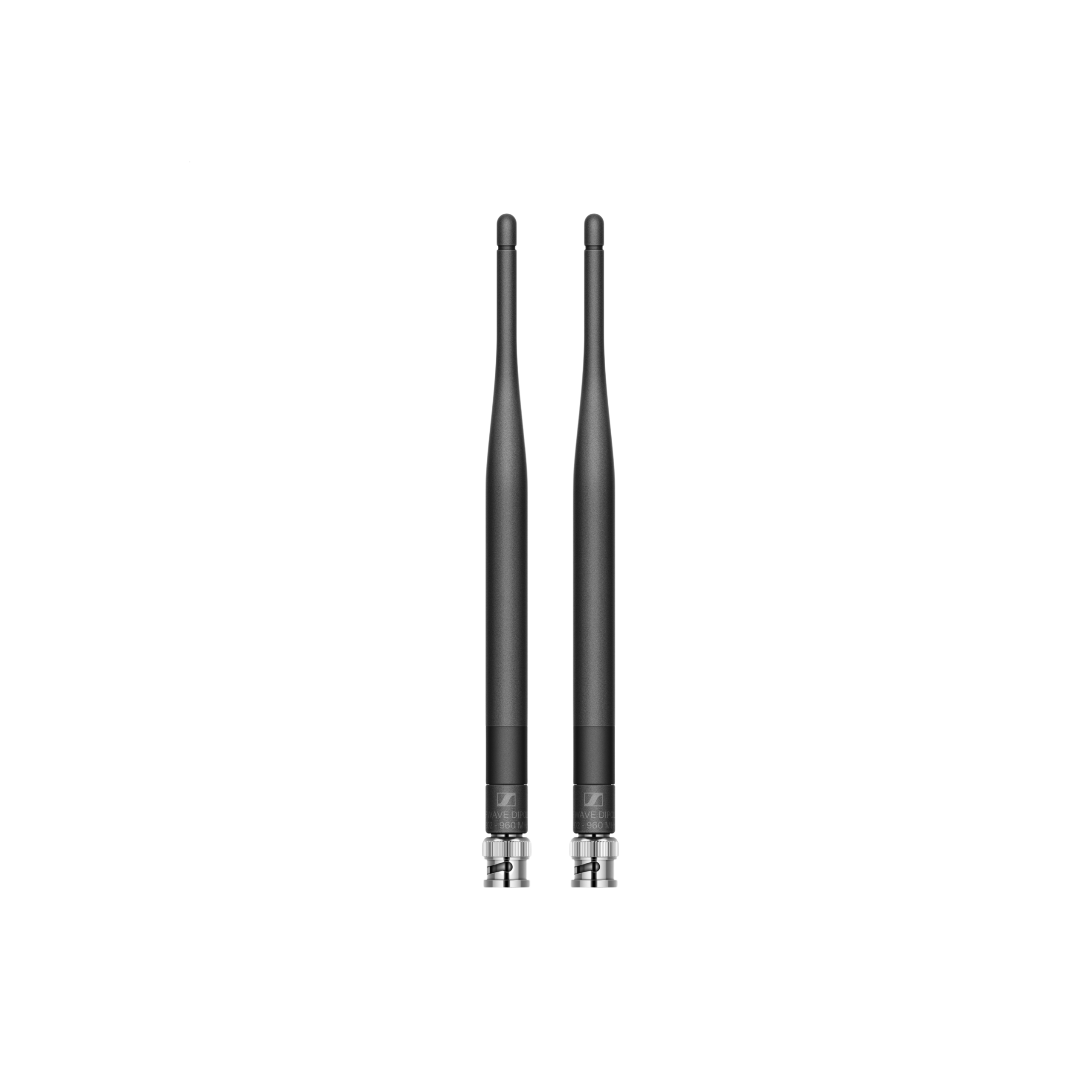

| Dimensions | • Long antenna: ⌀ 8.5 x 338.1 mm • Short antenna: ⌀ 8.5 x 202.1 mm |
| Weight by Band | • Q: approx. 48.6 g (0.11 lbs) • R: approx. 47.7 g (0.11 lbs) • S: approx. 46.2 g (0.10 lbs) • T1-7: approx. 46 g (0.10 lbs) • T12-14: approx. 35.2 g (0.08 lbs) • U: approx. 29.4 g (0.06 lbs) • V: approx. 28.8 g (0.06 lbs) • Y: approx. 27 g (0.06 lbs) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Ranges | • Operation: -10 °C – +55 °C (14 °F – 131 °F) • Storage: -20 °C – +85 °C (-4 °F – 185 °F) |
| Relative Humidity | max. 95 % (non-condensing) |
