Specifications
| AF frequency response | 20 to 20,000 Hz |
| Dynamic range | > 120 dB(A) |
| THD (1 kHz) | typ. 0.1 % |
| Audio sampling | 24 bit/48 kHz |
| Signal-to-noise ratio | > 90 dB(A) |
| Encryption | AES 256 |
| RF frequency ranges | EU: 1,880 to 1,900 MHz USA: 1,920 to 1,930 MHz Brazil: 1,910 to 1,920 MHz Taiwan: 1,880 to 1,895 MHz Japan: 1,893 to 1,906 MHz |
| Modulation | GFSK with back channel |
| Transmission method | TDMA, space diversity |
| Latency | 19 ms |
| Relative air humidity | max. 95 % |
| Temperature range* | Operation: -10 °C to 55 °C (14 °F to 131 °F) Storage: -20 °C to 70 °C (-4 °F to 158 °F) * The temperature range is influenced by the battery characteristics |
| RF sensitivity | < -90 dBm |
| RF output power back channel | adaptive, up to 250 mW (country-specific) |
| XLR output level, balanced | max. +18 dBu |
| RCA output level, unbalanced | max. +6 dBu |
| Audio effects | Low cut: -3 dB at 120 Hz Equalizer: 7-band graphic equalizer with sound presets Sound profiles: – female voice, – male voice, – instrument/ media |

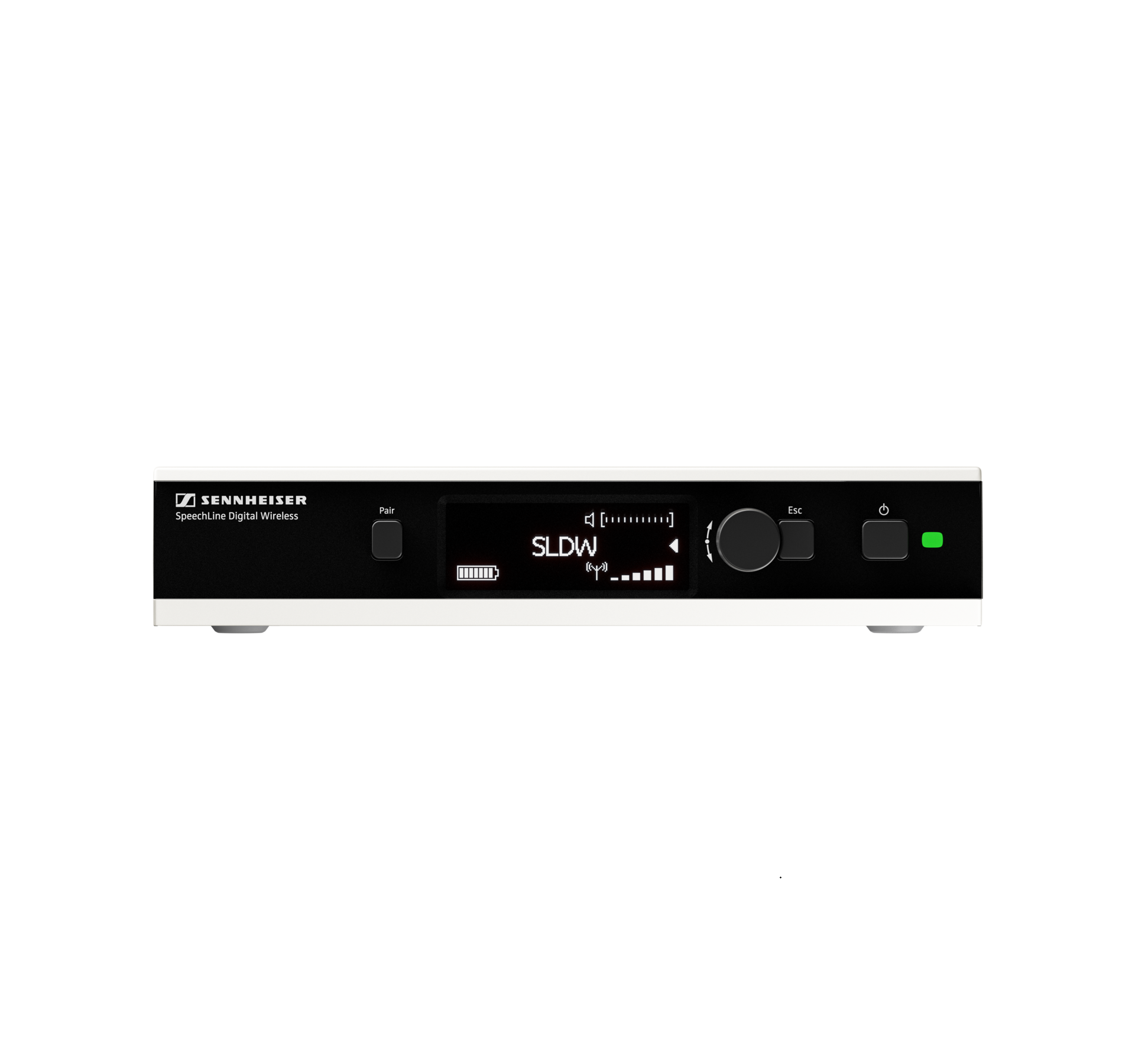

| Display | OLED |
| Network protocol | Media Control Protocol, TCP/IP IPv4 (DHCP, manual)/ IPv6 |
| Power supply | 12 V DC |
| Current consumption | 350 mA |

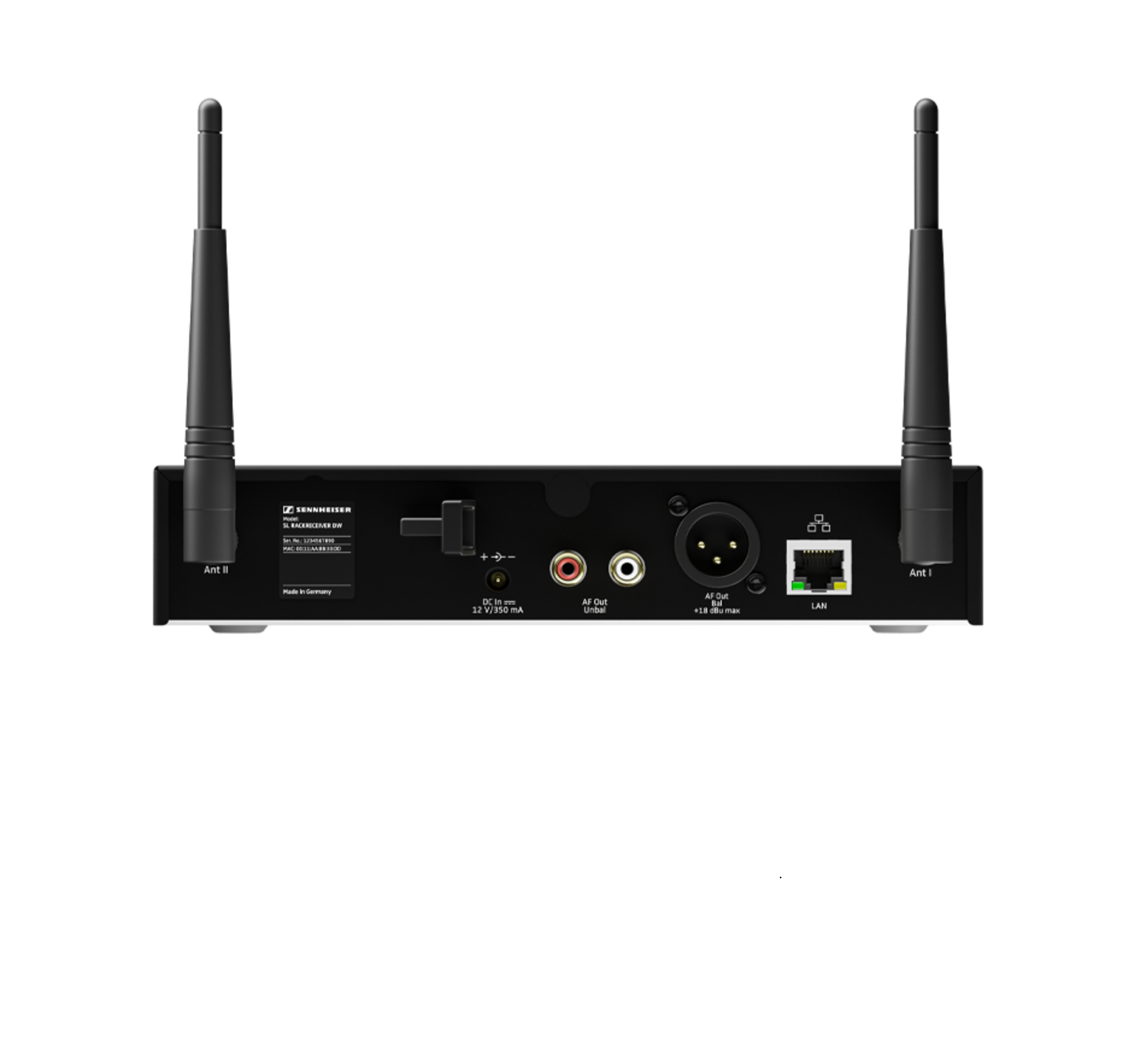

| AF connection sockets | XLR/2 x RCA |
| Antenna sockets | 2 x reverse SMA |
| Network sockets | RJ-45 |
| DC socket for power supply | hollow jack |
| Weight | approx. 828 g |
