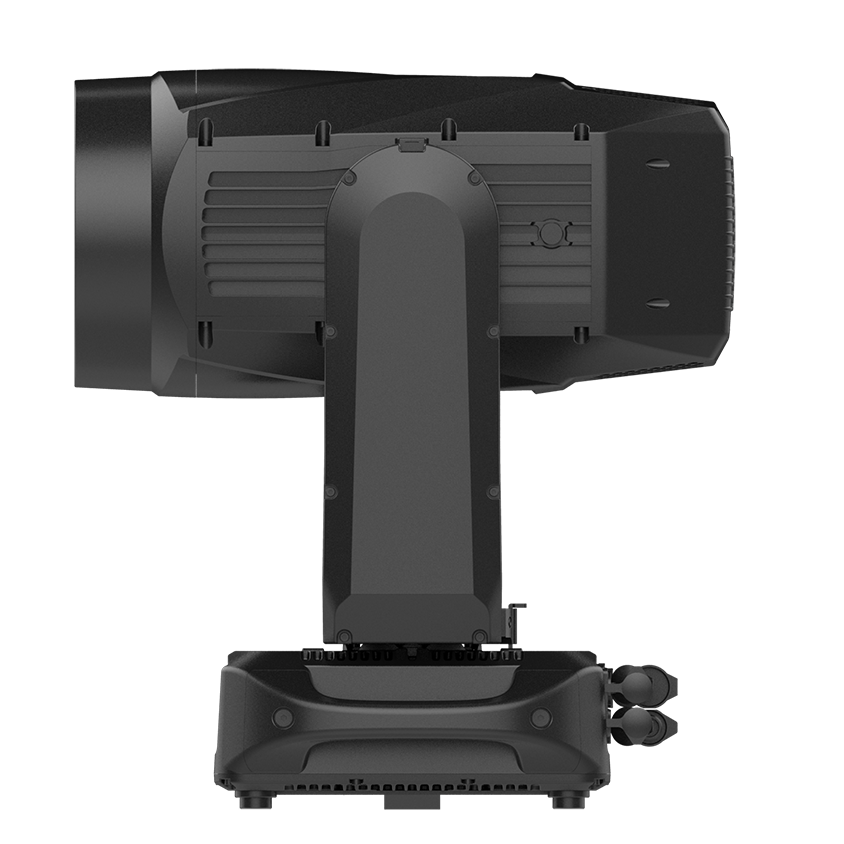

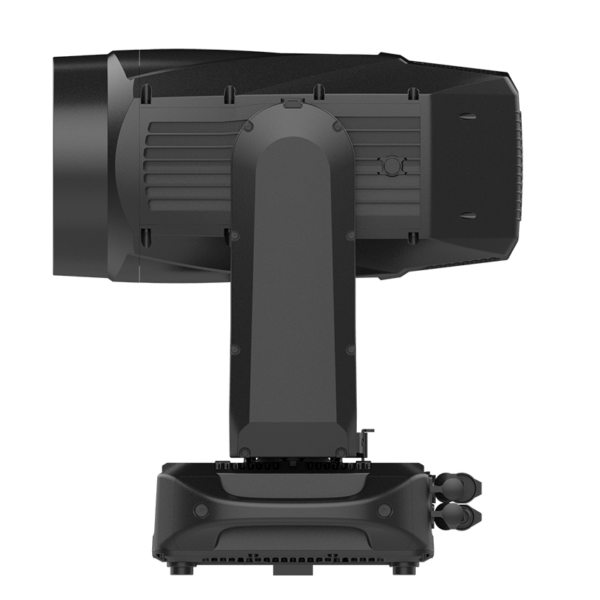

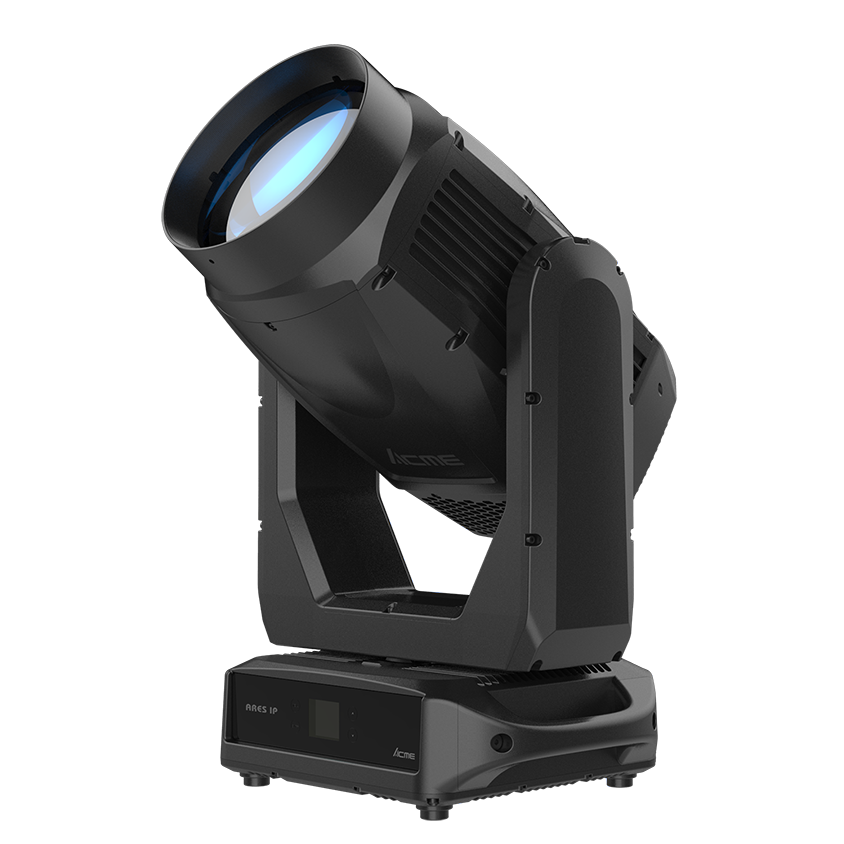

ACME ARES IP BEAM

The ACME ARES IP is an outdoor moving beam light, perfect for landscape projects, large-scale performances, and architectural lighting. Featuring a PHILIPS MSD Platinum 19R LL light source, it delivers an impressive intensity of 990,000 lux at a distance of 10 meters, providing exceptionally high output. With its built-in 200mm diameter frontal lens and a remarkable beam angle of 1.3°, the fixture produces sharp beams and dynamic lighting effects.

Equipped with a color wheel, static gobo wheel, and 4 prisms, the ARES IP offers lighting designers enhanced creative flexibility. The fixture offers CTO color correction from 3,200K to 6,500K, creating captivating beams of light from warm to cool. With an IP66 rating, this fixture ensures reliable outdoor performance, suitable for various applications.

The ARES IP stands out for its long-distance beam projection, penetrating power, and stable high-quality light output, making it the ultimate choice for outdoor landscape projects.

分類: Acme Lighting, Acme Lighting

描述

Technical Specifications
Light Source & Color
Light Source	PHILIPS MSD Platinum 19R LL Rated Life: 5,000 hours (manufacturer spec)
Color Temp Output	6,700K
Color Mixing & CTO	Linear CMY color mixing \| Linear CTO: 3,200K–6,500K
Color Wheel	13 colors + CRI + open
Photometric Data & Optics
Total Lumen Output	10,500 lm

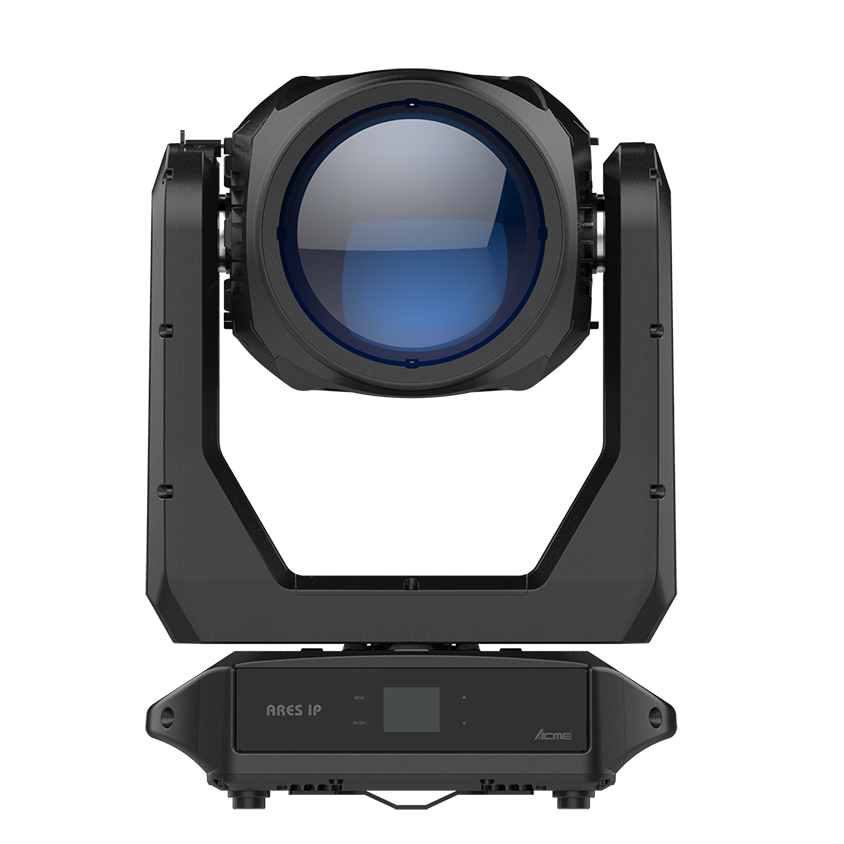

Beam Angle & Lens	Beam Angle: 1.3° Front Lens Diameter: 200 mm
Gobos, FX, Prisms & Effects
Static Gobos	1 Wheel (10 gobos + 3 effect gobos + open) \| Outer Dia: Φ110 mm
FX Wheel	Effect 1: 3 gobos + open (overlapping static gobo wheel) Effect 2: 2 diffuser filters for beam spot uniformity improvement Outer Dia: Φ110 mm
Prisms & Frost	Prisms: 4 combinable rotating/indexable (1x 8-facet circular, 1x 24-facet circular, 1x 48-facet circular, 1x 6-facet linear) Frost: 1 frost filter
Control & Electrical
Control Protocols & Channels	DMX512, RDM, Art-Net, sACN 1 DMX Protocol Mode / Channels: 24
Display & Firmware	4-touch button control panel with LCD display; firmware upgrade via DMX link or USB stick
Input Voltage & Power	100–240 Vac, 50/60 Hz Power Consumption: 615 W
Connectors	Power: Waterproof power connector in/out Data: 3-pin or 5-pin waterproof XLR, RJ45 connector
Pan & Tilt
Movement & Resolution	Pan: 540° \| Tilt: 260° (16-bit resolution) Automatic position correction
Physical, Packaging & Environment
Fixture Dimensions & Weight	380 x 284 x 659 mm (15.0″ x 11.2″ x 25.9″) \| Weight: 31 kg (68.3 lbs)
Packaging Options	Carton (One-pack): 610 x 490 x 675 mm (24.0″ x 19.3″ x 26.6″) \| G.W.: 36.5 kg (80.5 lbs) Flight Case (Standard Two-pack): 1,220 x 610 x 805 mm (48.0″ x 24.0″ x 31.7″) \| G.W.: 125.0 kg (275.6 lbs) Flight Case (North American Two-pack): 1,220 x 610 x 805 mm (48.0″ x 24.0″ x 31.7″) \| G.W.: 131.4 kg (289.7 lbs)
Operating Environment	Ambient Temp: -10°C to 40°C \| Max Surface Temp: 75°C Protection Rating: IP66
Approvals	CE compliant, UKCA compliant, cETLus compliant

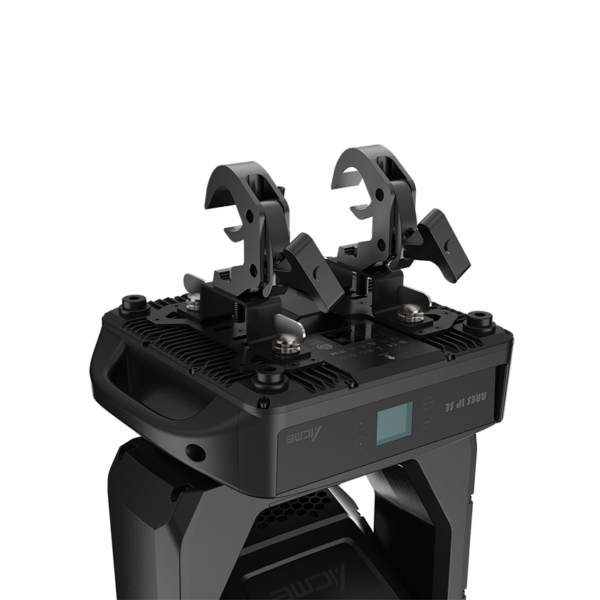

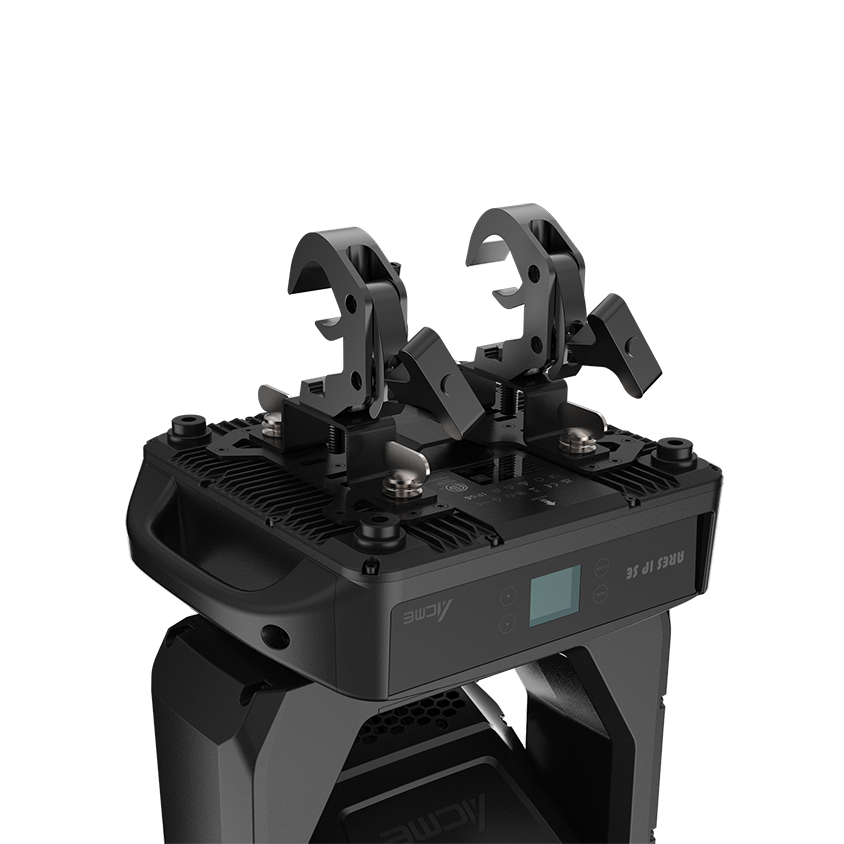

Installation & Rigging	Horizontal or vertical mounting, universal working position, safety cable point, 2x omega brackets
Included Items	Digital user manual, power cable, 2x omega brackets (3002003003)
