| Technical Specifications | |
|---|---|
| Overview | |

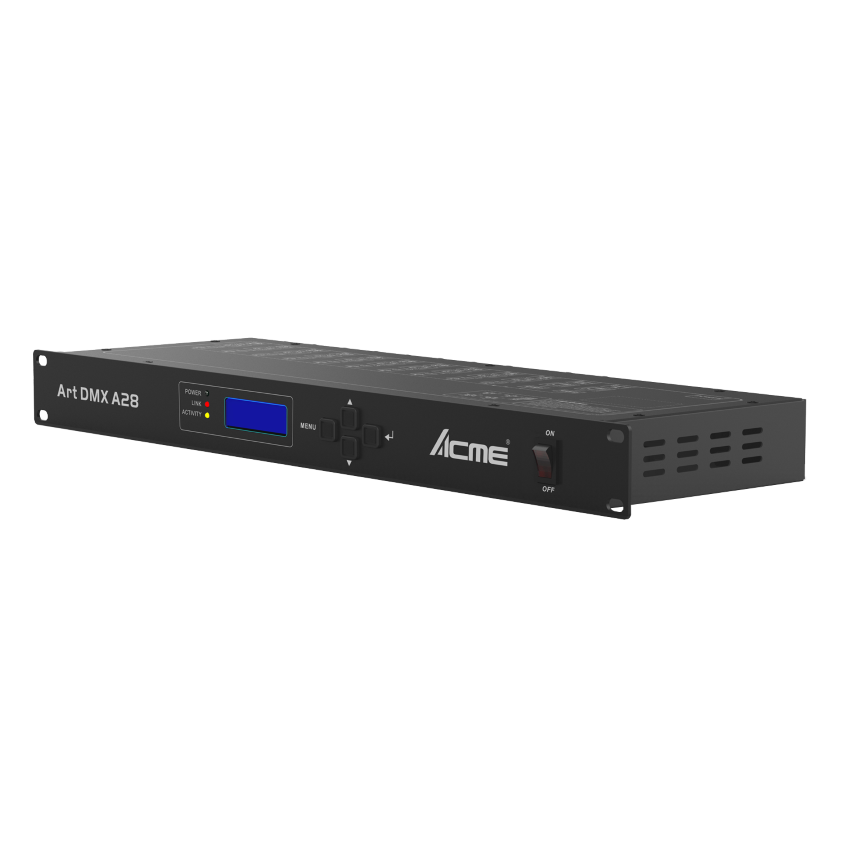

| Model Name / Code | ARTDMX A28 (Code: CA-EN28) |
| Control, Network & Processing | |

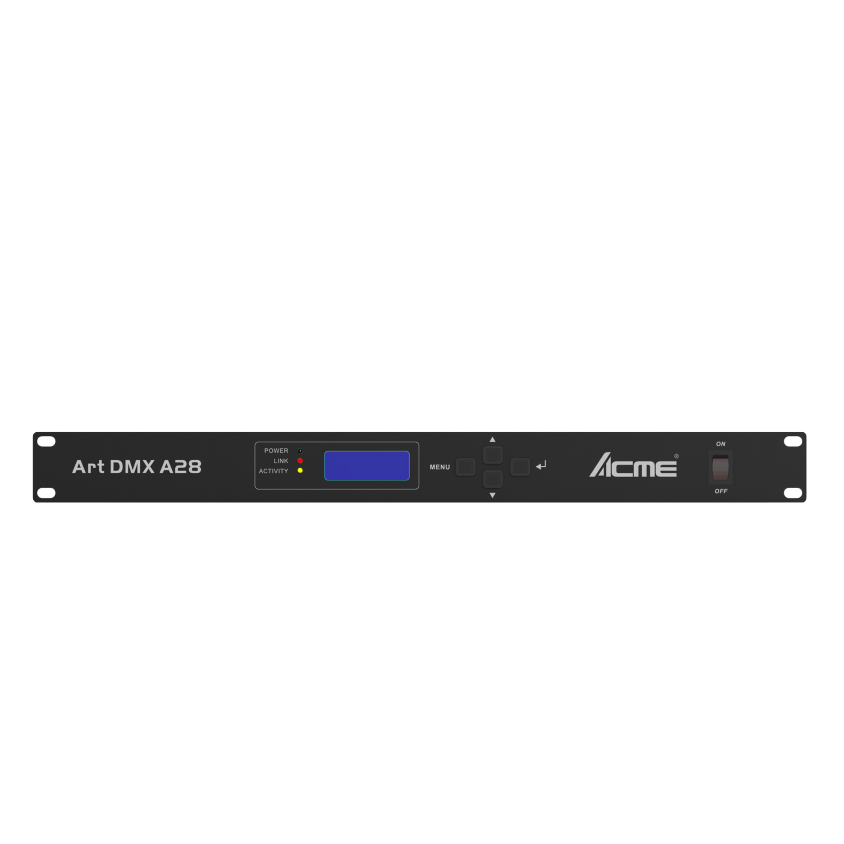

| Display & Status | OLED display (shows status of each DMX port) LED indicators for network port status |
| Protocols & Network | Protocols: DMX512, RDM, Art-Net, sACN, TCP/IP Ethernet: 2x RJ45 (Gigabit 10/100/1,000M adaptive), manually settable IP address |
| Routing & Upgrades | Route fixture & unit software upgrades via network; online software upgrade support |
| Scenes & Presets | Can save up to 16 scenes | 6 user presets |
| DMX I/O, Isolation & Splitter | |

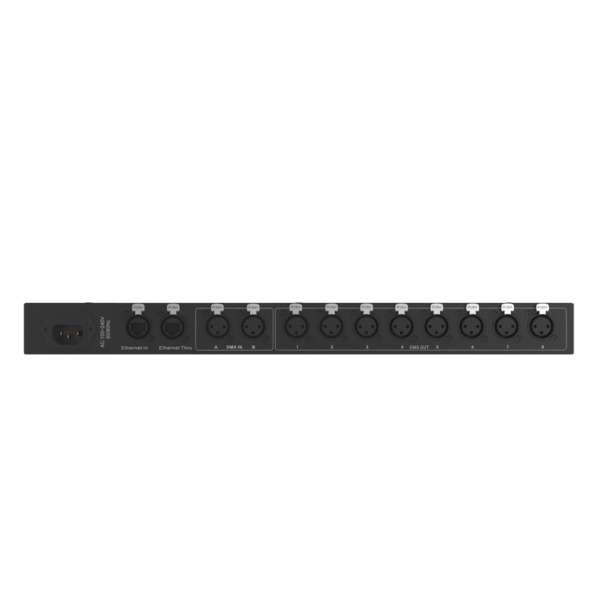

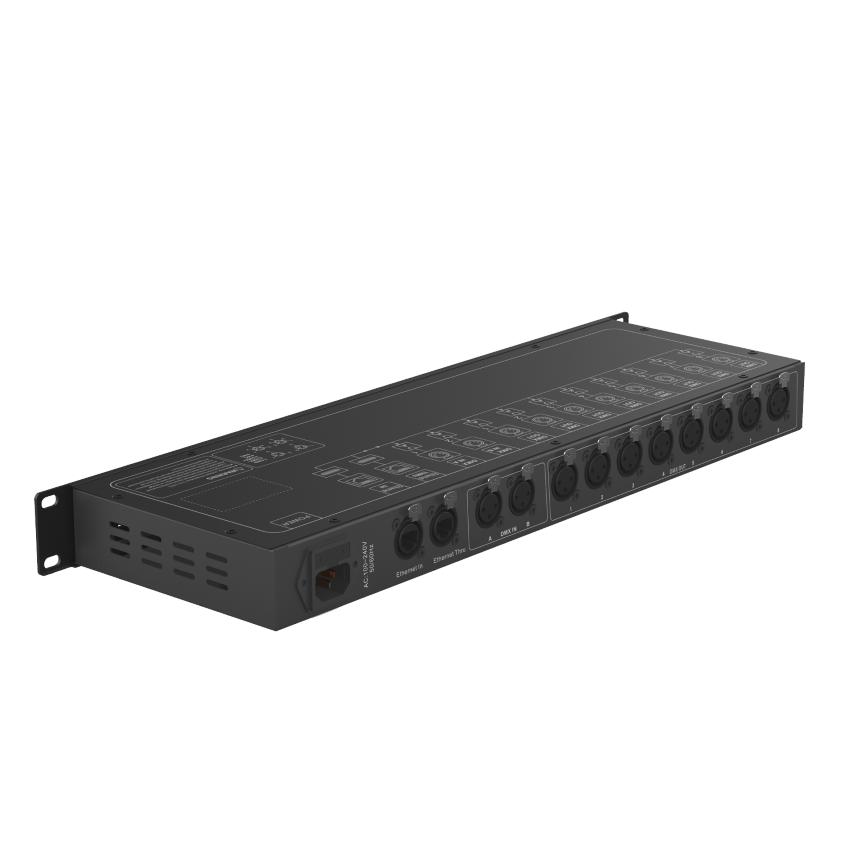

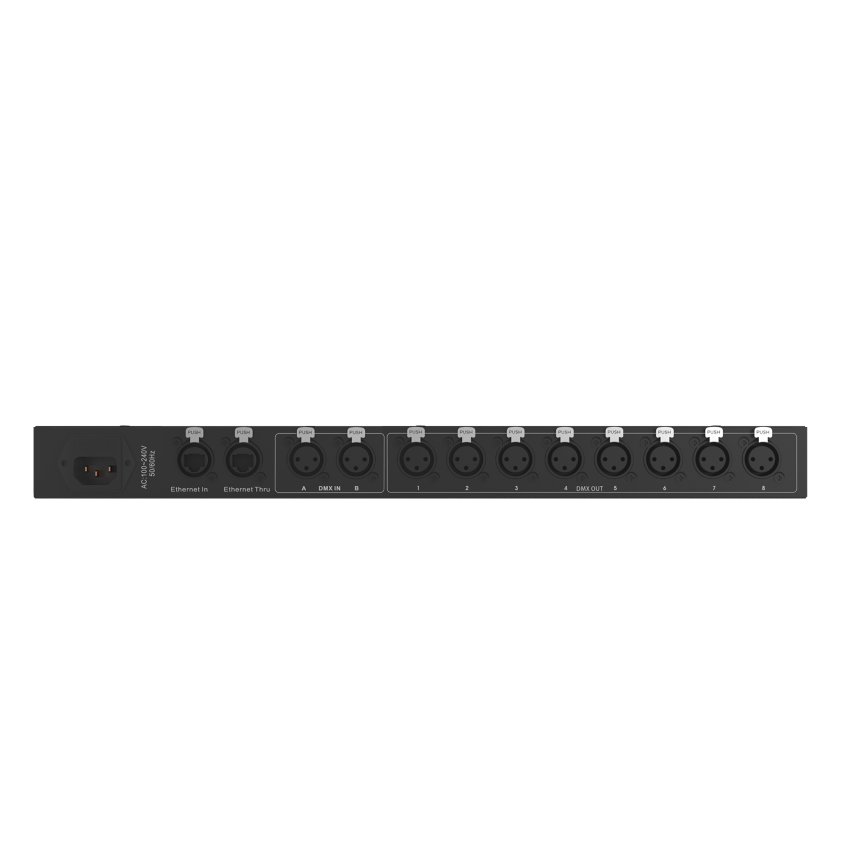

| Ports & Configuration | I/O Configuration: 2x DMX inputs + 8x DMX outputs (can be used as DMX splitter/amplifier) Each output port mode: Single, HTP, LTP, RDM, Zero Each I/O can be set to enabled/disabled |
| Isolation & Protection | All inputs/outputs opto-isolated with withstanding voltage > 2,000V |
| Electrical & Connectors | |
| Input Voltage & Power | 100–240 Vac, 50/60 Hz (electronic auto-ranging supply) Power Consumption: 11 W |
| Connectors | Data In/Out: 3-pin or 5-pin XLR |
| Physical, Packaging & Environment | |
| Fixture Dimensions & Weight | 482 x 157 x 44 mm (19.0″ x 6.2″ x 1.7″) Weight: 2.0 kg (4.4 lbs) |
| Packaging Options | Carton (One-pack): 560 x 505 x 480 mm (22.0″ x 19.9″ x 18.9″) | G.W.: 16.8 kg (37.0 lbs) |
| Operating Environment | Ambient Temp: 0°C to 40°C | Max Surface Temp: 65°C Protection Rating: IP20 |
| Approvals | CE compliant |
| Installation & Rigging | Suitable for standard cabinet, 1U, 19″ Safety cable attachment point |
| Included Items | Digital user manual, power cable |
