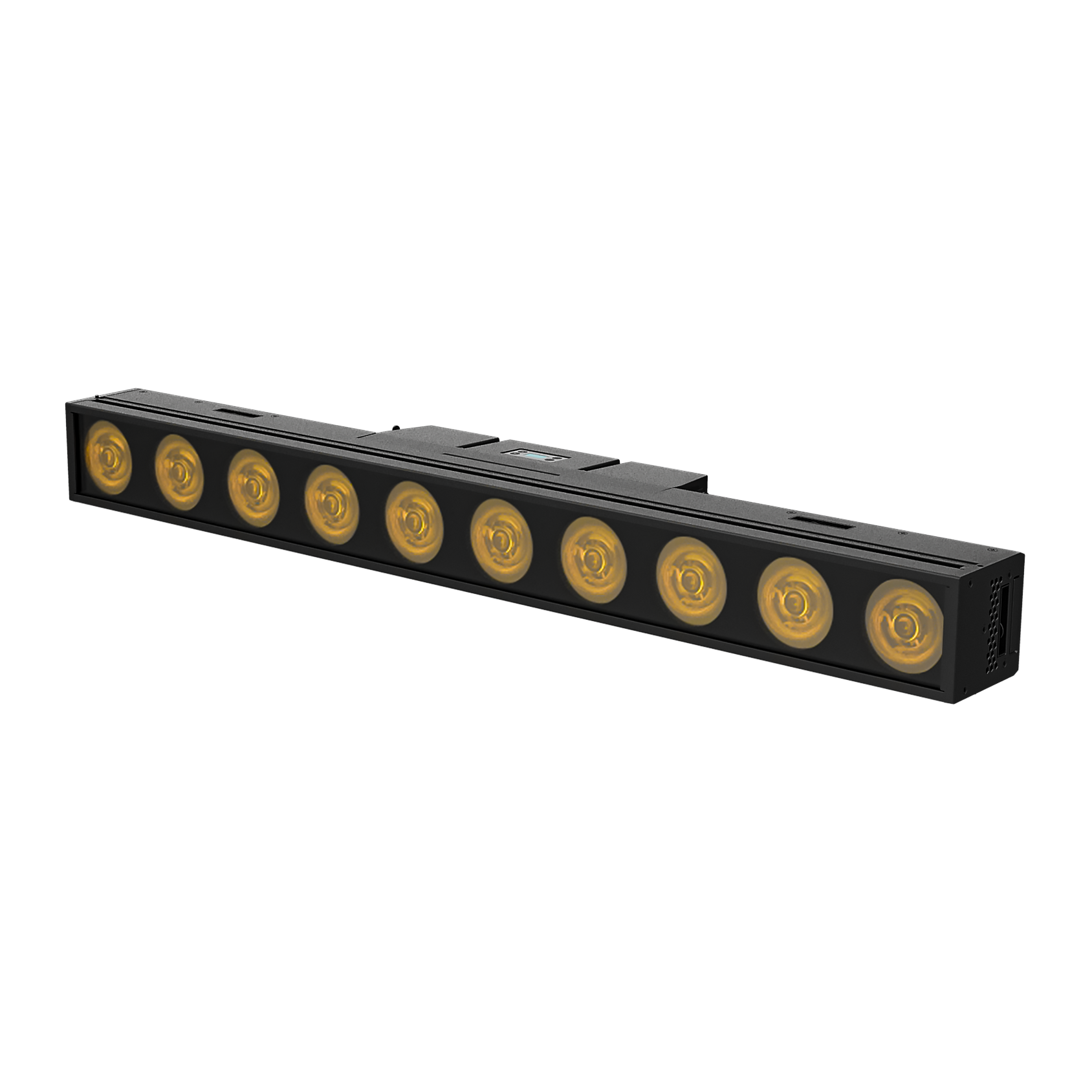

ACME BLINDER LINE 10 IP

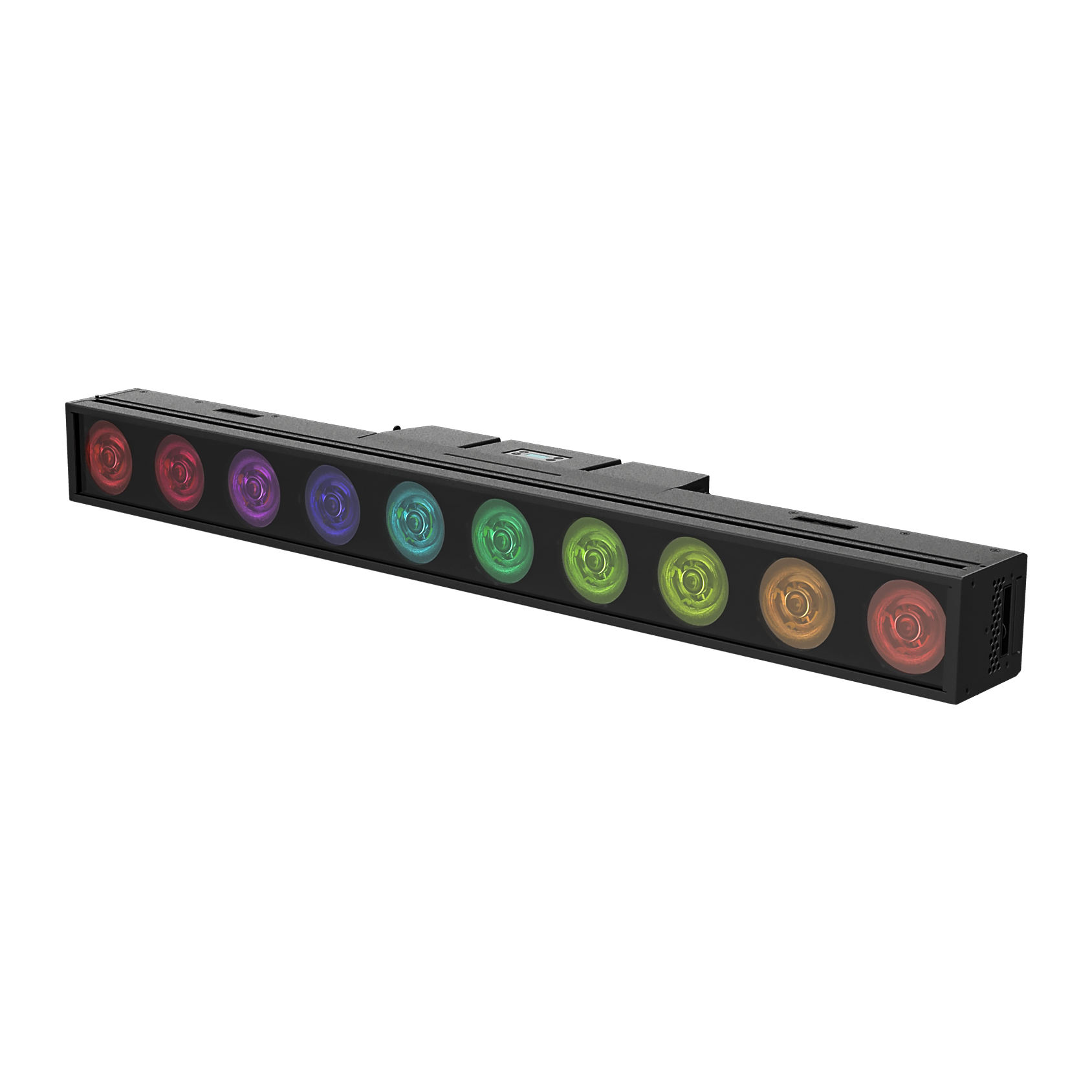

Introducing ACME’s great innovation—the BLINDER LINE 10 IP: a highly versatile linear blinder light designed to elevate your lighting experience. This exceptional fixture showcases 10 high-powered 150W RGBAW LED sources, delivering mesmerizing color effects. The unit features ACME’s patented Smart Glass Technology, delivering unparalleled frosted aesthetics.

What sets this fixture apart is its dynamic features, including a powerful strobe effect and a distinctive filament lamp effect, ensuring that your lighting outcomes are nothing short of captivating. The BLINDER LINE 10 IP unit features tremendous output with selectable, smooth dimming curves, convenient color temperature presets and an extraordinary reach with a native 23° beam angle. The integrated interlocking connectors streamline the setup process, making it quick and effortless.

With an all-weather IP66 protection rating, this fixture is designed to withstand the element. Its comprehensive suite of advanced features ensures exceptional effects, allowing you to unleash your creativity without limitations. Elevate your lighting game with the BLINDER LINE 10 IP from ACME.

分類: Acme Lighting, Acme Lighting

描述

Technical Specifications
Light Source & Photometric Data
Light Source	10 x 150W RGBAW LEDs Rated Life: 20,000 hours (manufacturer spec)
Total Lumen Output	26,300 lm
Optical System & Smart Glass
Beam Angles	White (W): 23°, 31°, 54° RGBA: 24°, 32°, 54°
Field Angles	White (W): 47°, 74°, 130° RGBA: 49°, 79°, 131°
Smart Glass & Patents	DMX Controllable Smart Glass technology Patents: CN216010577U, US11698183B1, DE202023101966U1, FR3134870B3
Performance Features
Effects & Dimming	Variable speed strobe effect, smooth 0–100% dimming (4 user-selectable dimming curves) Tungsten emulation during dimming, individual pixel control, built-in color macro effects
Control & Electrical
Control Protocols & Channels	DMX512, RDM, Art-Net, sACN 2 DMX Protocol Modes / Channels: 14 / 55
Display & Firmware	4-touch button control panel with OLED display; firmware upgrade via DMX link
Input Voltage & Power	100–240 Vac, 50/60 Hz \| Power Consumption: 600 W

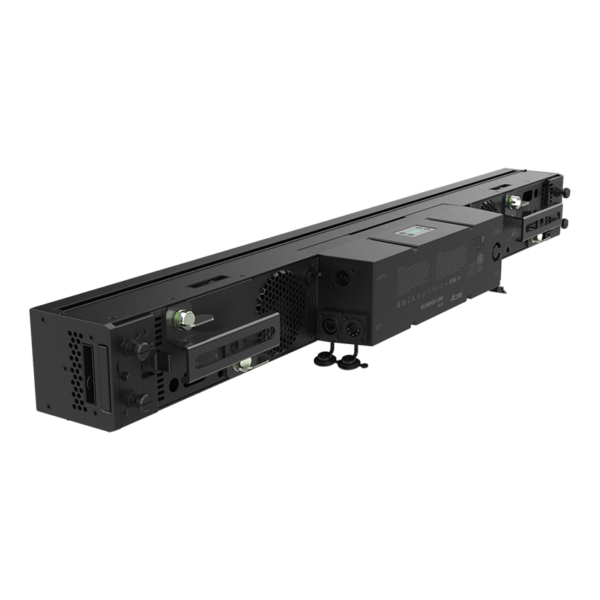

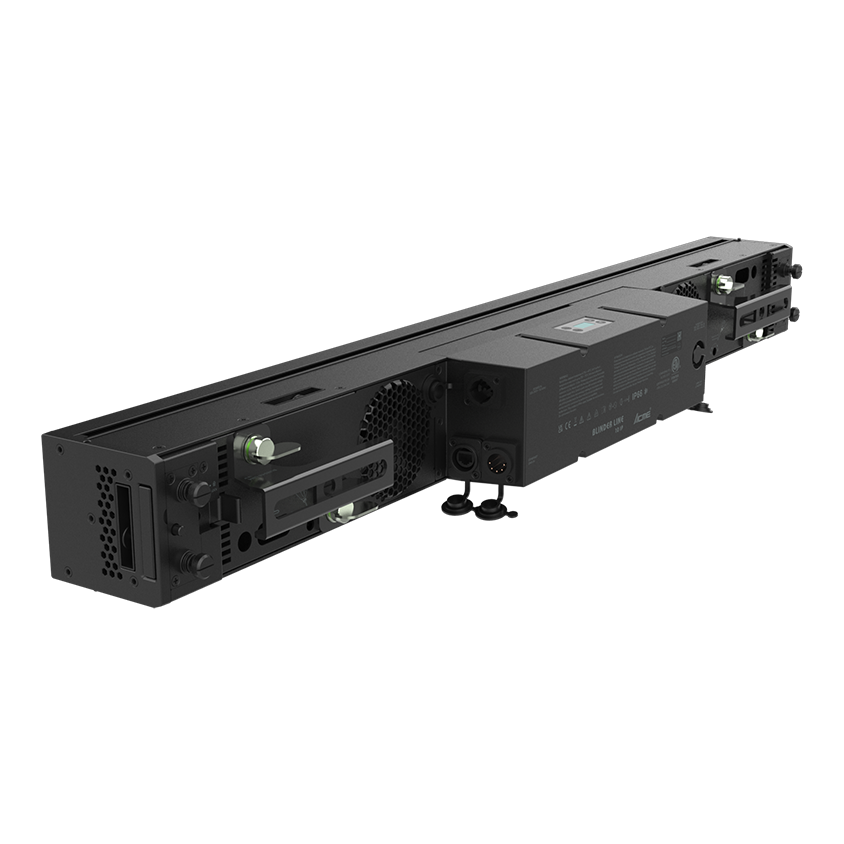

Connectors	Power: Waterproof power connector in/out Data: 3-pin or 5-pin waterproof XLR, RJ45 connector
Physical, Packaging & Environment
Fixture Dimensions & Weight	1,000 x 103 x 158.5 mm (39.4″ x 4.0″ x 6.2″) \| Weight: 13.6 kg (30.0 lbs)
Packaging Options	Carton (One-pack): 1,105 x 285 x 200 mm (43.5″ x 11.2″ x 7.9″) \| G.W.: 16.0 kg (35.3 lbs) Flight Case 1 (Standard Four-pack): 1,220 x 610 x 555 mm (48.0″ x 24.0″ x 21.9″) \| G.W.: 107.0 kg (235.9 lbs) Flight Case 2 (Standard Eight-pack): 1,220 x 610 x 850 mm (48.0″ x 24.0″ x 33.5″) \| G.W.: 184.0 kg (405.7 lbs) Flight Case 2 (North American Eight-pack): 1,220 x 610 x 850 mm (48.0″ x 24.0″ x 33.5″) \| G.W.: 209.0 kg (460.8 lbs)
Operating Environment	Ambient Temp: -10°C to 40°C \| Max Surface Temp: 70°C Protection Rating: IP66
Approvals	CE compliant, UKCA compliant, cETLus compliant

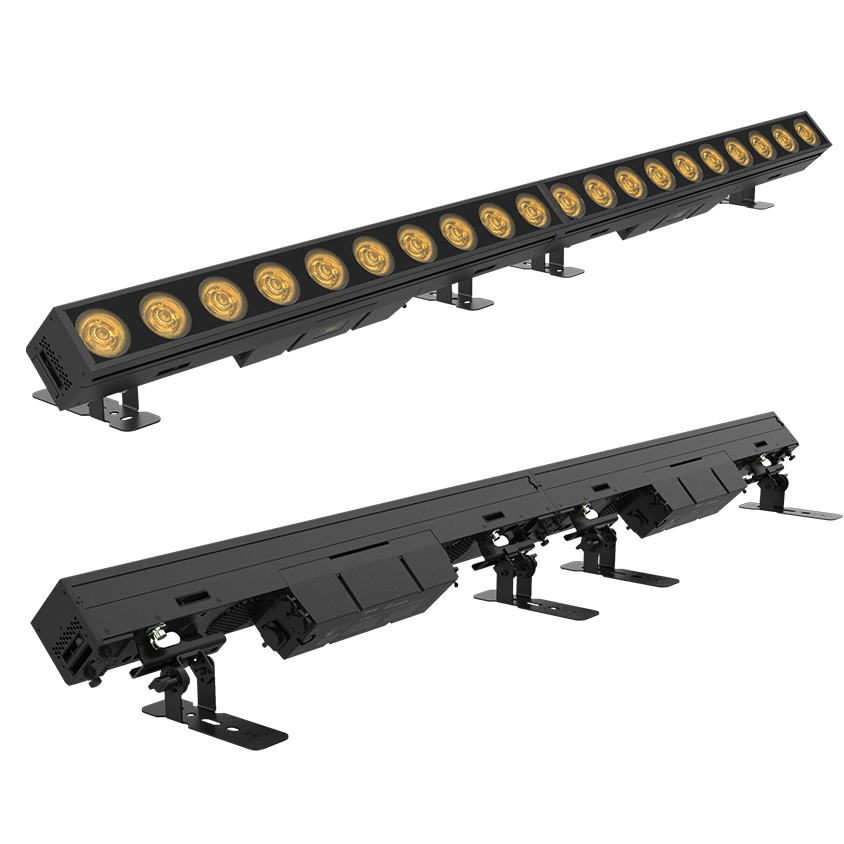

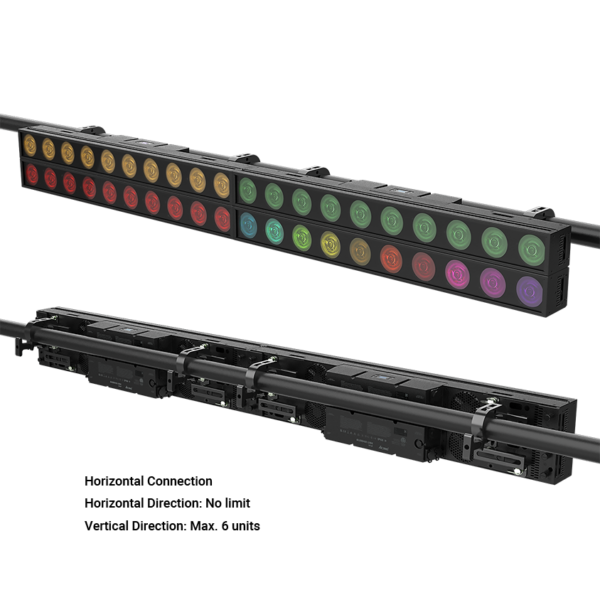

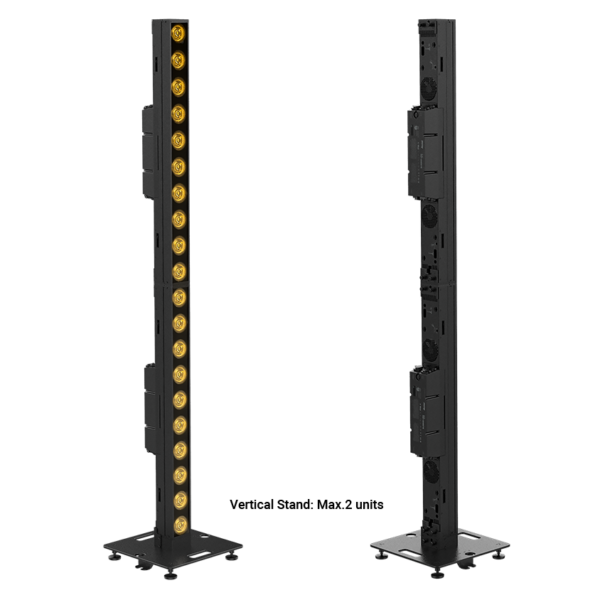

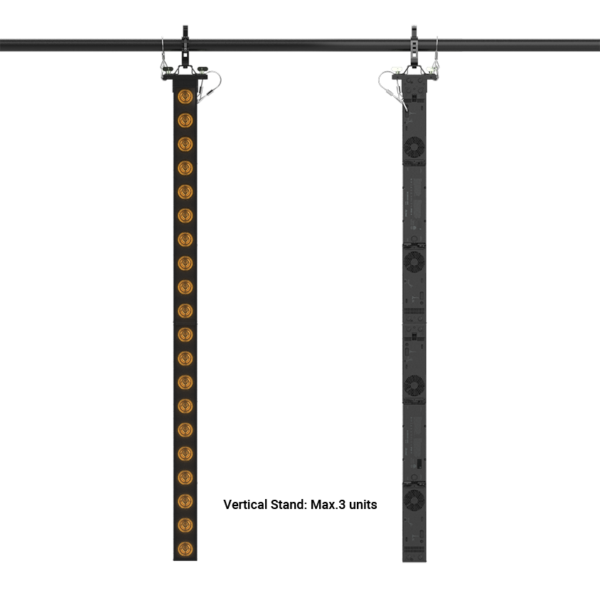

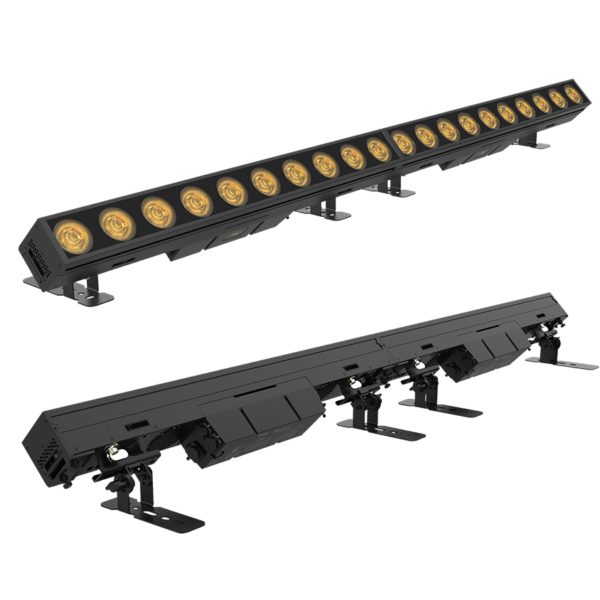

Installation & Rigging Limits	Universal working position Horizontal (2x omega + clamps): Unlimited horizontal direction, max 5 vertical Vertical (1x hanging bracket + clamp): Max 3 fixtures Vertical Stand (base stand): Tilt: single unit only (no stacking); Vertical: max 2 fixtures Floor (2x omega + 2x floor stands [sold separately]): Supported
Included Items	Digital user manual, power cable, 2x omega brackets, safety cable point
