| Technical Specifications | |
|---|---|
| Overview | |

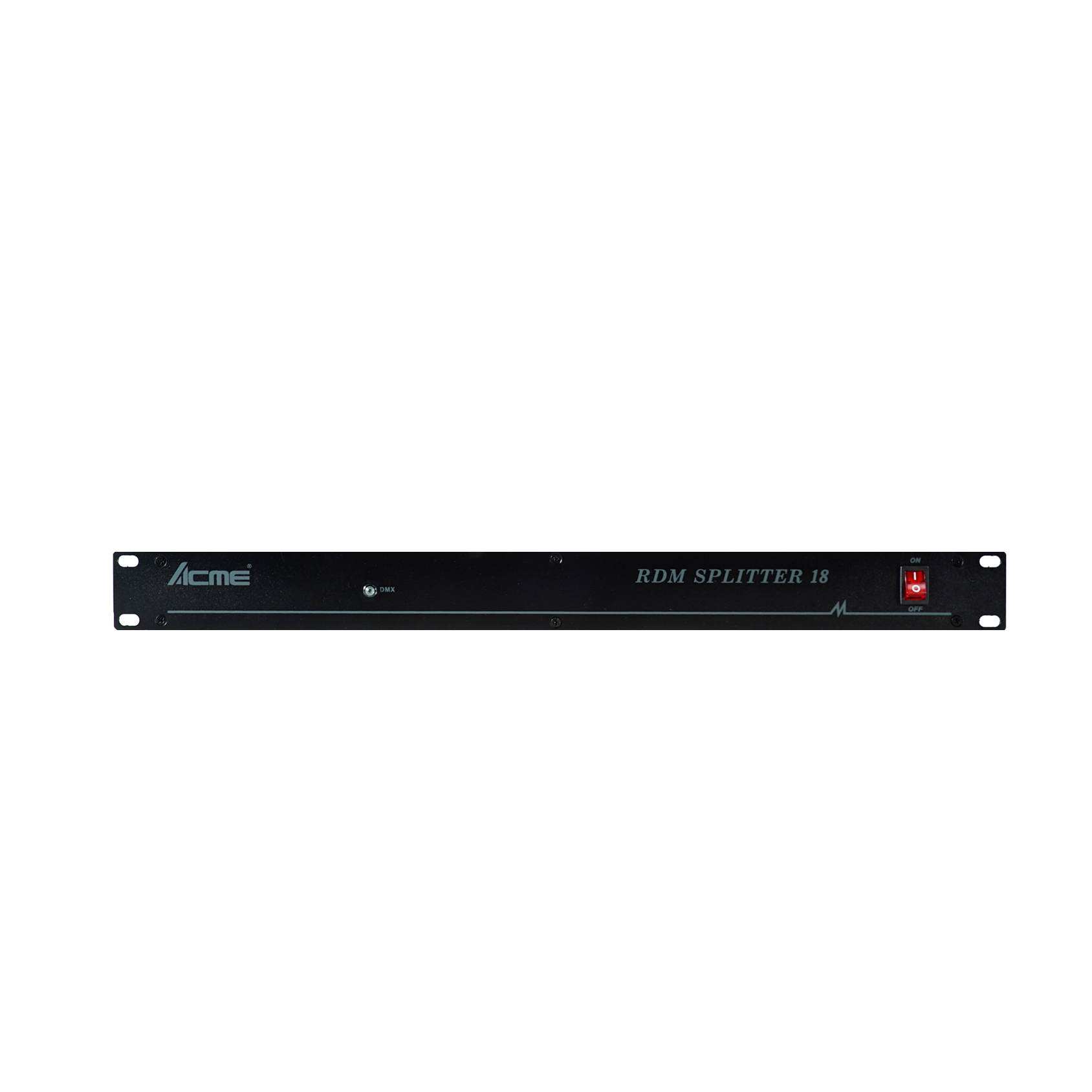

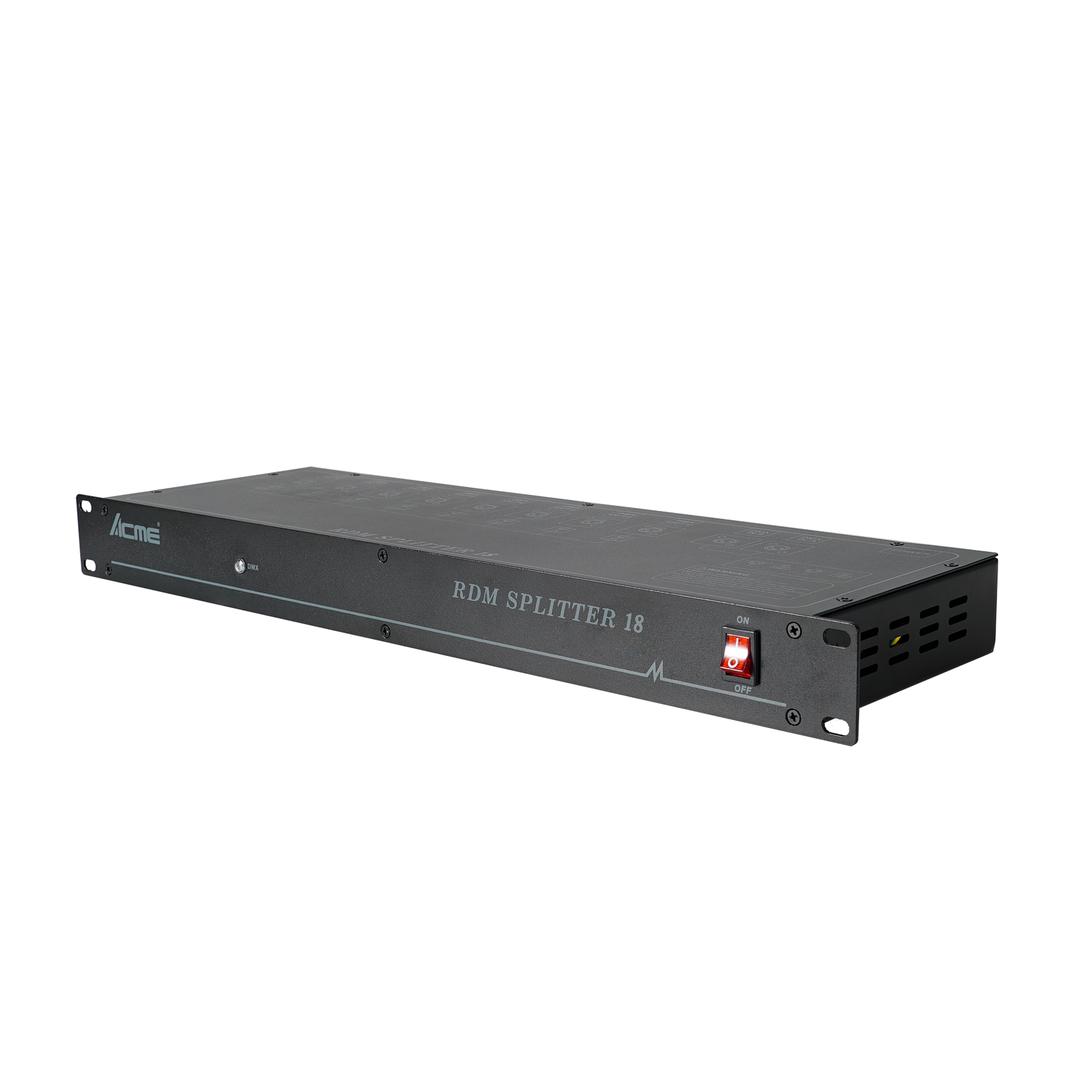

| Model Name / Code | RDM SPLITTER 18 (Code: RS18) |
| Signal & Isolation | |

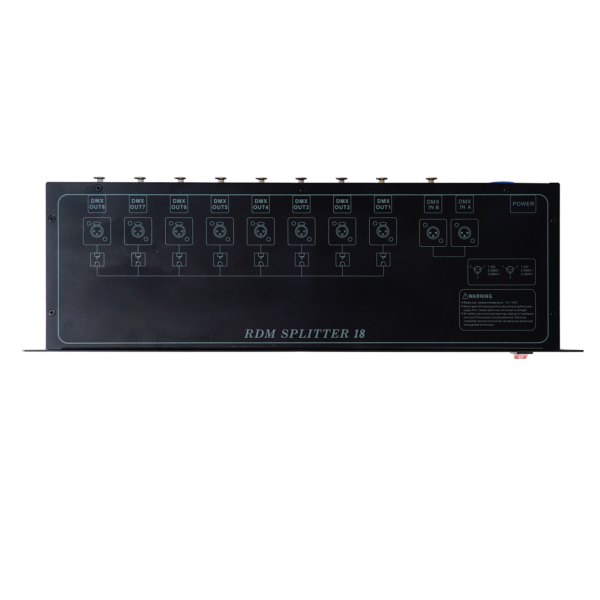

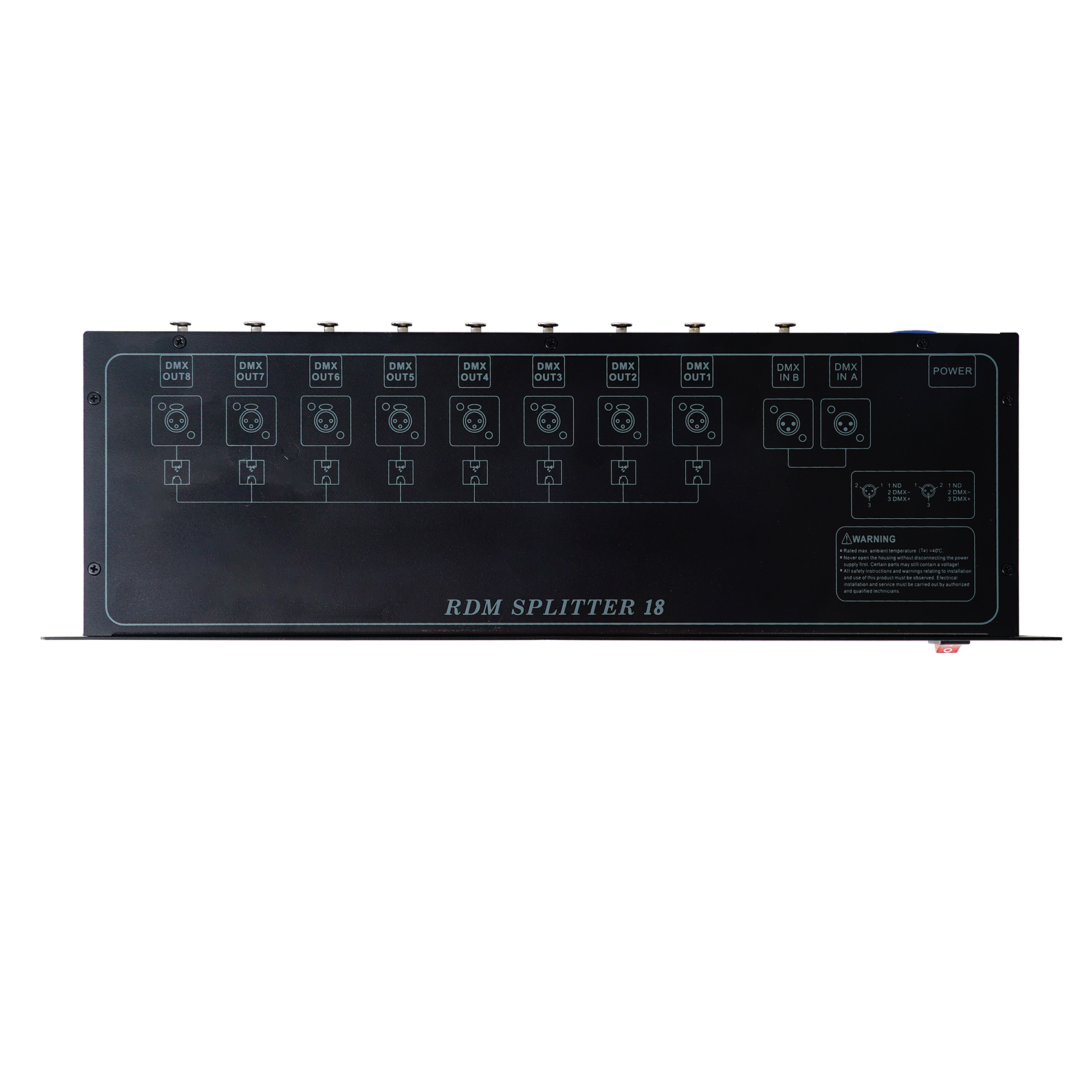

| Ports & Configuration | 1x signal input, 1x signal output 8x signal distribution outputs with independent electrical isolation |
| Isolation Rating | Outputs isolated over 2,000V |
| Electrical & Connectors | |
| Input Voltage & Power | 100–240 Vac, 50/60 Hz (electronic auto-ranging supply) Power Consumption: 5 W |

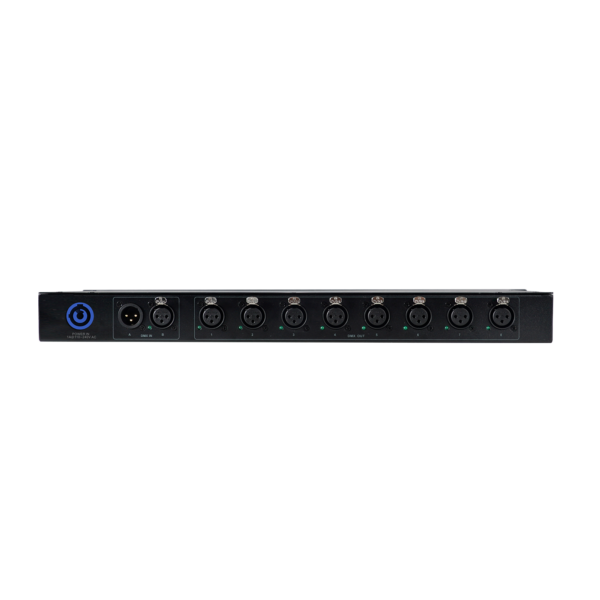

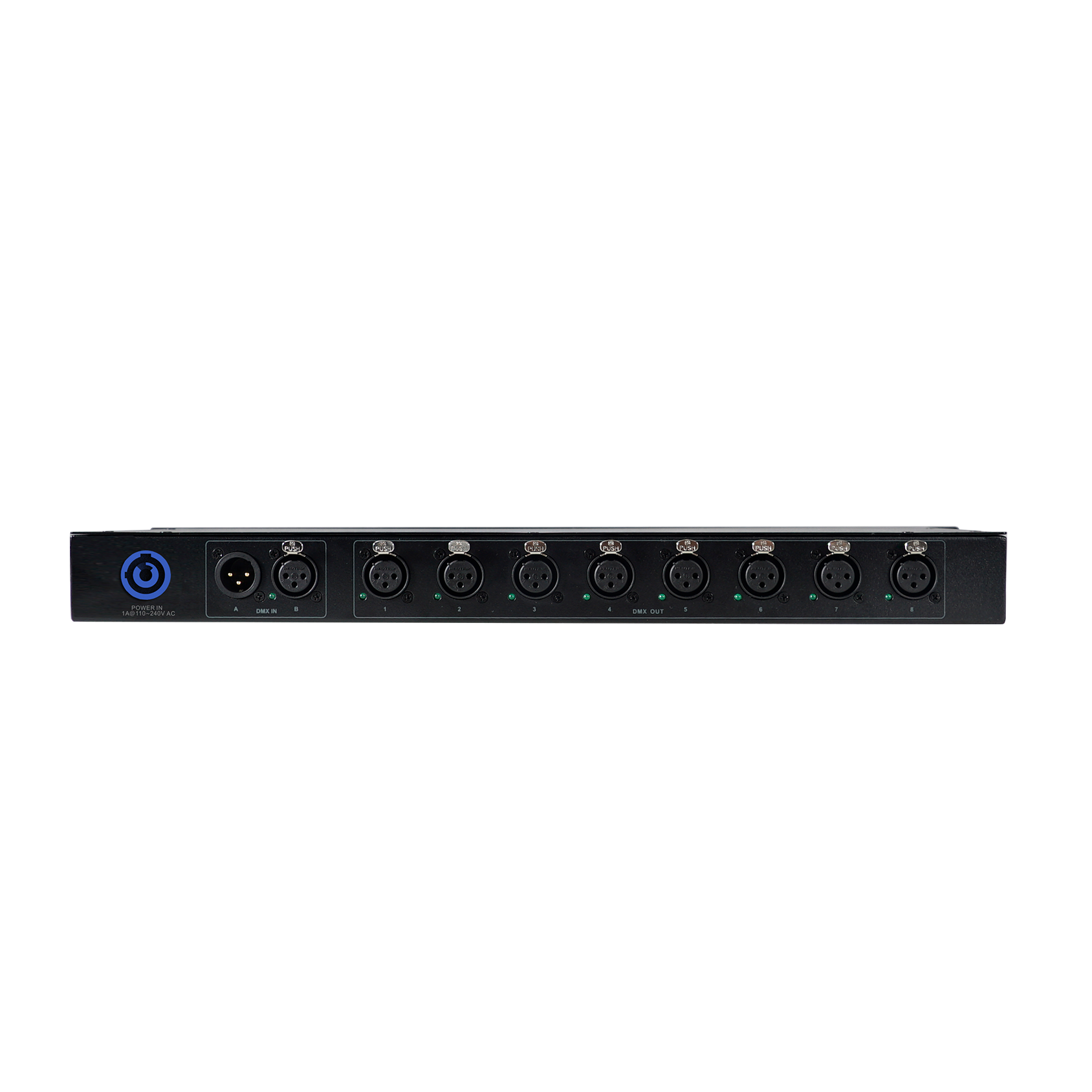

| Connectors | Power: IEC in Data: 3-pin or 5-pin XLR |
| Physical, Packaging & Environment | |
| Fixture Dimensions & Weight | 482 x 155 x 44 mm (19.0″ x 6.1″ x 1.7″) Weight: 2.3 kg (5.1 lbs) |
| Packaging Options | Carton (Six-pack): 560 x 505 x 480 mm (22.0″ x 19.9″ x 18.9″) | G.W.: 16.8 kg (37.0 lbs) |
| Operating Environment | Ambient Temp: 0°C to 40°C | Max Surface Temp: 65°C Protection Rating: IP20 |
| Approvals | CE compliant |
| Included Items | Digital user manual, power cable |
