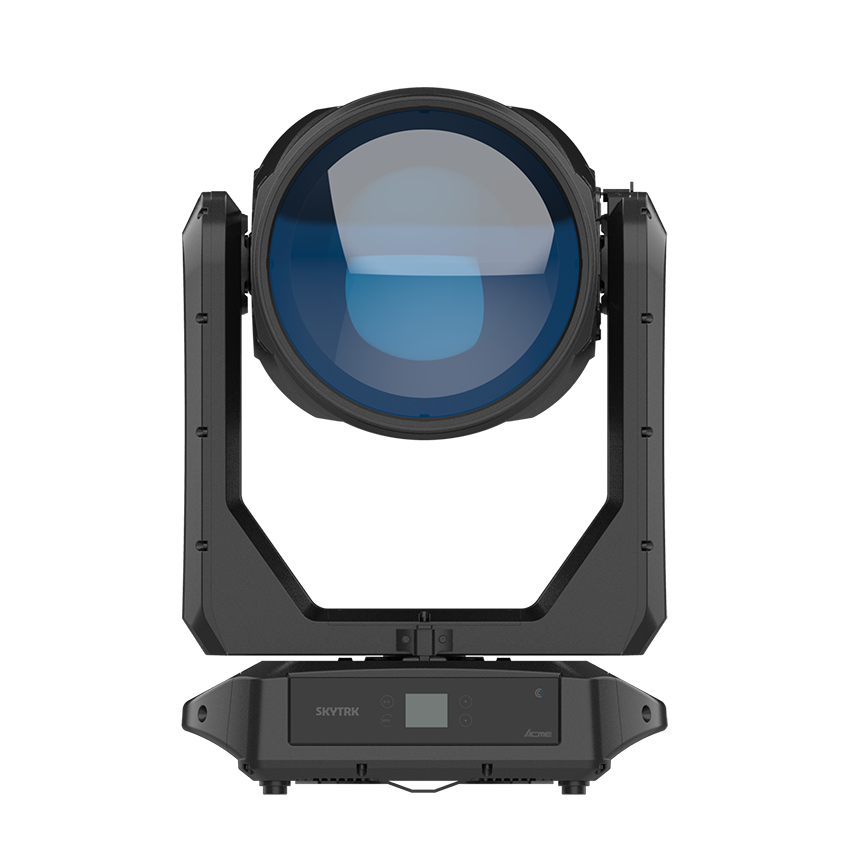

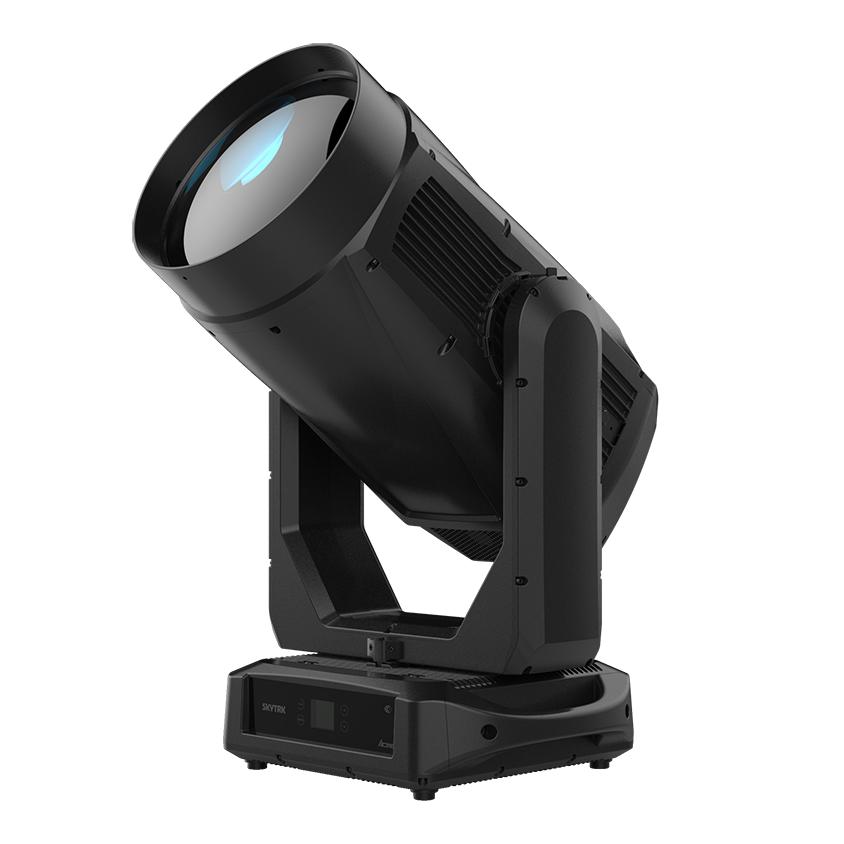

ACME SKYTRK BEAM

The ACME SKYTRK is a groundbreaking full-color laser searchlight, engineered to deliver intense output, exceptional precision, and chromatic finesse far beyond conventional beam fixtures.

Powered by an 850W RGB full-color laser engine, the fixture produces 22,100 lumens of high-intensity light through an advanced optical system. At its heart is an ultra-large 300 mm frontal lens, projecting a razor-sharp 0.5° laser beam that cuts through the sky with unmatched clarity and saturated output. Its flexible moving-head design and precise positioning ensure wide coverage and dynamic transitions for any large-scale outdoor spectacle.

Color performance is equally advanced. The SKYTRK features a virtual color wheel with 51 color presets, a virtual CMY color mixing system, and a virtual CTO ranging from 2,500K to 8,000K. Whether you need deep primaries, delicate pastels, or precise color-temperature control, the fixture ensures smooth, expressive chromatic performance across all applications. Four combinable rotating prisms add layered aerial effects that expand creative possibilities.

Built into a rugged IP66-rated enclosure, the SKYTRK is perfect for large-scale shows, tours and live events, delivering laser-driven power, exceptional brightness, and limitless color creativity — even in the harshest outdoor conditions.

分類: Acme Lighting, Acme Lighting

描述

Technical Specifications
Light Source & Color
Light Source	850W RGB full-color laser engine Rated Life: 12,000 hours (manufacturer spec)
Color Temp Output	6,000K
Color Mixing, CTO & Presets	Virtual CMY color mixing \| Virtual CTO: 2,500K–8,000K Virtual Color Wheel: 51 color presets
Photometric Data & Optics
Total Lumen Output	Auto Mode: 22,100 lm \| Quiet Mode: 9,160 lm \| Super Quiet Mode: 3,520 lm
Beam Angle & Lens	Beam Angle: 0.5° Front Lens Diameter: 300 mm
Prisms & Effects
Prisms	4 combinable rotating/indexable prisms (1x 6-facet linear, 1x 8-facet circular, 1x 16-facet circular, 1x multi-facet circular), rotatable and overlayable in both directions
Effects & Focus	Variable speed strobe effect, smooth 0–100% dimming (4 user curves), motorized focus system
Control & Electrical
Control Protocols & Channels	DMX512, RDM, Art-Net, sACN, NFC 2 DMX Protocol Modes / Channels: 23 (CMY) / 23 (RGB)
Display & Firmware	4-touch button control panel with LCD display; firmware upgrade via DMX link or USB stick
Input Voltage & Power	100–240 Vac, 50/60 Hz Power Consumption: 1,525 W
Connectors	Power: Waterproof power connector in/out Data: 3-pin or 5-pin waterproof XLR, waterproof RJ45 connector
Pan & Tilt
Movement & Resolution	Pan: 540° \| Tilt: 270° (16-bit resolution) Automatic position correction, Pan/Tilt lock
Physical, Packaging & Environment
Fixture Dimensions & Weight	465 x 365 x 854 mm (18.3″ x 14.3″ x 33.6″) \| Weight: 59.5 kg (132.2 lbs)
Packaging Options	Carton (One-pack): 830 x 570 x 855 mm (32.7″ x 22.4″ x 33.7″) \| G.W.: 73 kg (160.9 lbs) Flight Case (Standard One-pack): 810 x 610 x 910 mm (31.9″ x 24.0″ x 35.8″) \| G.W.: 115 kg (253.5 lbs)
Operating Environment & Acoustics	Ambient Temp: -20°C to 45°C \| Max Surface Temp: 75°C Protection Rating: IP66 Noise Level (@ 1 m): Auto: 47 dB(A) \| Quiet: 46 dB(A) \| Super Quiet: 45 dB(A)
Approvals	CE compliant, UKCA compliant

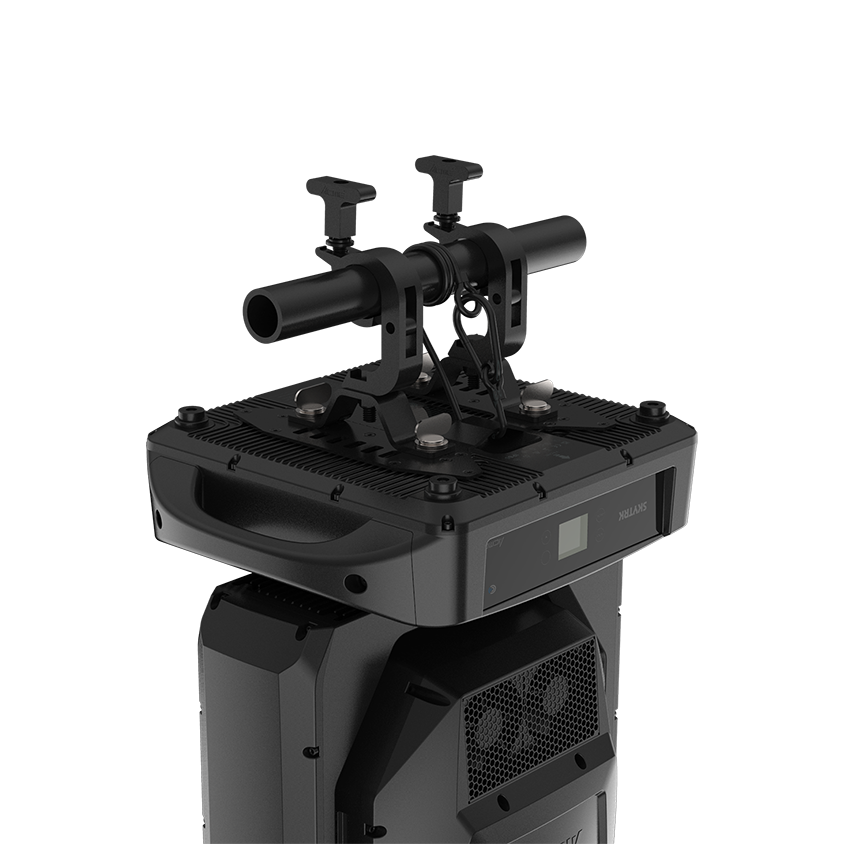

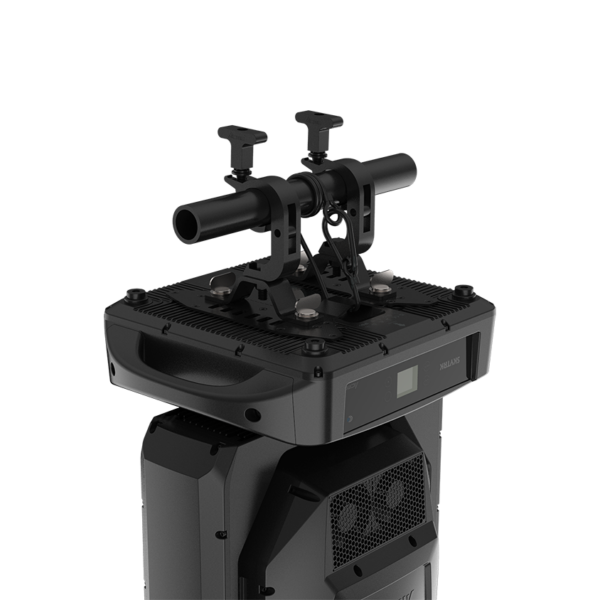

Installation & Rigging	Vertical mounting, safety cable point, 2x omega brackets
Included Items	QR code on fixture for digital user manual, power cable, 2x omega brackets (3002003002)
