ACME SUPER DOTLINE

The ACME SUPER DOTLINE is a powerful bar light that offers several operational modes for creating unique effects and looks. Whether your needs are for beams, washes, or strobes, the SUPER DOTLINE does all in this versatile fixture, perfect for any production.

The SUPER DOTLINE fixture’s main section has ten RGBW 60W LEDs and the strip light portion of the fixtures has 96 3W cool white LEDs, 96 3W warm white LEDs, and 96 0.5W RGB LEDs and is capable of an output of 23,000 lumens. The strip light section has control over 12 individual zones on one side to create the looks you want.

The fixture offers eight DMX control modes allowing you to decide how you wish to control the unit. The SUPER DOTLINE also offers preprogrammed effects macros and colors for time-saving programming and features a motorized zoom with beam angle of 2.8° to 31° ( main section) and field angle of 5° to 46° (strip section) and produces uniform beams and washes. The fixture’s motorized tilt range is a wide 202° .

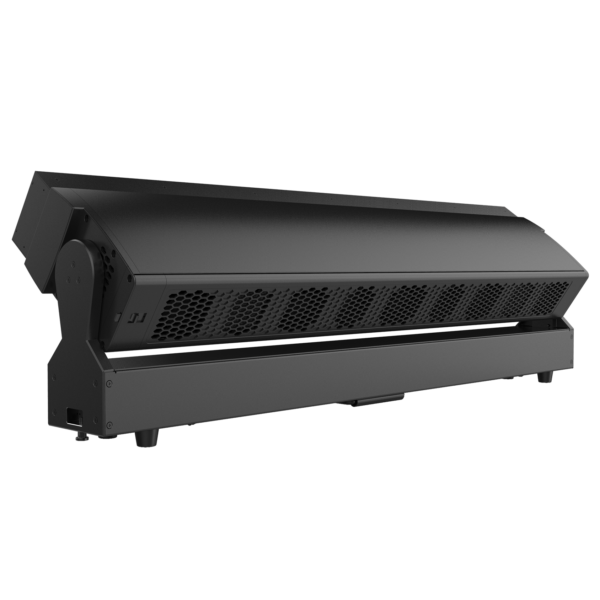

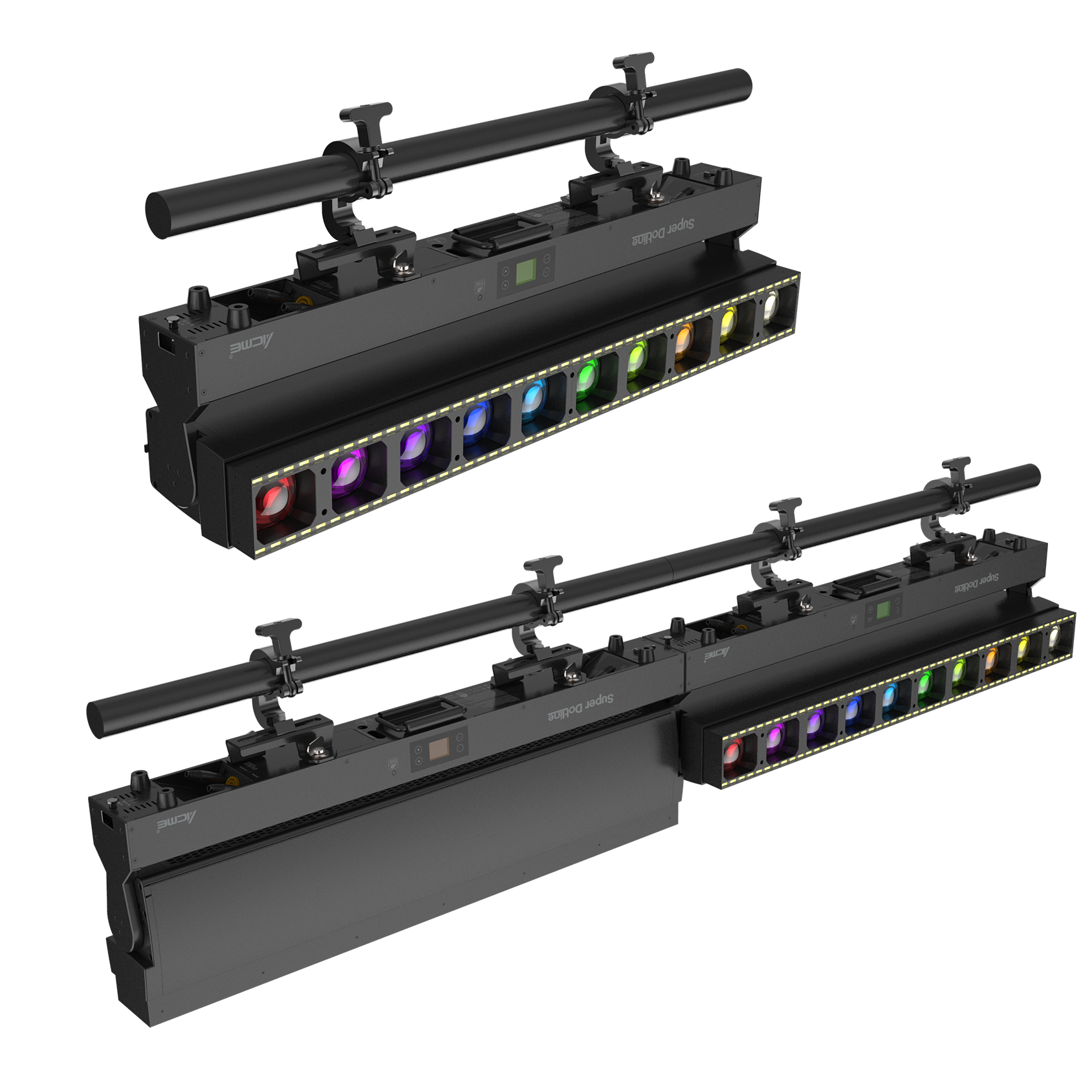

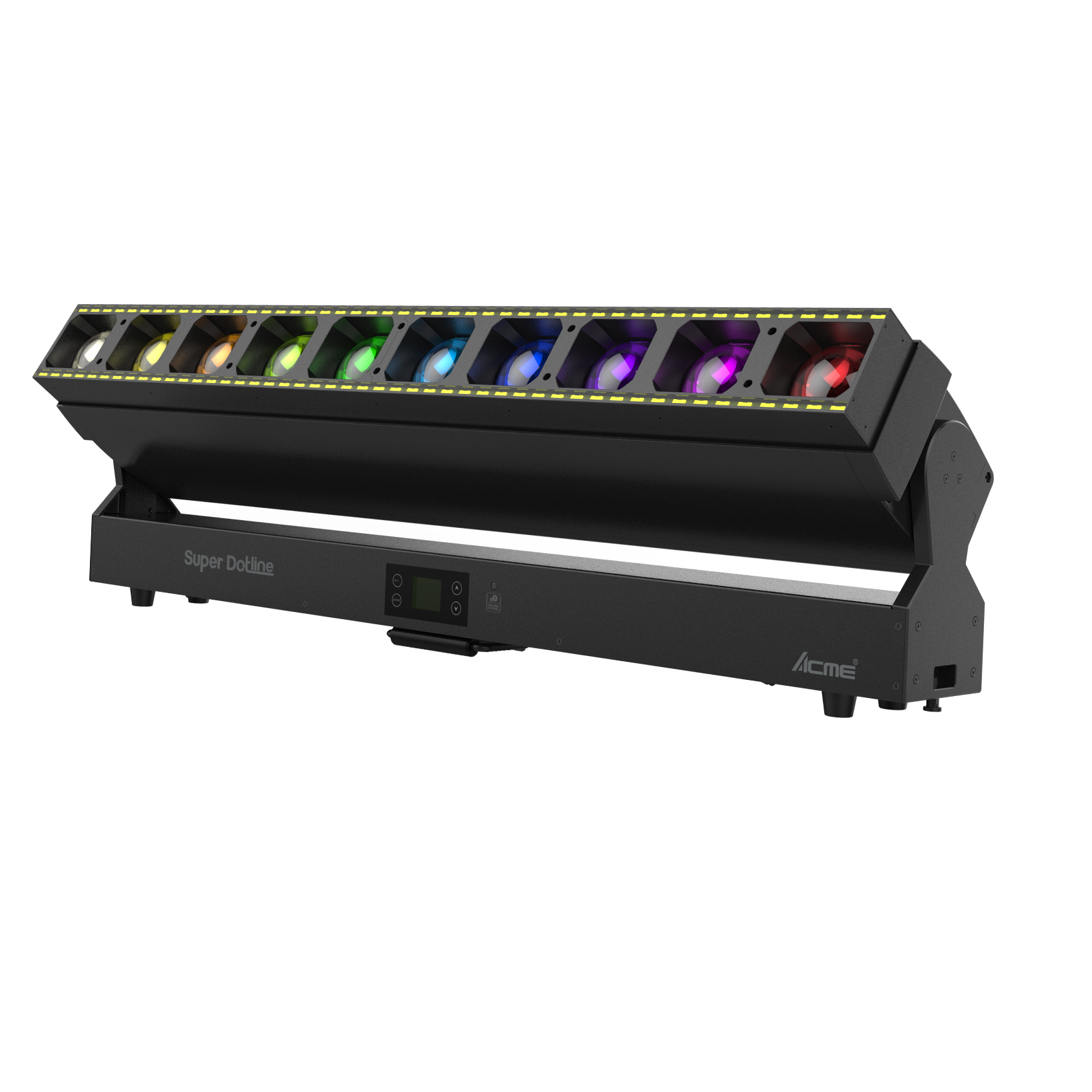

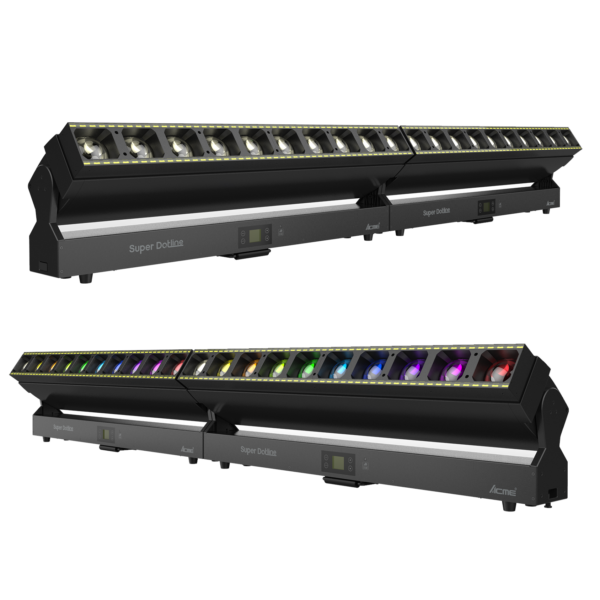

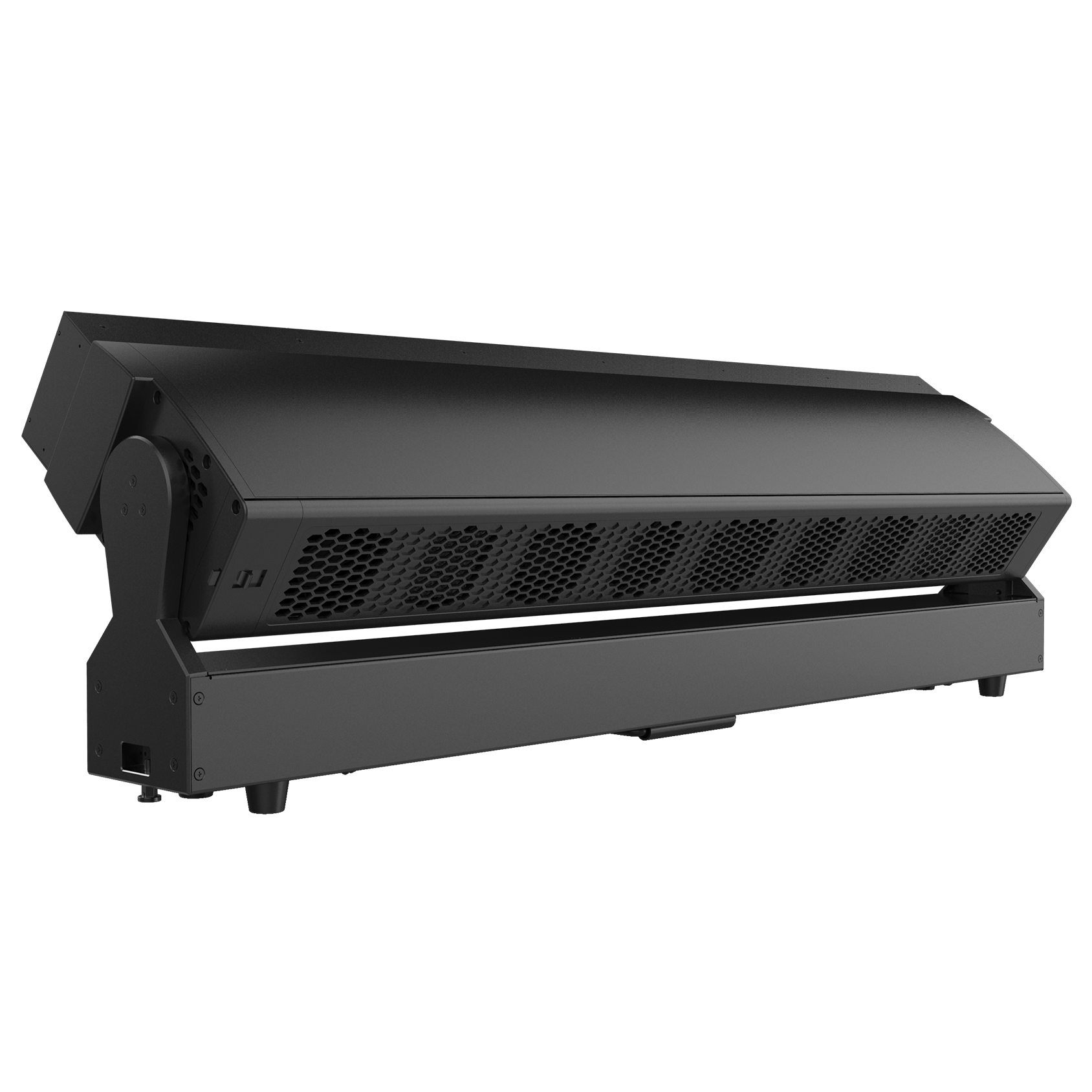

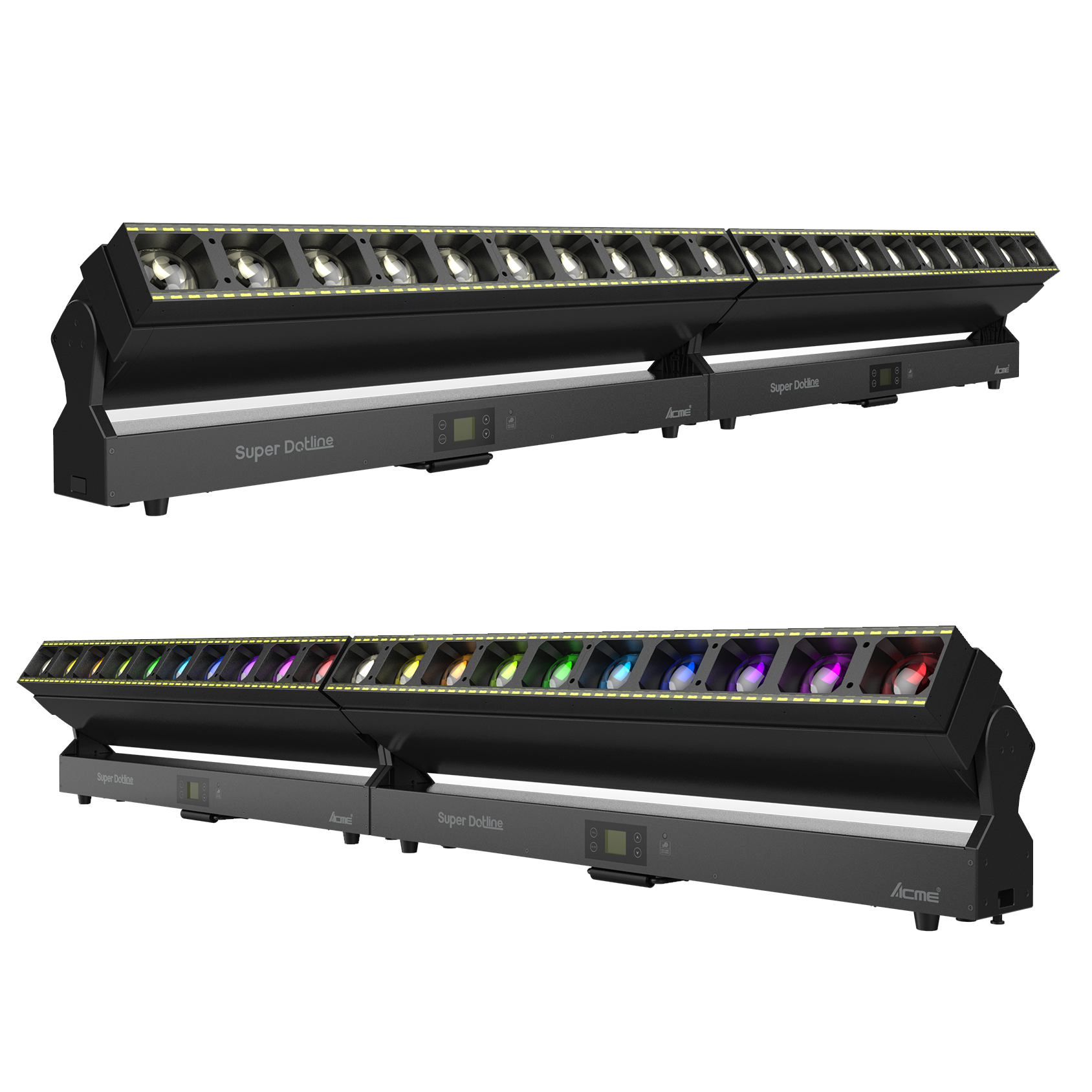

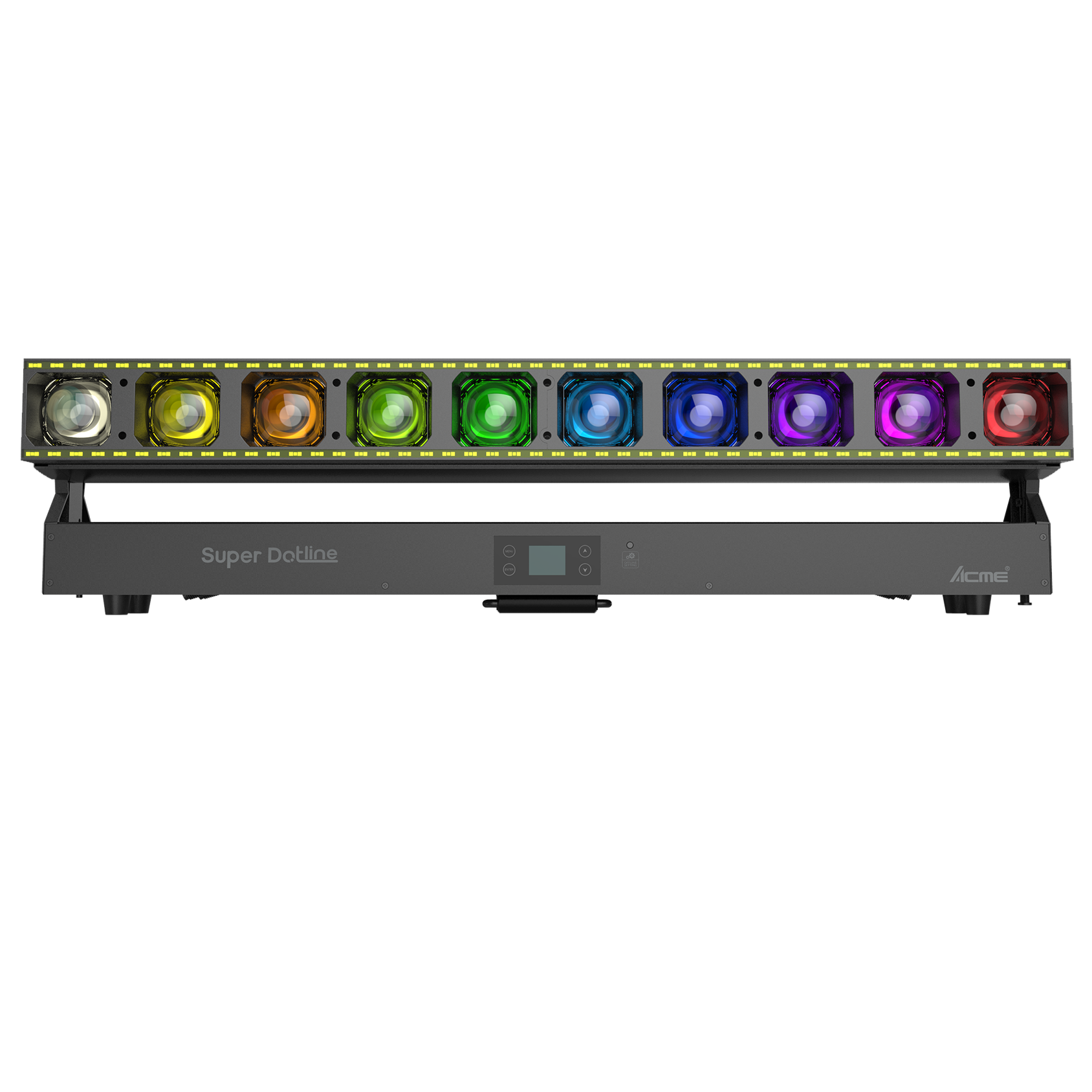

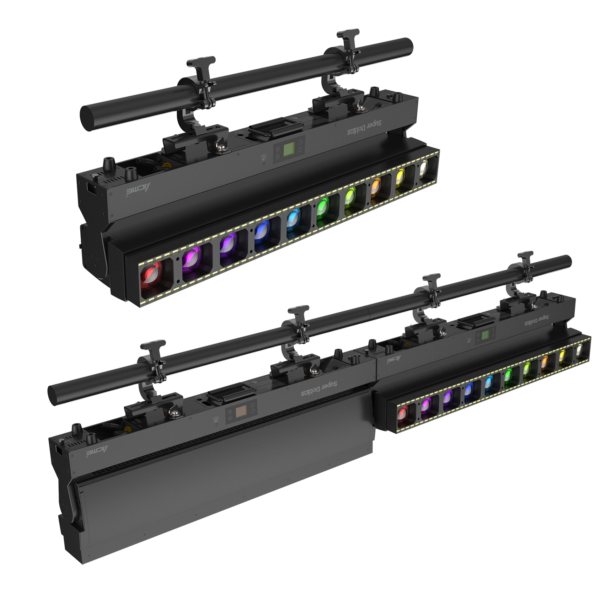

The SUPER DOTLINE allows for mounting in any orientation from the floor to hanging in truss. The unit has two connection points for the supplied omega brackets that accept most hooks or clamps. The fixture also features a tool-less connection system that allows units side- by-side connection and four retractable feet for floor applications. The SUPER DOTLINE only weighs 24 kilograms or just under 51 pounds and measures 1 meter (39.4 inches) in length.

分類: Acme Lighting, Acme Lighting

描述

Technical Specifications
Light Source & Photometric Data
Light Source	Main Light Section: 10 x 60W RGBW LEDs Strip Light Section (Cool White): 96 x 3W CW LEDs Strip Light Section (Warm White): 96 x 3W WW LEDs Strip Light Section (RGB): 96 x 0.5W RGB LEDs Rated Life: 20,000 hours (manufacturer spec)
Color Temperature Output	Main Light (White): 6,300K Strip Light (Cool White): 6,000–7,000K Strip Light (Warm White): 2,600–2,900K
Total Lumen Output	23,000 lm
Optical System
Beam & Field Angles	Beam Angle: 2.8° – 31° Field Angle: 5° – 46°
Movement
Tilt & Lock	Tilt Movement: 202° \| Pan/Tilt lock mechanism
Performance Features
Strobe & Dimming	Variable speed strobe effect, smooth 0–100% dimming (4 user-selectable dimming curves)
Control & Electrical
Control Protocols & Channels	DMX512, RDM, Art-Net, sACN 8 DMX Modes / Channel Options: 17 / 27 / 99 / 108 / 168 / 8+100 / 8+160 / 21
Display & Firmware	4-touch button control panel with LCD display; firmware upgrade via DMX link
Input Voltage & Power	100–240 Vac, 50/60 Hz \| Power Consumption: 1,155 W
Connectors	Power: Power connector in/out Data: 3-pin or 5-pin XLR, RJ45 connector
Physical, Packaging & Environment
Fixture Dimensions & Weight	1,000 x 290 x 120 mm (39.4″ x 11.4″ x 4.7″) \| Weight: 24.0 kg (52.9 lbs)
Packaging Options	Carton (One-pack): 1,200 x 400 x 245 mm (47.2″ x 15.7″ x 9.6″) \| G.W.: 27.0 kg (60.0 lbs) Flight Case (Standard Four-pack): 1,220 x 810 x 730 mm (48.0″ x 32.0″ x 28.7″) \| G.W.: 175.0 kg (385.8 lbs) Flight Case (North American Four-pack): 1,220 x 810 x 730 mm (48.0″ x 32.0″ x 28.7″) \| G.W.: 177.2 kg (390.7 lbs)
Operating Environment	Ambient Temp: 0°C to 40°C \| Max Surface Temp: 65°C Protection Rating: IP20
Approvals	CE compliant, UKCA compliant, cETLus compliant
Installation & Included Items	Horizontal or vertical mounting, universal working position (2x omega brackets [63583023], safety cable point, power cable, digital manual)
