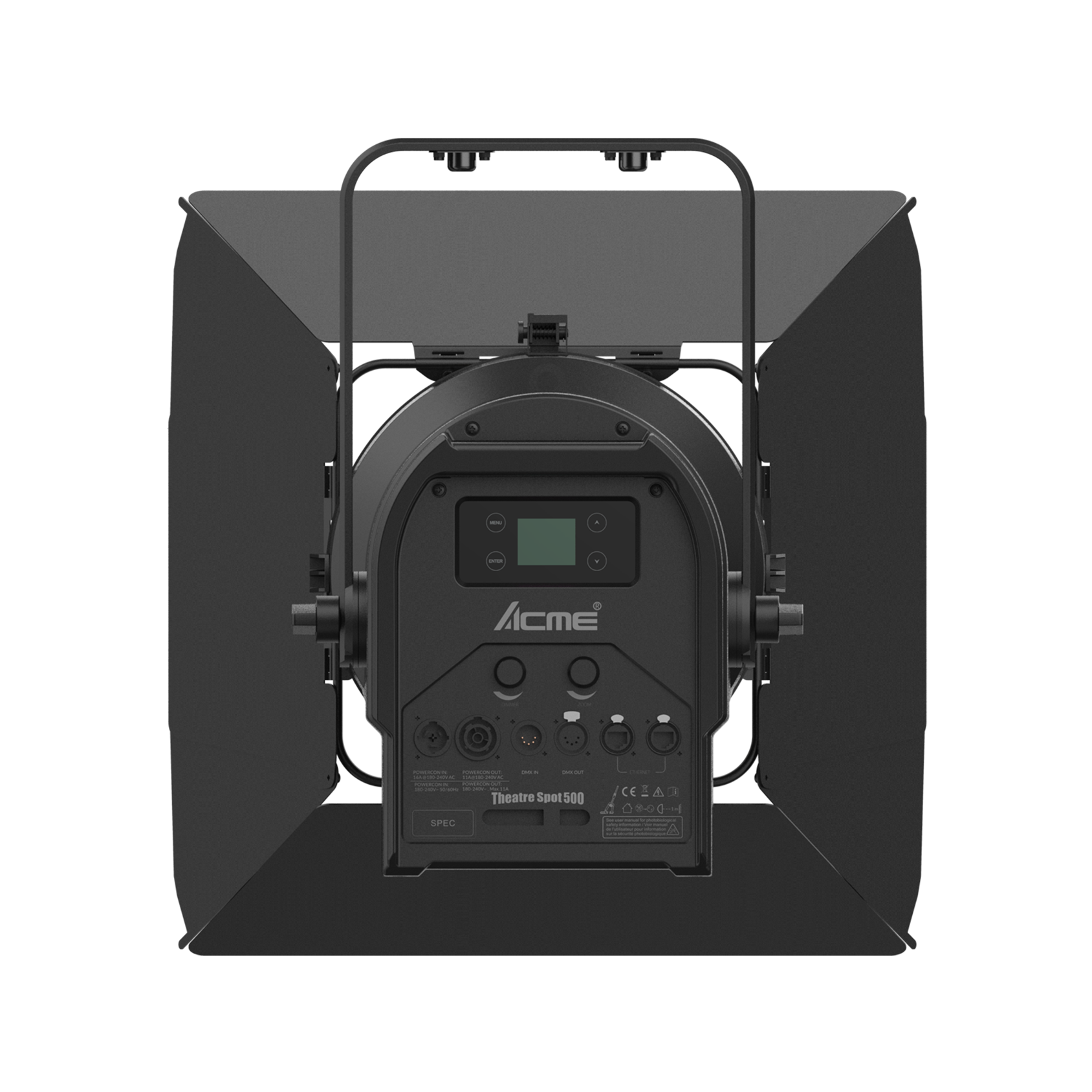

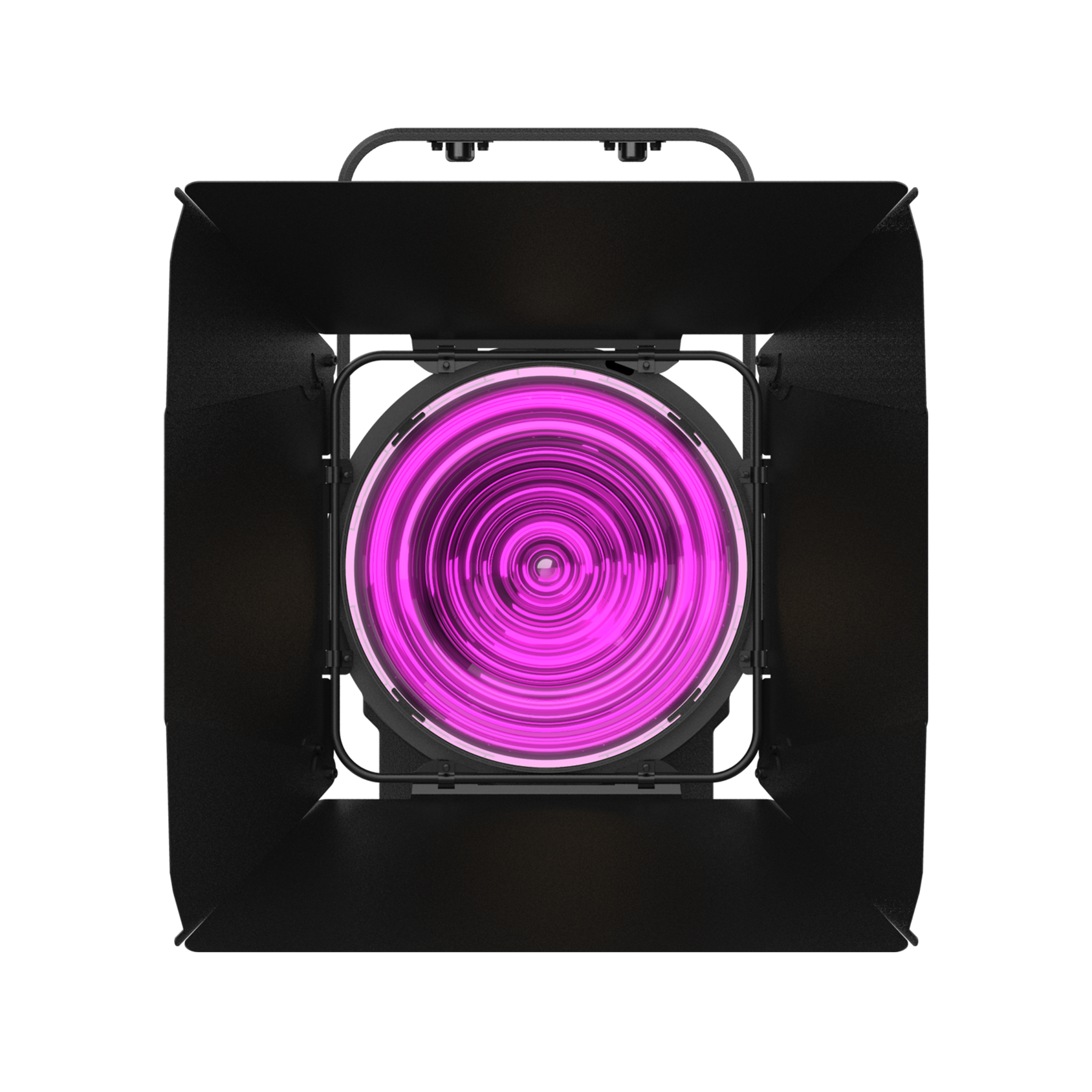

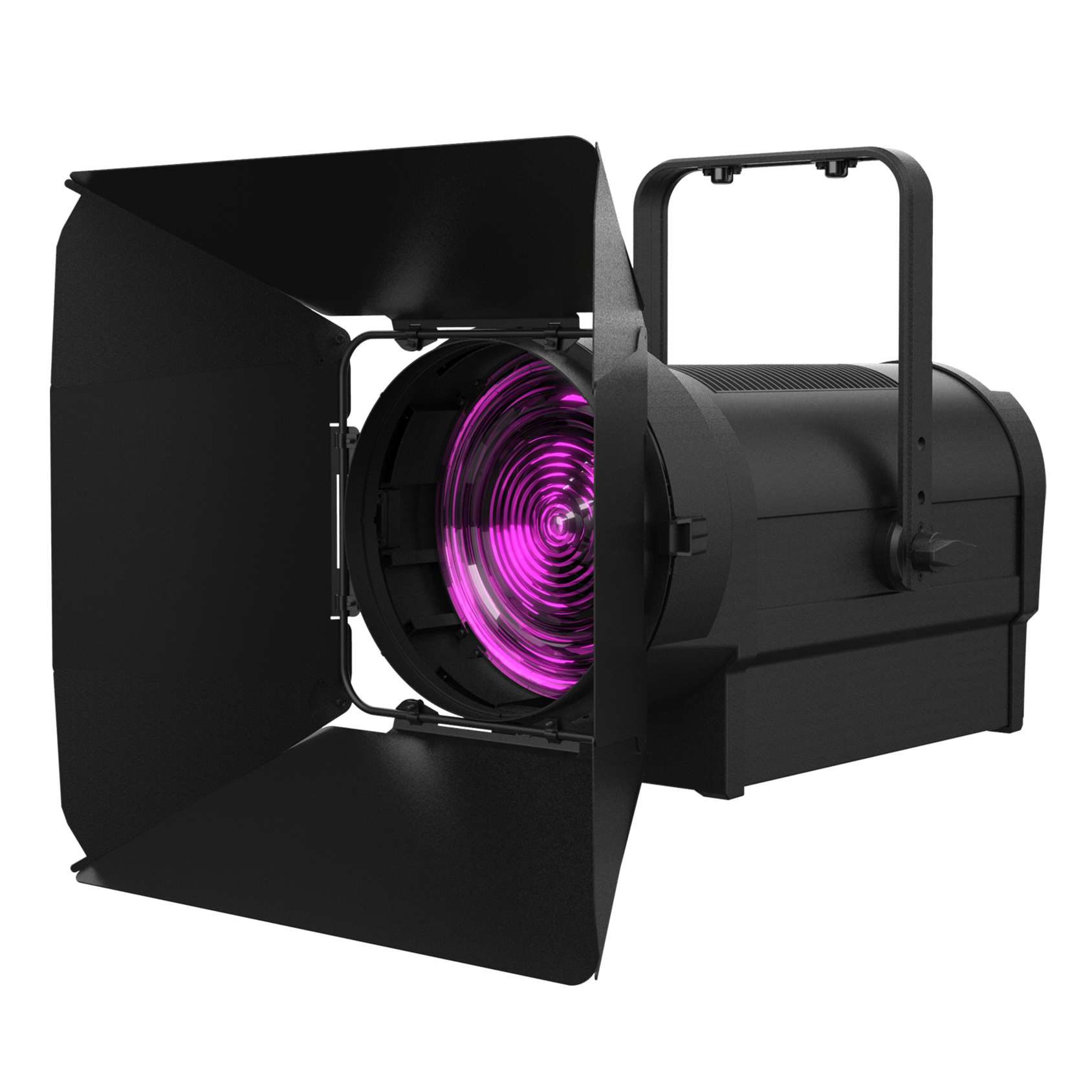

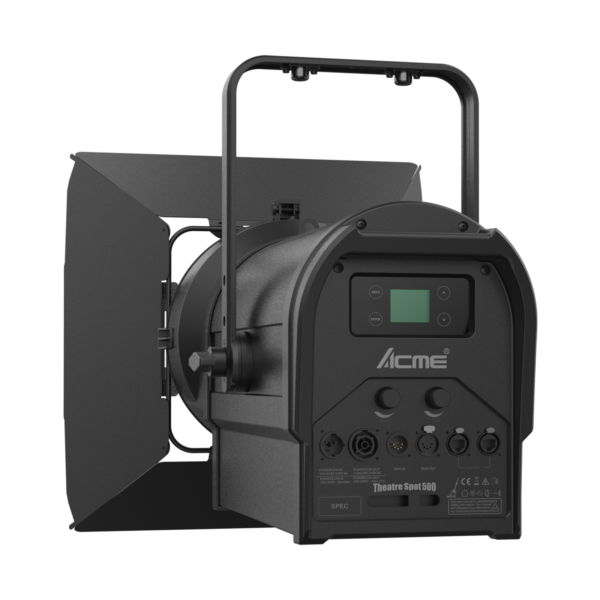

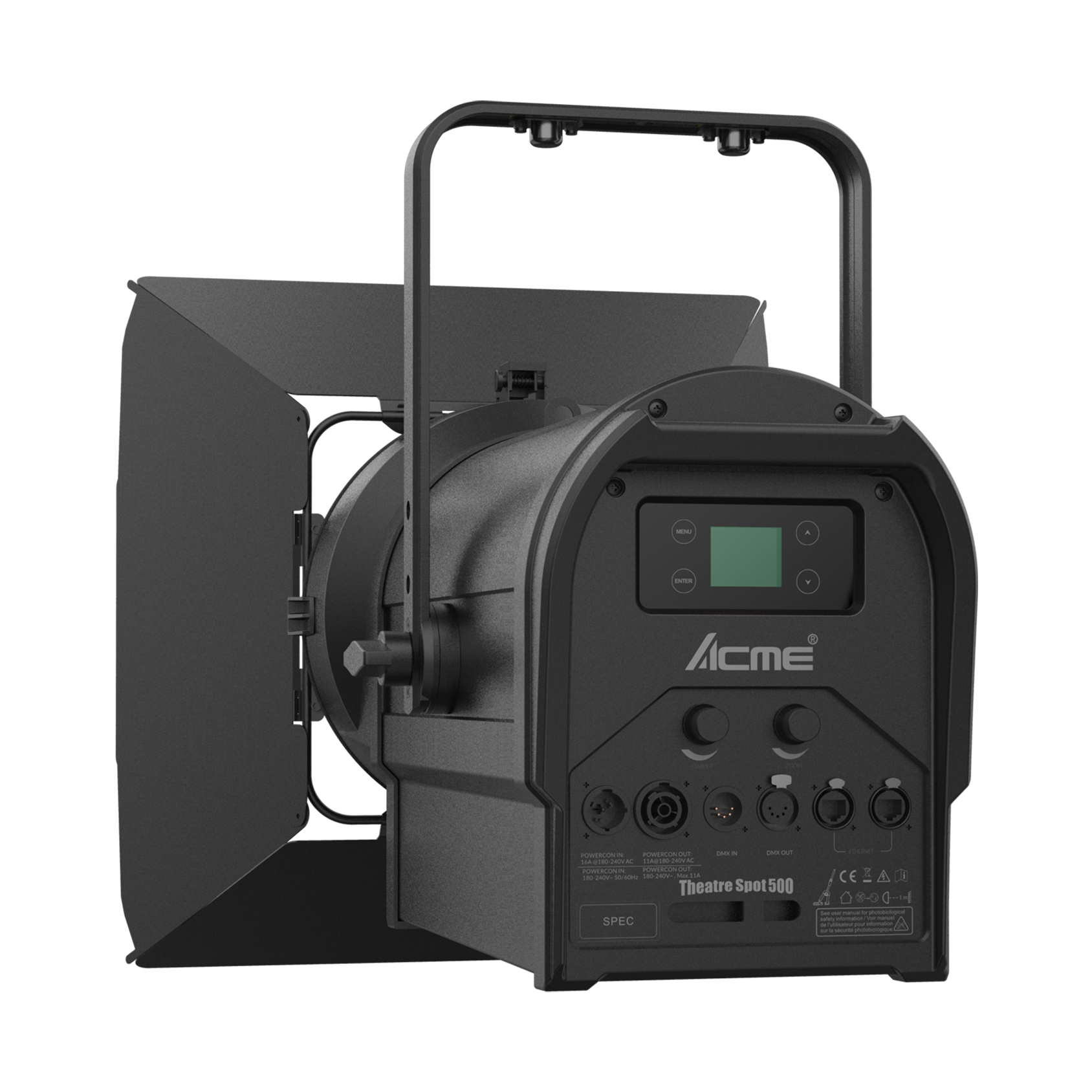

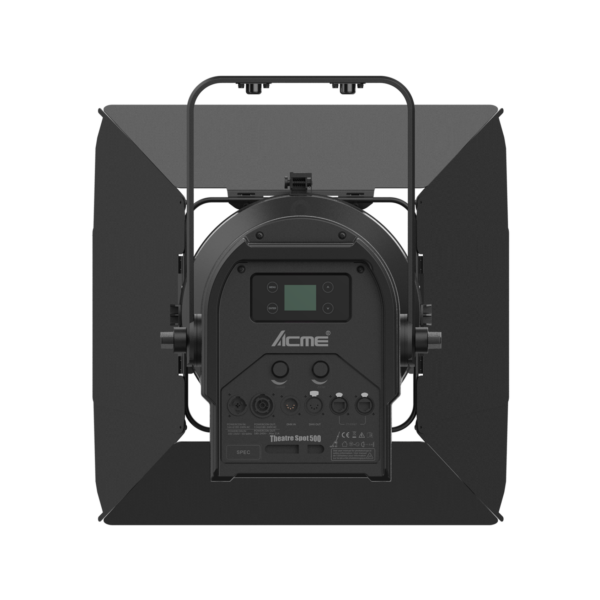

ACME THEATRE SPOT 500 RGBW

THEATRE SPOT 500 RGBWW, a new high-CRI spot light with light weight and low noise, boasts a powerful 600-Watt RGBWW LED engine with calibrated adjustable color temperature 2,500K-8,000K ,which delivers output of 9,000 lumens with a 250 mm frontal lens.

The fixture features a high-effciency optical system delivering a 5.5:1 zoom ratio with a zoom range of 14° to 64°. With a built-in fan, the heat dissipation in silent operation is significantly improved. Its patented hanger design prevents changes in the illumination angle from unexpected movements.

Equipped with flicker-free operation, a rotatable barndoor, and low noise design, the THEATRE SPOT 500 WW is suitable for various applications such as exhibitions, theaters, broadcasts, and film shooting, ensuring perfect illumination.

分類: Acme Lighting, Acme Lighting

描述

Technical Specifications
Light Source & Photometric Data
Light Source	1 x 36W Warm White (WW) LED (20,000 hours rated life)
Color Temperature	3,200K ± 150K
Color Rendering Performance	CRI ≥ 95 \| CQS ≥ 95 \| TLCI ≥ 95
Optical System
Beam Angle Options	19°, 26°, 36°, 50°
Performance Features
Flicker Management	Flicker-free operation for broadcast and camera applications
Control & Electrical
Control Protocols & Channels	DMX512, RDM (2 DMX modes: 1 / 2 Channels)
Display & Firmware	4-touch button control panel with LCD display; firmware upgrade via DMX link
Input Voltage & Power	100–240 Vac, 50/60 Hz (electronic auto-ranging) \| Power Consumption: 32 W
Connectors	Power: Power wire Data: 3-pin or 5-pin XLR
Physical, Packaging & Environment
Fixture Dimensions & Weight	158 x 273 x 100 mm (6.2″ x 10.7″ x 3.9″) \| Weight: 2.0 kg (4.4 lbs)
Operating Environment	Ambient Temp: 0°C to 40°C \| Max Surface Temp: 65°C Protection Rating: IP20
Approvals	CE compliant
Installation & Included Items	Horizontal or vertical mounting, universal working position (feet support with 1 locking point, safety cable point, gel frame, gobo slot, metal gobo, safety cable, digital manual)
