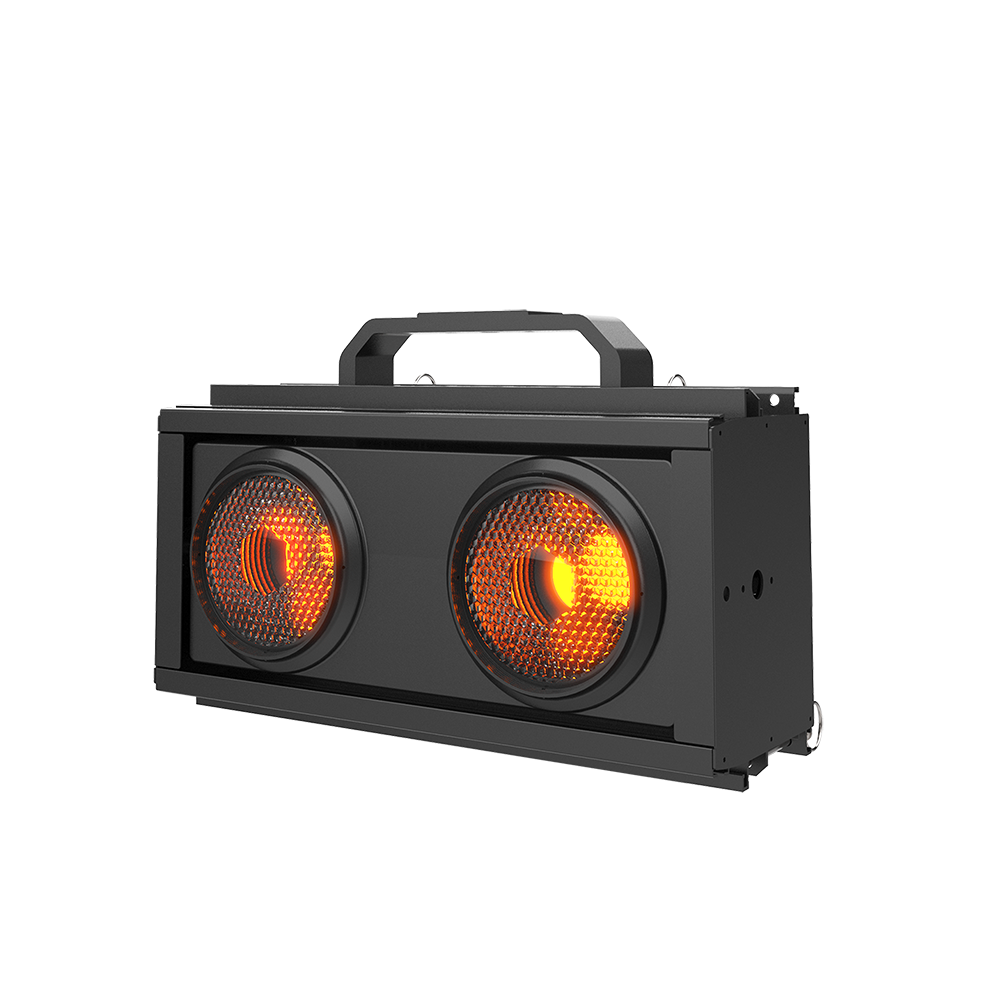

ACME ULTRA BLINDER IP

The ACME ULTRA BLINDER IP multi-effect light is renowned for its variable strobe with super-bright performance, which is brighter than the traditional audience blinder.

Featuring 2 pcs 260-Watt RGBA+WW LEDs, the fixture delivers an impressive 6,800 lumens output and exceptional color mixing effects. The ULTRA BLINDER IP boasts a 49° beam angle, an 82° field angle, and an adjustable light head, providing extensive lighting coverage. Equipped with an integrated interlocking system, it allows for accessory-free horizontal and vertical connections, and can be easily integrated with other BL 200 series fixtures.

With its outstanding cooling system and IP66, this fixture is the perfect choice for large and medium-sized concerts, variety shows, and other professional stage or entertainment applications requiring a striking visual impact.

分類: Acme Lighting, Acme Lighting

描述

Technical Specifications
Light Source & Color
Light Source	2 x 260W RGBA+WW LEDs Rated Life: 20,000 hours (manufacturer spec)
Linear CTO Color Correction	2,500K–8,000K
Photometric Data & Optics
Total Lumen Output	14,700 lm
Angles	Beam Angle: 49° \| Field Angle: 82°
Performance Features & Effects
Effects & Dimming	Variable speed strobe effect, smooth 0–100% dimming (4 user-selectable dimming curves), tungsten emulation during dimming, outstanding color mixing, two light heads can be adjusted up and down at the same time
Control & Electrical
Control Protocols & Channels	DMX512, RDM 11 DMX Protocol Modes / Channels: 1 / 2 / 4 / 6 / 6 / 7 / 9 / 10 / 11 / 14 / 16

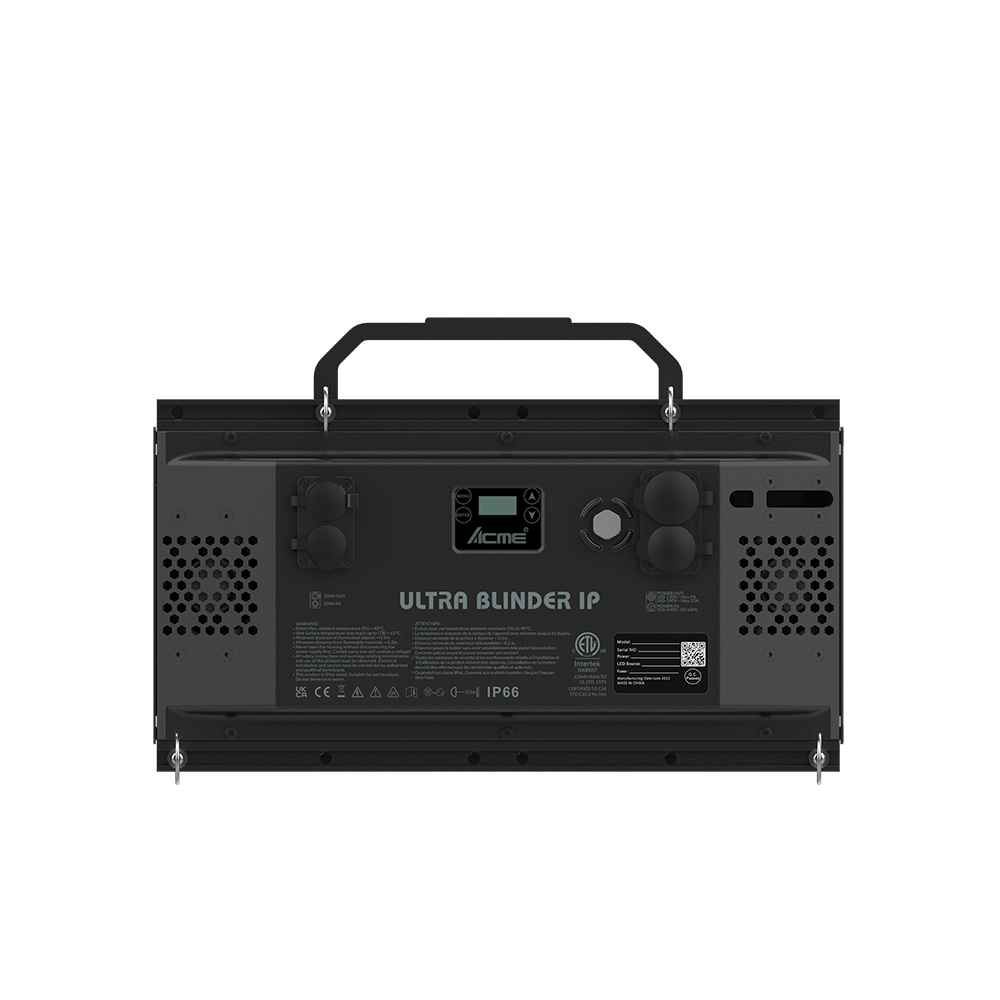

Display & Firmware	4-touch button control panel with LCD display; firmware upgrade via DMX link
Input Voltage & Power	100–240 Vac, 50/60 Hz Power Consumption: 235 W Max Quantity of Connections: 230V/50Hz: 12 units \| 120V/60Hz: 6 units
Connectors	Power: Waterproof power connector in/out Data: 3-pin or 5-pin waterproof XLR
Physical, Packaging & Environment
Fixture Dimensions & Weight	400 x 201 x 263 mm (15.7″ x 7.9″ x 10.4″) \| Weight: 8.2 kg (18.1 lbs)
Packaging Options	Carton (One-pack): 565 x 315 x 290 mm (22.2″ x 12.4″ x 11.4″) \| G.W.: 11.5 kg (25.4 lbs) Flight Case (Standard Eight-pack): 1,220 x 610 x 690 mm (48.0″ x 24.0″ x 27.2″) \| G.W.: 127.0 kg (280.0 lbs) Flight Case (North American Eight-pack): 1,220 x 610 x 690 mm (48.0″ x 24.0″ x 27.2″) \| G.W.: 134.1 kg (295.6 lbs)
Operating Environment	Ambient Temp: -10°C to 40°C \| Max Surface Temp: 65°C Protection Rating: IP66
Approvals	CE compliant, UKCA compliant, cETLus compliant

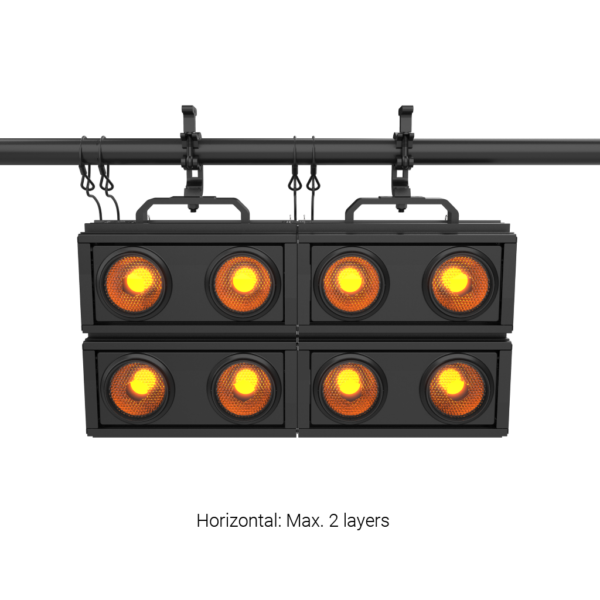

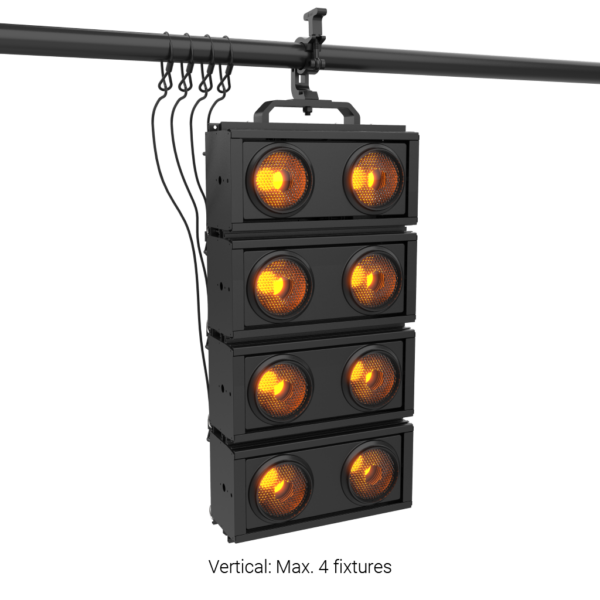

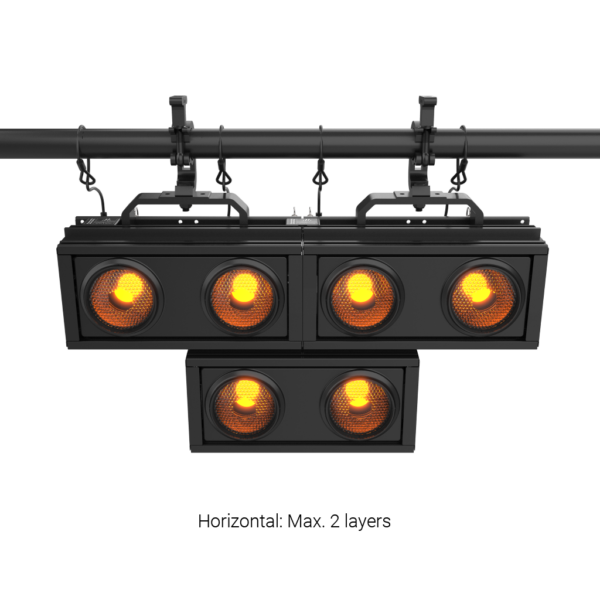

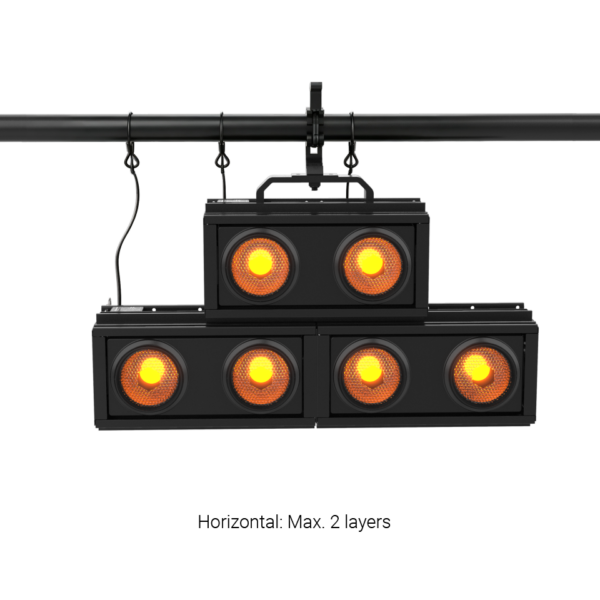

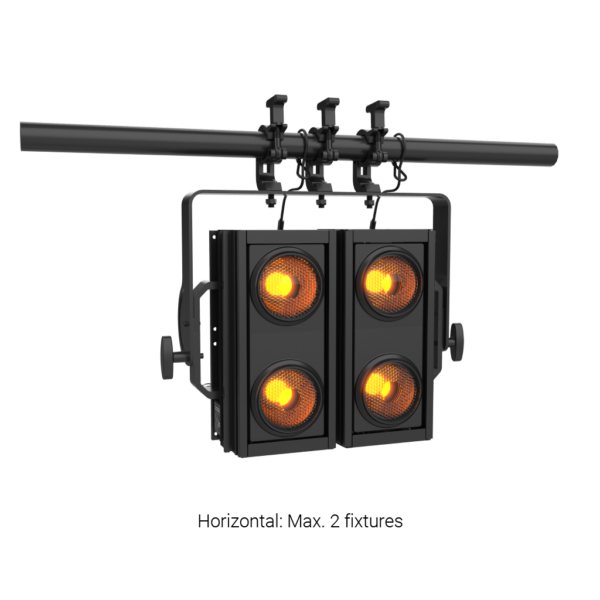

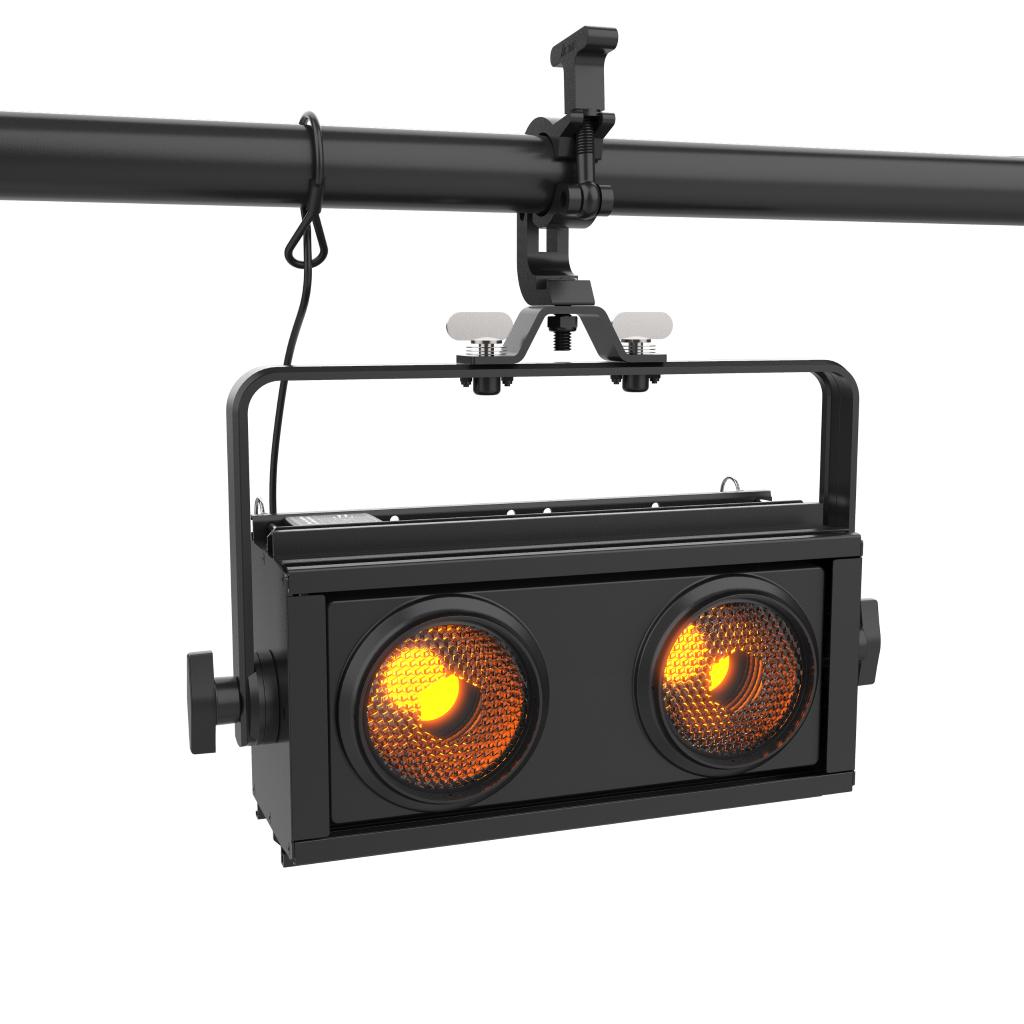

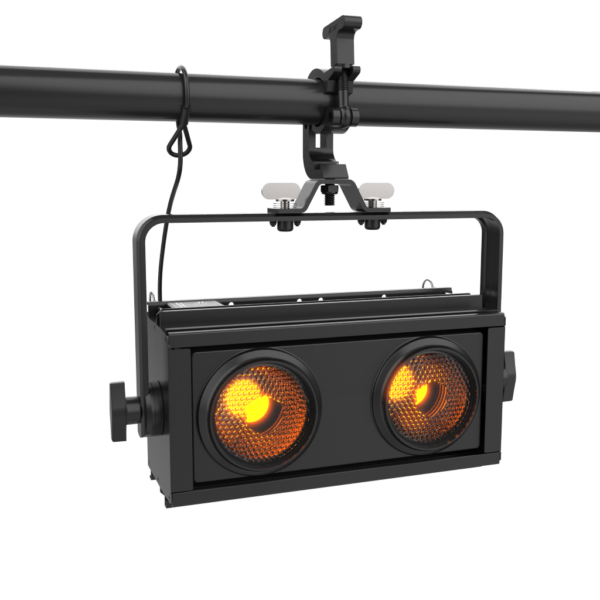

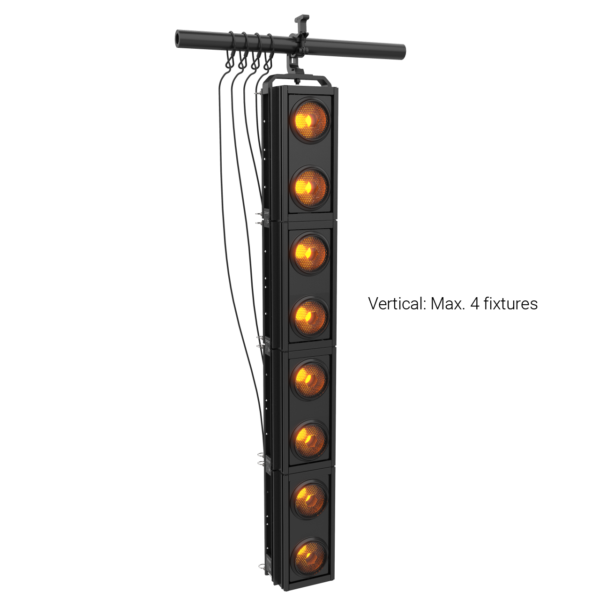

Installation & Rigging	Horizontal or vertical mounting, universal working position, safety cable point, integrated interlocking system, 1x clamp for 50 mm truss, 1x omega bracket Rigging Limits: – 1–2 small hanging brackets (supplied) + clamp (by others): max 2 layers (3 fixtures) – Large double vertical hanging assembly (sold separately): max 2 fixtures – Vertical w/ 1 small hanging bracket (supplied) + clamp (by others): max 4 fixtures
Included Items	Digital user manual, power cable, 1x small hanging bracket (50137301701100)
