ACME ZEUS BSW IP

The ACME ZEUS is an IP66 hybrid light that delivers precise and dynamic beams in a compact design. Powered by Philips MSD silver 420W long-life lamp with a lifespan of up to 3,500 hours, the ZEUS delivers an impressive 13,800 lumens at a crisp 7,800K color temperature output.

With an ultra-tight 1.6° beam angle, the fixture provides unparalleled precision. Its 170 mm frontal lens and three switchable zoom modes ensure brilliant and sharp beams. Featuring fast pan and tilt movements, a variable CTO and a CMY color mixing system, the Zeus lets you create rich, vibrant colors and dynamic effects with ease.

For endless creative possibilities, the ZEUS features two color wheels, each with six colors, one static gobo wheel with 16 gobos, one rotating gobo wheel with 9 gobos, two combinable rotating prisms, and one frost filter.

Weighing only 30kg, the fixture is suitable for any application. Versatile, lightweight, and compact — the ACME ZEUS exceeds expectations with its high quality and innovative design.

分類: Acme Lighting, Acme Lighting

描述

Technical Specifications
Light Source & Color
Light Source	PHILIPS MSD Silver 420W/2 LL Rated Life: 3,500 hours (manufacturer spec)
Color Temp Output	7,800K
Color Mixing & CTO	Linear CMY color mixing \| Linear CTO: 3,200K–6,700K
Color Wheels	Color Wheel 1: 6 colors + open Color Wheel 2: 6 colors + open
Photometric Data & Optics
Total Lumen Output	13,800 lm
Zoom Range & Lens	Beam: 1.6°–27° \| Spot: 2.3°–44° \| Wash: 8°–60° Front Lens Diameter: 170 mm
Gobos, Prisms & Effects
Static Gobos	1 Wheel (16 gobos + open) \| Outer Dia: Φ125 mm
Rotating Gobos	1 Wheel (9 gobos + open) \| Outer Dia: Φ18 mm, Image Dia: Φ11 mm
Prisms & Frost	Prisms: 2 combinable rotating/indexable (1x 8-facet circular, 1x 6-facet linear) Frost: 1 frost filter
Effects & Focus/Zoom	Variable speed strobe, smooth 0–100% dimming (4 user curves), motorized focus system, motorized zoom, flicker-free management
Control & Electrical
Control Protocols & Channels	DMX512, RDM, Art-Net, sACN 2 DMX Protocol Modes / Channels: 20 / 28
Display & Firmware	4-touch button control panel with LCD display; firmware upgrade via DMX link or USB stick
Input Voltage & Power	100–240 Vac, 50/60 Hz Power Consumption: 655 W
Connectors	Power: Waterproof power connector in/out Data: 3-pin or 5-pin waterproof XLR, waterproof RJ45 connector
Pan & Tilt
Movement & Resolution	Pan: 540° \| Tilt: 265° (16-bit resolution) Automatic position correction, Pan/Tilt lock
Physical, Packaging & Environment
Fixture Dimensions & Weight	379 x 284 x 659 mm (14.9″ x 11.2″ x 25.9″) \| Weight: 30 kg (66.4 lbs)
Packaging Options	Flight Case: 1,170 x 610 x 795 mm (46.1″ x 24.0″ x 31.3″) Carton (One-pack): 610 x 490 x 715 mm (24.0″ x 19.3″ x 28.2″) \| G.W.: 38 kg (83.8 lbs)
Operating Environment	Ambient Temp: -10°C to 40°C \| Max Surface Temp: 75°C Protection Rating: IP66

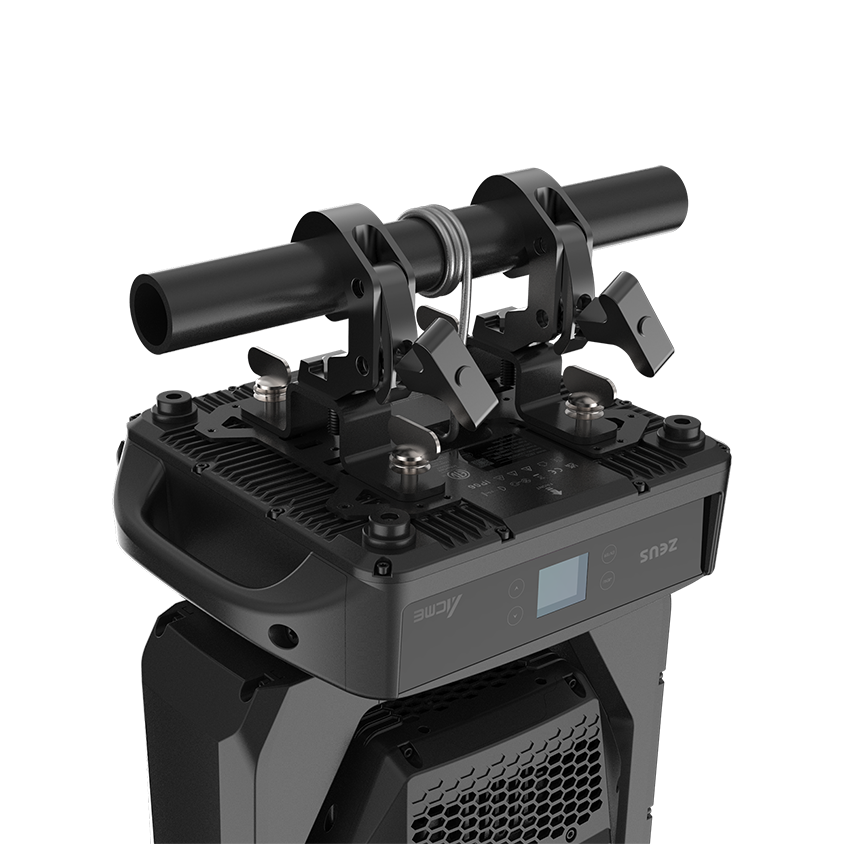

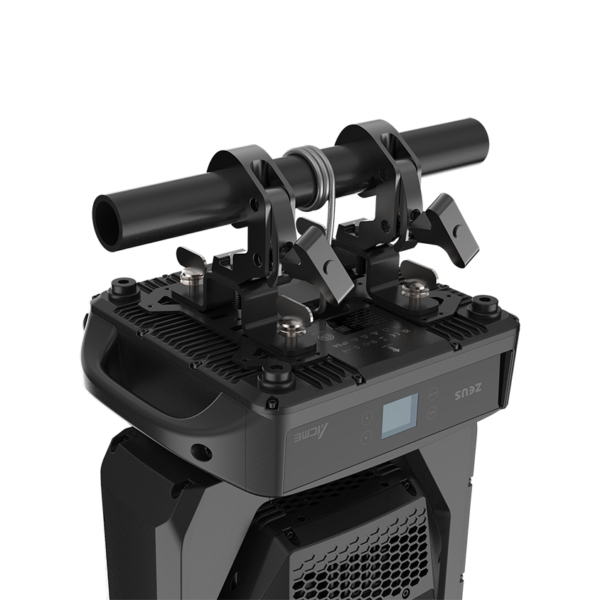

Installation & Rigging	Horizontal or vertical mounting, universal working position, safety cable point, 2x omega brackets (3002003002)
Included Items	Digital user manual, power cable, 2x omega brackets (3002003002)
