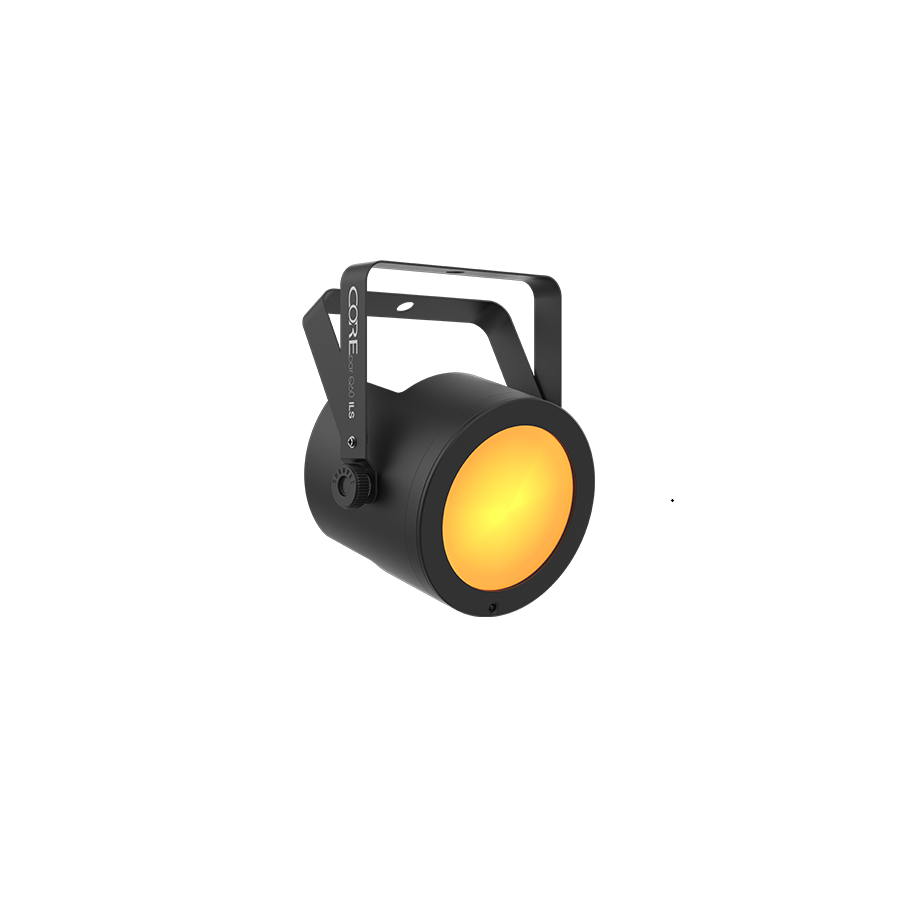

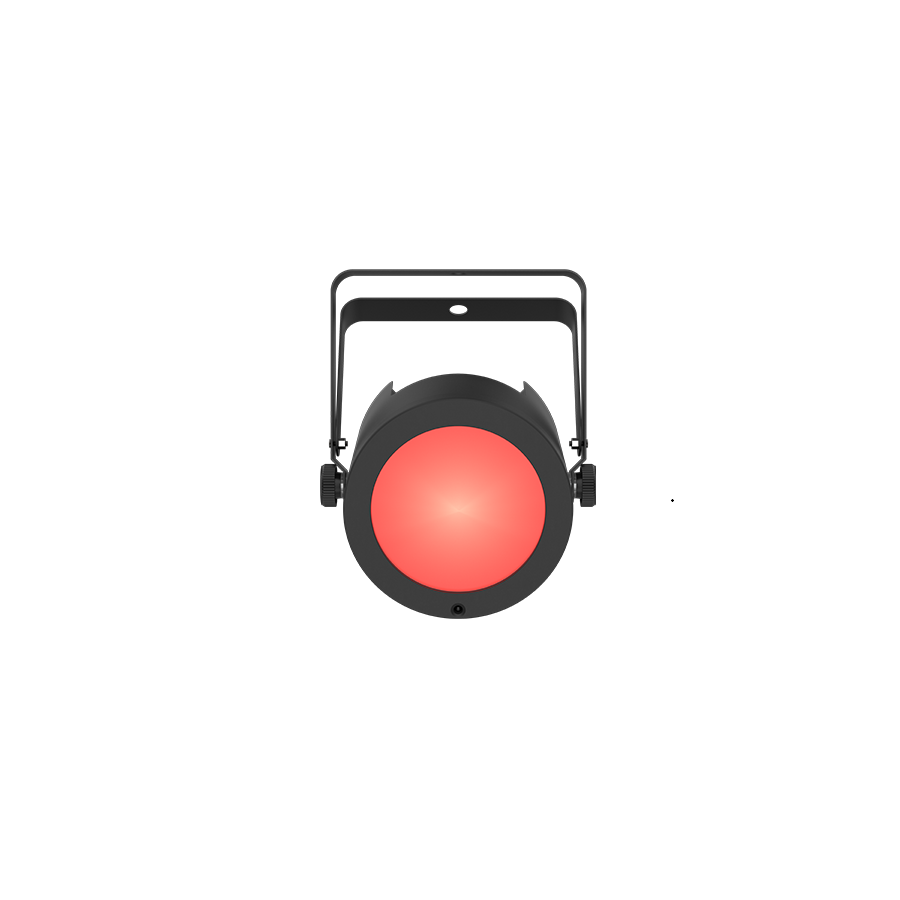

CHAUVET COREpar Q60 ILS

COB (Chip-on-Board) LED produces a full spectrum of light with unsurpassed color mixing
ILS compatibility for use in the ILS ecosystem
D-Fi USB compatibility for wireless Master/Slave or DMX control
Included magnetic Fresnel lens allows the flexibility to go from ultra-wide to narrow beam in seconds
Withstand the harshness of traveling from gig to gig with a robust housing

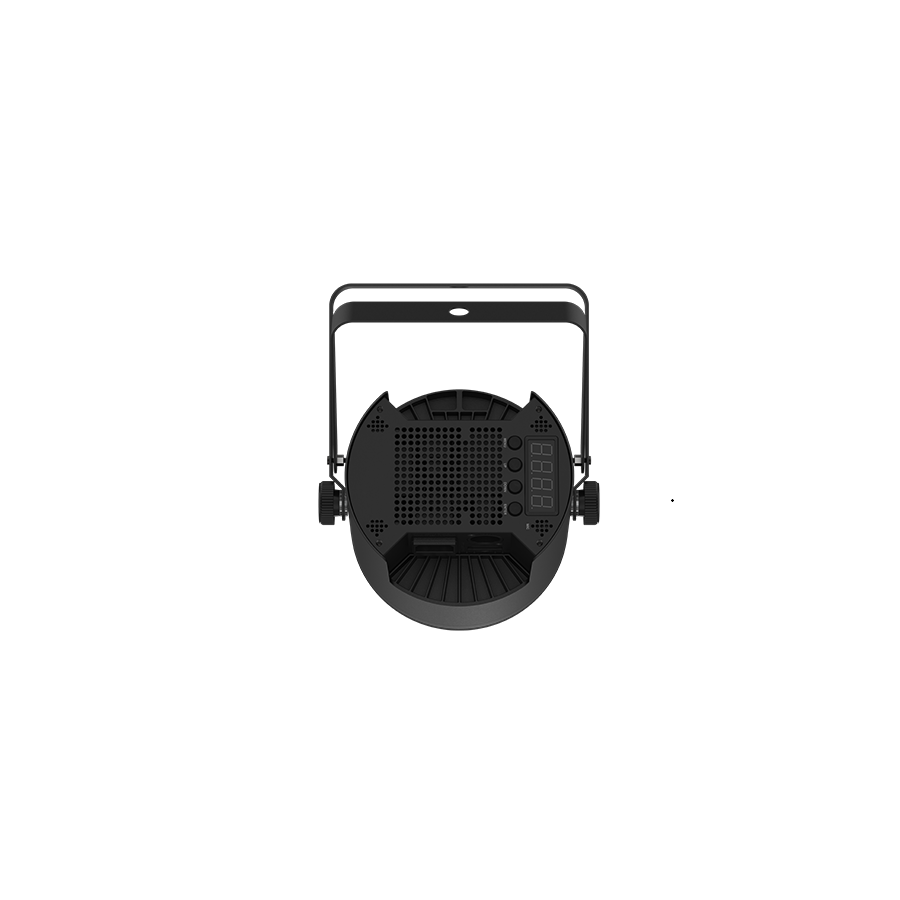

Sit-flat housing design hugs the floor and features power and DMX outlets on the side of the unit
Achieve flicker-free video operation with high-frequency LED dimming
Save time running cables and extension cords by power linking multiple units
Point-and-shoot operation of static colors and automated programs with the optional IRC-6 remote
Create customized colors using the built-in LED display
Achieve smooth LED fading with built-in dimming curves
Easily transports in the optional CHS-40 VIP Gear Bag

分類: Chauvet, Chauvet

Technical Specifications
Overview
Fixture Type	Professional COB LED Wash Fixture
Light Source & Performance
Light Source	1 COB LED (quad-color RGBW) 60 W, (2.8 A), 50,000 hours life expectancy
Optics & Coverage	Beam Angle: 74° (without lens) / 20° (with lens) Field Angle: 100° (without lens) / 30° (with lens)
Illuminance	@ 2 m: 320 lux (without lens) / 2,796 lux (with lens)
Strobe Rate	0 to 29 Hz
Control & Connectivity
DMX Channels & Connectors	Channels: 4 or 9 Connectors: 3-pin XLR Optional Controllers: IRC6, D-Fi USB
Electrical & Power
Input Voltage & Power	Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging) Power and Current: 59 W, 0.8 A @ 120 V, 60 Hz; 57 W, 0.5 A @ 230 V, 50 Hz
Power Linking	9 units @ 120 V; 17 units @ 230 V
Physical & Certifications
Dimensions & Weight	Size: 7.5 x 7.5 x 8.2 in (192 x 192 x 210 mm) Weight: 3.4 lbs (1.5 kg)
Hardware & Mounting	Cable Length: 5 ft (1.5 m) Bracket Mounting Hole: 13 mm
Approvals	CE, RoHS, UKCA
