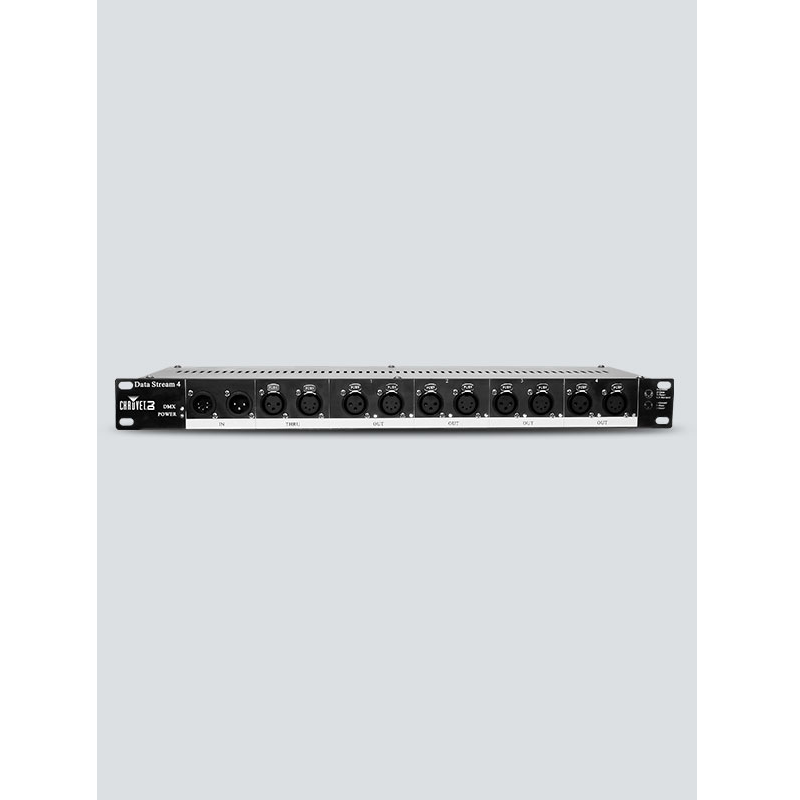

CHAUVET Data Stream 4

Universal, optical DMX splitter provides 4 outputs from a single input
Increase flexibility with 3- and 5-pin XLR connections for each input/output
Increase operation with additional 3- and 5-pin output for linking other Data Stream 4 units
Electrical isolation between input and output
Conveniently mount with a shorter cable run using the single space (1U) mounting rack

Technical Specifications
Overview
Equipment Type	Rackmount DMX Splitter / Distribution Hub
Control & Connectivity
DMX Connectors	3-pin & 5-pin XLR
Electrical & Power
Input Voltage	Auto-ranging 100 to 240 VAC, 50/60 Hz
Power and Current	3 W, 0.1 A @ 120 V, 60 Hz 5 W, 0.1 A @ 230 V, 50 Hz
Physical & Certifications
Dimensions & Weight	Size: 19 x 5.3 x 1.8 in (483 x 134 x 46 mm) Weight: 5.8 lbs (2.6 kg)
Approvals	CE

CHAUVET Data Stream 4
