| Technical Specifications | |
|---|---|
| Overview | |

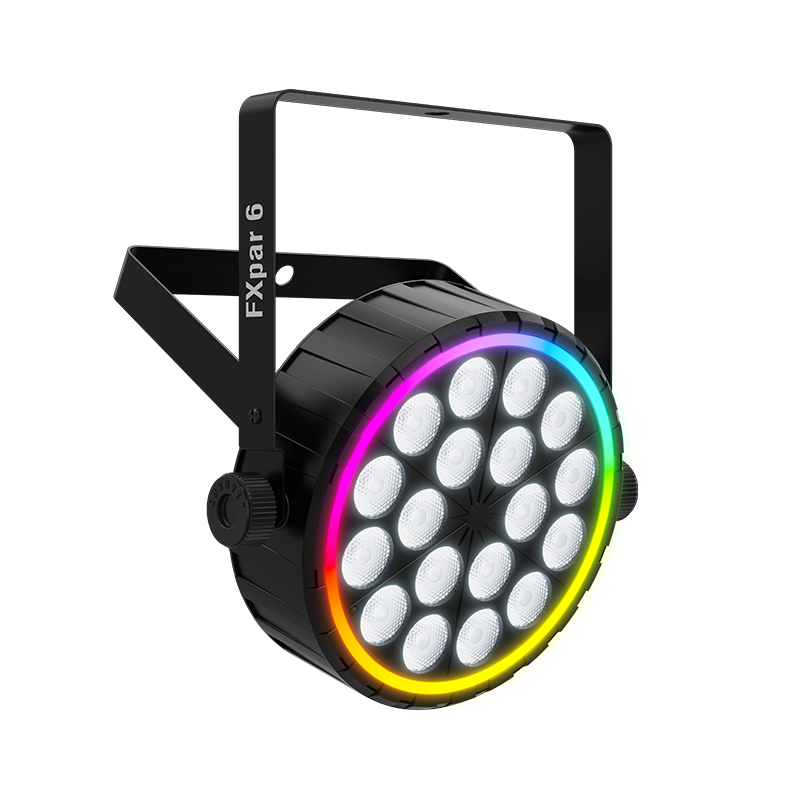

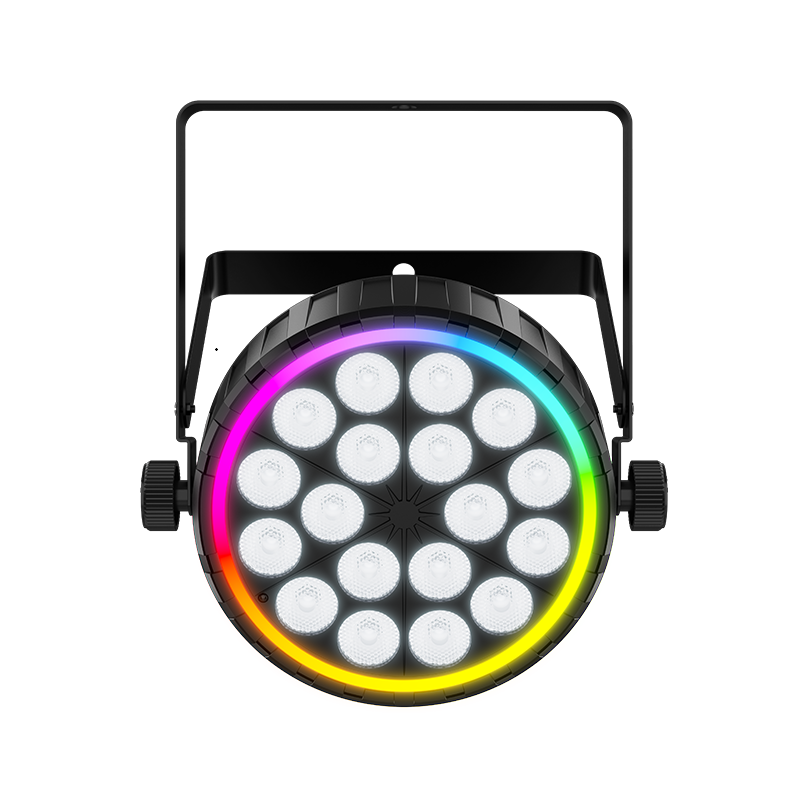

| Fixture Type | Professional Quad-Color LED Par Fixture with LED Ring Effect |
| Package Includes | FXpar 6, Power cable |
| Light Source & Performance | |
| Light Source | Main Pars: 18 LEDs (quad-color RGBW), 52 W (1 A), 50,000 hours life expectancy Ring Effect: 51 LEDs (RGB), 6 W (0.5 A), 50,000 hours life expectancy |
| Optics & Coverage | Beam Angle: 20° Field Angle: 36° |
| Illuminance & Lumens | Illuminance @ 2 m: 5,657 lux Lumens: 3,239 |
| Strobe Rate | 0 to 20 Hz |
| Control & Connectivity | |
| DMX Channels & Connectors | Channels: 3, 6, or 11 Connectors: 3-pin XLR Optional Controllers: IRC-6 |
| Electrical & Power | |
| Input Voltage & Power | Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging) Power and Current: 63 W, 0.9 A @ 120 V, 60 Hz; 62 W, 0.6 A @ 230 V, 50 Hz |
| Power Linking | 8 units @ 120 V; 12 units @ 230 V |
| Physical & Certifications | |
| Dimensions & Weight | Size: 10.8 x 2.7 x 12 in (275 x 69 x 305 mm) Weight: 3.0 lbs (1.3 kg) |
| Hardware & Mounting | Bracket Mounting Hole: 13 mm |
| Approvals | CE, RoHS |
