| Technical Specifications | |
|---|---|
| Overview | |

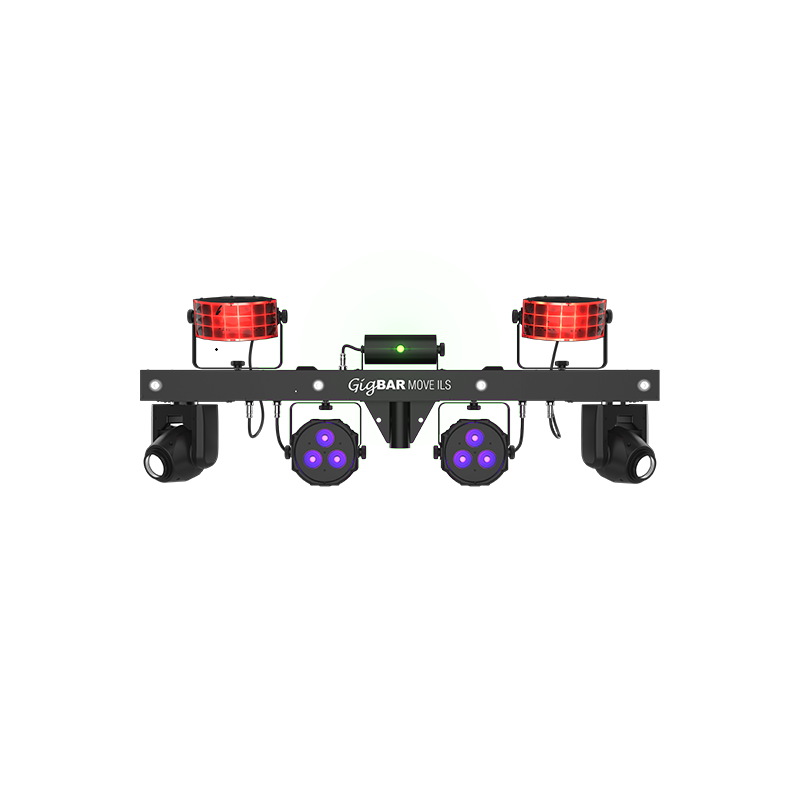

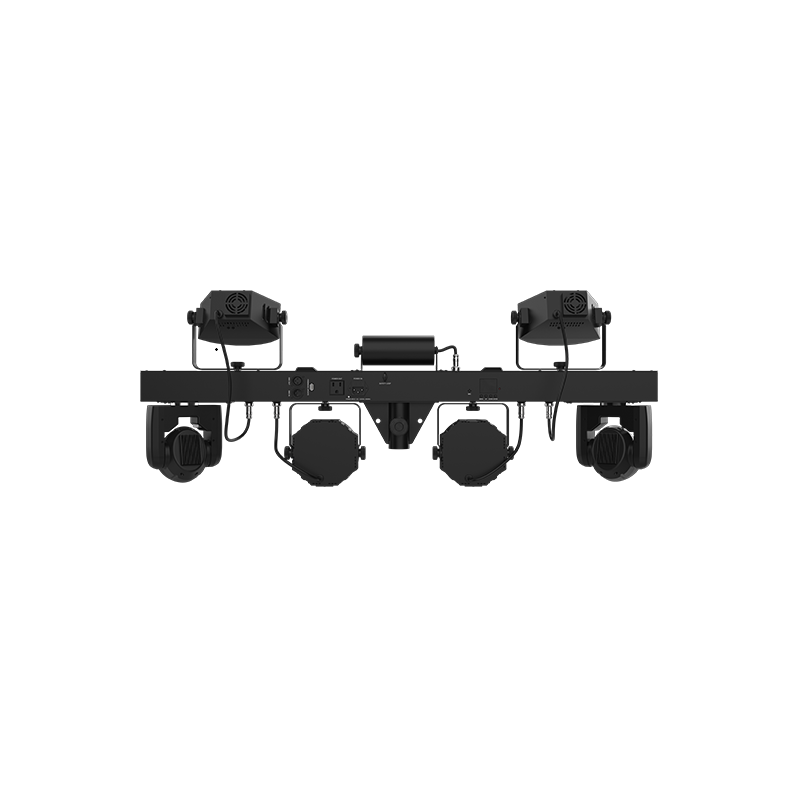

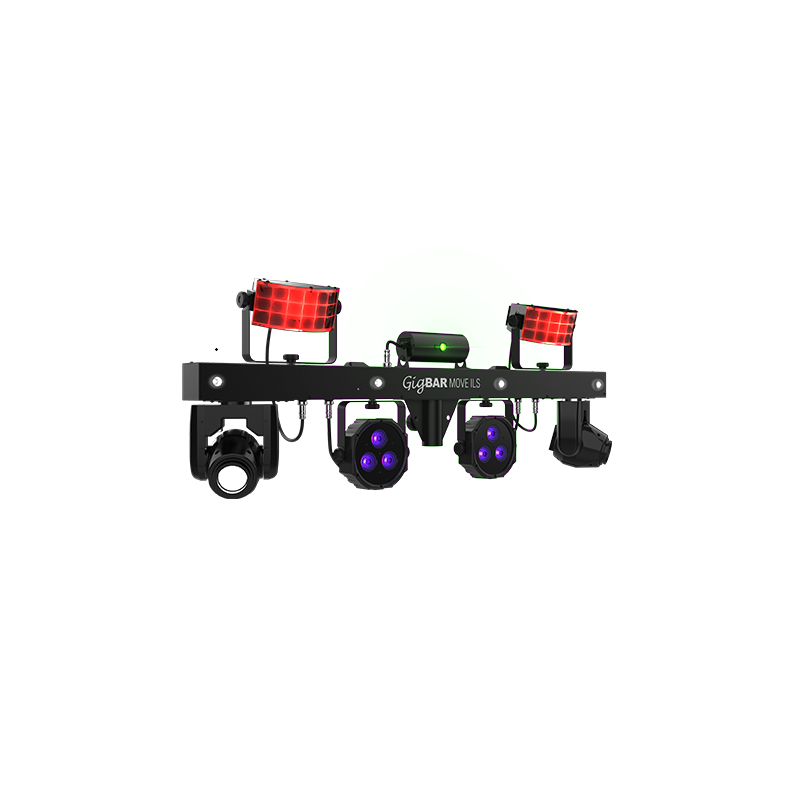

| Fixture Type | Professional Multi-Effect ILS Lighting System (Moving Head, Pars, Strobe, Derby & Laser) |
| Package Includes | GigBAR Move ILS, Power cord, Carrying bag, Tripod, Footswitch, RF Remote |
| Light Source & Performance | |
| Light Source | Moving Head: 1 LED (cool white), 10 W (2.3 A), 50,000 hours life expectancy Pars: 3 LEDs (quad-color RGB+UV), 3.5 W (1 A), 50,000 hours life expectancy Strobe: 4 LEDs (white & UV), 5 W (1 A), 50,000 hours life expectancy Derby: 6 LEDs (2 red, 2 green, 2 blue), 1 W (1 A), 50,000 hours life expectancy Laser: 650 nm / 100 mW (red), 532 nm / 30 mW (green) laser diodes |
| Optics & Coverage | Beam Angle (Moving Head): 11° Beam Angle (Pars): 19° | Field Angle: 30° Beam Angle (Strobe): 8° | Field Angle: 18° Coverage Angle (Derby): 131° Coverage Angle (Laser): 93° |
| Illuminance | Pars @ 2 m: 1,205 lux (per par) Moving Head @ 2 m: 1,056 lux (per head) Strobe @ 2 m: 86 lux (per LED) |
| Strobe Rate | 0 to 20 Hz |
| Colors & Gobos | Colors (Moving Head): 7 + white, continuous scroll at variable speeds Gobos (Moving Head): 7 + open, continuous scroll at variable speeds |
| Pan and Tilt | 540° / 180° |
| Control & Connectivity | |
| DMX Channels & Connectors | Channels: 3, 27, or 46 Connectors: 3-pin XLR Included Controllers: RF remote, wireless footswitch |
| Wireless Footswitch | Operating Frequency: 433 MHz Max Unobstructed Distance: 100 ft (30.5 m) Battery: 9 V alkaline |
| Electrical & Power | |
| Input Voltage & Power | Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging) Power and Current: 81 W, 1.1 A @ 120 V, 60 Hz; 79 W, 0.6 A @ 230 V, 50 Hz |
| Power Linking | 7 units @ 120 V; 12 units @ 230 V |
| Physical & Certifications | |
| Dimensions & Weight | Size: 43 x 5.7 x 17.7 in (1100 x 144 x 449 mm) Weight: 23.4 lbs (10.7 kg) |

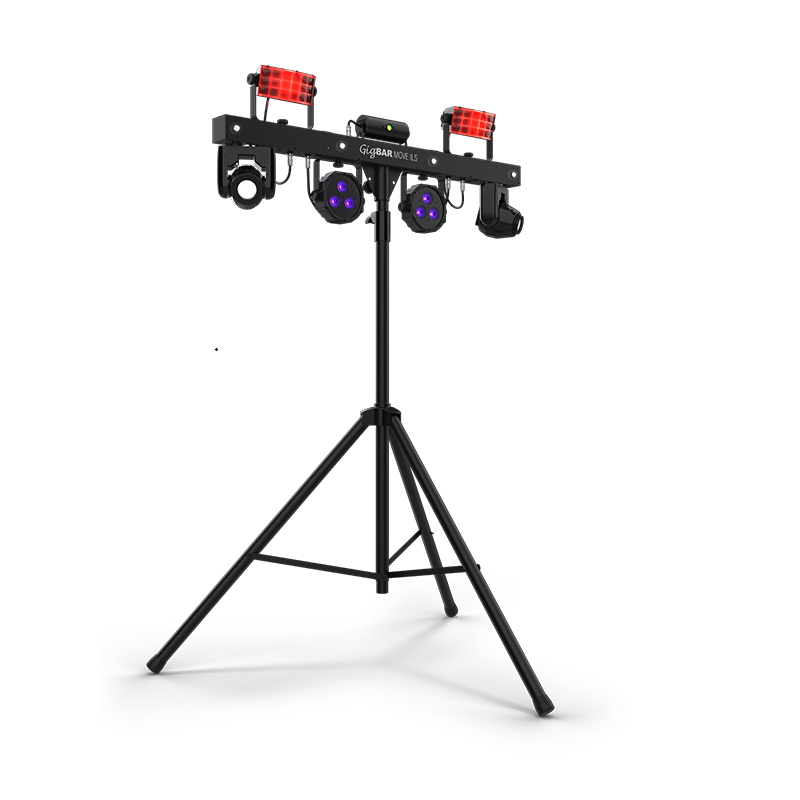

| Stand & Tripod Hardware | Stand Height: 4.8 ft to 8.3 ft (1.5 to 2.5 m) Tripod Leg Width: 3.9 ft (1.2 m) Tripod Size Compatibility: 1.5 in (37.4 mm) |
| Approvals | CE, RoHS, UKCA, FDA, FCC |
