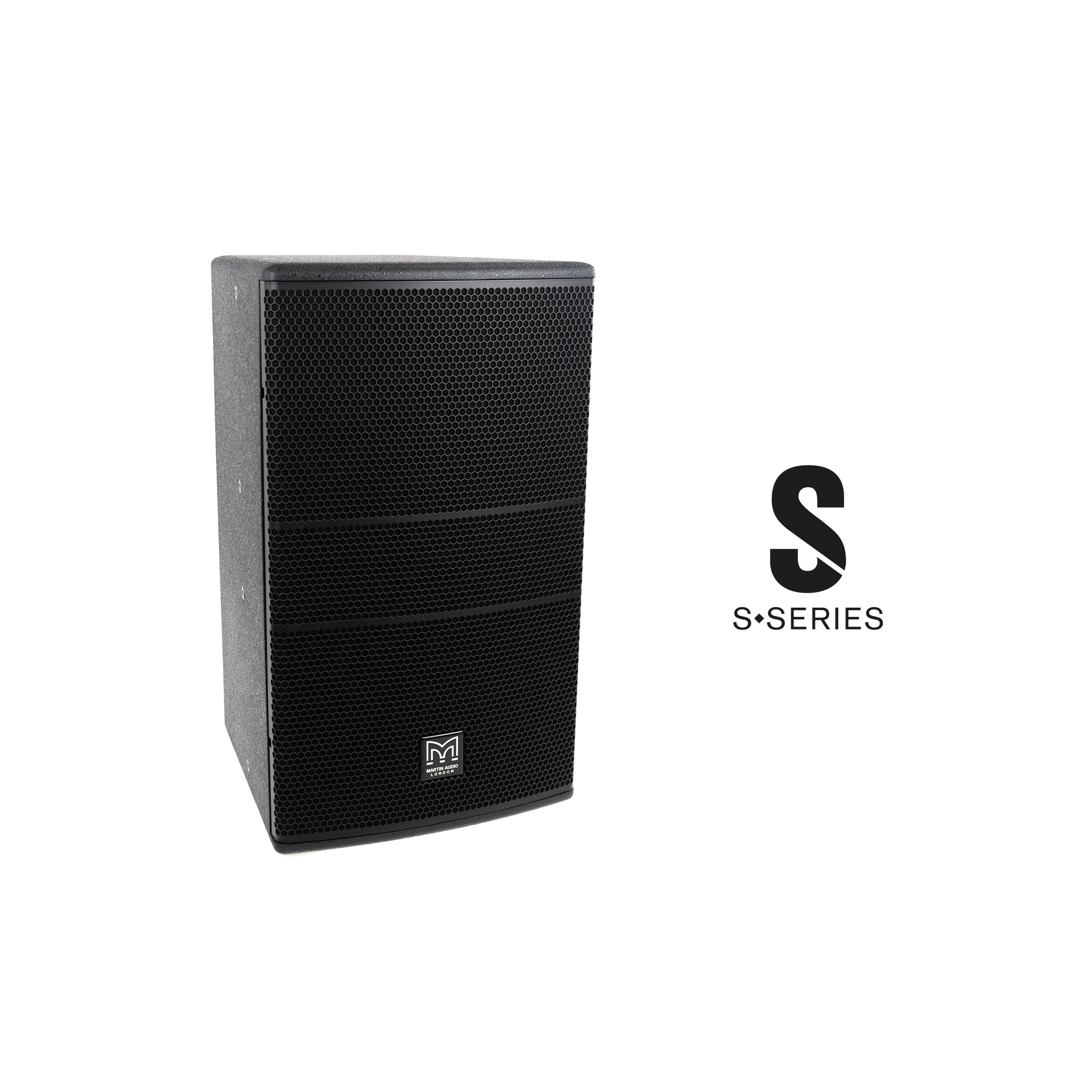

MARTIN AUDIO S.12 Passive Two-Way KTV Loudspeaker

The S.12 is a high-performance, two-way entertainment system. With a maximum SPL of 130dB peak @ 1m, it is idea for family KTV, KTV lounges and music bars that require enjoyable sound levels and vocal clarity from a compact enclosure. It features a 12” (300mm)/2.5” (63mm) voice coil LF driver unit and a 1” (25mm) exit compression driver with a 1.4” (35mm) polyimide diaphragm on a rotatable 80° x 50° HF horn.

Features

  • Full-range, passive two-way system
  • KTV specific voicing
  • Enhanced bass response from rear port
  • LF driver with demodulating ring for distortion-free vocals
  • User-rotatable horn
  • Vertical and horizontal mounting option
  • Cloth-backed perforated steel grille
  • Trapezoid enclosure with textured finish
  • 8Ω nominal impedance
  • Internal crossover network with LF and HF driver protection
  • Twin NL4 connectors
  • Multiple M8 rigging inserts

Applications

  • Family KTV, BOX KTV and KTV lounges
  • Music bars
分類: ,
Specification
TYPE Compact, passive two-way system
FREQUENCY RESPONSE (5) 62Hz-20kHz ± 3dB,
-10dB @ 47Hz
DRIVER
  • LF: 12” (300mm)/2.5” (63.5mm) voice coil, ferrite motor system
  • HF: 1” (25mm) exit/1.4” (35mm) voice coil, polyimide dome compression driver
RATED POWER (2) 600W program, 1200W peak
SENSITIVITY (8) 99dB
MAXIMUM SPL (9) 126dB program, 129dB peak
NOMINAL IMPEDANCE 8Ω
DISPERSION (-6dB) 80° H x 50° V (user-rotatable)
CROSSOVER 2.5kHz passive
ENCLOSURE Trapezoid
FINISH Black textured paint
PROTECTIVE GRILLE Black perforated steel with scrim cloth backing
CONNECTORS 2 x NL4 type
PIN CONNECTIONS (INPUT) 1+/1-
PIN CONNECTIONS (LINK) 1+/- to 1+/-
FITTINGS 14 x M8 inserts
DIMENSIONS
  • (W) 357mm x (H) 600mm x (D) 385mm
  • (W) 14.1ins x (H) 23.6ins x (D) 15.2ins
WEIGHT 21kg (46.3lbs)
