Specifications

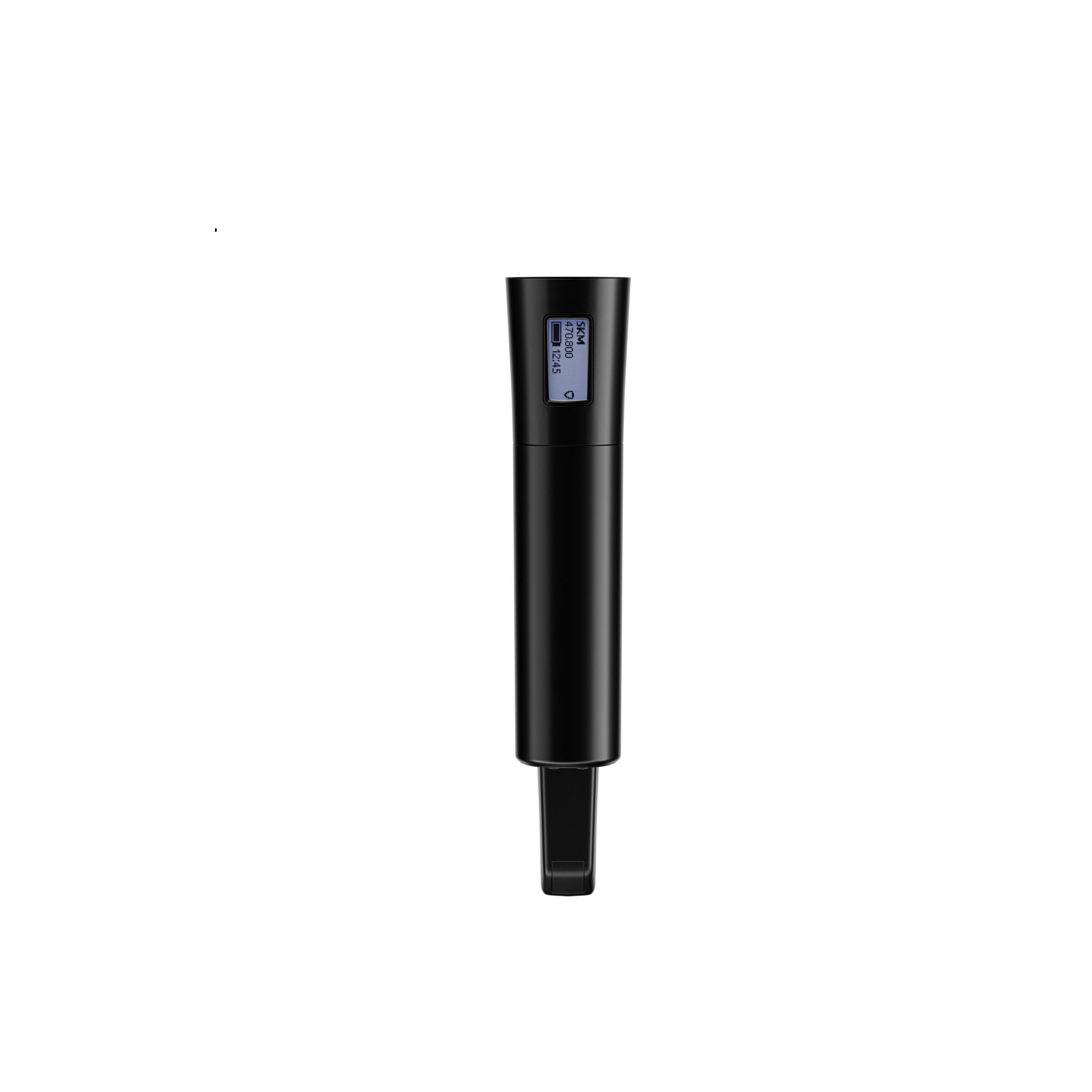

| HANDHELD TRANSMITTER SPECIFICATIONS | |
| Input Voltage & Current | • Input Voltage: 2.0 – 4.35 V • Input Current: < 300 mA |
| Power Supply & Bandwidth | • Power Supply: 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack • Occupied Bandwidth: 200 kHz |
| Transmit Power (Radiated) | • Audio Link: 10 mW ERP (Range Y1-3: 12 mW ERP) • LD Mode: 10 mW ERP • BLE: max. 10 mW EIRP |

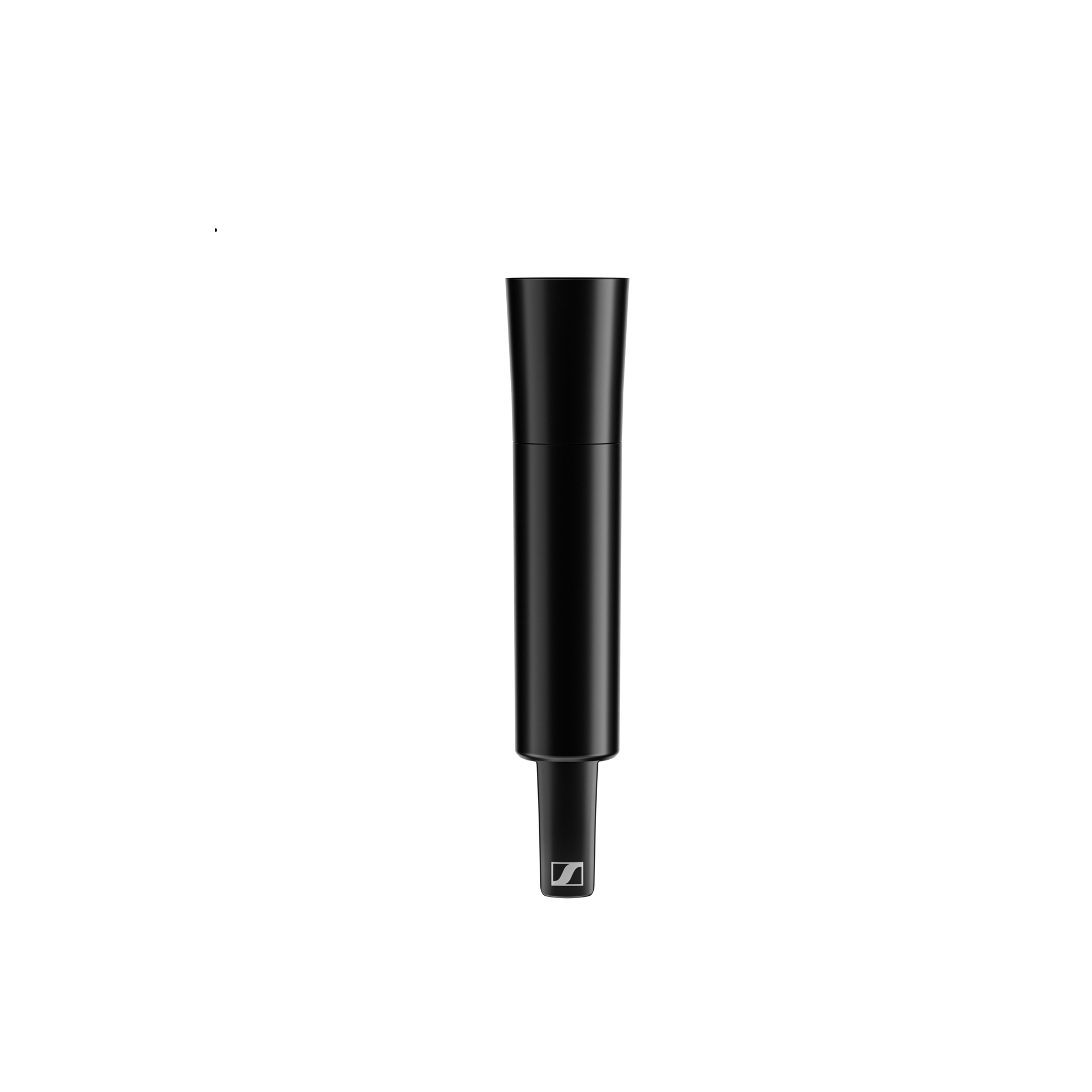

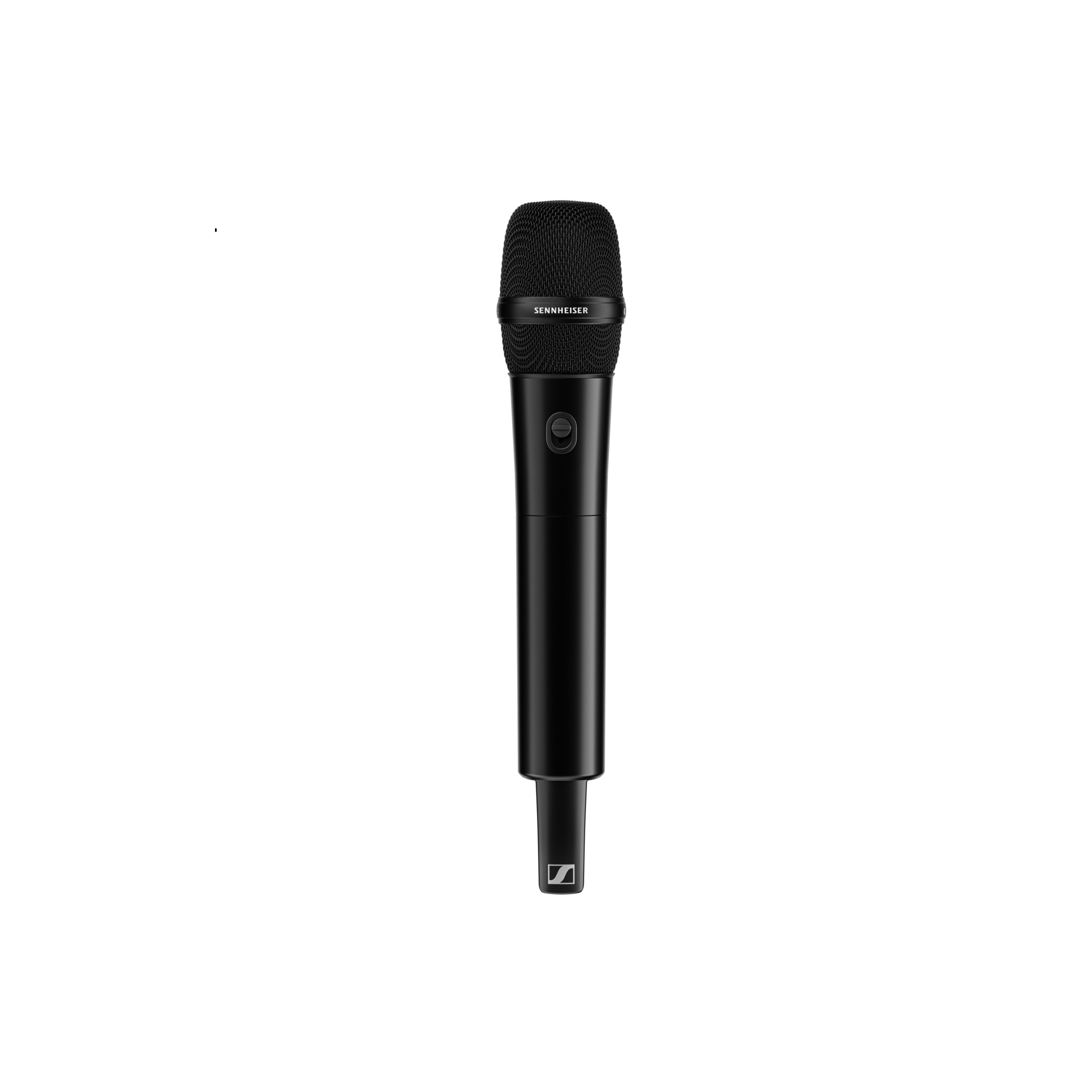

| Dimensions (ø x l) | • Incl. MMD 835 microphone module: 50 x 268 mm (1.97″ x 10.55″) • Without microphone module: 40 x 200 mm (1.57″ x 7.87″) |
| Weight (without batteries) | • Incl. MMD 835 microphone module: approx. 304 g (0.67 lbs) • Without microphone module: approx. 195 g (7.14 lbs) |
| GLOBAL SYSTEM SPECIFICATIONS | |
| Audio Link Frequency Ranges | • Q1-9: 470.2 – 550 MHz • R1-9: 520 – 607.8 MHz • S1-10: 606.2 – 693.8 MHz • S2-10: 614.2 – 693.8 MHz • S4-10: 630 – 693.8 MHz • U1/5: 823.2 – 831.8 MHz & 863.2 – 864.8 MHz • V3-4: 925.2 – 937.3 MHz • V5-7: 941.7 – 951.8 MHz & 953.05 – 956.05 MHz & 956.65 – 959.65 MHz • Y1-3: 1785.2 – 1799.8 MHz |
| Bluetooth Frequency Range | 2402 – 2480 MHz (Bluetooth® Low Energy) |
| Audio Performance | • Audio Frequency Response: 20 Hz – 20 kHz (-3 dB) • Audio THD: ≤ -60 dB for 1 kHz @ -3 dBfs input level • Dynamic Range: 134 dB |
| System Latency | 1.9 ms |
| Environmental Conditions | • Operating Temperature: -10 °C – +55 °C (14 °F – 131 °F) • Relative Humidity: 5 – 95 % (non-condensing) |
