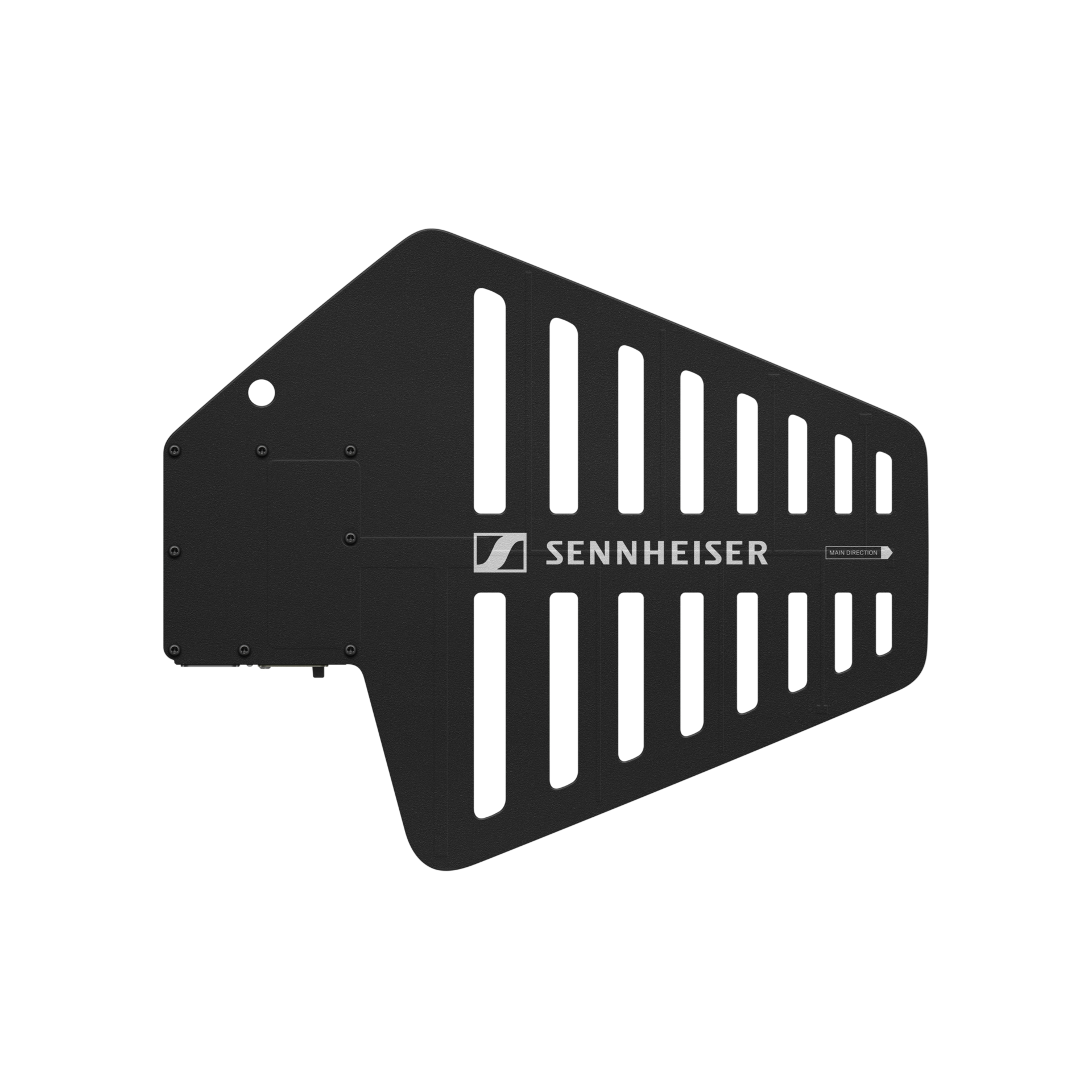

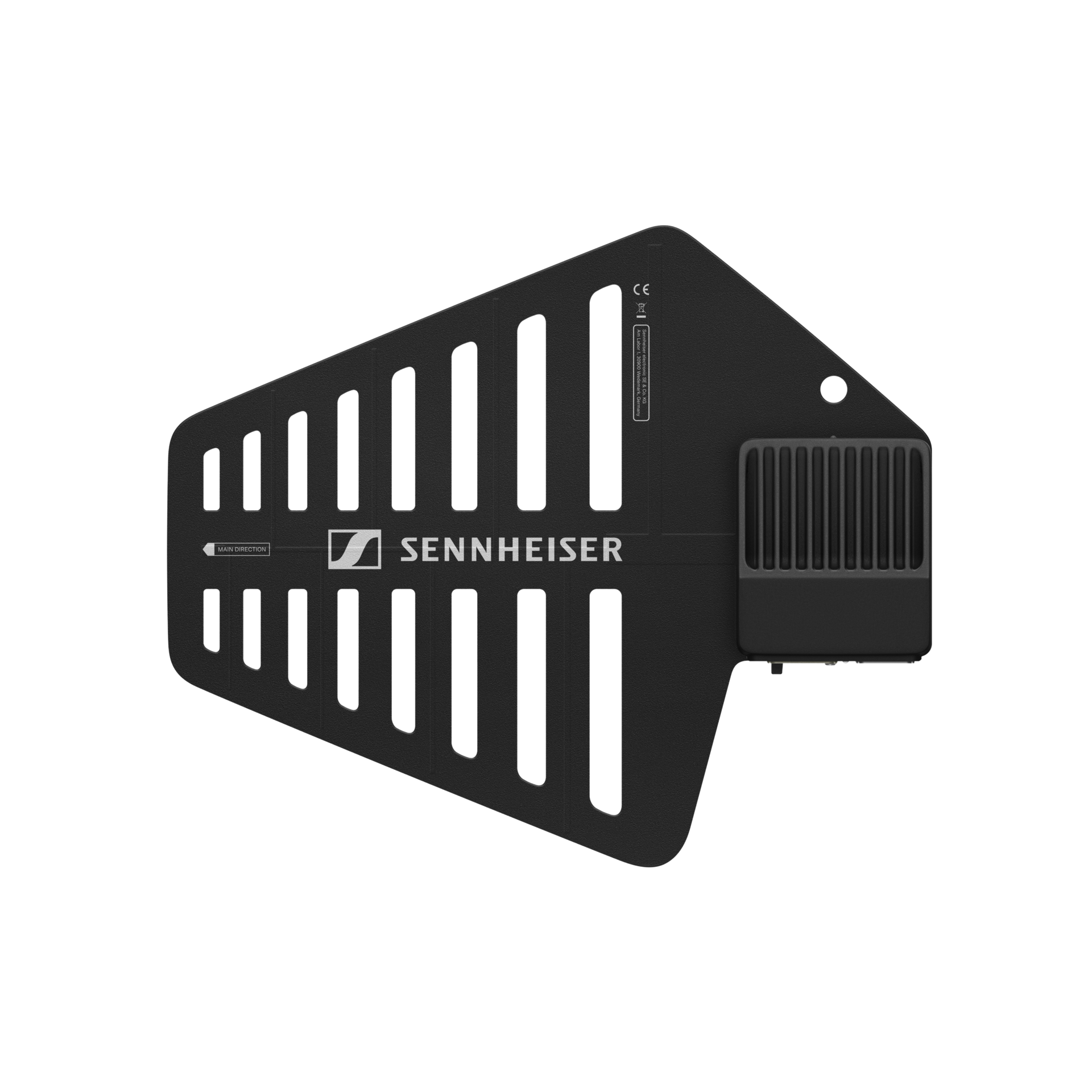

SENNHEISER Spectera DAD Antenna (UHF)

The transceiving Spectera Digital Antenna Directional (DAD) manages IEM signals, mic/line signals and data simultaneously.

It provides continuous interference management and remote control, and is equipped with a rugged RJ45 connector, IP54 protection and PoE. Variants include UHF (470–608 MHz and 630–698 MHz) or 1G4 (1350–1400 MHz and 1435–1525 MHz).

Features

  • Transceiving antenna manages IEM signals, mic/line signals, and data simultaneously
  • Available variant: UHF (470 – 608 MHz and 630 – 698 MHz)
  • Integrated RF components eliminate the need for additional dedicated RF gear such as combiners, splitters, or boosters
  • Directional antenna

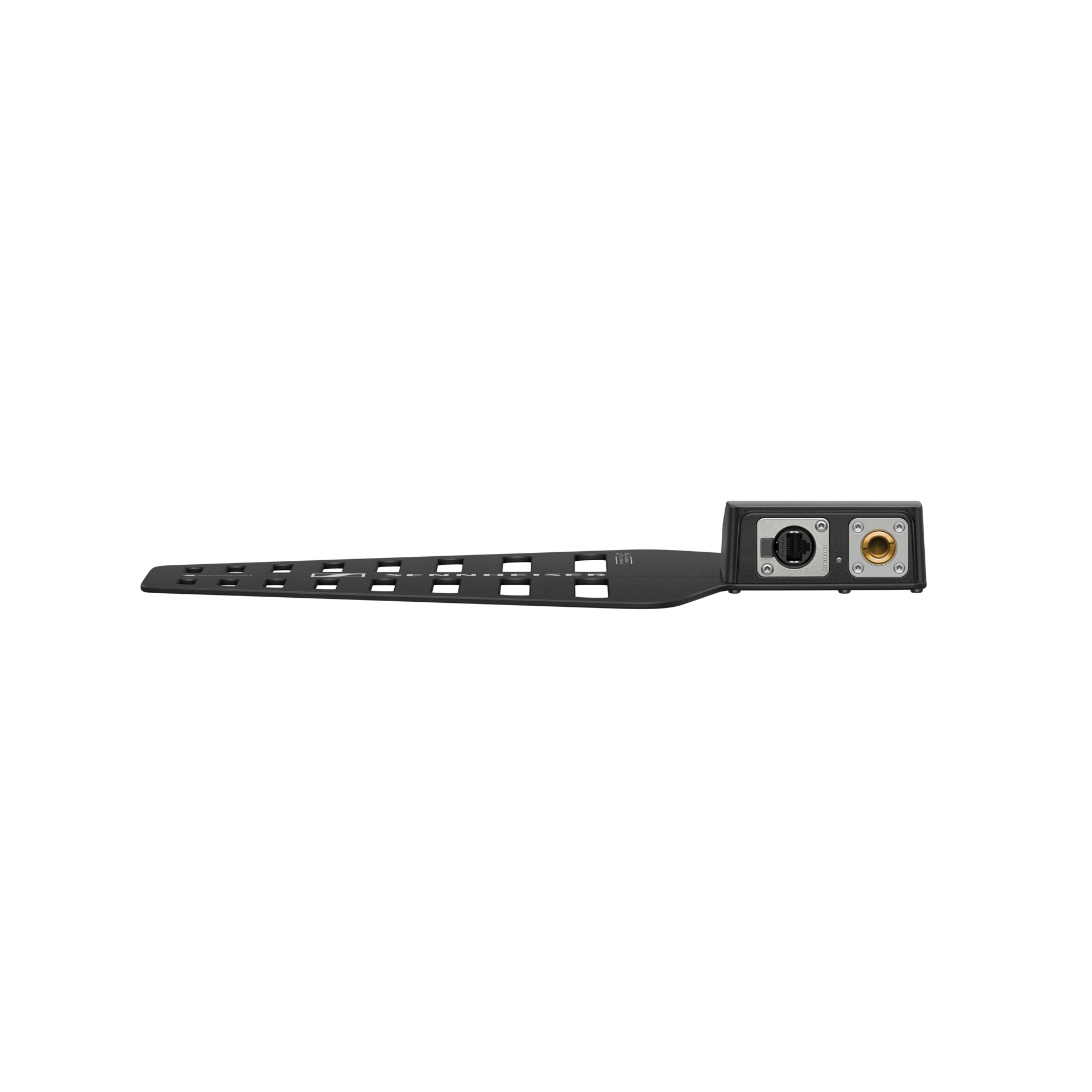

  • Ruggedized RJ45 connector for standard network cable CAT 5e or higher (point to point)
  • Continuous interference management and remote control
  • IP54 protection
  • Fiber extension capabilities (supported converters in technical documentation)
  • Optional use as dedicated fast and high-quality scanning device
  • Powered over ethernet (standard POE)
分類: ,

SPECTERA DAD (UHF)

Specifications DAD (UHF) DAD (1G4)
RF transmission power up to 100 mW; countrywise limited
RF channels 1
Base Station connection Ruggedized RJ45 including PoE, max. 100 m cable, CAT5e or better, 1 Gbit/s
Power consumption PoE class 2 (<6.5 W)
Apex angle (vertical) 65 ° 62 °
Apex angle (horizontal) 109 ° 93 °
Front to back ratio 15 dB 17 dB
Gain 5 dB 6.5 dB
Threads for tripod mounting yes / Adapter 3/8″ to 5/8″
Dimensions 349 x 292 x 39 mm
(13.74″ x 11.5″ x 1.54″)		 231 x 205 x 39 mm
(9.09″ x 8.07″ x 1.54″)
Weight approx. 676 g (1.49 lbs) approx. 534 g (1.18 lbs)
Temperature Operation: −10 °C to +60 °C (14 °F to 140 °F)
Storage: −25 °C to +80 °C (−13 °F to 176 °F)
Relative humidity 25 % to 95 % (non-condensing)
IP class IP54
