Specifications

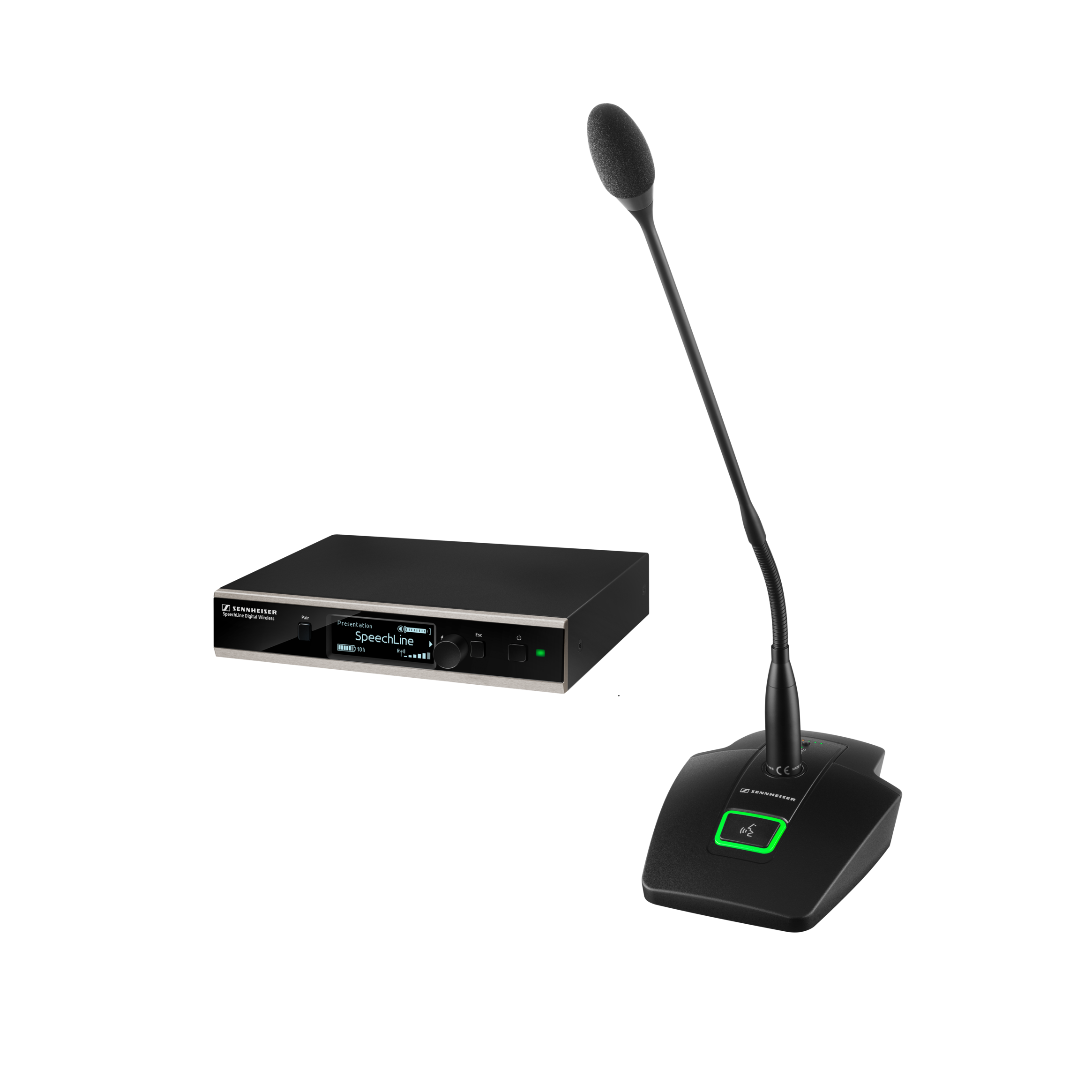

| SL Rack Receiver DW | |
| RF sensitivity | < -90 dBm |
| RF output power back channel | adaptive, up to 250 mW (country-specific) |
| XLR output level, balanced | max. +18 dBu |
| RCA output level, unbalanced | max. +6 dBu |
| Audio effects | Low cut: -3 dB at 120 Hz Equalizer: 7-band graphic equalizer with sound presets Sound profiles: • female voice, • male voice, • media |
| Display | OLED |
| Network protocol | Media Control Protocol, TCP/IP IPv4 (DHCP, manual)/ IPv6 |
| Power supply | 12 V DC |
| Current consumption | 350 mA |
| AF connection sockets | XLR/2 x RCA |
| Antenna sockets | 2 x reverse SMA |
| Network sockets | RJ-45 |
| DC socket for power supply | hollow jack |
| Weight | approx. 828 g |
| Power supply units (NT 12-4C / NT 2-3) | |
| Nominal input voltage | 100 to 240 V– |
| Power frequency | 50 or 60 Hz |
| Input current | max. 120 mA |
| Nominal output voltage | 12 V |
| Standby power consumption | ≤ 0.3 W |
| Energy efficiency level | NT 12-4C: V NT 2-3: IV |
| Operating temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Storage temperature | -20 °C to +70 °C (-4 °F to 158 °F) |
| Relative air humidity | max. 95 % |
| Weight | NT 12-4C: approx. 100 g NT 2-3: approx. 105 g |
| Accupack BA 40 | |
| Charging capacity | 2200 mAh |
| Output voltage | 3.6 V |
| SL Tablestand 133-S DW | |
| AF frequency response | 75 to 20,000 Hz |
| Max. input level | 1.7 V RMS |
| Input impedance | 30 kΩ |
| Power supply | BA 40 accupack (Li Ion 3.6 V) |
| Operating time | Accupack: typ. 11 h |
| Microphone connector | XLR-3F |
| Relative humidity | max. 95 % |
| Dimensions | 166.7 x 120.2 x 47.9 mm (6.56″ x 4.73″ x 1.88″) |
| Weight (without accupack) | approx. 660 g |
| Operating temperature | 10 °C to 45 °C (50 °F to 113 °F) |
| MEG 14-40 B | |
| Pick-up pattern | cardioid |
| Frequency response | 50 Hz – 20,000 Hz |
| Acoustic principle | gooseneck microphone (condenser) |
| Output impedance @ 1 kHz | < 100 Ω |
| Sensitivity | 15 mV/Pa |
| Max. sound pressure level | 130 dB @ 1 kHz < 3 % |
| Equivalent noise level | 37 dB (CCIR) 26 dB (A) |
| Power supply microphone | 12 V – 48 V phantom power (P 12 – P 48) |
| Current consumption | 3 mA |
| Connector | XLR-3M |
| Temperature | Operation: 0 °C to 40 °C (32 °F to 104 °F) Storage: -25 °C to +70 °C (-13 °F to 158 °F) |
