| Technical Specifications | |
|---|---|
| Overview | |
| SKU / Model | 45166 (White) |
| Acoustic & Performance Data | |
| Frequency Response | +/- 10 dB: 60 Hz – 25 kHz +/- 3 dB: 83 Hz – 20 kHz |
| Power Handling (RMS) | 100W program, 50W pink noise |
| Sensitivity (2.83V / 1m) | 91 dB |
| Maximum SPL | Rated Max SPL: 108 dB @ 1 meter (3.3 feet) Peak SPL: 116 dB peak |
| Transducers & Transformer | |

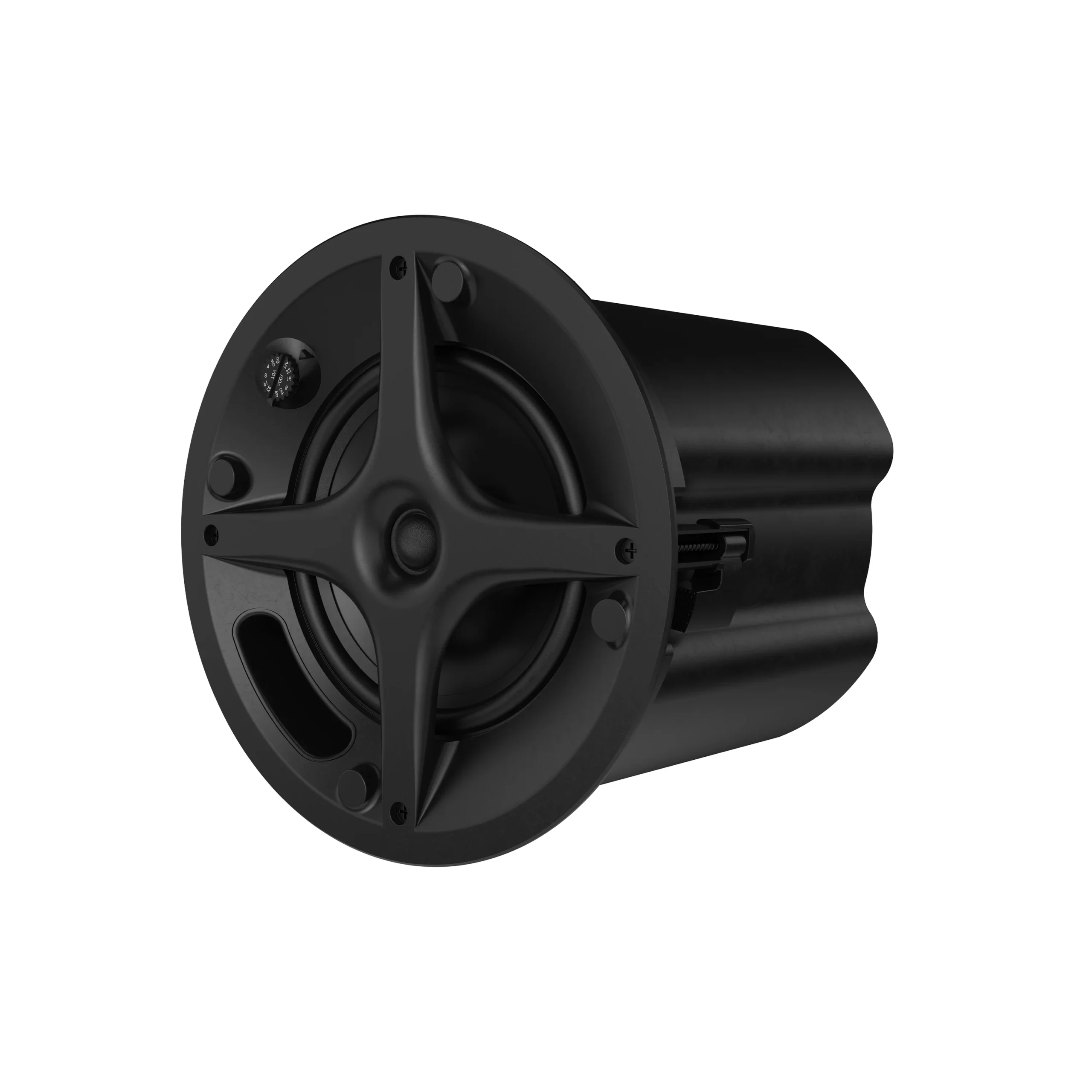

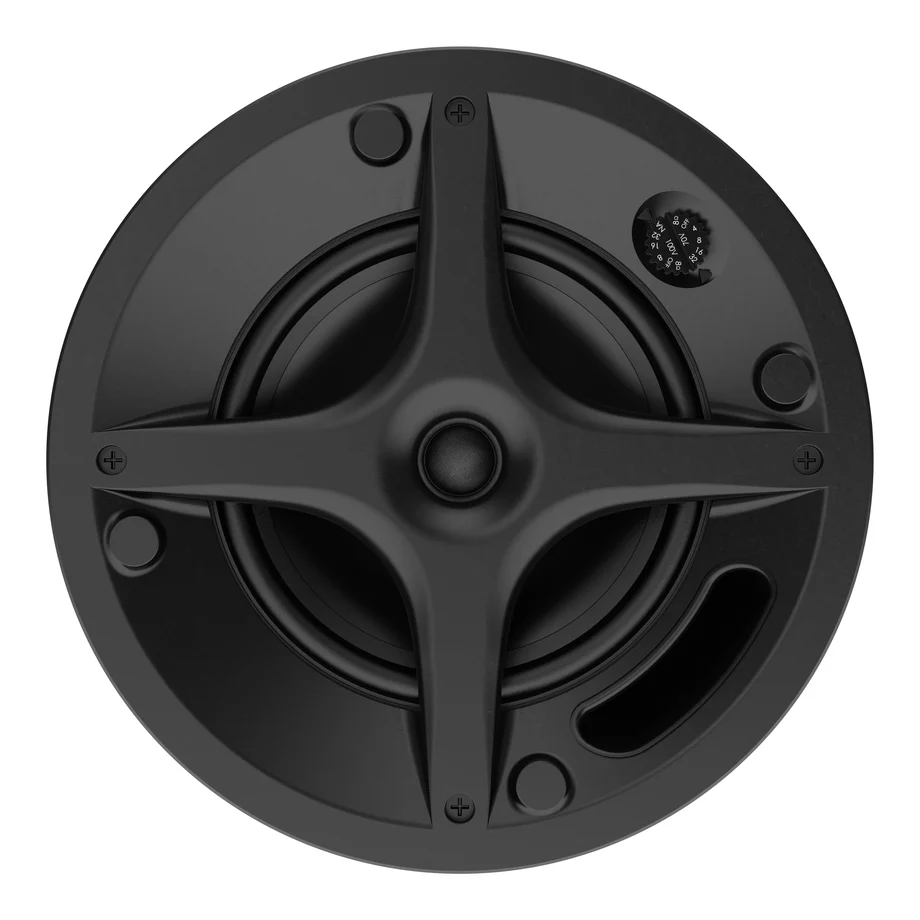

| Drivers | LF Driver: 6.5″ (165 mm) Polypropylene Cone, Butyl Rubber Surround HF Driver: 0.75″ (19 mm) Cloth Dome, Ferrofluid Cooled |
| Nominal Impedance | 8 ohms |
| Transformer Taps | 70 V / 100 V: 32W, 16W, 8W | 70 V only: 4W |
| Physical, Dimensions & Construction | |
| Dimensions & Cutout | Dimensions (Dia x Depth): 9.13″ x 8.86″ (231.9 mm x 225.04 mm) Cut-Out Diameter: 8.25″ (209.55 mm) Side Knockout: One, 0.75″ (19 mm) |
| Weight | 6.88 lbs. (3.12 kg) |
| Suspension & Mounting | One suspension point on top surface |
| Connectivity & Certifications | |
| Input Connector | Four pin, Euroblock with loop output connections |
| Certifications & Standards | UL1480A, UL2043, EN 54, NFPA90A, NFPA70, CSA-C22.2 No.205, CSA C22.1 |
