| Technical Specifications | |
|---|---|
| Overview | |
| SKU / Model | 40231 |
| Acoustic & Performance Data | |
| Frequency Response | +/- 10 dB: 36.6 Hz – 25 kHz +/- 3 dB: 41.4 Hz – 20 kHz |
| Power Handling (RMS) | 150 watts (600 watts peak), 100 hours |
| Sensitivity (2.83V / 1m) | 91 dB |
| Coverage Pattern (1kHz to 10kHz) | 120 or 80 Degree Axis Symmetric |
| Maximum SPL | Rated Max SPL: 114 dB @ 1 meter (3.3 feet) Peak SPL: 120 dB peak |
| Transducers & Transformer | |

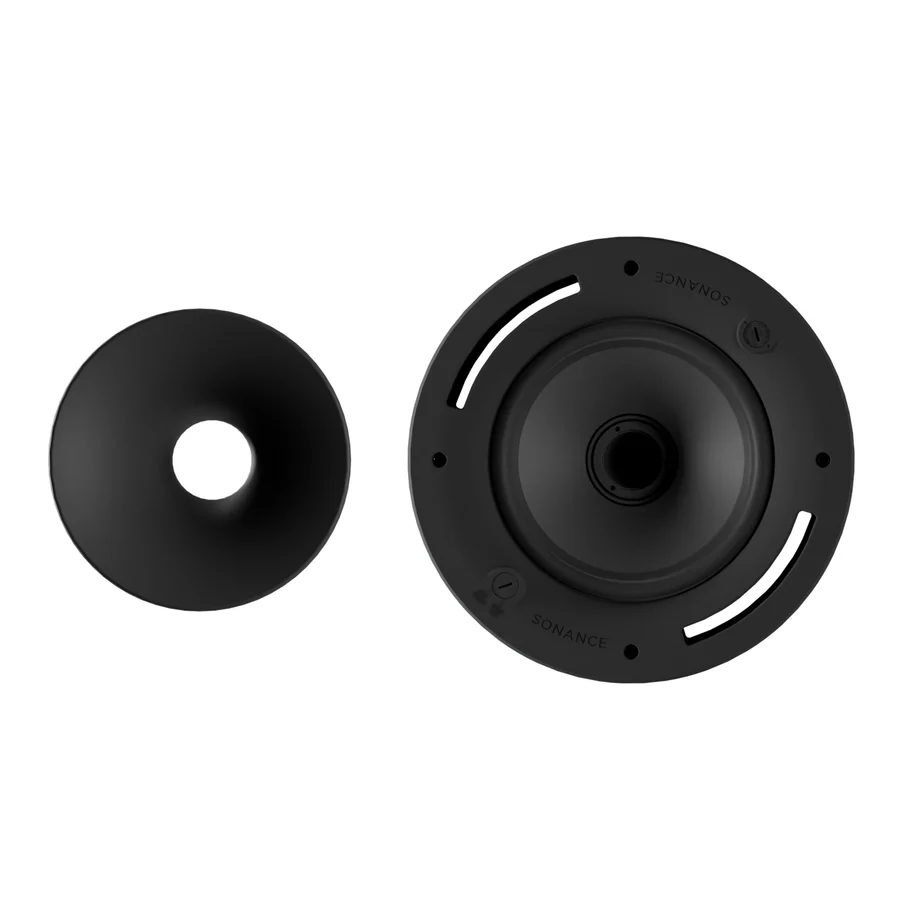

| Drivers | LF Driver: 8″ (203 mm) aluminum cone, Santoprene surround, 60.55 mm Voice Coil Size, Ferrite Magnet HF Driver: 1.4″ (36 mm) aluminum dome compression driver, 36 mm Voice Coil Size, 1″ (25 mm) Exit Size, Neodymium |
| Nominal Impedance | 8 ohms |
| Transformer Taps | 70 V / 100 V: 120W, 60W, 30W | 70 V only: 15W |
| Physical, Dimensions & Construction | |

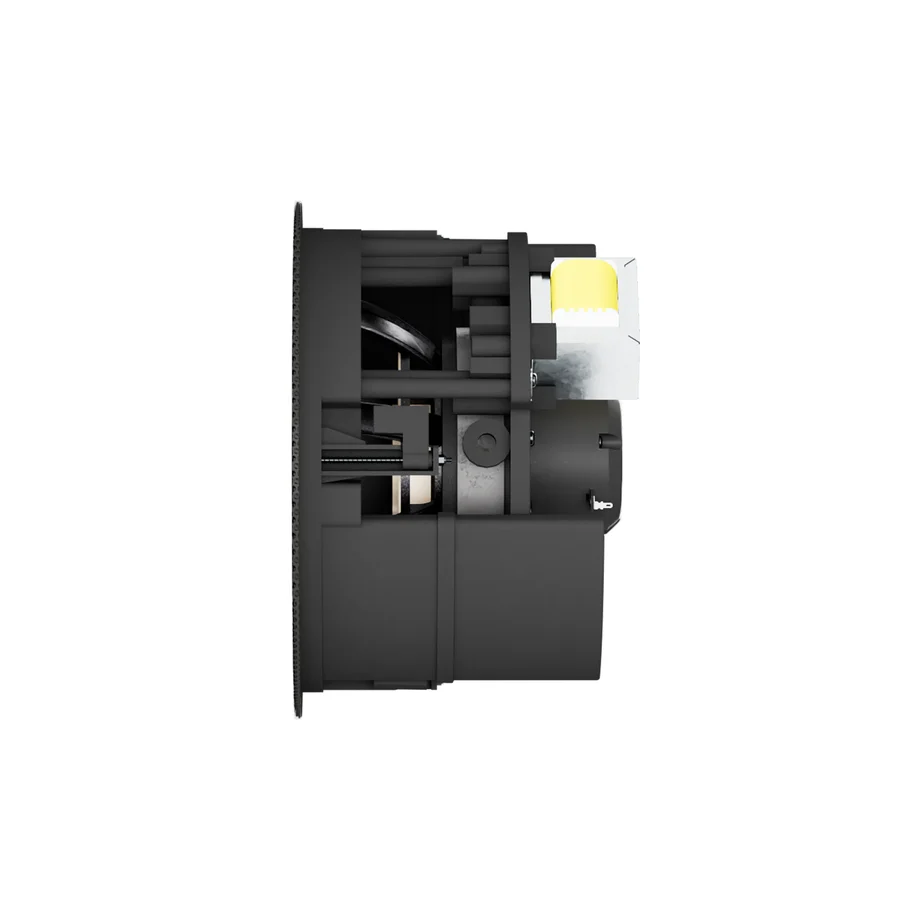

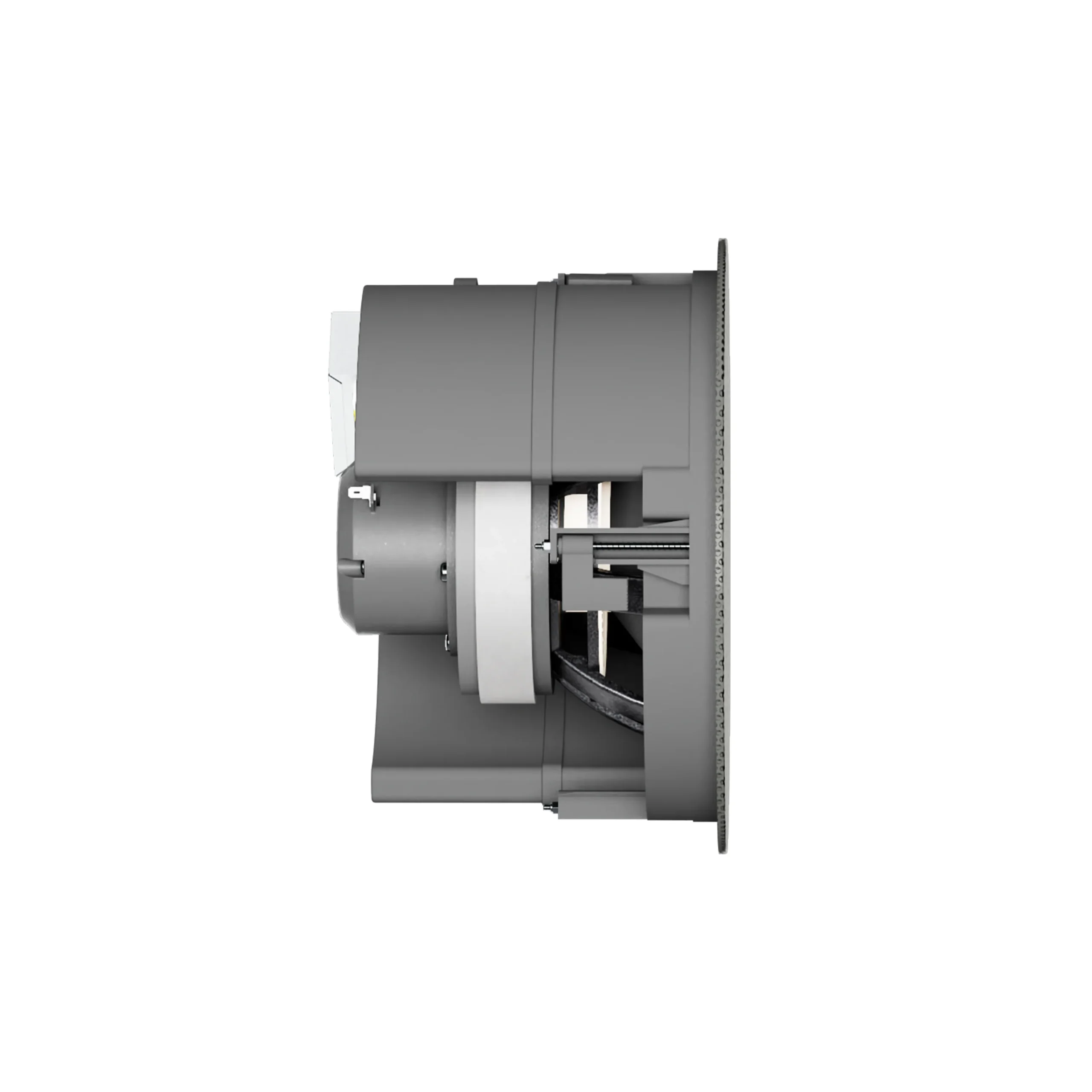

| Dimensions & Cutout | Dimensions (Dia x Depth): 11.07″ x 7.22″ (281.18 mm x 183.39 mm) Cut-Out Diameter: 10.125″ (257.18 mm) |
| Weight & Enclosure | Weight: 18.7 lbs. (8.48 kg) Enclosure: PC/ABS (UL94V-0), Steel, Powder coated (sold separately) Grille: Steel |
| Suspension & Mounting | Two suspension points on top surface |
| Connectivity & Certifications | |
| Input Connector | Four pin, Euroblock with loop output connections |
| Certifications & Standards | UL 1480A, UL 2043, NFPA 90A, NFPA 70 |
