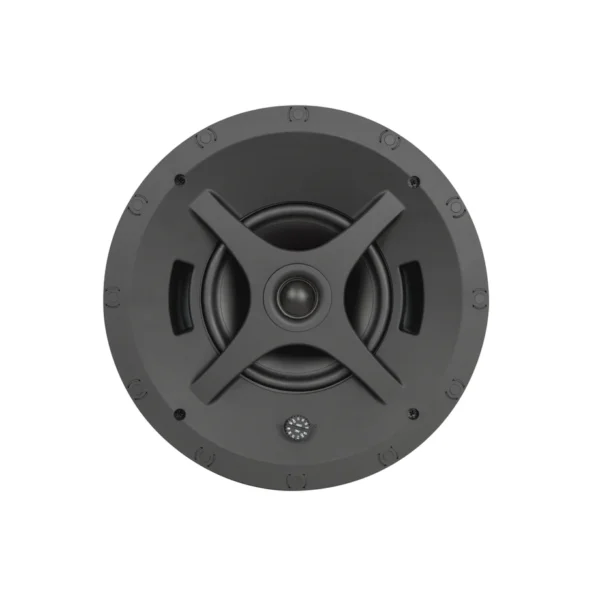

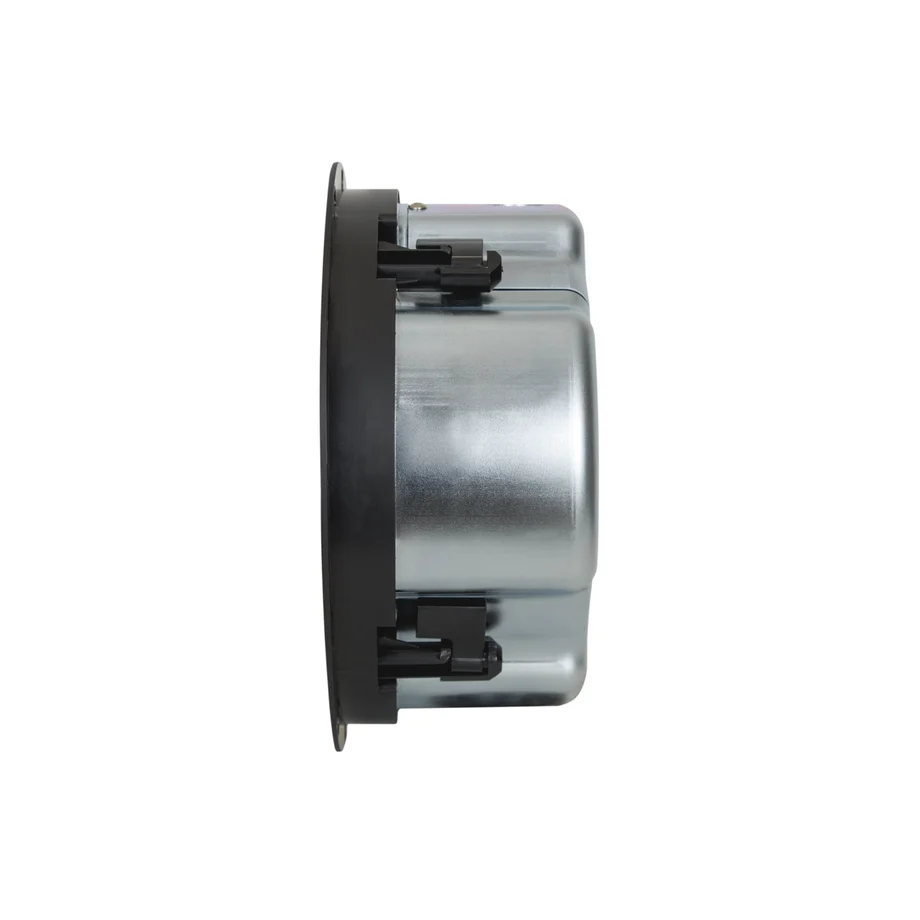

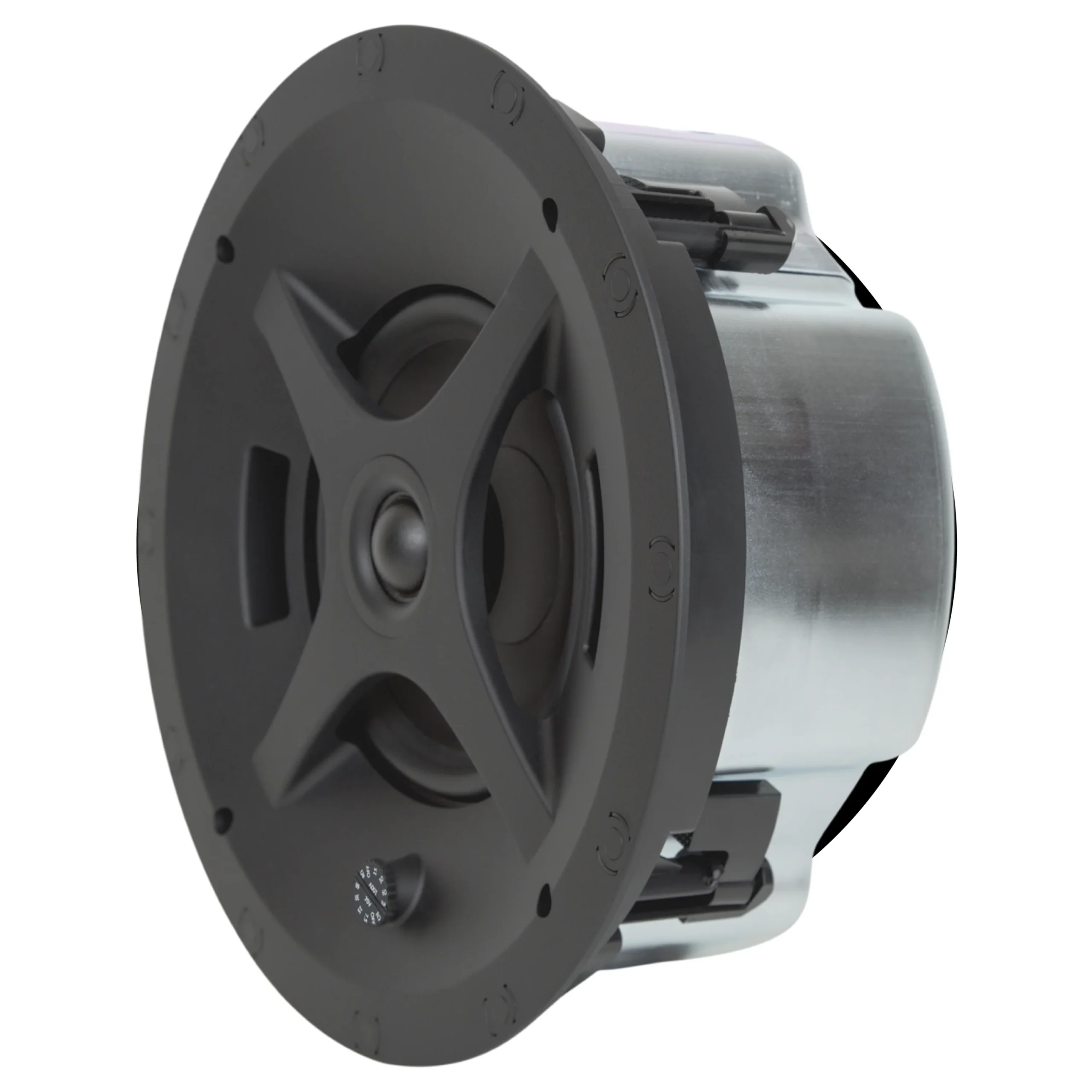

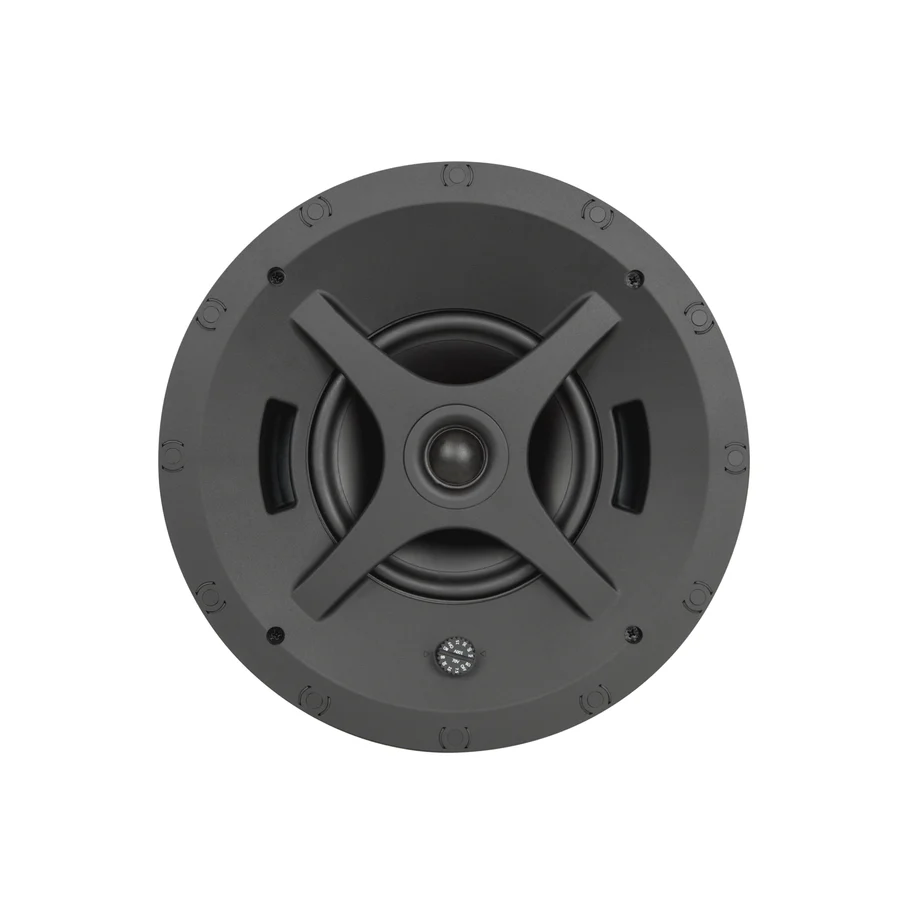

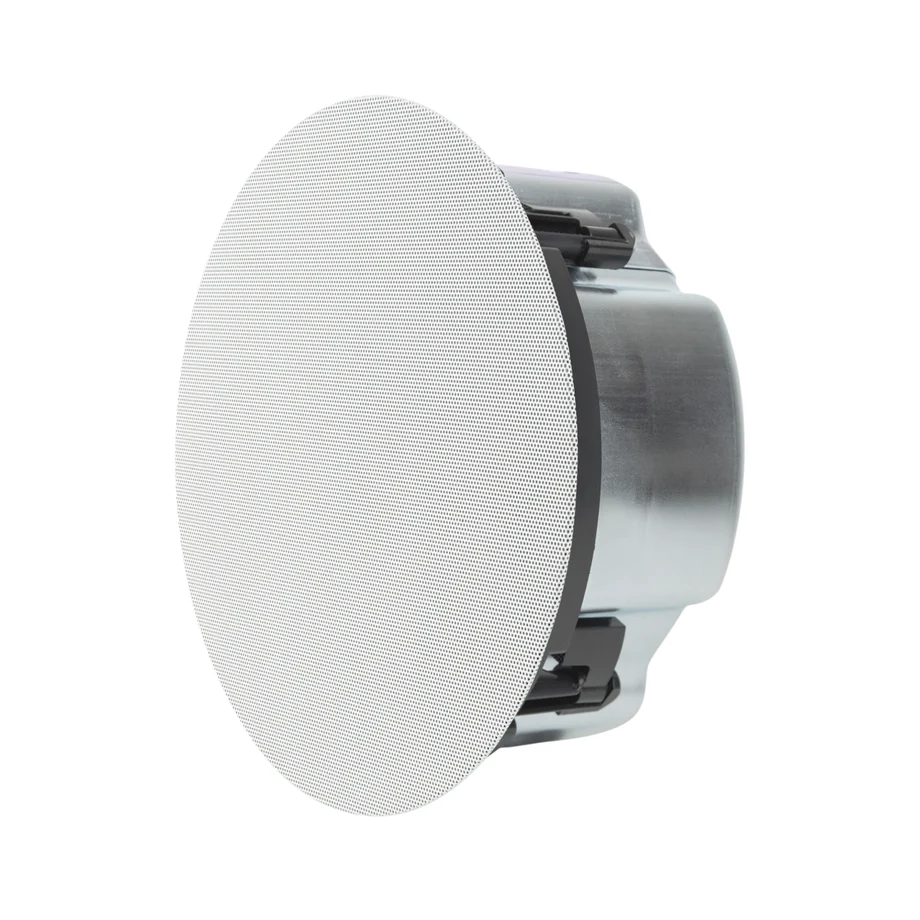

SONANCE PS-C63RTLP In-ceiling loudspeaker

The Sonance PS-C63RTLP in-ceiling speaker has a shallow 4.37″ design for tight spaces, a bezel-less magnetic grille, optional square adapter, high-excursion 6.5″ woofer, and pivoting tweeter for precise sound. Its sealed metal enclosure includes knock-outs, a removable Euroblock connector, and seismic attachment. It is UL 1480 and UL 2043 certified.

Key Features

  • Class-leading sensitivity & sonic performance
  • Exceptional off-axis response
  • Heavy duty voice coil for longevity and reliability
  • Full-fidelity transformer for uncompromised tonality
  • Consistent voicing across product range
  • Bezel-less design for clean and minimalistic aesthetic
  • Optional black grilles in round or square
  • Magnetic grille retention for fast installation and removal
  • Finger-adjustable selector tap
  • One-step simplified painting process
分類: ,

Technical Specifications
Overview
SKU / Model 45131 (White)
Acoustic & Performance Data
Frequency Response +/- 10 dB: 49 Hz – 25 kHz
+/- 3 dB: 65 Hz – 20 kHz
Power Handling (RMS) 120W program, 60W pink noise
Sensitivity (2.83V / 1m) 91 dB
Maximum SPL Rated Max SPL: 108 dB @ 1 meter (3.3 feet)
Peak SPL: 116 dB peak
Transducers & Transformer
Drivers LF Driver: 6.5″ (165 mm) Polypropylene Cone, Butyl Rubber Surround
HF Driver: 1″ (25 mm) Cloth Dome, Pivoting, Ferrofluid Cooled
Nominal Impedance 8 ohms
Transformer Taps 70 V / 100 V: 60W, 30W, 15W | 70 V only: 7.5W
Physical, Dimensions & Construction
Dimensions & Cutout Dimensions (Dia x Depth): 9.13″ x 8.86″ (231.9 mm x 225.04 mm)
Cut-Out Diameter: 8.25″ (209.55 mm)
Side Knockout: One, 0.75″ (19 mm)
Weight & Grille Weight: 9.38 lbs. (4.25 kg)
Grille: One piece paintable grille with magnetic retention
Suspension & Mounting One suspension point on top surface
Connectivity & Certifications
Input Connector Four pin, Euroblock with loop output connections
Certifications & Standards UL 1480, UL 2043, NFPA 90A, NFPA 70
