| Technical Specifications | |
|---|---|
| Overview | |
| SKU / Model | 40133 (White) |
| Acoustic & Performance Data | |
| Frequency Response | +/- 10 dB: 32 Hz – 300 Hz +/- 3 dB: 50 Hz – 150 Hz |
| Power Handling (RMS) | 200W program, 125W pink noise |
| Sensitivity (2.83V / 1m) | 89 dB |
| Maximum SPL | Rated Max SPL: 110 dB @ 1 meter (3.3 feet) Peak SPL: 116 dB peak |
| Transducers & Transformer | |

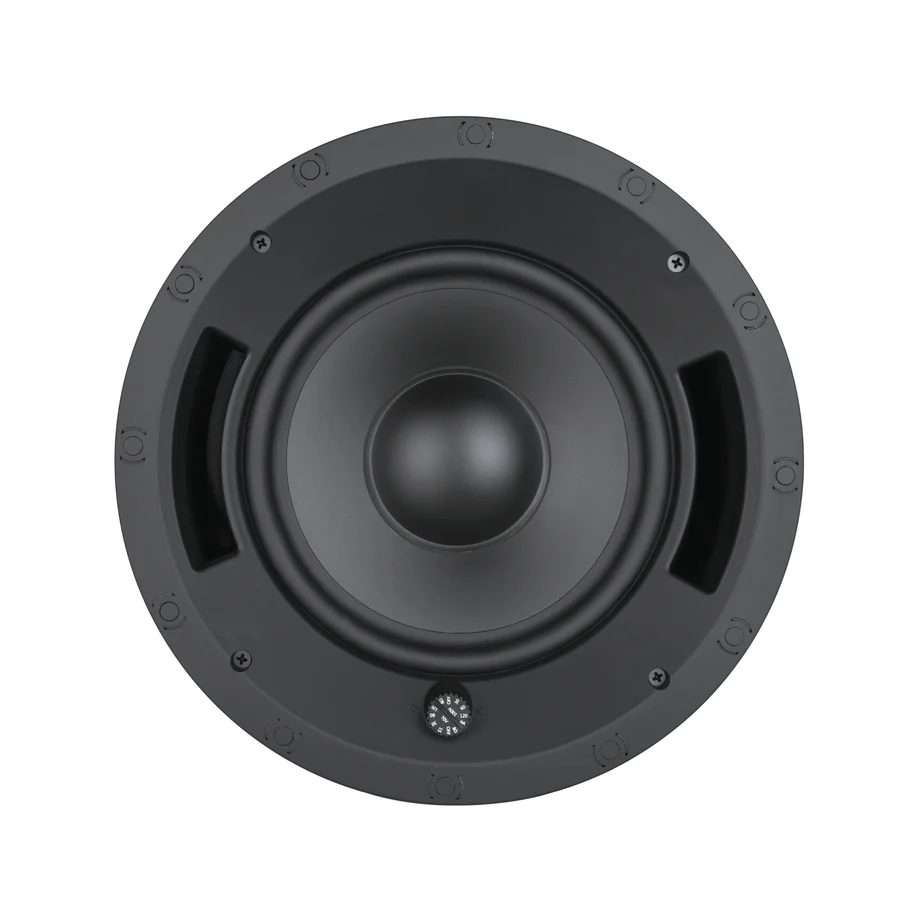

| Drivers | LF Driver: 8″ (203 mm) Polypropylene Cone, Butyl Rubber Surround |
| Nominal Impedance | 8 ohms |
| Transformer Taps | 70 V / 100 V: 120W, 60W, 30W | 70 V only: 15W |
| Physical, Dimensions & Construction | |
| Dimensions & Cutout | Dimensions (Dia x Depth): 11.06″ x 9.84″ (280.92 mm x 249.94 mm) Cut-Out Diameter: 10.125″ (257.18 mm) Side Knockout: One, 0.75″ (19 mm) |

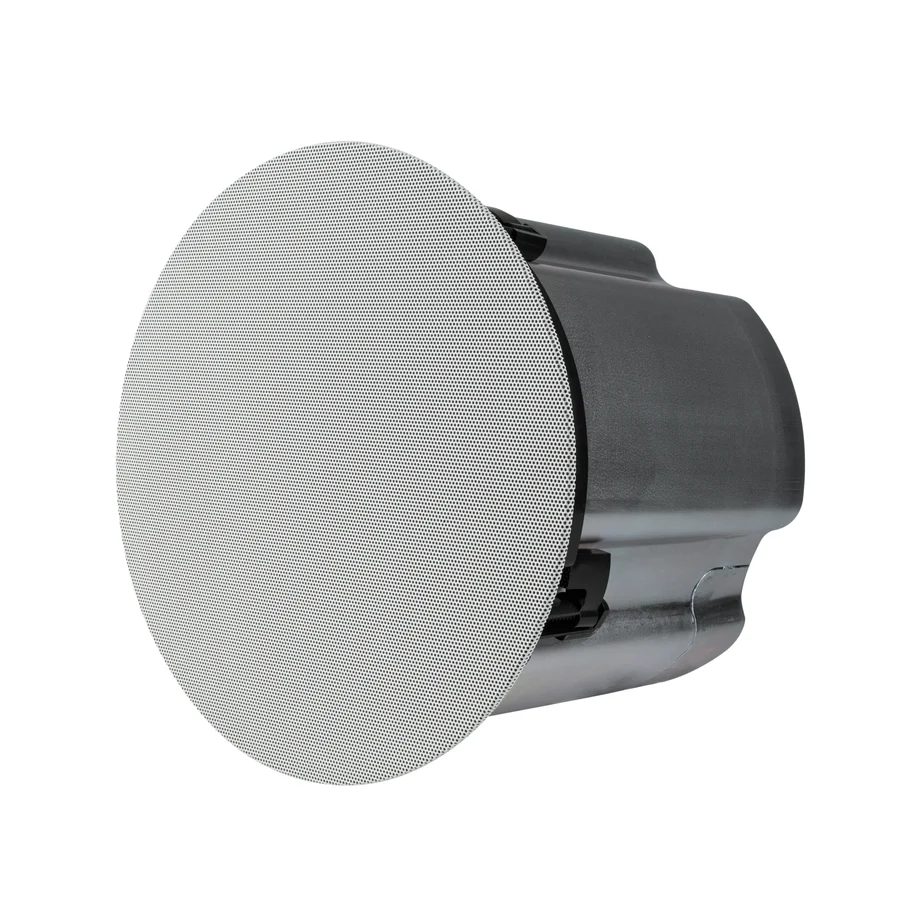

| Weight & Grille | Weight: 14.95 lbs. (6.78 kg) Grille: One piece paintable grille with magnetic retention |
| Suspension & Mounting | One suspension point on top surface |
| Connectivity & Certifications | |
| Input Connector | Four pin, Euroblock with loop output connections |
| Certifications & Standards | UL 1480, UL 2043, NFPA 90A, NFPA 70 |
