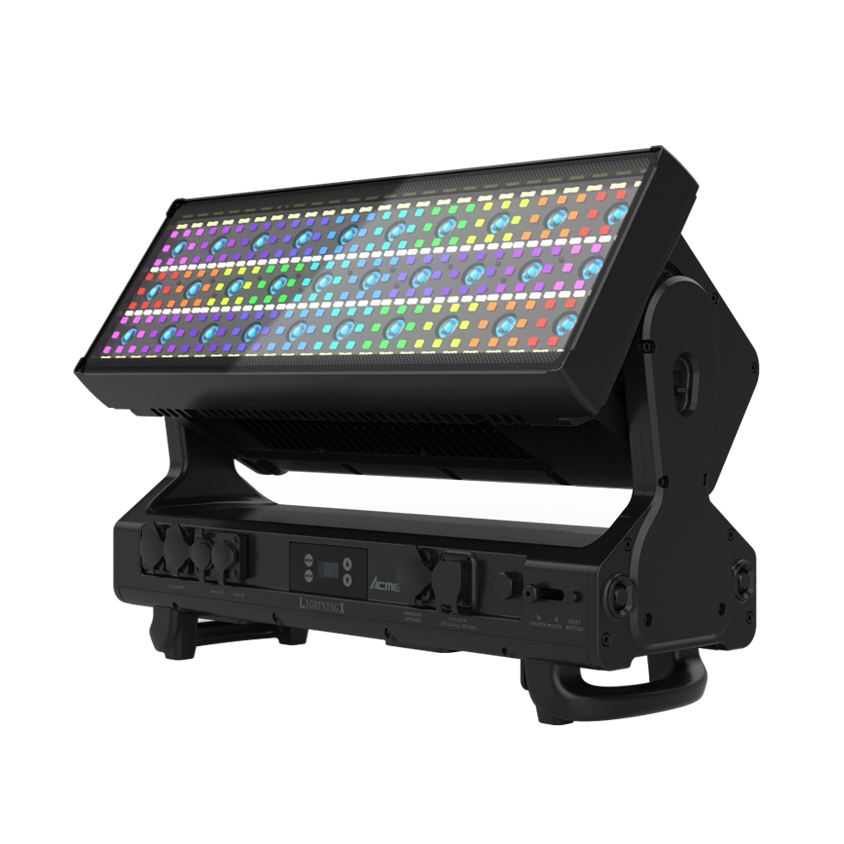

ACME LIGHTNING X

The ACME LIGHTNING X combines Beam, Wash, Strobe Line and Strip Line in one versatile fixture, offering endless creative possibilities for your lighting designs.

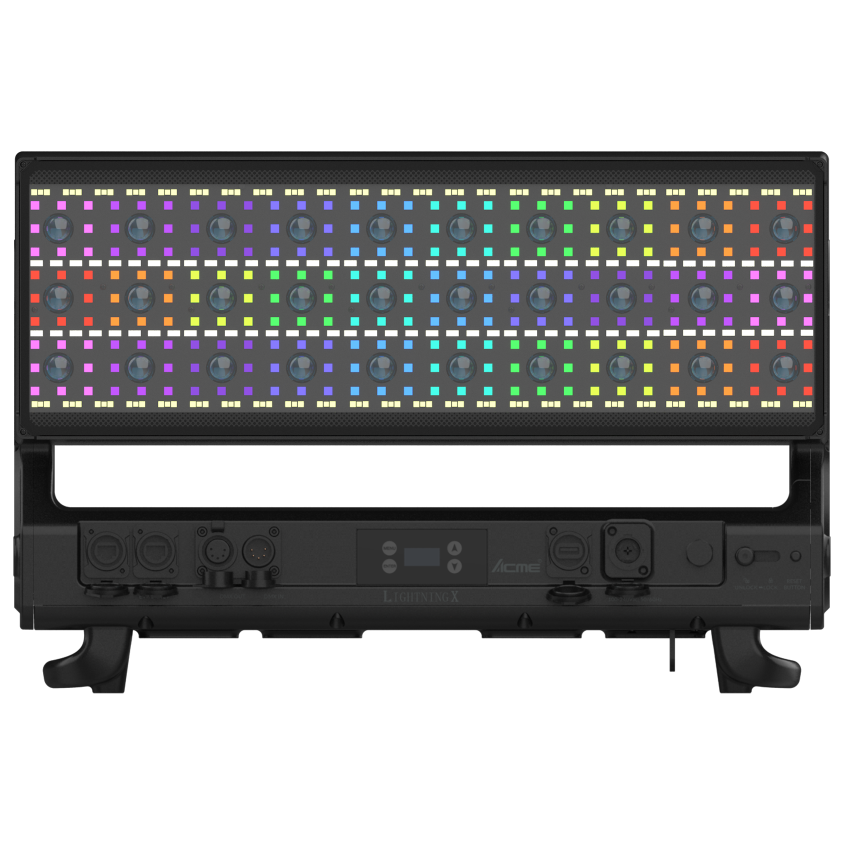

The main section of the LIGHTNING X features 30, 10W cool white beam LEDs, and 240, 12W RGBW LEDs divided into 30 individually controllable zones. In its center, two strobe lines boast 80, 21W cool white LEDs, each with 5 individual zones. At the top and bottom of the fixture’s face, there are two strip lines comprised of 50, 2W cool white LEDs, 50, 0.5W RGB LEDs, and 50, 2W warm white LEDs, each with 5 individual zones, allowing for switching between cool and warm white. This combination ensures exceptional color mixing and stunning visual effects.

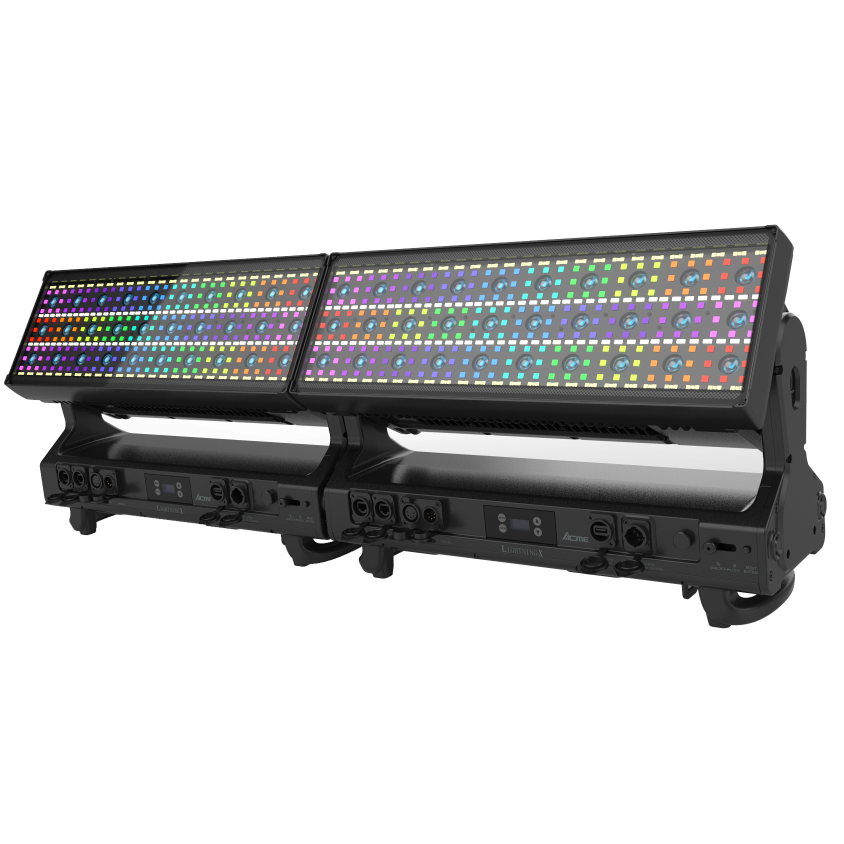

The LIGHTNING X features a fast 185° tilt in just one second, adding unmatched dynamism to any show. With ACME’s patented electronic frost system, the fixture delivers smooth transitions. Its hidden twist-lock design enables quick horizontal or vertical connections for multiple fixtures.

The IP66 LIGHTNING X meets your diverse lighting needs and redefine what stage lighting can achieve!

分類: Acme Lighting, Acme Lighting

描述

Technical Specifications
Light Source & Photometric Data
Light Source	Wash: 240 x 12W RGBW LEDs Beam: 30 x 10W CW LEDs Strobe Line: 80 x 21W CW LEDs Strip Line: 50 sets x 2W CW/WW & 0.5W RGB LEDs Rated Life: 20,000 hours (manufacturer spec)
Color Temp Output	6,300K
Total Lumen Output	34,000 lm
Optical System & Smart Glass
Beam Angles	10W CW Beam: 2.6° 12W RGBW / 21W CW / 2W CW / 2W WW / 5W RGB: 107°
Smart Glass & Patents	DMX Controllable Smart Glass technology Patents: CN216010577U, US11698183B1, DE202023101966U1, FR3134870B3
Movement & Performance Features
Tilt Movement & Resolution	185° at 1.0 sec \| 16-bit resolution with automatic Pan/Tilt position correction
Effects & Layout	Variable speed strobe effect, smooth 0–100% dimming (4 user-selectable dimming curves), outstanding color mixing Combines Dot, Pixel, Strobe Lines, and Color Strips in one fixture Two color strips (5 individual zones each) for switching between cool and warm white
Control & Electrical
Control Protocols & Channels	DMX512, RDM, Art-Net, sACN 6 DMX Protocol Modes / Channels: 31 / 43 / 100 / 230 / 20+80 / 20+210
Display & Firmware	4-touch button control panel with OLED display; firmware upgrade via DMX link or USB stick
Input Voltage & Power	100–240 Vac, 50/60 Hz Power Consumption: 1,135W (max 2,900W during strobe peak)
Connectors	Power: Waterproof power connector in Data: 3-pin or 5-pin waterproof XLR, RJ45 connector
Physical, Packaging & Environment
Fixture Dimensions & Weight	500 x 180 x 327 mm (19.7″ x 7.1″ x 12.9″) \| Weight: 19.0 kg (41.9 lbs)
Packaging Options	Carton (One-pack): 640 x 415 x 280 mm (25.2″ x 16.4″ x 11.0″) \| G.W.: 22.0 kg (48.5 lbs) Flight Case 1 (Standard Four-pack): 1,220 x 580 x 570 mm (48.0″ x 22.8″ x 22.4″) \| G.W.: 132.0 kg (291.0 lbs) Flight Case 2 (North American Four-pack): 1,220 x 610 x 570 mm (48.0″ x 24.0″ x 22.4″) \| G.W.: 141.4 kg (311.7 lbs)
Operating Environment	Ambient Temp: -10°C to 40°C \| Max Surface Temp: 65°C Protection Rating: IP66
Approvals	CE compliant, UKCA compliant, cETLus compliant

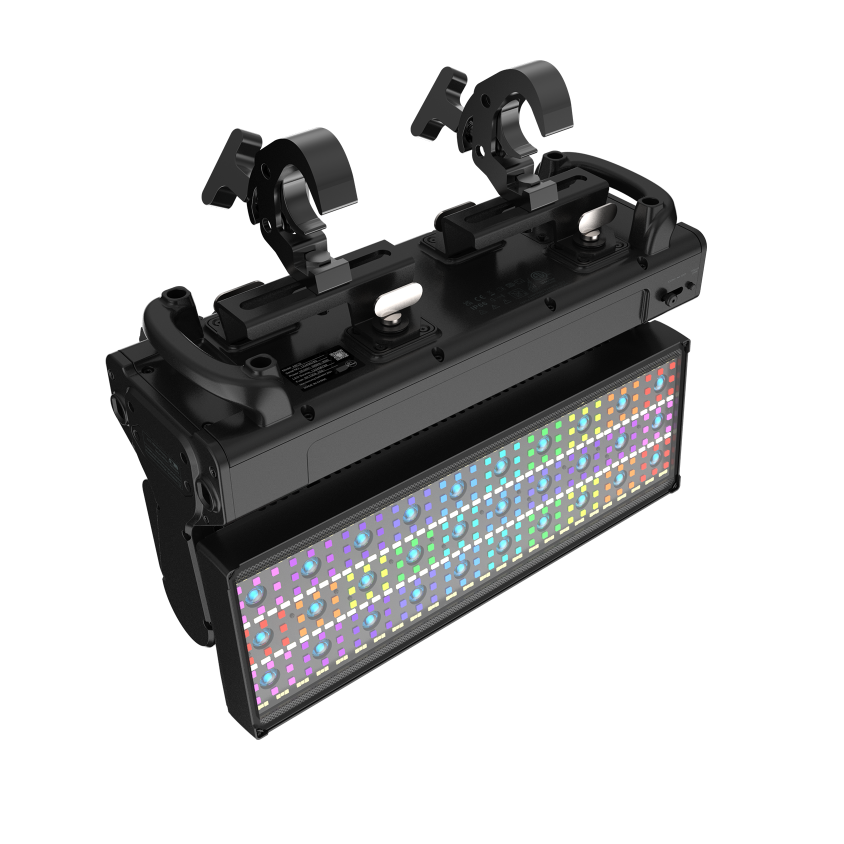

Installation & Rigging	Horizontal or vertical mounting, universal working position, safety cable point Hidden, accessories-free interlocking system for combining units 2x omega brackets included (63584127)
Included Items	Digital user manual, power cable, 2x omega brackets (63584127), safety cable point
