| Technical Specifications | |
|---|---|
| Light Source & Photometric Data | |

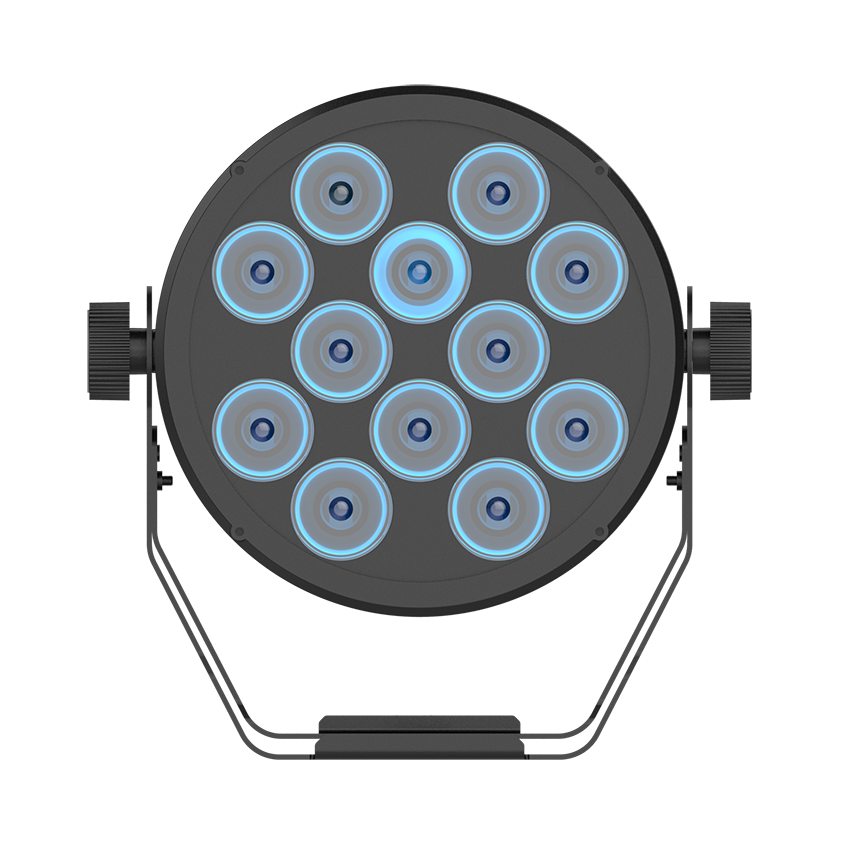

| Light Source | 12 x 8W RGBW LED module (20,000 hours rated life) |
| Total Lumen Output | 2,130 lm |
| Optical System | |
| Beam & Field Angles | Beam Angle: 16° Field Angle: 27° |
| Colors & Performance Features | |
| Color Mixing & Strobe | Excellent RGBW color mixing, variable speed strobe effect |

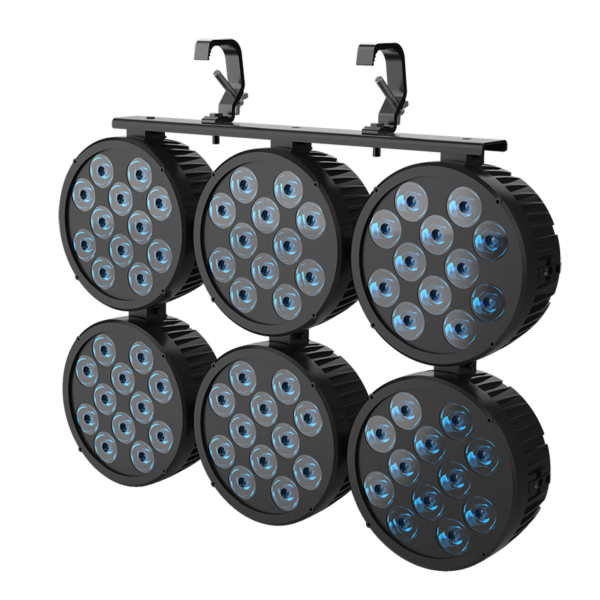

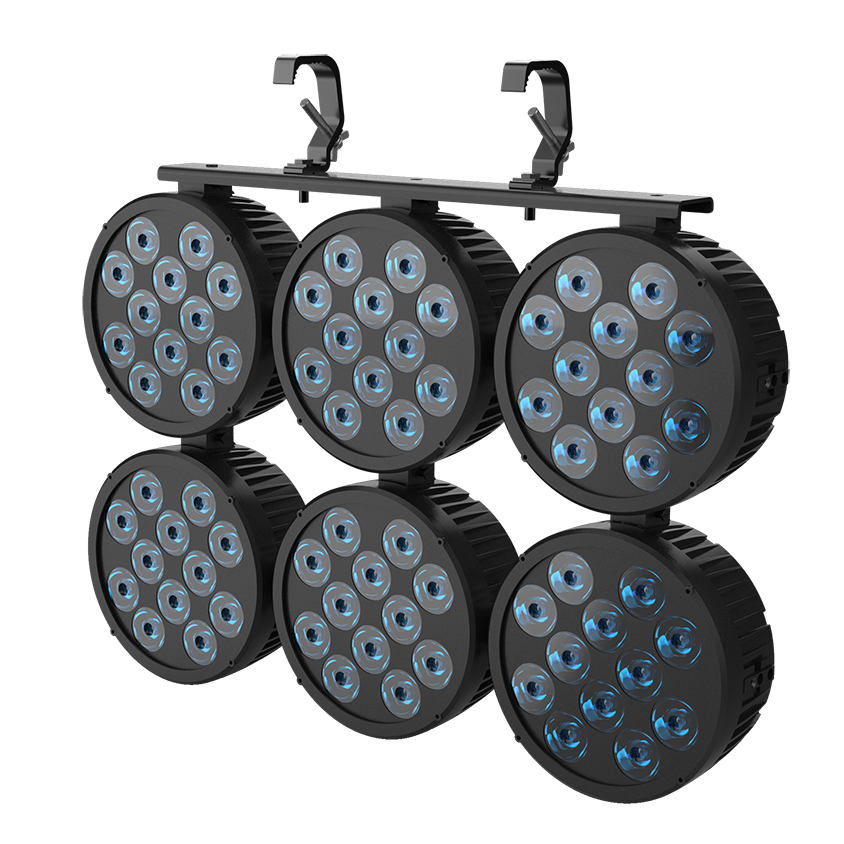

| Dimming & Design | Smooth 0–100% dimming (4 user-selectable dimming curves), buckle design enabling horizontal split-jointing of multiple units |
| Control & Electrical | |
| Control Protocols & Channels | DMX512, RDM (4 DMX modes: 4 / 5 / 8 / 10 Channels) |

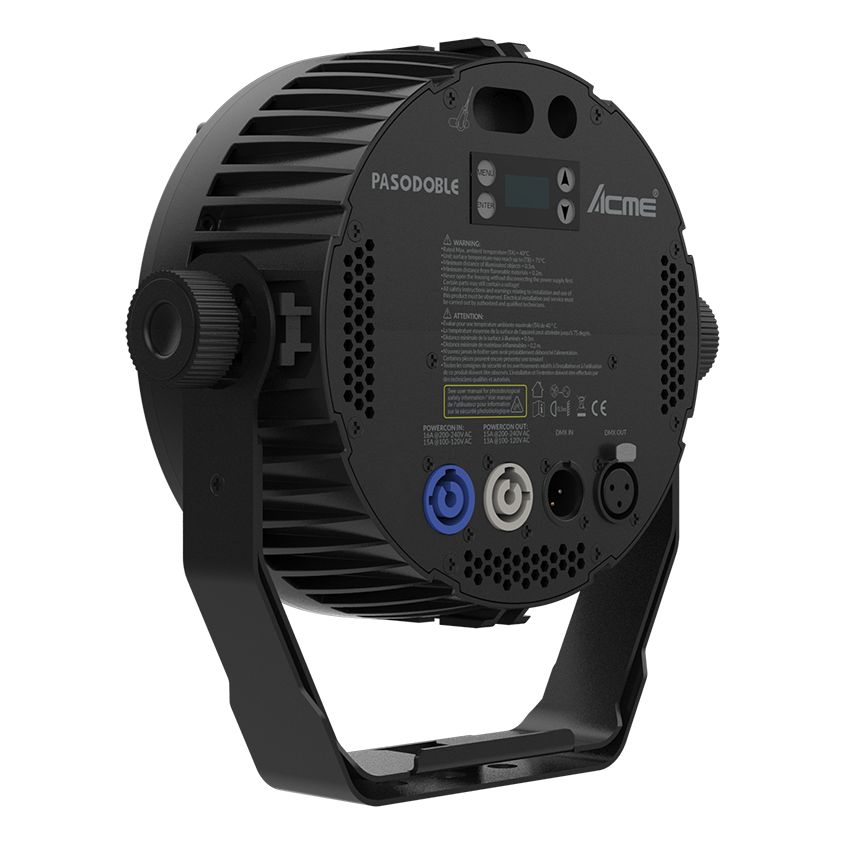

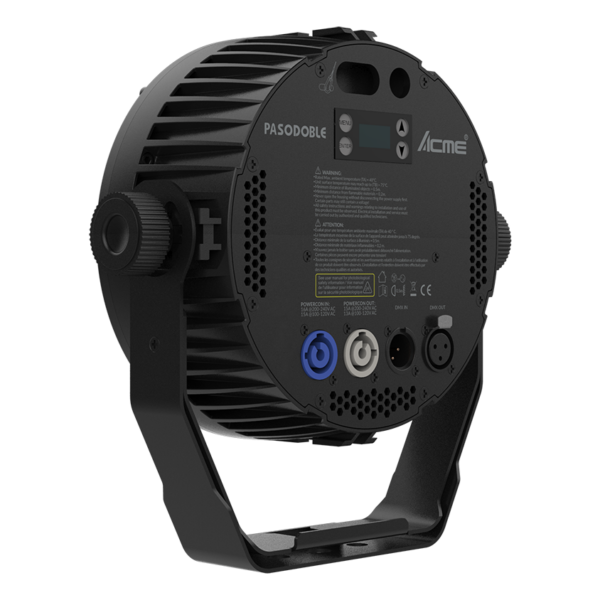

| Display & Firmware | 4-touch button control panel with OLED display; firmware upgrade via DMX link |
| Input Voltage & Power | 180–240 Vac, 50/60 Hz | Power Consumption: 85 W |
| Connectors | Power: Power connector in/out Data: 3-pin or 5-pin XLR |
| Physical, Packaging & Environment | |
| Fixture Dimensions & Weight | 257 x 88 x 239 mm (10.11″ x 3.5″ x 9.4″) | Weight: 3.0 kg (6.6 lbs) |
| Operating Environment | Ambient Temp: 0°C to 40°C | Max Surface Temp: 65°C Protection Rating: IP20 |
| Approvals | CE compliant |

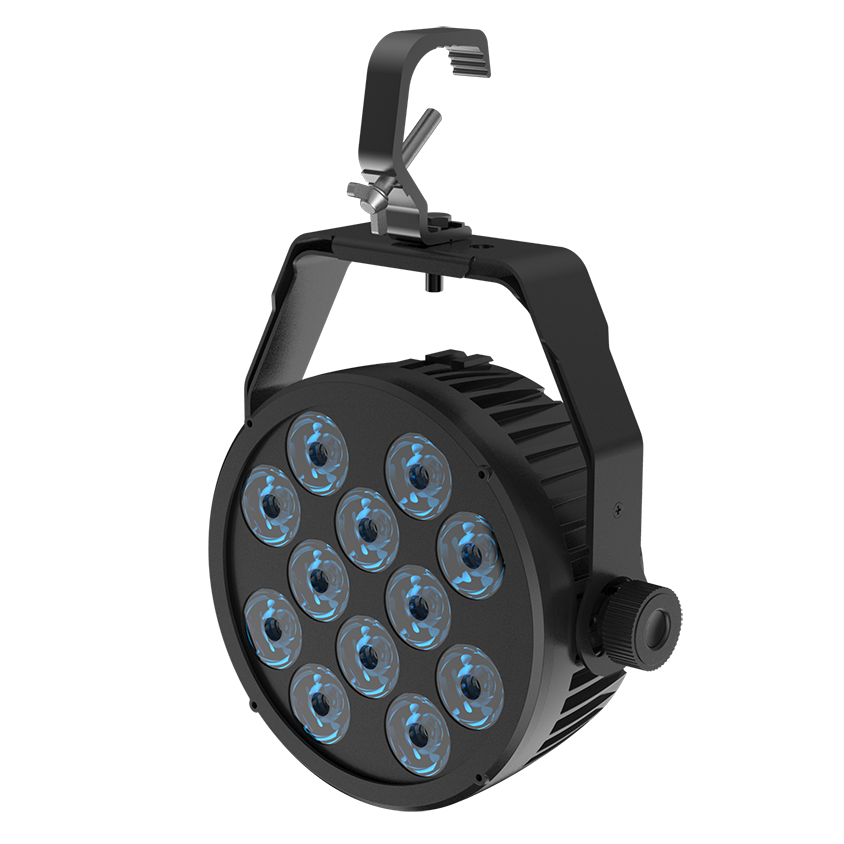

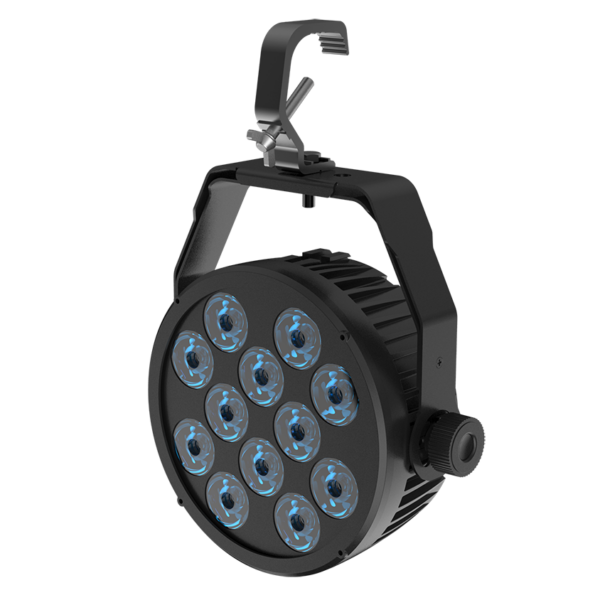

| Installation & Included Items | Horizontal or vertical mounting, universal working position (feet support with locking points, safety cable attachment point, power cable, digital manual) |
