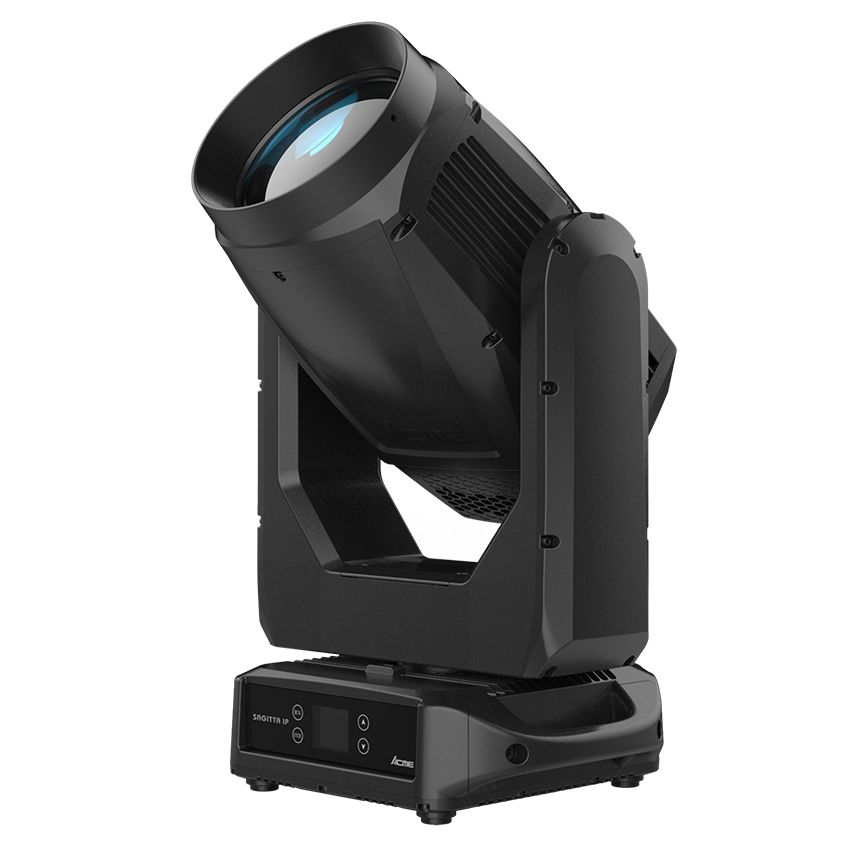

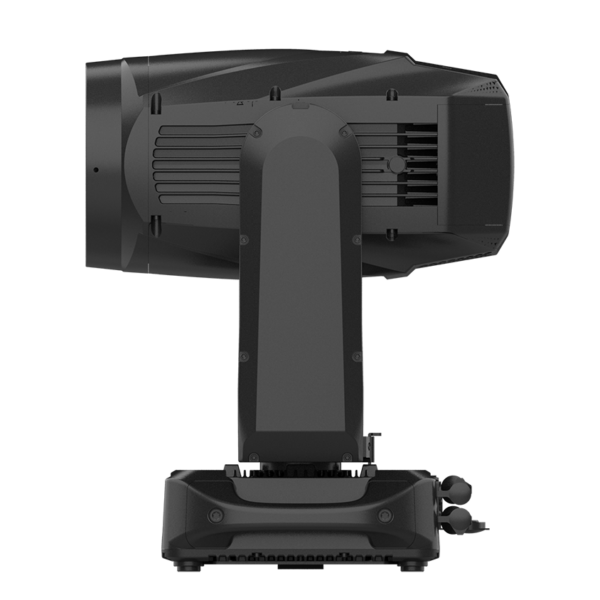

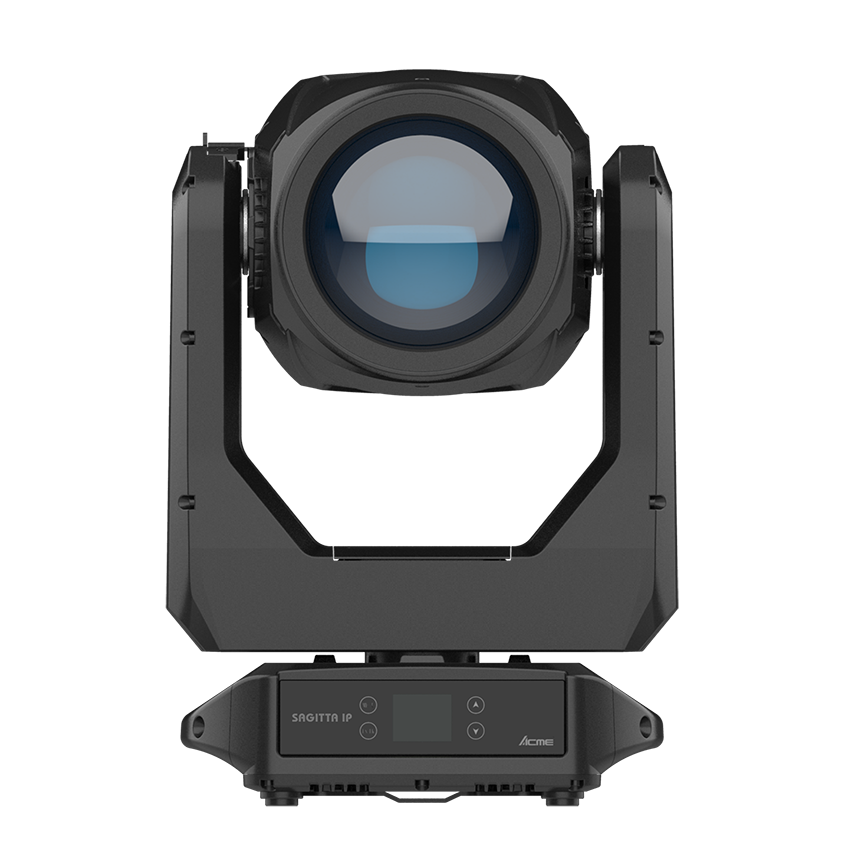

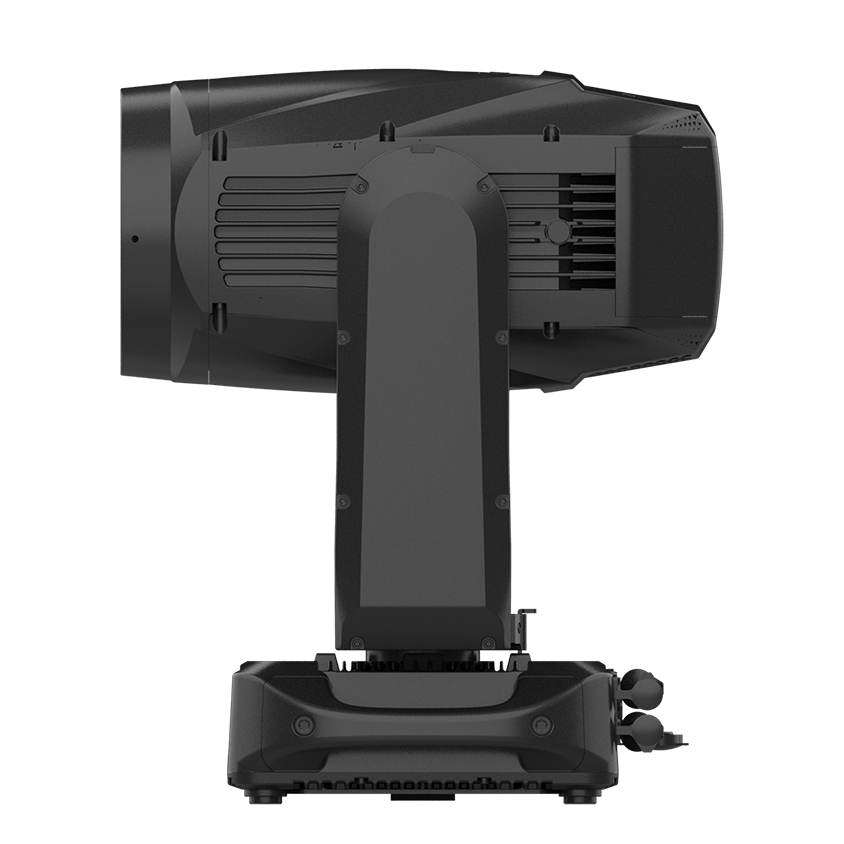

ACME SAGITTA IP BEAM

The ACME SAGITTA IP utilizes a PHILIPS MSD Platinum 18R LL discharge lamp (up to 6,000-hour long life expectancy), which produces brilliant 9,900 lumens of output at a color temperature of 7,800K.

As a high-performance fixture, the SAGITTA IP features a sharp 2° beam angle distributed from a large 170 mm frontal lens, creating precise and intense beam effects. Its fast 540° pan and 270° tilt add dynamism to any show.

The fixture has 14 colors, 10 static gobos, 3 effect gobos, 2 combinable rotating and indexable prisms, and 2 diffuser filters, providing unparalleled flexibility for lighting designers.

Combining beam, spot, color and frost effect in one compact luminaire, the SAGITTA IP is perfect for small to medium-sized events such as stages and fashion shows, making it a standout choice for lighting designers!

分類: Acme Lighting, Acme Lighting

描述

Technical Specifications
Light Source & Color
Light Source	PHILIPS MSD Platinum 18R LL Rated Life: 6,000 hours (manufacturer spec)
Color Temp Output	7,800K
Linear CTO Color Correction	2,800K–7,000K
Color Wheel	14 colors + open
Photometric Data & Optics
Total Lumen Output	9,900 lm
Beam Angle & Lens	Beam Angle: 2° Front Lens Diameter: 170 mm
Gobos, FX, Prisms & Effects
Static Gobos	1 Wheel (10 gobos + 3 effect gobos + open) \| Outer Dia: Φ110 mm
FX Wheel	3 effect gobos + open (overlapping static gobo wheel), provide two softening effects \| Outer Dia: Φ110 mm
Prisms, Frost & Diffuser	Prisms: 2 combinable rotating/indexable (1x 8-facet circular, 1x 24-facet linear) Frost: 1 frost filter \| Diffuser: 2 diffuser filters
Effects & Focus	Variable speed strobe effect, smooth 0–100% dimming (4 user curves), motorized focus system
Control & Electrical
Control Protocols & Channels	DMX512, RDM, Art-Net, sACN 3 DMX Protocol Modes / Channels: 16 / 19 / 20
Display & Firmware	4-touch button control panel with LCD display; firmware upgrade via DMX link or USB stick
Input Voltage & Power	100–240 Vac, 50/60 Hz Power Consumption: 570 W
Connectors	Power: Waterproof power connector in/out Data: 3-pin or 5-pin waterproof XLR, RJ45 connector
Pan & Tilt
Movement & Resolution	Pan: 540° \| Tilt: 270° (16-bit resolution) Automatic position correction
Physical, Packaging & Environment
Fixture Dimensions & Weight	357 x 274 x 616 mm (14.1″ x 10.8″ x 24.3″) \| Weight: 24 kg (53 lbs)
Packaging Options	Carton (One-pack): 550 x 475 x 645 mm (21.7″ x 18.7″ x 25.4″) \| G.W.: 30 kg (66.1 lbs) Flight Case (Standard Two-pack): 930 x 580 x 875 mm (36.6″ x 22.8″ x 34.5″) \| G.W.: 105 kg (231.5 lbs)
Operating Environment	Ambient Temp: -10°C to 40°C \| Max Surface Temp: 85°C Protection Rating: IP66
Approvals	CE compliant, UKCA compliant

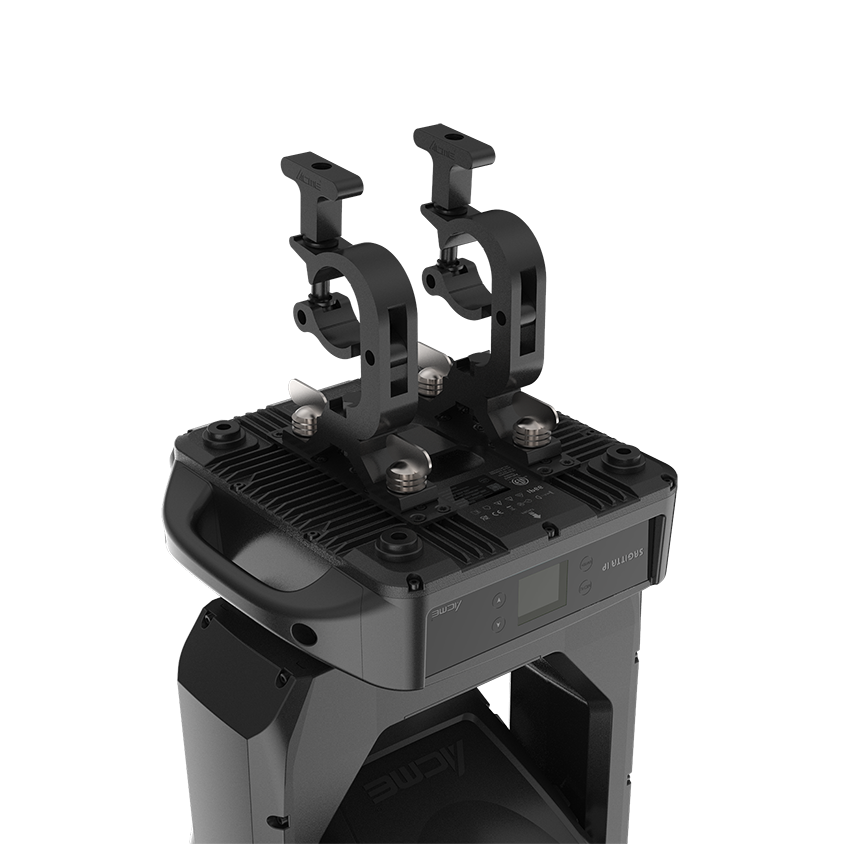

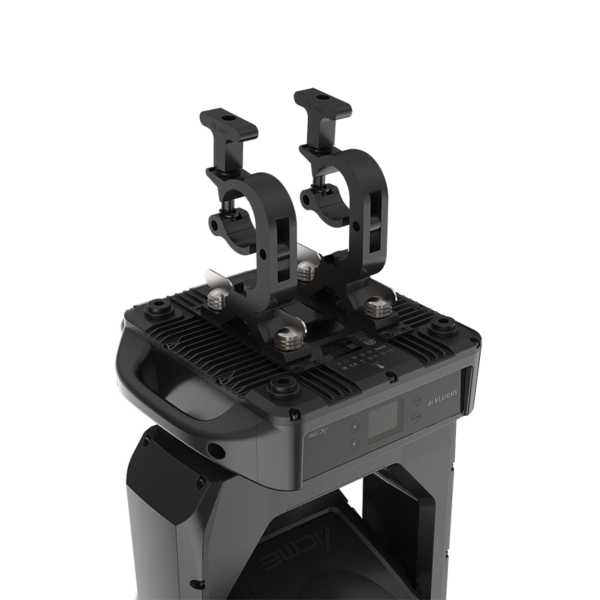

Installation & Rigging	Horizontal or vertical mounting, universal working position, safety cable point, 2x omega brackets
Included Items	Digital user manual, power cable, 2x omega brackets (3002003003)
