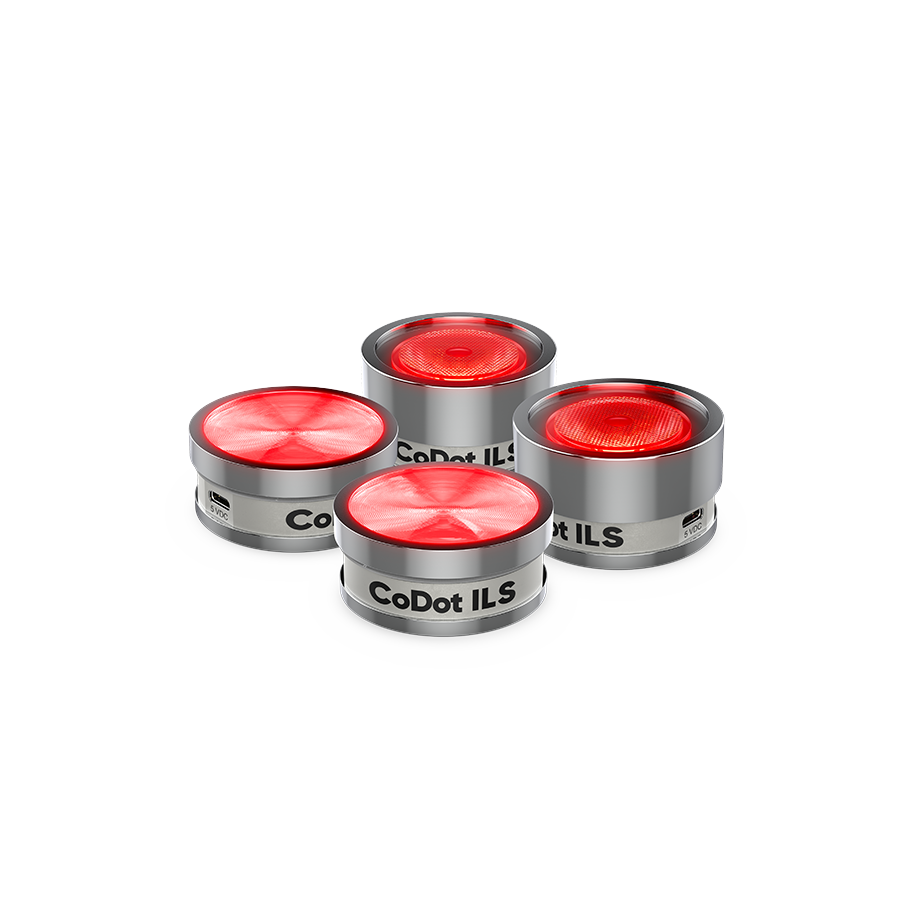

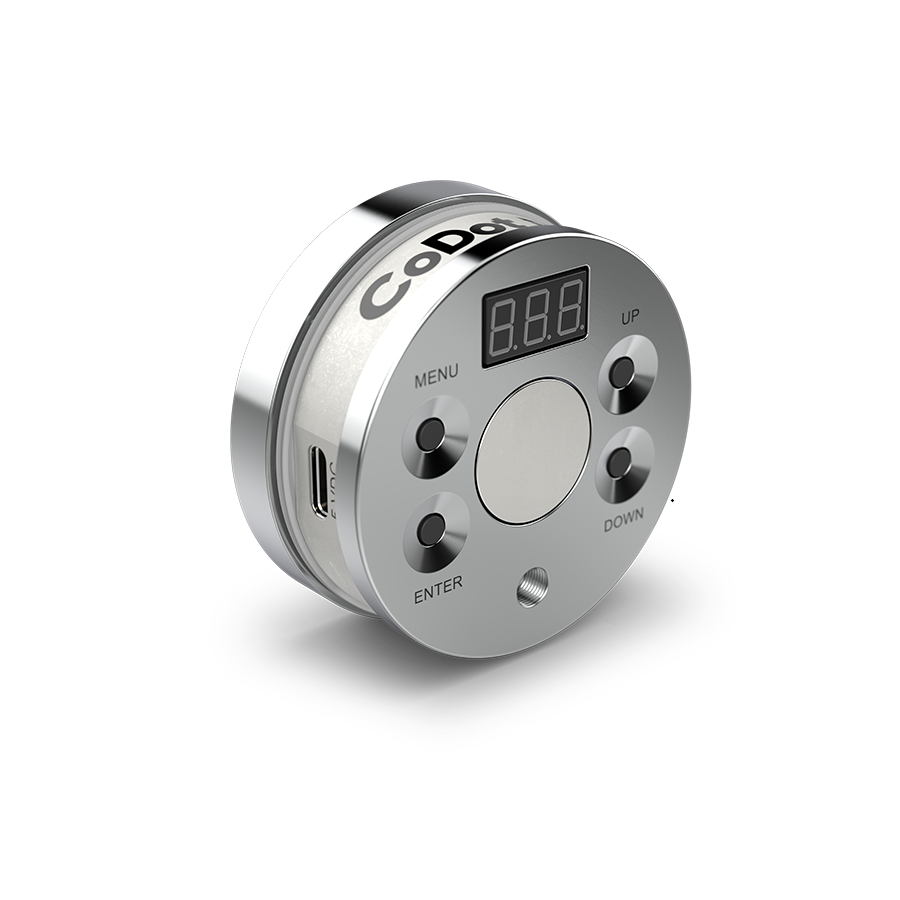

CHAUVET CoDot ILS

Coin-sized LED illuminator designed for small applications where conventional fixtures won’t fit
Includes two lens options to meet different application criteria
Magnetic base easily mounts to metal surfaces
Threaded insert is compatible with camera tripods and accessories
ILS compatibility for use in the ILS ecosystem
Built-in DFI transceiver communicates DMX or ILS signals wirelessly
Built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes
Easy navigation and access all functions directly from the LED display
Power linking multiple units from the USB type-C in and out

分類: Chauvet, Chauvet

Technical Specifications
Overview
Fixture Type	Professional Compact Wireless LED Accent Fixture
Light Source & Performance
Light Source	1 LED (quad-color RGBW) 3 W, (0.8 A), 50,000 hours life expectancy
Optics & Beam Angles	Beam Angle (installed lens): 19° Beam Angle (included lens): 14°
Illuminance	@ 2 m: 256 lux (installed lens) / 442 lux (included lens)
Strobe Rate	0 to 20 Hz
Control & Connectivity
DMX Channels	Channels: 4 or 6 Optional Controllers: ILS Command, RFC, RFC-XL
Wireless & Range	Operating Frequency: 2.4 GHz Max Unobstructed Distance: 600 ft (183 m)
Electrical & Power
Input Voltage & Power	Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging) Power and Current: 7 W, 0.1 A @ 120 V, 60 Hz; 7 W, 0.1 A @ 230 V, 50 Hz
Power Linking	4 units @ 120 V; 4 units @ 230 V
Physical & Certifications
Dimensions & Weight	Size: 2.2 x 2.1 x 0.9 in (57 x 54 x 24 mm) Weight: 0.2 lb (0.1 kg)
Hardware & Mounting	Threaded Insert: M6 thread
Approvals	CE, RoHS, UKCA, FCC
