| Technical Specifications | |
|---|---|
| Overview | |

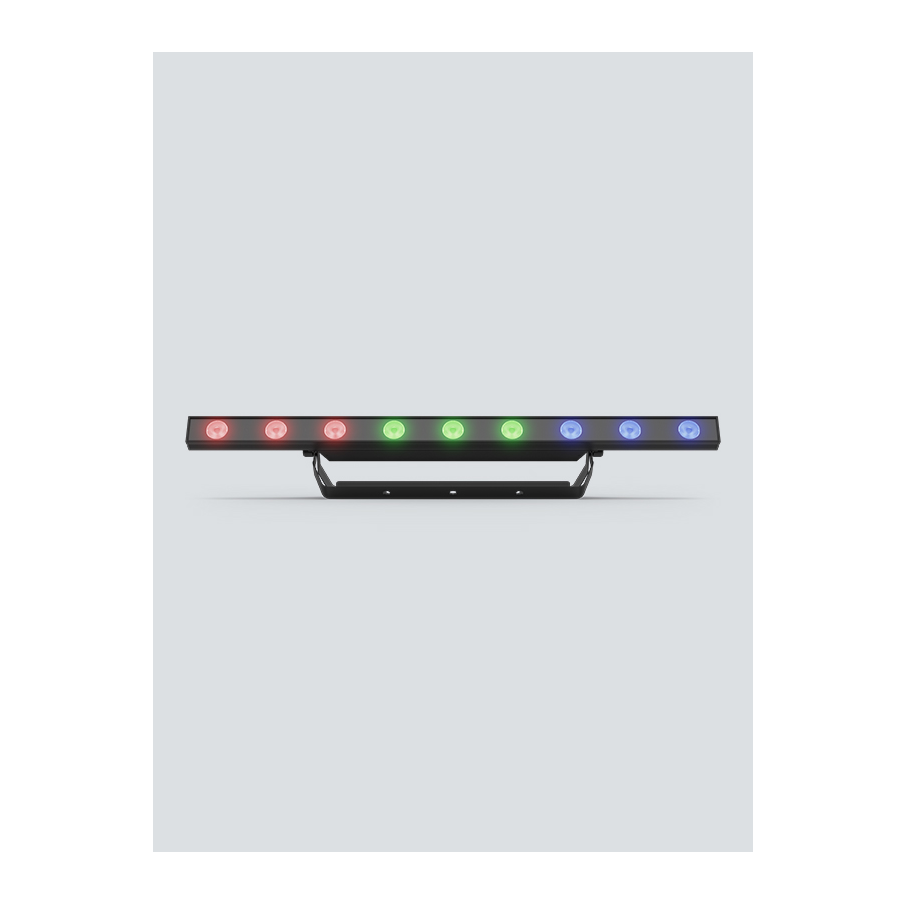

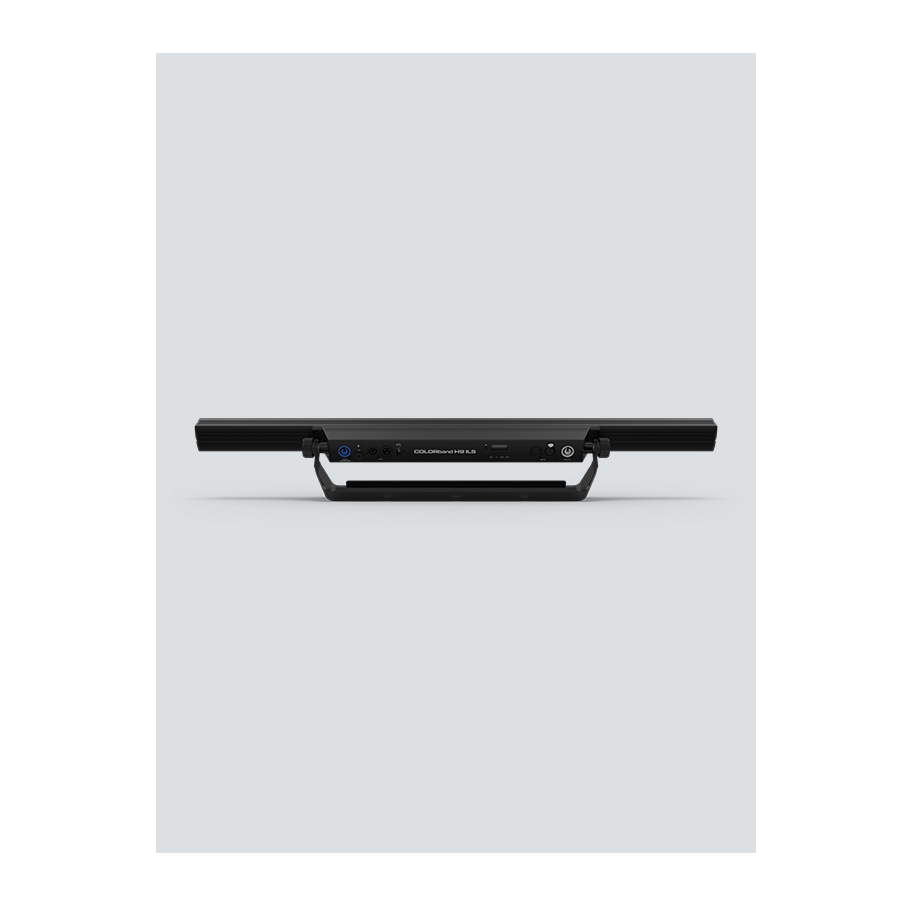

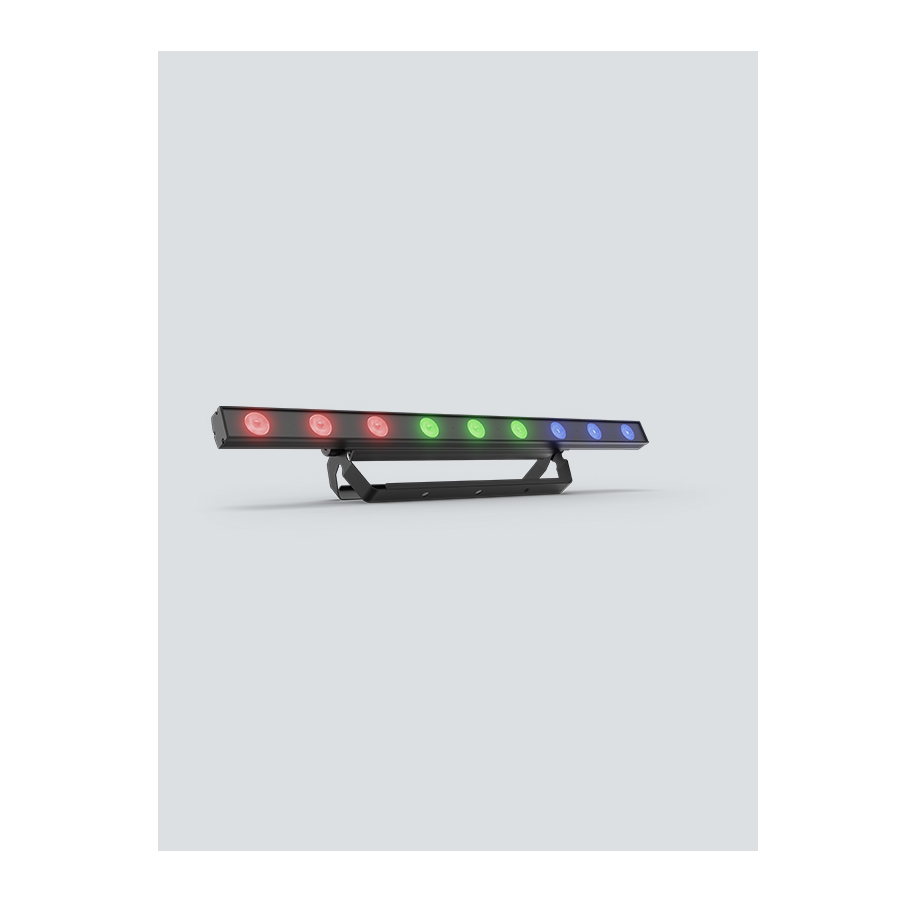

| Fixture Type | Professional LED Linear Bar Wash Fixture |
| Light Source & Performance | |
| Light Source | 9 LEDs (hex-color RGBWA+UV) 10 W, (1.09 A), 50,000 hours life expectancy |
| Optics & Coverage | Beam Angle: 23° Field Angle: 41° Lumens: 2,977 |
| Illuminance | @ 2 m: 3,529 lux |
| Strobe Rate | 0 to 16 Hz |
| Control & Connectivity | |
| DMX Channels & Connectors | Channels: 6, 9, 11, 18, or 23 Connectors: 3- and 5-pin XLR Optional Controllers: RFC, RFC-XL, D-Fi USB |
| Electrical & Power | |
| Input Voltage & Power | Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging) Power and Current: 80 W, 1.1 A @ 120 V, 60 Hz; 79 W, 0.6 A @ 230 V, 50 Hz |
| Power Linking | 12 units @ 120 V; 21 units @ 230 V |
| Physical & Certifications | |
| Dimensions & Weight | Size: 39.4 x 2.2 x 6.8 in (1000 x 56 x 172 mm) Weight: 7.2 lbs (3.3 kg) |
| Approvals | CE, UKCA, RoHS, MET |
