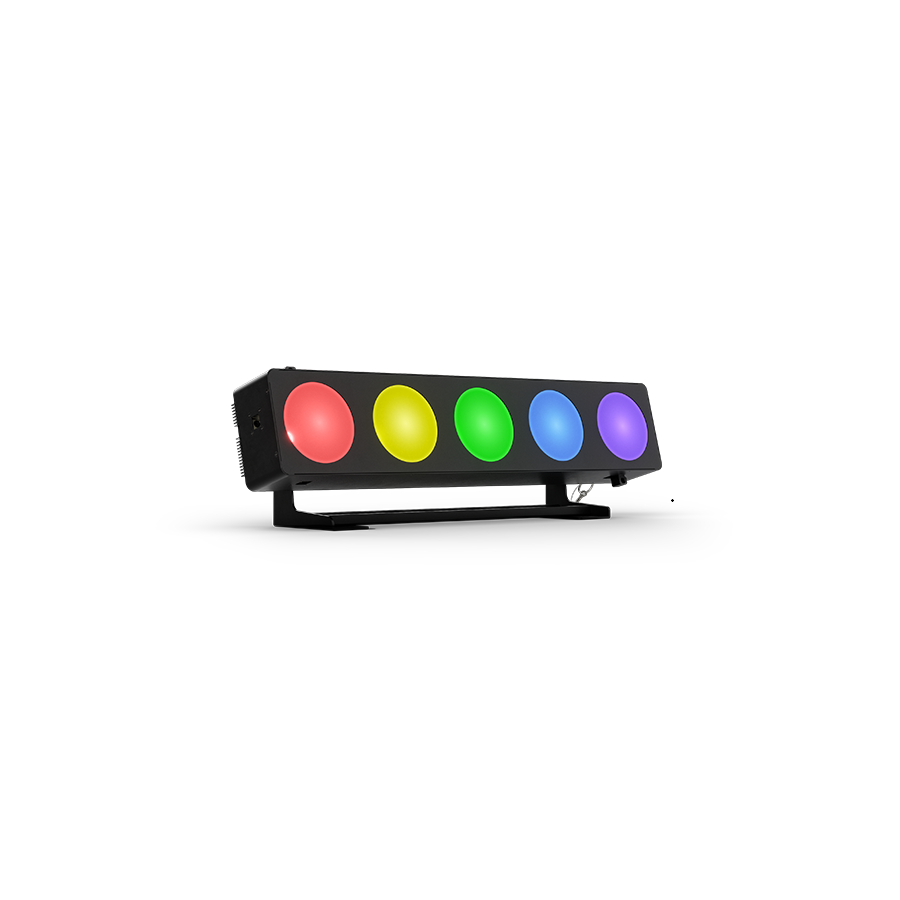

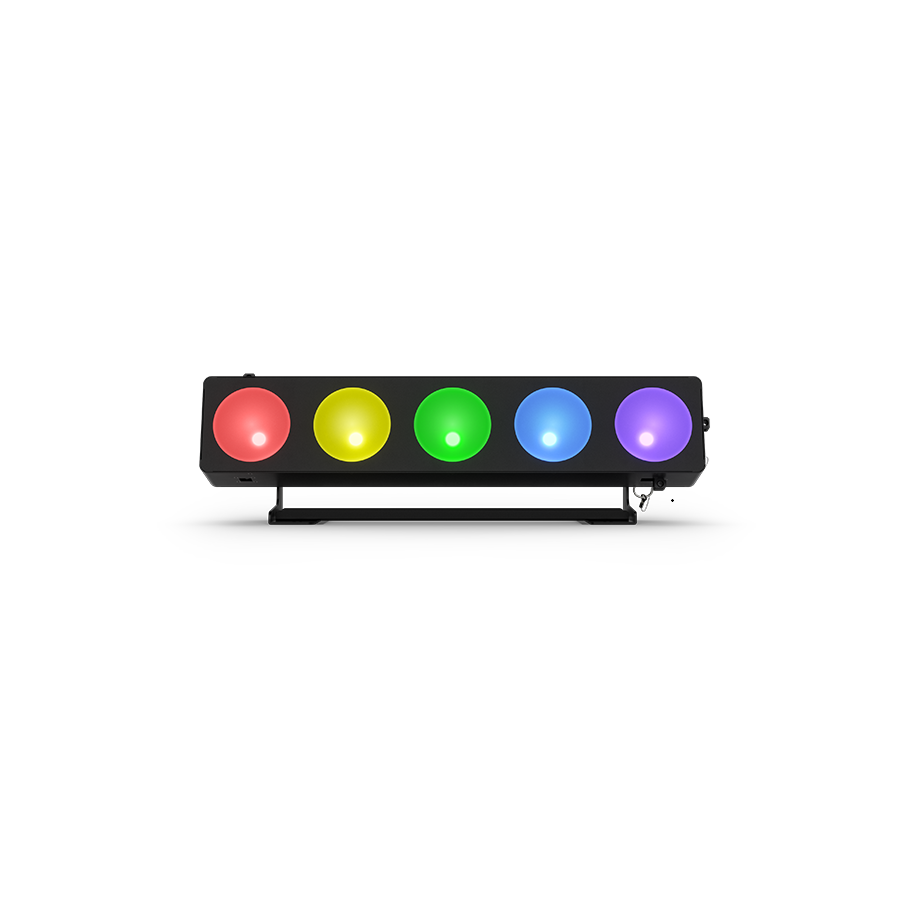

CHAUVET Core 5X1 ILS

Multi-purpose effect light functions as a pixel-mapping effect, chase effect, blinder, or wash light.
Attach multiple fixtures together using the built-in, toolless connecting hardware
ILS compatibility for use in the ILS ecosystem (D-Fi™ USB sold separately)
Connect up to 6 fixtures together vertically using the toolless linking hardware
Generates a broad spectrum of colors and achieves natural-looking color temperatures with COB technology
Withstand the harshness of traveling from gig to gig with a robust housing
Offers multiple control options, including stand-alone, DMX, ILS, RF, or master/slave

分類: Chauvet, Chauvet

Technical Specifications
Overview
Fixture Type	Professional LED Linear Wash Fixture
Light Source & Performance
Light Source	5 LEDs (quad-color RGB+WW) 35 W, (1.2 A), 50,000 hours life expectancy
Optics & Coverage	Beam Angle: 54° Field Angle: 75° Lumens: 2,875
Illuminance	@ 2 m: 953 lux
Strobe Rate	0 to 20 Hz
Control & Connectivity
DMX Channels & Connectors	Channels: 4, 8, or 22 Connectors: 3- and 5-pin XLR Optional Controllers: ILS Command, RFC, RFC-XL
Electrical & Power
Input Voltage & Power	Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging) Power and Current: 120 W, 1.8 A @ 120 V, 60 Hz; 113 W, 1.1 A @ 230 V, 50 Hz
Power Linking	6 units @ 120 V; 10 units @ 230 V
Physical & Certifications
Dimensions & Weight	Size: 23.6 x 3.1 x 4.7 in (600 x 79 x 120 mm) Weight: 11 lbs (5 kg)
Hardware & Mounting	Cable Length: 5 ft (1.52 m) Bracket Mounting Hole: 13 mm
Approvals	CE, RoHS

Highlights
